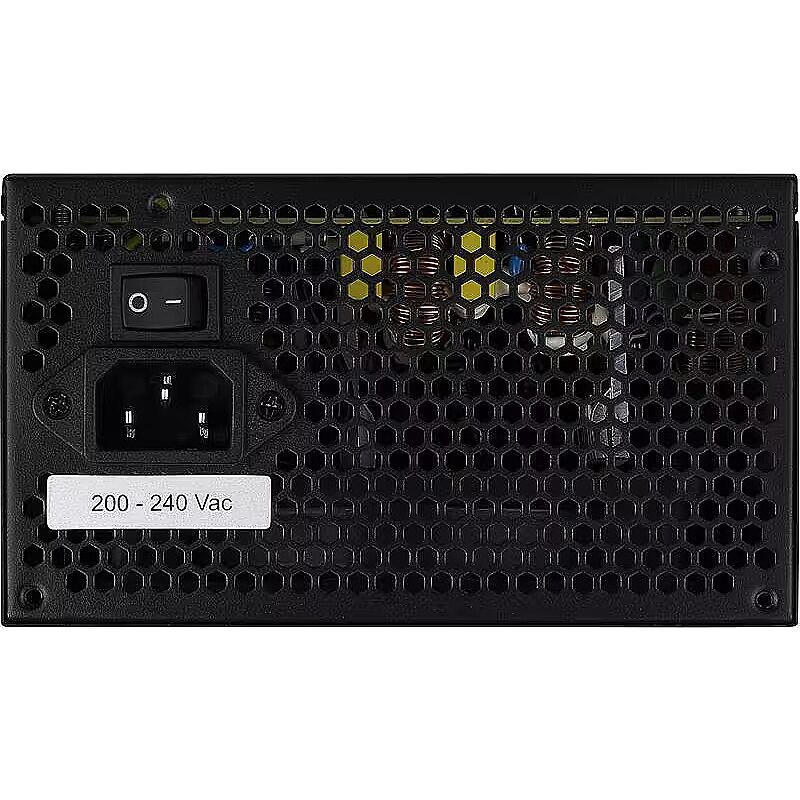

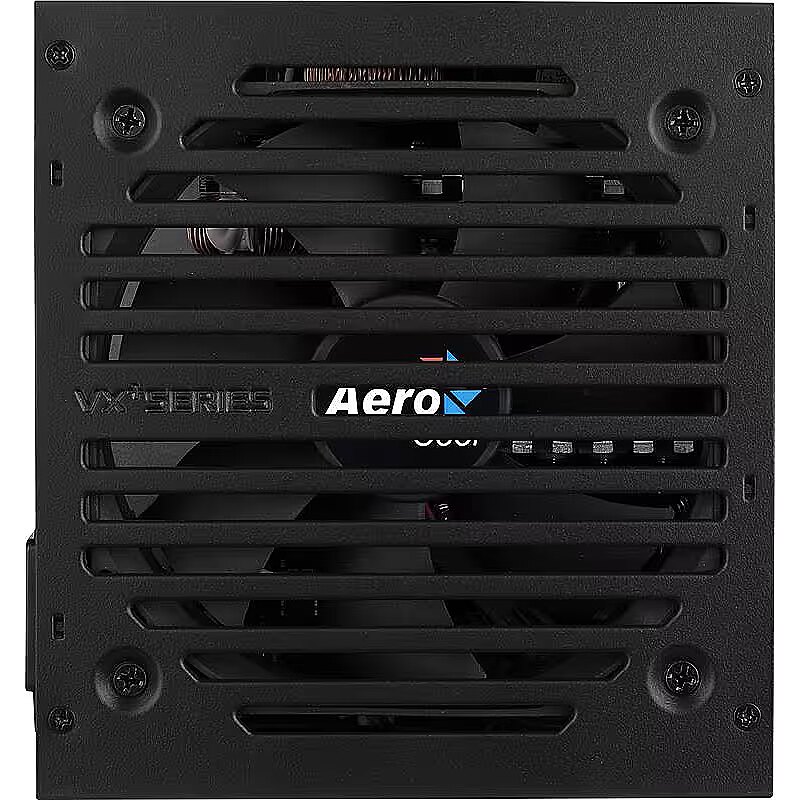

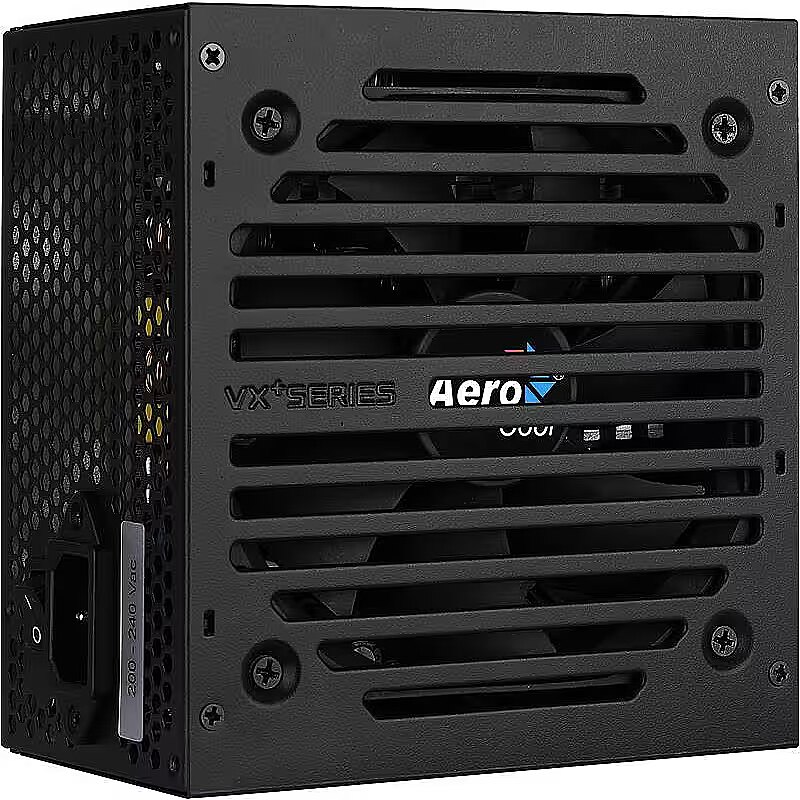

Aerocool VX 500 PLUS, 500W

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 472137 Product code: AEROPGSVX-500PLUS-80
Can be ordered 31 units Availability: 14 days after order approval
Warranty: 2 years
46.38 €
Main product parameters All parameters
  • Producer: Aerocool
  • Power output: 500W
  • 80 PLUS certification: Nav
  • Fan size: 120 mm
  • Modular cables: Nav
  • Processor plug-in: 1 x 8-pin(4+4) EPS
  • PCI-E: 1 X 6+2pin
Description

120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.

The color of this power supply is Melna. The cable color is Raiba and they are flat.

ATX 2.0 standard, which is assigned to this power supply unit, ensures that the unit is equipped only with 6-pin and 8-pin connectors (with respective power of 75W and 150W). For a system with a very powerful graphics card (such as RTX 4070), an ATX 3.* standard unit will be required, and ATX 2.0 will not be sufficient.

This power supply has no removable cables and all cables are attached to the power supply. It has a simple design, but it works just as well as a power supply with modular cables.

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 500W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : Nav
Total amperage (+12V) : 38A
Fan size : 120 mm
Functionality
Cable colour : Raiba
Lighting : Nav
Color : Melna
Modular cables : Nav
Ports and equipment
PCI-E 5.0 : Nav
Processor plug-in : 1 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 1 X 6+2pin
SATA cconnectors : 3
4pin Molex : 3
Case
More detailed specification
Additional information in manufacturers website Aerocool VX 500 PLUS, 500W
8-pin 12V power connectors - 0
Accessories included -
Category - Root/Electronics/PC parts/PC power supply units
Certificates 80+ - None
Description - Zasilacz VX PLUS 500W ATX Koncentrując się na dostarczaniu zasilacza o najlepszej wartości, VX PLUS umożliwia łatwą instalację, zapewniając jednocześnie niezawodną jakość i doskonałą wydajność, co czyni go idealnym zasilaczem dla początkujących konstruktorów systemów. Jest wyposażony w ulepszony transformator i 12-centymetrowy wentylator ze zoptymalizowaną termiczną kontrolą prędkości. Najlepszy zasilacz dla początkujących konstruktorów systemów Kompatybilny z ATX 12V 2.3 Zmodernizowany transformator pozwala na obsługę ciężkich systemów ładowania 12V Potężna pojedyncza linia +12V oferuje kompatybilne wyjście DC Cichy wentylator 12 cm ze zoptymalizowaną termiczną kontrolą prędkości wentylatora Zabezpieczenie elektryczne OPP/OVP/UVP/SCP/SIP w zestawie
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
dimensionalWeight - 1008
dimension depth - 95 mm
dimension height - 235 mm
Dimensions - 85 x 150 x 140 mm
dimension weight - 1283 g
dimension width - 200 mm
ean - 4718009159341
Eans - 4718009159341
Fan - 12 cm
Floppy power connectors - 0
guarantee - 24
guarantee_type - normal
MB power connector - 20 + 4 pin
Modular power supply - No
MOLEX power connectors - 3
Name - AEROCOOL AEROPGSVX-500PLUS-80 AEROCOOL
name - Power supply VX PLUS 500W ATX
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 1
Other features -
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS
Performance - ATX power connector (20+4 pin) - Yes
Performance - ATX version - 2.3
Performance - Connector(s) - FDD
Performance - CPU power connector (4+4 pin) - Yes
Performance - Number of SATA power connectors - 3
Performance - PCI Express power connectors (6+2 pin) - 1
Performance - Peripheral (Molex) power connectors (4-pin) - 3
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance - Supported motherboard form factors - ATX
PFC - Active
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 115 - 230 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 456 W
Power - Combined power (-12V) - 3.6 W
Power - Input current - 4 - 8 A
Power - Max output current (+3.3V) - 18 A
Power - Max output current (+5V) - 16 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 38 A
Power - Max output current (-12V) - 0.3 A
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 500 W
Power supply - 500 W
producer - AeroCool
Producer - AeroCool
producerCode - AEROPGSVX-500PLUS-80
ProducerCode - AEROPGSVX-500PLUS-80
productName - Aerocool VX-500W ATX power supply module Black
productSize - Normal
SATA power connectors - 3
ShortDescription - AEROCOOL VX-500 PLUS Zasilacz ATX 500W, 12cm wentylator, aktywne PFC
sizeX - 100
sizeY - 210
sizeZ - 240
vendpn - AEROPGSVX-500PLUS-80
warrantyLength - 24
warrantyType - G
weight - 1300
46.38 €
