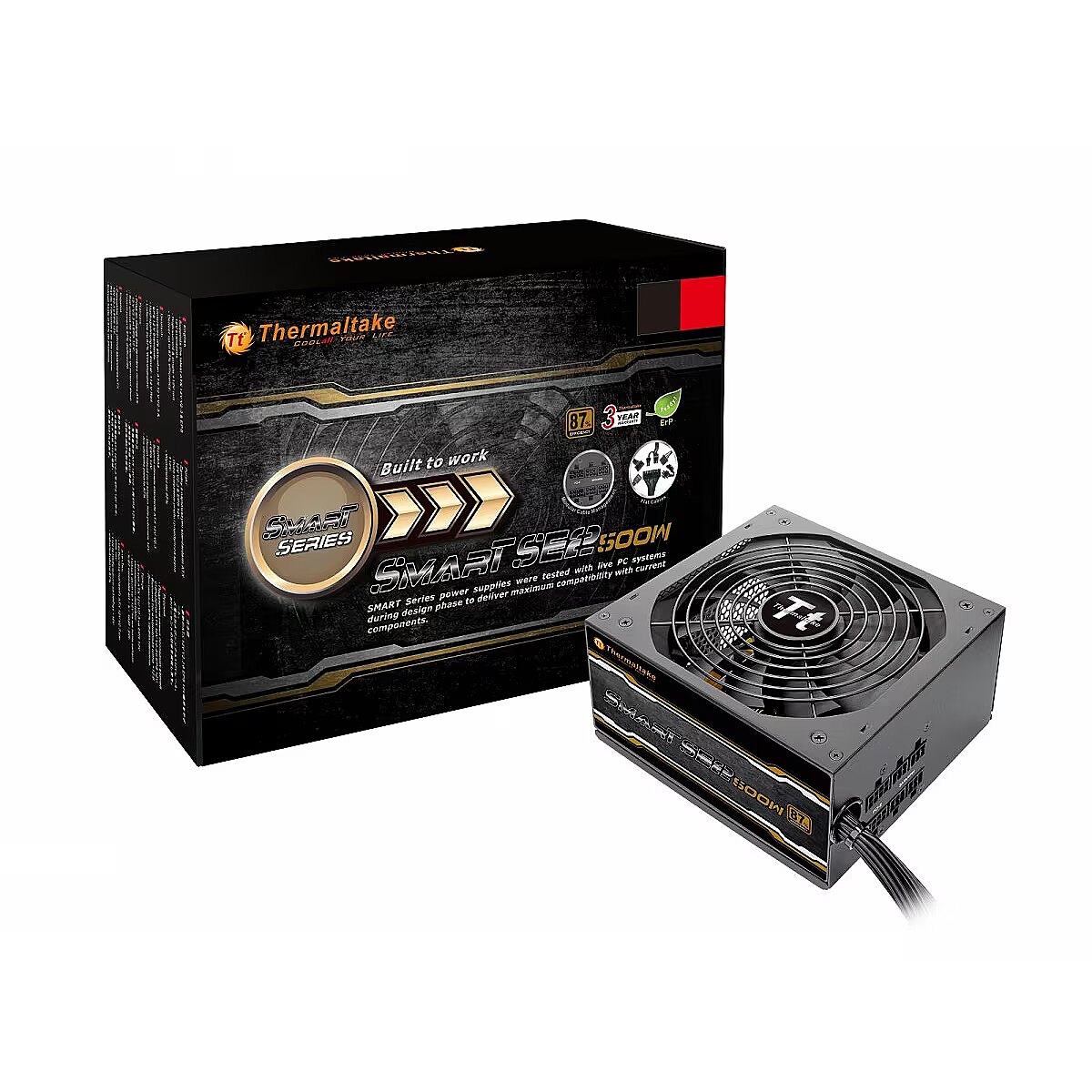

Thermaltake Smart SE2, 500W, 80PLUS Bronze

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 349432 Product code: PS-SPS-0500MNSAWE-1
Can be ordered 15 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
57.13 €
Main product parameters All parameters
  • Producer: Thermaltake
  • Power output: 500W
  • 80 PLUS certification: 80 PLUS Bronze
  • Fan size: 120 mm
  • Modular cables: Semi-Modular
  • Processor plug-in: 1 x 8-pin(4+4) EPS
  • PCI-E: 2 X 6+2pin
Description

Available for purchase is a power supply produced by Thermaltake with a power output of 500W. The product has been awarded an 80 PLUS Bronze energy efficiency certificate.

120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.

80 PLUS Bronze energy efficiency certificate, received by this power supply unit, guarantees at least 85% efficiency at 50% load. In other words, for every 100 W of energy the power supply unit receives from the electrical grid, at least 85 W goes to your computer components, while the remaining 15 W is lost as heat.

The color of this power supply is Melna. The cable color is Melna and they are flat.

This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.

This power supply has semi-modular cables. Some cables are permanently attached, while others can be added or removed as needed. The power supply is suitable for users who want some flexibility but do not want a fully modular system.

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 500W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Bronze
Total amperage (+12V) : 35A
Fan size : 120 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Semi-Modular
Ports and equipment
PCI-E 5.0 : Nav
Processor plug-in : 1 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 2 X 6+2pin
SATA cconnectors : 5
4pin Molex : 4
Case
More detailed specification
8-pin 12V power connectors - 0
Accessories included -
Category - Root/Electronics/PC parts/PC power supply units
Certificates 80+ - Equivalent 80 PLUS Bronze
Description -
dimension depth - 95 mm
dimension height - 200 mm
Dimensions - 86 x 150 x 140 mm
dimension weight - 2071 g
dimension width - 270 mm
ean - 4713227520911
Eans - 4713227520911
Fan - 12 cm
Fan speed (max) - 1800 rpm
Floppy power connectors - 1
guarantee - 36
guarantee_type - statutory
MB power connector - 24 pin
Modular power supply - Semi
MOLEX power connectors - 4
name - Power supply -Smart SE2 500W Modular (spr. 87%, Single Rail)
Name - Thermaltake Smart SE2 500W Modular
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 2
Other features -
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
PFC - Active
Power supply - 500 W
producer - Thermaltake
Producer - Thermaltake
ProducerCode - PS-SPS-0500MNSAWE-1
SATA power connectors - 5
ShortDescription - 500 | ATX | 120mm | 20+4 | 140mm x 86mm x 150mm | modularny
vendpn - PS-SPS-0500MNSAWE-1
