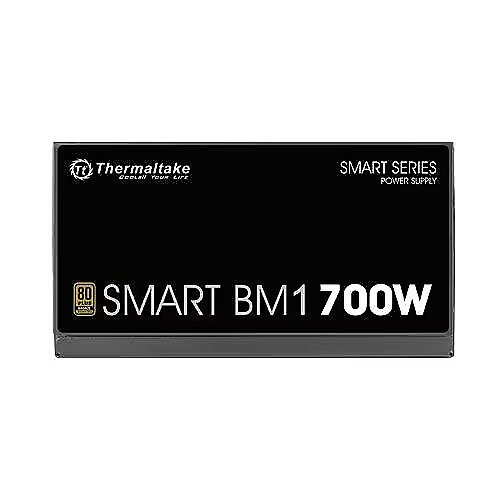

Thermaltake Smart BM1, 700W, 80PLUS Bronze

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 343326 Product code: PS-SPD-0700MNSABE-1
Can be ordered 8 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
78.79 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: 27.11.2024
Main product parameters All parameters
  • Producer: Thermaltake
  • Power output: 700W
  • 80 PLUS certification: 80 PLUS Bronze
  • Fan size: 140 mm
  • Modular cables: Semi-Modular
  • Processor plug-in: 1 x 8-pin(4+4) EPS
  • PCI-E: 4 X 6+2pin
Description

Available for purchase is a power supply produced by Thermaltake with a power output of 700W. The product has been awarded an 80 PLUS Bronze energy efficiency certificate.

With 700W power, it will be sufficient for a good mid-level gaming experience. The power supply unit will be able to run a computer with a high-class processor, a powerful mid-range graphics card (for example, RTX 4070), and several drives (SSD/HDD).

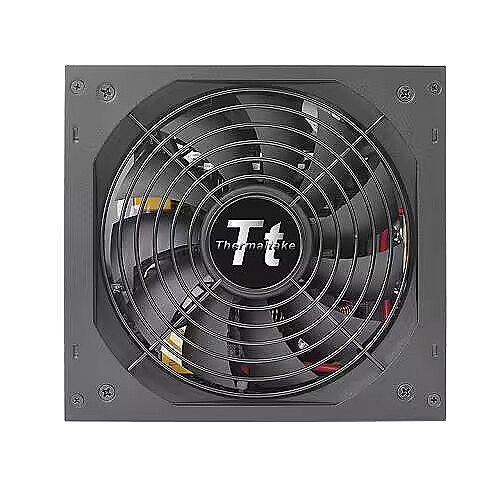

This power supply unit is equipped with a 140 mm fan. Thanks to its massive size, it will provide excellent airflow, better cooling even at lower speeds, and will be noticeably quieter than a standard 120 mm fan.

The power supply has received the 80 PLUS Bronze energy efficiency certificate, which guarantees at least 85% efficiency at 50% load. This means that for every 100W of power the power supply draws from the electrical grid, at least 85W is delivered to your computer components, while the remaining 15W is lost as heat.

The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.

This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.

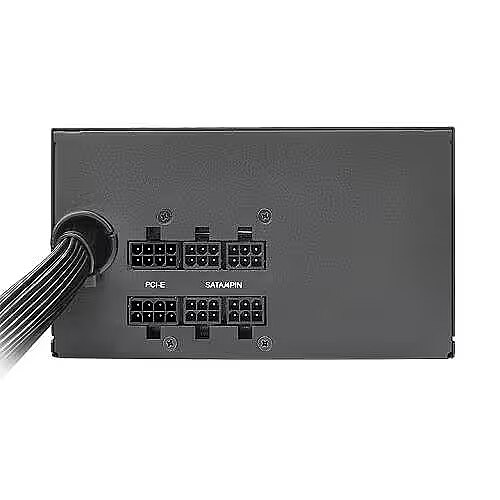

The power supply unit's cables are partially modular. Some cables can be attached or removed as needed, while others are fixed. This unit is intended for those who want a certain level of flexibility but do not want a fully modular system.

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 700W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Bronze
Total amperage (+12V) : 54A
Fan size : 140 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Semi-Modular
Ports and equipment
PCI-E 5.0 : Nav
Processor plug-in : 1 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 4 X 6+2pin
SATA cconnectors : Eight Core
4pin Molex : 4
Case
More detailed specification
8-pin 12V power connectors - 0
Accessories included -
Category - Root/Electronics/PC parts/PC power supply units
Certificates 80+ - 80 PLUS Bronze
Description -
dimension depth - 95 mm
dimension height - 200 mm
Dimensions - 150 x 86 x 160 mm
dimension weight - 2310 g
dimension width - 270 mm
ean - 4713227520904
Eans - 4713227520904
Fan - 14 cm
Floppy power connectors - 1
guarantee - 36
guarantee_type - statutory
MB power connector - 24 pin
Modular power supply - Semi
MOLEX power connectors - 4
name - Power supply -Smart BM1 700W Modular (80+ Bronze, Single Rail)
Name - Thermaltake Smart BM1 700W
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Other features -
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
PFC - Yes
Power supply - 700 W
producer - Thermaltake
Producer - Thermaltake
ProducerCode - PS-SPD-0700MNSABE-1
SATA power connectors - 8
ShortDescription - 700 | ATX | 120mm | 20+4 | 86mm x 150mm x 160mm | modularny | 80+ Bronze EU
vendpn - PS-SPD-0700MNSABE-1
