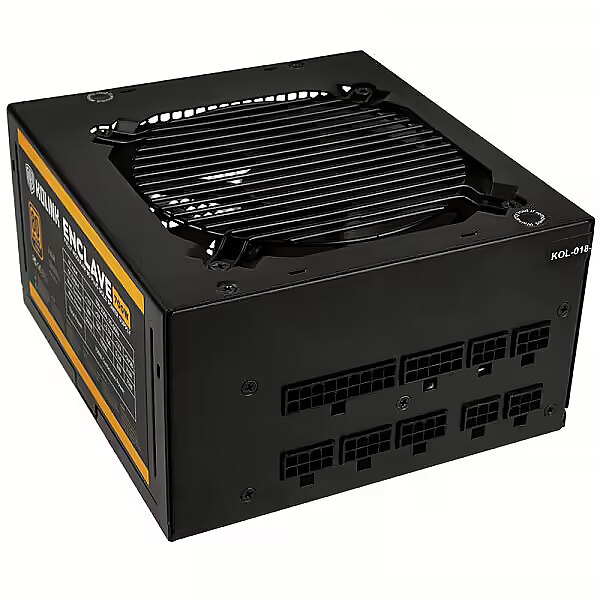

Kolink Enclave Series, 700W, 80PLUS Gold

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 342747 Product code: KL-G700FM
Can be ordered 50 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
84.95 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: 27.11.2024
Main product parameters All parameters
  • Producer: Kolink
  • Power output: 700W
  • 80 PLUS certification: 80 PLUS Gold
  • Fan size: 120 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 1 x 8-pin(4+4) EPS
  • PCI-E: 4 X 6+2pin
Description

Available for purchase is a power supply produced by Kolink with a power output of 700W. The product has been awarded an 80 PLUS Gold energy efficiency certificate.

For polite mid-range computer game playing, a power supply with a 700W capacity will be suitable. This unit can power a computer with a powerful mid-range graphics card (for example, RTX 4070), multiple SSDs and hard drives, and a high-end processor.

120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.

The power supply has been awarded the 80 PLUS Gold energy efficiency certificate, which provides at least 90% efficiency at 50% load. This indicates that at least 90 W out of 100 W of power drawn from the electrical grid by the power supply is delivered to the computer components, with the remaining 10 W lost as heat.

The color of the block is Melna. The block has flat cables, whose color is Melna.

This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.

This power supply unit has fully-modular cables (Fully-modular) – you can connect and disconnect all the included cables as needed, reducing clutter and improving ventilation. This will be useful for those with a partially transparent computer case and for whom the aesthetic factor is particularly important.

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 700W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Gold
Total amperage (+12V) : 58A
Fan size : 120 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Fully-Modular
Ports and equipment
PCI-E 5.0 : Nav
Processor plug-in : 1 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 4 X 6+2pin
SATA cconnectors : Eight Core
4pin Molex : 4
Case
More detailed specification
Category - Datortehnika :: Datoru komponentes :: Barošanas bloki (PSU)
category - PC Components|Power Supplies|Modular Power Supplies
Category - Root/Electronics/PC parts/PC power supply units
Code - KL-G700FM
code - KL-G700FM
Desc - Jauda: 700W, Energoefektivitāte: 80 Plus Gold, PFC: Aktīvs, Ventilators: 120mm, SATA pieslēgumi: 8, MOLEX PATA pieslēgumi: 4, PCI-E: 4 x 6 + 2 PIN, Garantija: 2 gadi
EAN - 5999094002432
ean - 5999094002432
Eans - 5999094002432
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_74335_1.jpg
LargeDescHTML - KOLINK ENCLAVE - 700WThe Enclave Series from Kolink represents a new series of high-performance power supplies with 80 PLUS Gold certification. The premium quality components, advance design and powerful 12V single-rail ensure robust and reliable power delivery as well as precise voltage regulation. The premium quality power supply is rounded off by the welcome addition of fully modular cable management as well as a whisper-quiet 120 mm fan.  The Kolink Enclave 80 PLUS Gold PSU Rated for 700 Watts at a Glance:  700 Watt PSU with powerful 58A single rail
 High efficiency thanks to 80 PLUS Gold certification
 Quiet 120 mm fan
 Fully modular cable management with flat cables
 Four 6+2-Pin PCIe connectors for graphics cards
 Eight SATA- and four Molex connectors   The Kolink Enclave 80 PLUS Gold PSU Rated at 700 Watts in Detail The advanced design and the use of high-quality components mean that Kolink has been able to produce an efficient and high-performance power supply in the form of the Enclave 80 PLUS Gold 700W. To this end, the manufacturer has opted for LLC transformers and DC-DC technology alongside independent voltage regulation. This combination also provides benefits to the unit’s operating efficiency as well as the precision with which voltages are regulated, particularly when it comes to asymmetric loads.  As a result, the Enclave is capable of outputting nearly its entire rated power delivery through the +12 Volt rail if necessary. This can be up to 48A and means that all your high-performance components are kept well-supplied with all the power they need. The high operating effectiveness means that it meets the criteria for 80 PLUS Gold certification as well as an average efficiency of 92 percent when used on a European 230 Volt network.  In terms of cooling, the units use a slow-spinning 120 mm fan with ultra-durable rifle bearings. Apart from the impressive performance specifications, the Kolink Enclave 700W isn’t short of connectivity options either: in addition to a 20+4-Pin ATX- and a 4+4-Pin 12V EPS connector, there are four 6+2-Pin PCIe connectors for powering your graphics cards. Additional components are powered by means of eight SATA- and four Molex connectors.
Name - Kolink Enclave - 700W
name - Kolink Enclave 80 PLUS Gold PSU, modular - 700 Watt
Name - Kolink Enclave 700W
Producer - Kolink
ProducerCode - KL-G700FM
ShortDescription - 700 | ATX | 120 mm | 20 + 4 pin | 150 x 86 x 160 mm | 80 Plus Gold | modularny
