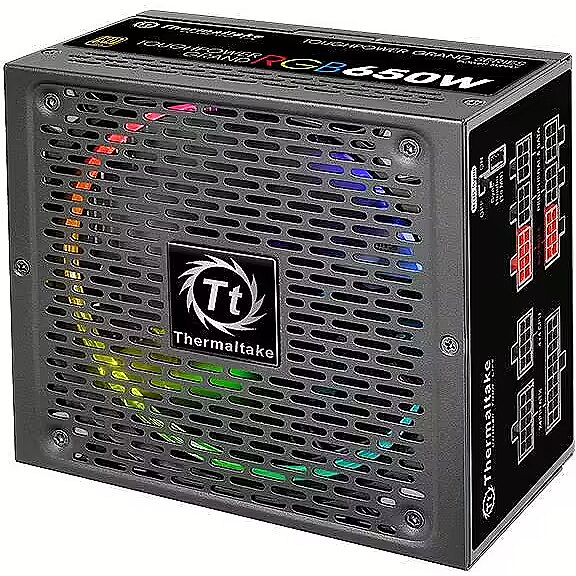

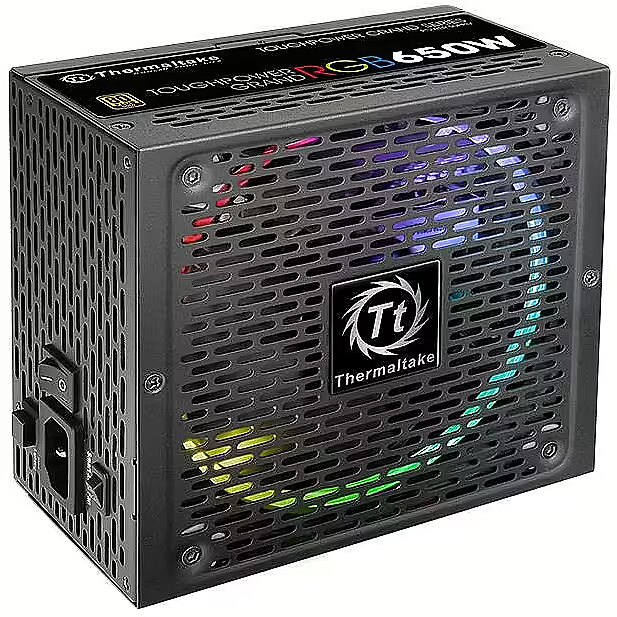

Thermaltake Toughpower Grand RGB Sync, 650W, 80PLUS Gold

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 333896 Product code: PS-TPG-0650FPCGEU-S
Can be ordered 7 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
113.03 €
Main product parameters All parameters
  • Producer: Thermaltake
  • Power output: 650W
  • 80 PLUS certification: 80 PLUS Gold
  • Fan size: 140 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 1 x 8-pin(4+4) EPS
  • PCI-E: 4 X 6+2pin
Description

This Thermaltake brand power supply unit has an 80 PLUS Gold energy efficiency certificate and a power output of 650W.

650W power is sufficient for web browsing, Microsoft Office, and playing simple computer games. The power supply can run a computer with one or two hard drives, a mid-range graphics card (such as the GTX 1650), and a mid-range processor. If you are a serious computer games enthusiast, buy a more powerful power supply.

This power supply unit is equipped with a 140 mm fan. Thanks to its massive size, it will provide excellent airflow, better cooling even at lower speeds, and will be noticeably quieter than a standard 120 mm fan.

The power supply has received the 80 PLUS Gold energy efficiency certificate, which guarantees at least 90% efficiency at 50% load. This means that for every 100W of power received from the electrical grid, at least 90W is delivered to your computer components, and the remaining 10W is lost as heat.

The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.

This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.

The power supply has a Cybenetics A - noise level certificate, which means that its noise level is 25-30 dB.

This power supply has modular cables, which provide the possibility to add video card cables, hard disk cables, etc. as needed from the supplied range. This way, the wire clutter in the computer is reduced, improving ventilation and the aesthetic factor (particularly important for those who purchase a partially transparent case).

The power supply unit has RGB lighting.

Basic information
Cybenetics Efficiency certification : Cybenetics Gold
Cybenetics Noise level certification : Cybenetics A -
Power supply type : ATX
Power output 650W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Gold
Total amperage (+12V) : 54.2A
Fan size : 140 mm
Functionality
Cable colour : Melna
Lighting : RGB
Color : Melna
Modular cables : Fully-Modular
Ports and equipment
PCI-E 5.0 : Nav
Processor plug-in : 1 x 8-pin(4+4) EPS
Motherboard power : 24-pin
PCI-E : 4 X 6+2pin
SATA cconnectors : 9
4pin Molex : 4
Case
More detailed specification
8-pin 12V power connectors - 0
Accessories included - Cable RGB Sync
Certificates 80+ - 80 PLUS Gold
Description - Power supply Toughpower Grand RGB Sync 650W Mod.(80+ Gold, 4xPEG, 140mm)
dimension depth - 165 mm
dimension height - 325 mm
Dimensions - 150 x 86 x 160 mm
dimension weight - 2850 g
dimension width - 220 mm
ean - 841163002551
Fan - 14 cm
Floppy power connectors - 1
guarantee - 60
guarantee_type - statutory
MB power connector - 24 pin
Modular power supply - Yes
MOLEX power connectors - 4
name - Power supply Toughpower Grand RGB Sync 650W Mod.(80+ Gold, 4xPEG, 140mm)
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Other features -
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
PFC - Active
PFC - Yes
Power supply - 650 W
producer - Thermaltake
SATA power connectors - 9
vendpn - PS-TPG-0650FPCGEU-S
