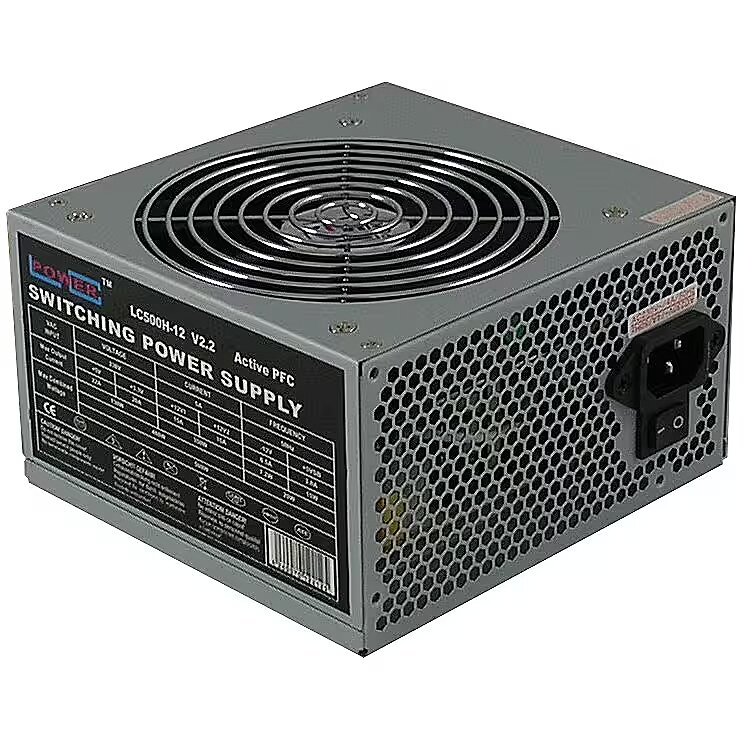

Lc-power LC500H-12 v2.2

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 232510 Product code: LC500H-12
Can be ordered 20 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
38.92 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: 27.11.2024
Main product parameters All parameters
  • Producer: LC-POWER
  • Power output: 500W
  • 80 PLUS certification: Nav
  • Fan size: 120 mm
  • Modular cables: Nav
  • Processor plug-in: 1 x 8-pin(4+4) EPS
  • PCI-E: 1 X 6pin
Description

120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.

The color of the power supply is Sudraba. It is equipped with flat cables, whose color is Raiba.

This power supply unit has been assigned the ATX 2.0 standard. This means that the unit is equipped only with 6-pin and 8-pin connectors, providing 75W and 150W power respectively. It's important to note that this unit will be compatible with RTX 4070 and more powerful cards, but you will need to use the 2x8-pin to 16-pin 12VHPWR adapter included with the graphics card. ATX 2.0 power connectors are not designed to handle the high power fluctuations of modern graphics cards; therefore, if you are building a system with a powerful GPU, such as the RTX 4070, we recommend choosing a power supply unit with the ATX 3.* standard and 12VHPWR (PCIe 5.0) connector.

The power supply unit does not have modular cables; all cables are attached to the power supply unit and are not removable. Despite this, it will work just as well as a power supply unit with modular cables.

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 500W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : Nav
Total amperage (+12V) : 15A
Fan size : 120 mm
Functionality
Cable colour : Raiba
Lighting : Nav
Color : Silver
Modular cables : Nav
Ports and equipment
PCI-E 5.0 : Nav
Processor plug-in : 1 x 8-pin(4+4) EPS
Motherboard power : 24-pin
PCI-E : 1 X 6pin
SATA cconnectors : 4
4pin Molex : 2
Case
More detailed specification
Category - Root/Electronics/PC parts/PC power supply units
Category 1 - Netzteile
Certificates - CE
Description - LC-POWER SUPPLY 500W LC500H-12
500W max./peak power
120mm fan
1x PCI-Express 6 pin
Has security PFC and other electrical protection.
dimension depth - 95 mm
dimension height - 205 mm
Dimensions - 85 x 150 x 140mm
dimension weight - 1360 g
dimension width - 155 mm
ean - 4260070122125
EAN - 4260070122125
Eans - 4260070122125
Gross Weight Kg - 1,4
guarantee - 24
guarantee_type - normal
Manufacturer - LC-Power
Manufacturer Code - LC500H-12 V2.2
Manufacturer Name - LC-Power
MPN - LC500H-12
Name - 500W LC-Power Office LC500H-12 |
Name - LC-POWER 500w LC500H-12
name - PSU LC-POWER 500W LC500H-12 V 2.2 aPFC
Other features - Series Office
Standard ATX ATX V2.2
20 + 4 pin motherboard power 1x 45 cm
4 + 4 pin 12V motherboard power 1x45 cm
PCI-Express 1x PCI-Express 6 pin 45 cm
SATA 4 (2 x 45/2 x 60 cm)
PATA 2 x 75 cm
FDD 1x 90 cm
Fan 120 mm
active PFC
Power consumption at rest 0,38W - ErP 2013
Temperature Control: Yes
MultiRange (110V/220V): No
Power supply - +3.3V 20A
+5V 22A
+12V1 15A
+12V2 15A
Power supply - 500 W
producer - LC-POWER
Producer - LC-Power
ProducerCode - LC500H-12
ShortDescription - 500 | ATX | 120 mm | 20 + 4 pin | 150mm x 85mm x 140mm | CE | standard |
Short description - Netzteil ATX LC-Power 500W/120mm HW 4+4-pin 12V, 6-pin PCIe
vendpn - LC500H-12
Weight - 1.36
Weight - 1.367 kg
