ID: 162004
Product code: BN285
In stock 3 units
Warranty: 3 years

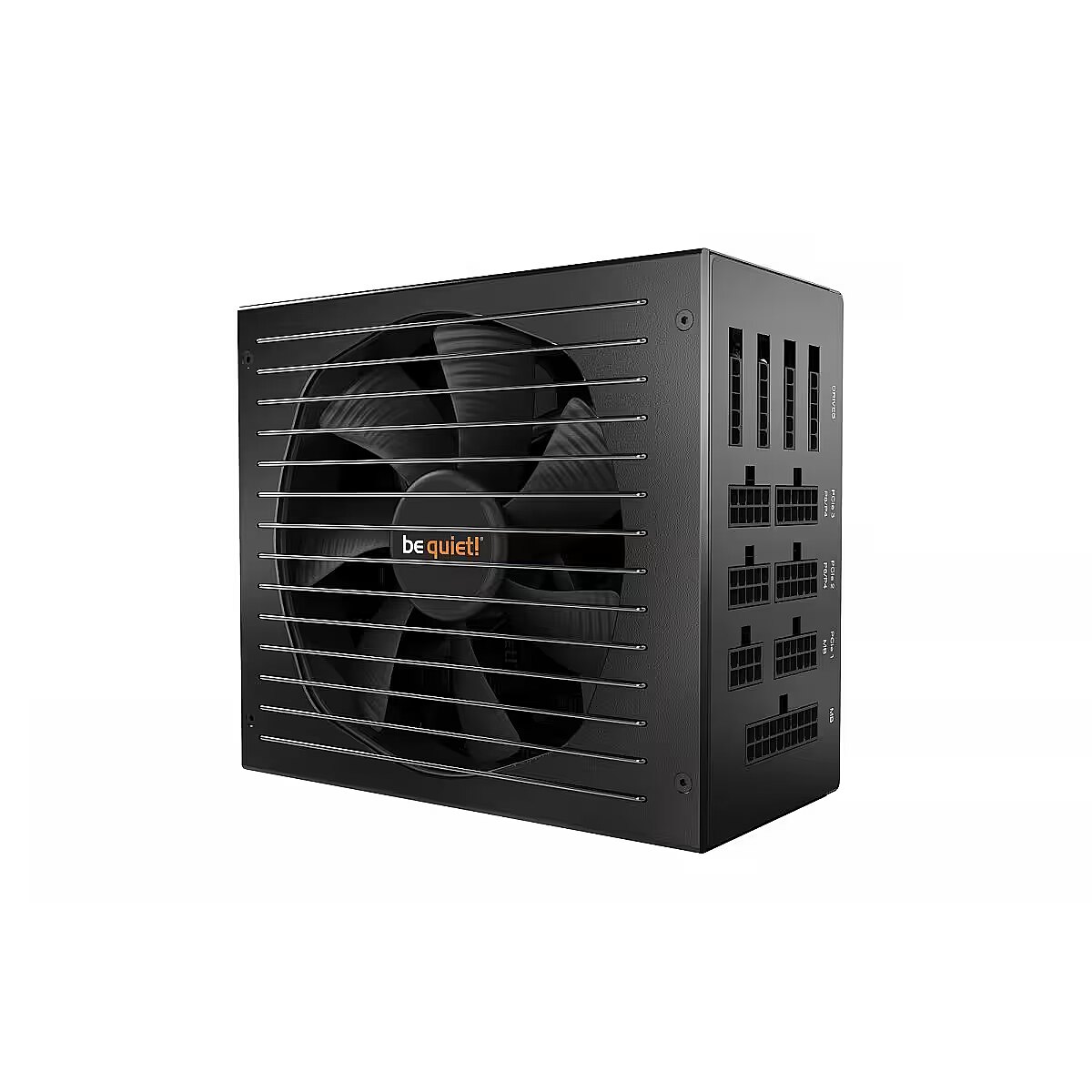

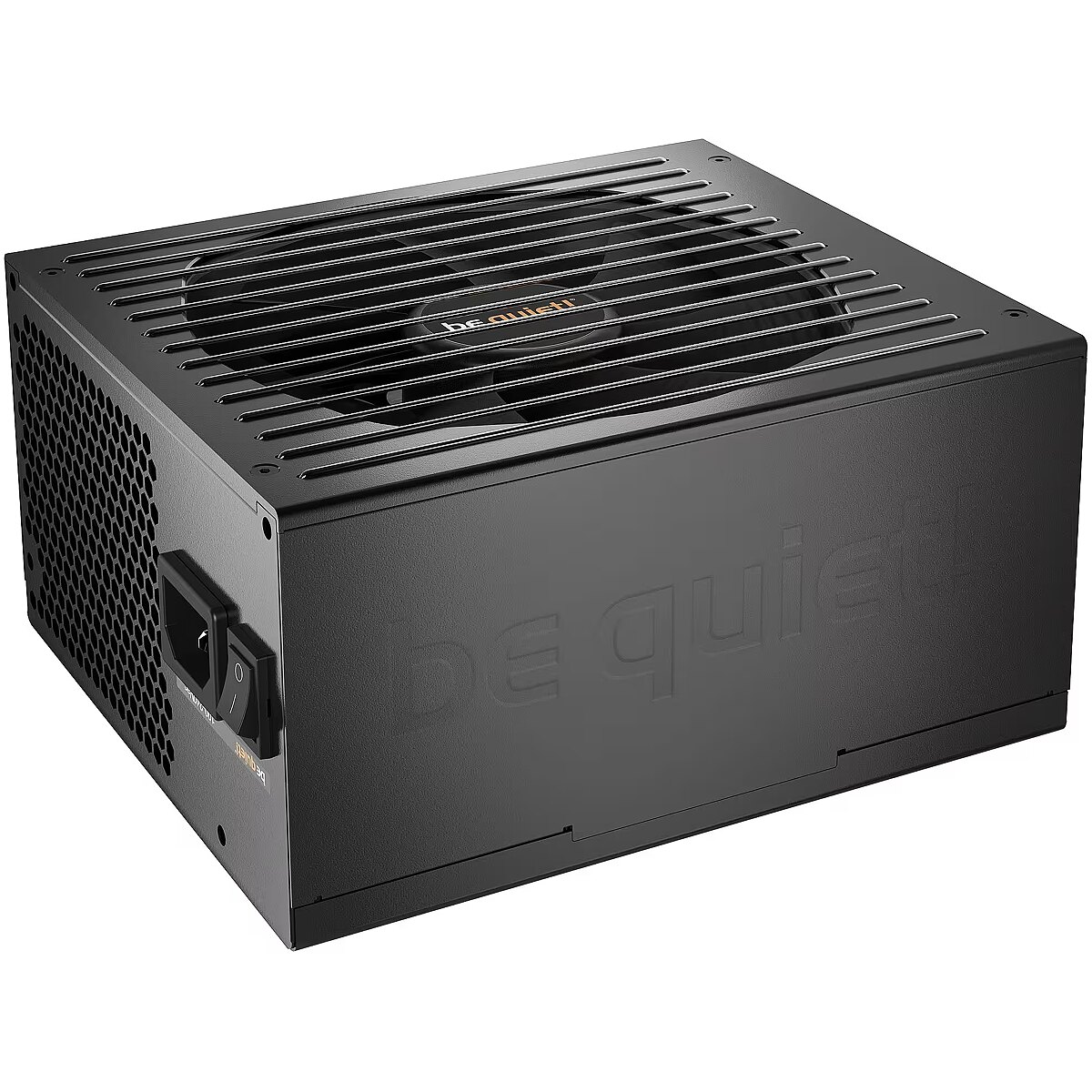

Be Quiet Straight Power 11, 1000W, 80PLUS Gold
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: on Wednesday, 27.11.2024
Main product parameters All parameters
- Producer: Be Quiet
- Power output: 1000W
- 80 PLUS certification: 80 PLUS Gold
- Fan size: 135 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 6 x 6+2pin
Description
Available for purchase is a power supply produced by Be Quiet with a power output of 1000W. The product has been awarded an 80 PLUS Gold energy efficiency certificate.
This 1000W power supply unit will be able to run the best gaming computer. It has enough power to run multiple high-end graphics cards, a large water cooling system, an overclocked high-end processor, and several hard drives.

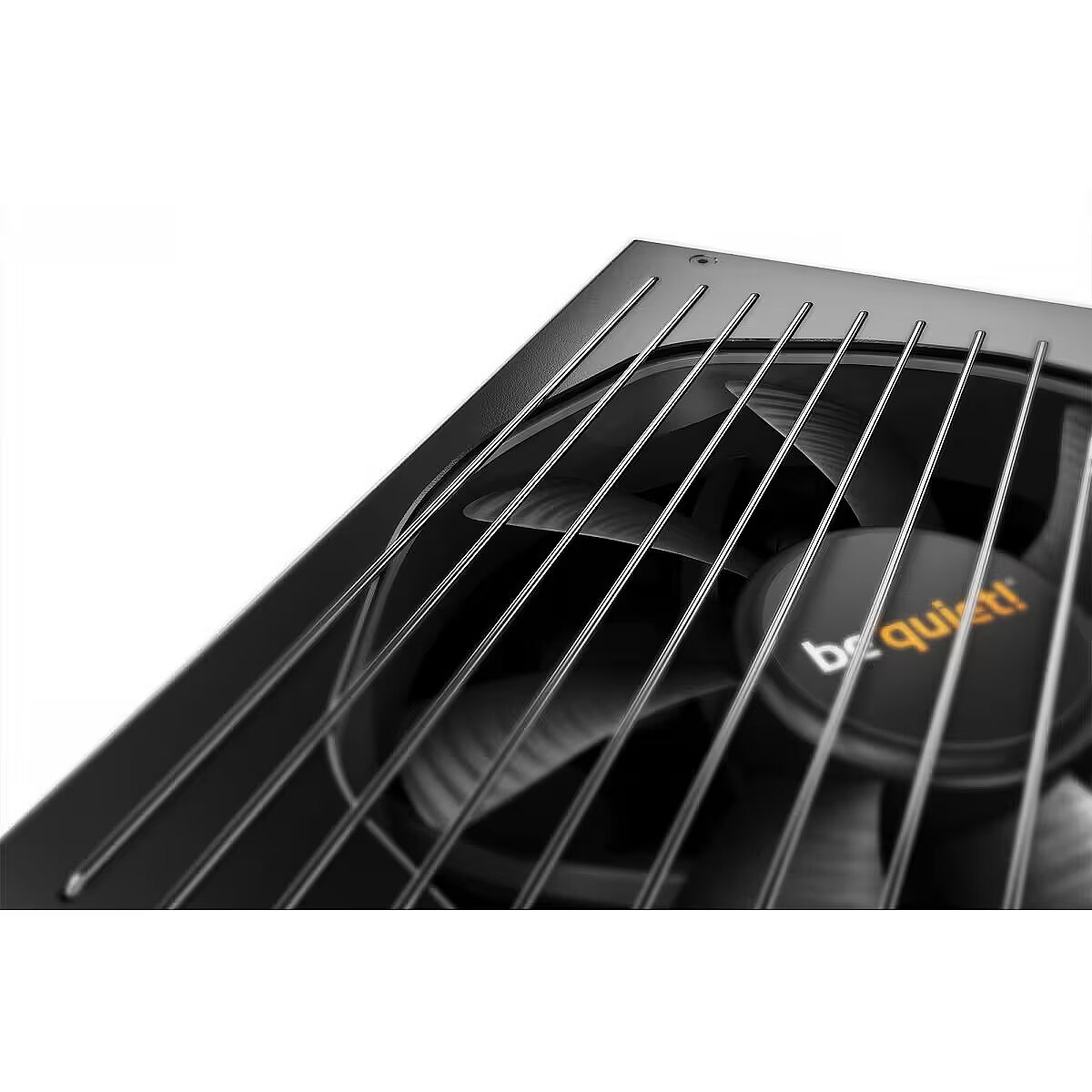

The large 135 mm cooling fan diameter makes this power supply significantly quieter than average. Since the fan blade area is larger, the fan provides the necessary airflow at lower fan speeds, overall reducing the noise and vibration levels.
The power supply has received the 80 PLUS Gold energy efficiency certificate, which guarantees at least 90% efficiency at 50% load. This means that for every 100W of power received from the electrical grid, at least 90W is delivered to your computer components, and the remaining 10W is lost as heat.
The color of the block is Melna. The block has flat cables, whose color is Melna.
This power supply unit has been assigned the ATX 2.0 standard. This means that the unit is equipped only with 6-pin and 8-pin connectors, providing 75W and 150W power respectively. It's important to note that this unit will be compatible with RTX 4070 and more powerful cards, but you will need to use the 2x8-pin to 16-pin 12VHPWR adapter included with the graphics card. ATX 2.0 power connectors are not designed to handle the high power fluctuations of modern graphics cards; therefore, if you are building a system with a powerful GPU, such as the RTX 4070, we recommend choosing a power supply unit with the ATX 3.* standard and 12VHPWR (PCIe 5.0) connector.
The power supply has a Cybenetics Standard ++ noise level certificate, which means its noise level is 30-35 dB.
This power supply unit has fully-modular cables (Fully-modular) – you can connect and disconnect all the included cables as needed, reducing clutter and improving ventilation. This will be useful for those with a partially transparent computer case and for whom the aesthetic factor is particularly important.
This power supply manufacturer is Be Quiet. See all Be Quiet power supplies here.
Basic information
Cybenetics Efficiency certification
: Cybenetics Gold
Cybenetics Noise level certification
: Cybenetics Standard ++
Power supply type
: ATX
Power output
1000W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Gold
Total amperage (+12V)
: 104A
Fan size
: 135 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Fully-Modular
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 6 x 6+2pin
SATA cconnectors
: 11
4pin Molex
: 4
More detailed specification
8-pin 12V power connectors - 1
Accessories included -
ARTIKEL1 - STRAIGHT POWER 11 1000W
ARTIKEL2 - 80PLUS GOLD POWER SUPPLY
Brand - be quiet!
BrandPartCode - BN285
Breite - 0.25
Category - Datortehnika :: Datoru komponentes :: Barošanas bloki (PSU)
category - PC Components|Power Supplies|Modular Power Supplies
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category 1 - Netzteile
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Gold
Code - BN285
code - BN285
Desc - Jauda: 1000 W, Energoefektivitāte: 80 Plus Gold, PFC: Aktīvs, Ventilators: 135mm, SATA pieslēgumi: 11, MOLEX PATA pieslēgumi: 4, PCI-E: 6 x 6 + 2 PIN, Garantija: 2 gadi
Description - STRAIGHT POWER 11
be quiet! Straight Power 11 provides a new level of quiet performance for systems requiring virtually inaudible operation without the slightest compromise in power quality. The latest generation of Straight Power has been maximally updated and enriched with premium features by our German team. All this makes Straight Power 11 quieter than ever and is definitely "the best choice" when building new systems or upgrading existing computers.
Design - Fan diameter - 13.5 cm
Design - Illumination - No
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimension depth - 100 mm
dimension height - 250 mm
Dimensions - 170 x 150 x 86 mm
dimension weight - 3700 g
dimension width - 330 mm
EAN - 4260052185803
ean - 4260052185803
EANCode - 4260052185803
Eans - 4260052185803
EAN_code - 4260052185803
Fan - 13.5 cm
Floppy power connectors - 1
Gewicht - 3.68
GRUPPE1 - Computer Systems
GRUPPE2 - Power Supplies
GTIN - 4260052185803
guarantee - 60
guarantee_type - normal
HERSTELLER - BE QUIET
Hoehe - 0.1
HSTNUMMER - BN285
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_74493_1.jpg
Laenge - 0.33
LargeDescHTML -
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - World Class Quiet and Efficiencybe quiet! Straight Power 11 1000W raises the bar for systems that demand virtually inaudible operation without power quality compromises. This PSU is clearly the best choice for super silent systems.SILENT WINGS 3 FANProvides virtually inaudible operationThe high-end Silent Wings 3 fan delivers best-of-class airflow yet produces very little noise. This is thanks to its unique, optimized fan blade design along with an advanced fluid-dynamic bearing and 6-pole fan motor that largely eliminates operational noise, has a super-long life and minimal power consumption.FUNNEL-SHAPED FAN OPENINGHigher cooling performanceThe fan inlet of the Straight Power 11 1000W is funnel-shaped. It causes an increased throughput of air which benefits to a higher cooling performance.WIRE-FREE DESIGN INSIDE THE PSUPushing the longevity of components to a maximumAn absolute innovation: The Straight Power 11 1000W is wire-free on the DC side inside the PSU body. This results in improved cooling airflow and less signal disturbance, simply because of a lack of wiring, and ultimately pushes the lifetimes of the components to a maximum.MODULAR CABLESUtmost convenience and compatibilityThanks to the modular cables, all cables that serve no purpose in the system are left out. For this reason, systems always appear very tidy. At the same time installation is performed much more conveniently. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures prevail inside the case.80 PLUS® GOLD CERTIFIEDImpressively high efficiencyStraight Power 11 1000W is certified with 80 PLUS Gold efficiency, reaching up to 93%. This gives less power consumption and a cooler and quieter operation. Truly a benefit for any system.HIGH-CLASS TECHNOLOGIESCompatibility for the systems of tomorrowThe use of LLC and Synchronous Rectifier (SR) provides very stable operation and enhanced voltage regulation. The PSU is equipped with DC-to-DC conversion for tight voltage regulation even under heavy cross-loading conditions. This ensures reliable operation with the next generation of processors and graphics cards.JAPANESE 105° CAPACITORSA testament to high qualityOnly the best components are used in Straight Power 11 1000W. That is why we have built only high-quality Japanese capacitors into the PSU chassis. They are rated to 105°C, ensuring stability, reliability and a long operating life.
LongProductName - Straight Power 11, 1000 W, ATX 12V 2.4, EPS 12V 2.92, 100 - 240 V, 50/60 Hz, active PFC, SilentWings 3 135mm, ATX 20+4-pin, 6x PCIe 6+2-pin, 11x SATA, 4x PATA, FDD, Black
LongSummaryDescription - be quiet! Straight Power 11. Total power: 1000 W, AC input voltage: 100 - 240 V, Peak power: 1070 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 550 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan diameter: 13.5 cm, Number of fans: 1 fan(s). Width: 150 mm, Depth: 170 mm, Height: 86 mm
Manufacturer - Be quiet
Manufacturer - Be Quiet!
Manufacturer_code - BN285
MB power connector - 20 + 4 pin
Modular power supply - Yes
MOLEX power connectors - 4
MPN - BN285
Name - 1000W be quiet! Straight Power 11 | 80+Gold
Name - be quiet! Straight Power 11 1000W
Name - be quiet! Straight Power 11 1000W Gold
Name - be quiet! STRAIGHT POWER11 CM 1000W 80Plus Gold
name - be quiet! Straight Power 11 Netzteil, 80 PLUS Gold, modular - 1000 Watt
name - PSU Straight Power 11 1000W 80+ GOLD F.MODU BN285
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 6
Other features - - OCP overcurrent protection
- OVP overvoltage protection
- UVP undervoltage protection
- SCP short-circuit protection
- OTP temperature protection
- OPP overload protection
Other features - Cable management - Yes
Other features - Cable ties included - Yes
Other features - Noise level (full-load mode, 100%) - 32.1 dB
Other features - Noise level (quiet mode, 50%) - 11.8 dB
Other features - Noise level (silent mode, Other features - Screws included - Yes
Packaging data - Manual - Yes
Packaging data - Package depth - 328 mm
Packaging data - Package height - 102 mm
Packaging data - Package weight - 3.57 kg
Packaging data - Package width - 248 mm
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 2.4
Performance - Bearing technology - FDB
Performance - Certification - CE, FCC, TÜV, cTUVus, RCM, BSMI, CU
Performance - EPS version - 2.92
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance - Silent mode - Yes
PFC - Active
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 70 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 4
Ports & interfaces - Number of SATA power connectors - 11
Ports & interfaces - PCI Express power cable length - 60 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 6
Ports & interfaces - SATA power cable length - 550 mm
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 150 W
Power - Combined power (+5V) - 150 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 999.6 W
Power - Combined power (-12V) - 6 W
Power - Efficiency - 93%
Power - Hold time - 19.8 ms
Power - Input current - 13 A
Power - Max output current (+3.3V) - 25 A
Power - Max output current (+5V) - 25 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V1) - 22 A
Power - Max output current (+12V2) - 22 A
Power - Max output current (+12V3) - 30 A
Power - Max output current (+12V4) - 30 A
Power - Max output current (-12V) - 0.5 A
Power - Peak power - 1070 W
Power - Power factor - 0.99
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Total power - 1000 W
Power supply - 1000 W
producer - Be quiet!
Producer - be quiet!
ProducerCode - BN285
ProductName - Straight Power 11
SATA power connectors - 11
ShortDescription - 1000 | ATX | 135 mm | 20 + 4 pin | 150mm x 86mm x 170mm | 80 PLUS Gold
ShortSummaryDescription - be quiet! Straight Power 11, 1000 W, 100 - 240 V, 1070 W, 50 - 60 Hz, 13 A, Active
Stck_Kart - 9998
Stck_Pal - 0
Storno - N
Technical details - Compliance certificates - RoHS
Technical details - Sustainability certificates - ENERGY STAR
Title - be quiet! Straight Power 11 power supply unit 1000 W 20+4 pin ATX ATX Black
URL - https://www.bequiet.com/en/download/straight-power/1248?utm_source=newsletter
vendpn - BN285
WarrantyInfo - 5 years
Weight - 3,65
Weight - 3.66
Weight & dimensions - Depth - 170 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.85 kg
Weight & dimensions - Width - 150 mm
