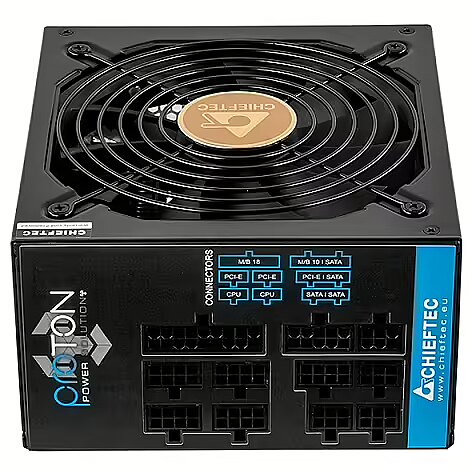

Chieftec PROTON Series, 850W, 80PLUS Bronze

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 153739 Product code: BDF-850C
Can be ordered 9 units Availability: 14 days after order approval
Warranty: 2 years
124.92 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: 27.11.2024
Main product parameters All parameters
  • Producer: Chieftec
  • Power output: 850W
  • 80 PLUS certification: 80 PLUS Bronze
  • Fan size: 140 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 6 x 6+2pin
Description

We offer to purchase a Chieftec power supply unit with a power capacity of 850W, which has received the 80 PLUS Bronze energy efficiency certification.

This 850W power supply unit is intended for a workstation or high-performance gaming computer. It will be able to power multiple hard drives (SSD/HDD), water cooling, a high-end graphics card (for example, RTX 4070 Ti SUPER), and a top-tier processor (possibly overclocked).

This power supply unit is equipped with a 140 mm fan. Thanks to its massive size, it will provide excellent airflow, better cooling even at lower speeds, and will be noticeably quieter than a standard 120 mm fan.

The power supply has been awarded the 80 PLUS Bronze energy efficiency certificate, which ensures at least 85% efficiency at 50% load. This indicates that at least 85 W out of 100 W of power received by the power supply from the electrical grid is delivered to the computer components, with the remaining 15 W being lost as heat.

The color of the block is Melna. The block has flat cables, whose color is Melna.

This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.

This power supply has modular cables, which provide the possibility to add video card cables, hard disk cables, etc. as needed from the supplied range. This way, the wire clutter in the computer is reduced, improving ventilation and the aesthetic factor (particularly important for those who purchase a partially transparent case).

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 850W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Bronze
Total amperage (+12V) : 70.5A
Fan size : 140 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Fully-Modular
Ports and equipment
PCI-E 5.0 : Nav
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 6 x 6+2pin
SATA cconnectors : 9
4pin Molex : 3
Case
More detailed specification
Brand - Chieftec
BrandPartCode - BDF-850C
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category_1 - Power
Category_2 - Computer Power Supplies
Design - Cooling type - Active
Design - Fan diameter - 14 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1386
Eans - 4710713231306
EAN_code - 4710713231306
GTIN - 4710713231306
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - With the PROTON Series, CHIEFTEC advances into the new-age DC to DC power supply technology. The series allows for energy conservation, as well as a much higher efficiency and power stability, which in turn ensures a higher longevity of installed components. The efficiency of the PROTON Series is certified at 80 PLUS BRONZE thereby fulfilling all ENERGY STAR 5,0 and higher requirements as stipulated by the EU.
LongProductName - BDF-850C - 850W, 115-230V, 50-60Hz, ATX 12V 2.3, PS II
LongSummaryDescription - Chieftec BDF-850C. Total power: 850 W, AC input voltage: 115 - 230 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 14 cm. Width: 150 mm, Depth: 140 mm, Height: 87 mm
Manufacturer - Chieftec
Manufacturer_code - BDF-850C
Name - Chieftec BDF-850C
Name - Chieftec BDF-850C 850W
Other features - Harmonized System (HS) code - 84733020
Other features - Warranty card - Yes
Packaging data - Manual - Yes
Packaging data - Package type - Box
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 2.3
Performance - Power supply unit (PSU) form factor - PS/2
Performance - Purpose - PC
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 9
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 115 - 230 V
Power - Combined power (+3.3V) - 140 W
Power - Combined power (+5V) - 140 W
Power - Efficiency - 85%
Power - Max output current (+3.3V) - 22 A
Power - Max output current (+5V) - 22 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 70.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current
Power - Power protection features - Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage
Power - Power protection features - Overheating
Power - Power protection features - Overload
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 850 W
Producer - Chieftec
producerCode - BDF-850C
ProducerCode - BDF-850C
ProductName - BDF-850C
productName - Chieftec BDF-850C power supply unit 850 W 20+4 pin ATX PS/2 Black
productSize - Normal
ShortDescription - 850 | ATX | 140 mm | 20 + 4 pin | 150mm x 87mm x 160mm | 80PLUS BRONZE
ShortSummaryDescription - Chieftec BDF-850C, 850 W, 115 - 230 V, 50 - 60 Hz, Active, 140 W, 140 W
sizeX - 330
sizeY - 210
sizeZ - 100
Technical_details - Fan(s): 140mm PFC: active connectors (fully modular): 1x 20/?24-Pin, 1x 4/?8-Pin ATX12V, 4x 6/?8-Pin PCIe, 9x SATA, 3x IDE, 1x Floppy +3.3V: 22A +5V: 22A +12V: 70.5A -12V: 0.5A +5Vsb: 3.0A average efficiency (115V): > 85% Form factor: ATX PS/?2 Dimensions (WxHxD): 150x86x160mm Special features: ErP plumb line 6 Warranty: two years
Title - Chieftec BDF-850C power supply unit 850 W 20+4 pin ATX PS/2 Black
URL - https://www.chieftec.eu/en/psus/ps-2/proton-series/bdf-850c.html
WarrantyInfo - 24 Month
warrantyLength - 24
warrantyType - R
Weight - 2,82
weight - 2825
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 87 mm
Weight & dimensions - Width - 150 mm
