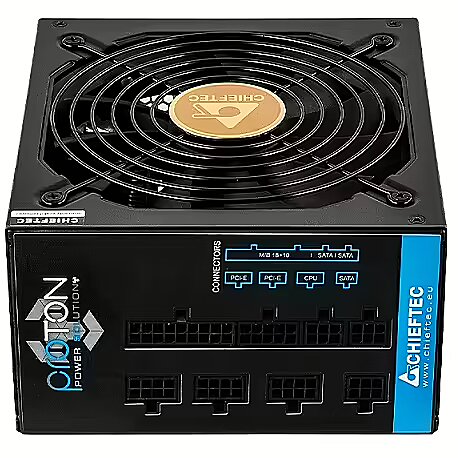

Chieftec PROTON Series, 650W, 80PLUS Bronze

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 153737 Product code: BDF-650C
In stock 22 units
Warranty: 2 years
81.03 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: on Thuesday, 26.11.2024
Main product parameters All parameters
  • Producer: Chieftec
  • Power output: 650W
  • 80 PLUS certification: 80 PLUS Bronze
  • Fan size: 140 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 1 x 8-pin(4+4) EPS
  • PCI-E: 4 X 6+2pin
Description

We offer to purchase a Chieftec power supply unit with a power capacity of 650W, which has received the 80 PLUS Bronze energy efficiency certification.

The 650W power will be enough for running Microsoft Office programs, browsing the internet, and budget-level computer games. The power supply unit will be able to run a computer with a mid-range processor, mid-range graphics card (for example, GTX 1650), and 1-2 hard drives. For serious gaming, a more powerful power supply unit is needed.

This power supply unit is equipped with a 140 mm fan. Thanks to its massive size, it will provide excellent airflow, better cooling even at lower speeds, and will be noticeably quieter than a standard 120 mm fan.

80 PLUS Bronze energy efficiency certificate, received by this power supply unit, guarantees at least 85% efficiency at 50% load. In other words, for every 100 W of energy the power supply unit receives from the electrical grid, at least 85 W goes to your computer components, while the remaining 15 W is lost as heat.

The color of this power supply is Melna. The cable color is Melna and they are flat.

This power supply unit has been assigned the ATX 2.0 standard. This means that the unit is equipped only with 6-pin and 8-pin connectors, providing 75W and 150W power respectively. It's important to note that this unit will be compatible with RTX 4070 and more powerful cards, but you will need to use the 2x8-pin to 16-pin 12VHPWR adapter included with the graphics card. ATX 2.0 power connectors are not designed to handle the high power fluctuations of modern graphics cards; therefore, if you are building a system with a powerful GPU, such as the RTX 4070, we recommend choosing a power supply unit with the ATX 3.* standard and 12VHPWR (PCIe 5.0) connector.

Thanks to the fact that this power supply has modular cables, you can add hard drives, video cards, and other components as needed, using the various cables included in the package. This way, there are fewer wires in the computer, which improves ventilation and appearance (especially useful for those who choose a partially transparent case).

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 650W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Bronze
Total amperage (+12V) : 54.2A
Fan size : 140 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Fully-Modular
Ports and equipment
PCI-E 5.0 : Nav
Processor plug-in : 1 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 4 X 6+2pin
SATA cconnectors : 6
4pin Molex : 3
Case
More detailed specification
Brand - Chieftec
BrandPartCode - BDF-650C
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
Colour - Black
Cooling System - 14cm fan
Description - With the PROTON Series, CHIEFTEC advances into the new-age DC to DC power supply technology. The series allows for energy conservation, as well as a much higher efficiency and power stability, which in turn ensures a higher longevity of installed components. The efficiency of the PROTON Series is certified at 80 PLUS BRONZE thereby fulfilling all ENERGY STAR 5,0 and higher requirements as stipulated by the EU.
Design - Cooling type - Active
Design - Fan diameter - 14 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1489
Dimensions - 160 x 150 x 87mm
Eans - 4710713231283
EAN_code - 4710713231283
Efficiency - 80 PLUS BRONZE
Full Description Line - ATX 2.3|650 Watts|Cooling System 14cm fan|80 PLUS BRONZE|PFC Active|Colour Black
GTIN - 4710713231283
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - With the PROTON Series, CHIEFTEC advances into the new-age DC to DC power supply technology. The series allows for energy conservation, as well as a much higher efficiency and power stability, which in turn ensures a higher longevity of installed components. The efficiency of the PROTON Series is certified at 80 PLUS BRONZE thereby fulfilling all ENERGY STAR 5,0 and higher requirements as stipulated by the EU.
LongProductName - BDF-650C - 650W, 115-230V, 50-60Hz, ATX 12V 2.3, PS II
LongSummaryDescription - Chieftec BDF-650C. Total power: 650 W, AC input voltage: 115 - 230 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 14 cm. Width: 150 mm, Depth: 140 mm, Height: 87 mm
Manufacturer - Chieftec
Manufacturer_code - BDF-650C
Name - Chieftec BDF-650C
Name - Chieftec BDF-650C 650W
Other features - Warranty card - Yes
Packaging data - Manual - Yes
Packaging data - Package type - Box
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 2.3
Performance - Power supply unit (PSU) form factor - PS/2
Performance - Purpose - PC
PFC - Active
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 115 - 230 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Efficiency - 85%
Power - Max output current (+3.3V) - 22 A
Power - Max output current (+5V) - 22 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 54.2 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current
Power - Power protection features - Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage
Power - Power protection features - Overheating
Power - Power protection features - Overload
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 650 W
Producer - Chieftec
producerCode - BDF-650C
ProducerCode - BDF-650C
ProductName - BDF-650C
productName - Chieftec BDF-650C power supply unit 650 W 20+4 pin ATX PS/2 Black
productSize - Normal
PSU - ATX 2.3
PSU Output Power - 650 Watts
Shipping Box Depth Shipping/Package Box Dimensions - 33 cm
Shipping Box Height Shipping/Package Box Dimensions - 21 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 2.51 kg
Shipping Box Width Shipping/Package Box Dimensions - 10 cm
ShortDescription - 650 | ATX | 140 mm | 20 + 4 pin | 150mm x 87mm x 160mm | 80PLUS BRONZE
ShortSummaryDescription - Chieftec BDF-650C, 650 W, 115 - 230 V, 50 - 60 Hz, Active, 120 W, 120 W
sizeX - 215
sizeY - 105
sizeZ - 330
Technical_details - Fan(s): 140mm PFC: active connectors (fully modular): 1x 20/?24-Pin, 1x 4/?8-Pin ATX12V, 4x 6/?8-Pin PCIe, 6x SATA, 3x IDE, 1x Floppy +3.3V: 22A +5V: 22A +12V: 54.2A -12V: 0.3A +5Vsb: 2.5A average efficiency (115V): > 85% Form factor: ATX PS/?2 Dimensions (WxHxD): 150x86x160mm Special features: ErP plumb line 6 Warranty: two years
Title - Chieftec BDF-650C power supply unit 650 W 20+4 pin ATX PS/2 Black
Unit Box Height - 0.21
Unit Box Length - 0.33
Unit Box Width - 0.1
Unit Brutto Volume - 0.00693 cubm
Unit Gross Weight - 2.51 kg
Unit Net Weight - 2.5 kg
URL - https://www.chieftec.eu/en/psus/ps-2/proton-series/bdf-650c.html
Vendor Homepage - www.chieftec.eu/en/psus/ps-2/proton-series/bdf-650c.html
Warranty - 24 months
WarrantyInfo - 24 Month
warrantyLength - 24
warrantyType - R
Weight - 2,52
weight - 2500
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 87 mm
Weight & dimensions - Width - 150 mm
