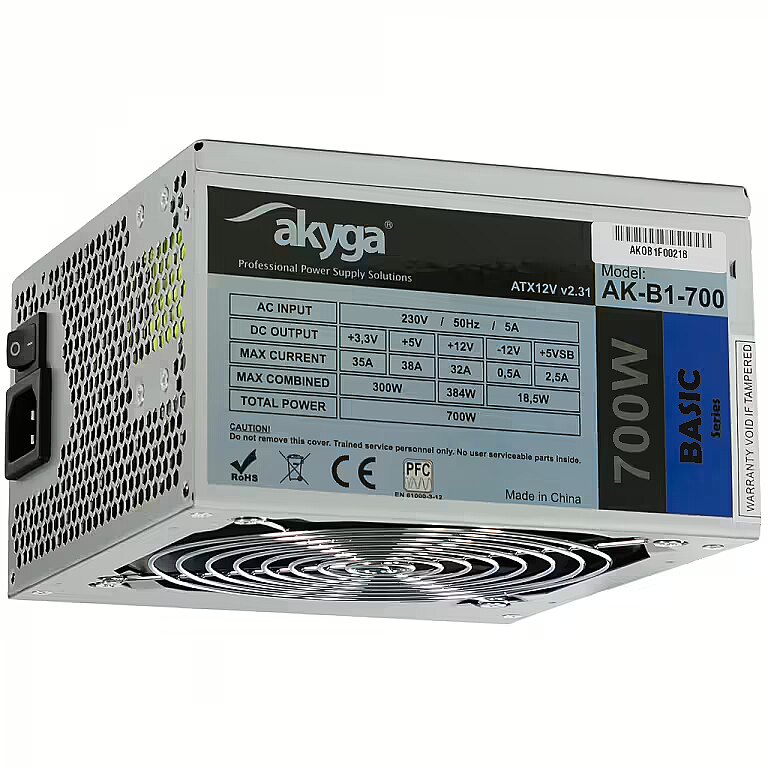

Akyga AK-B1-700, 700W

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 151141 Product code: AK-B1-700
Can be ordered 48 units Availability: 14 days after order approval
Warranty: 2 years
42.84 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: 10.12.2024
Main product parameters All parameters
  • Producer: Akyga
  • Power output: 700W
  • 80 PLUS certification: Nav
  • Fan size: 120 mm
  • Modular cables: Nav
  • Processor plug-in: 1 x 8-pin(4+4) EPS
  • PCI-E: 1 X 6+2pin
Description

To ensure a good mid-range gaming experience, 700W of power will be sufficient. With this power supply unit, you will be able to run a computer with a high-end processor, multiple SSD/HDD drives, and a powerful mid-range graphics card (for example, RTX 4070).

120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.

The color of this power supply is Sudraba. The cable color is Raiba and they are flat.

This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.

The power supply unit does not have modular cables; all cables are attached to the power supply unit and are not removable. Despite this, it will work just as well as a power supply unit with modular cables.

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 700W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : Nav
Total amperage (+12V) : 32A
Fan size : 120 mm
Functionality
Cable colour : Raiba
Lighting : Nav
Color : Silver
Modular cables : Nav
Ports and equipment
PCI-E 5.0 : Nav
Processor plug-in : 1 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 1 X 6+2pin
SATA cconnectors : 5
4pin Molex : 2
Case
More detailed specification
Category - Root/Electronics/PC parts/PC power supply units
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Side
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Grey
dimensionalWeight - 813
Eans - 5901720131485
Name - Akyga Basic AK-B1-700
Operational conditions - Operating temperature (T-T) - 5 - 50 °C
Other features - EPS cable length - 60 cm
Packaging data - Package depth - 260 mm
Packaging data - Package height - 95 mm
Packaging data - Package type - Box
Packaging data - Package weight - 1.33 kg
Packaging data - Package width - 180 mm
Performance - ATX version - 2.31
Performance - Certification - CE, FCC, RoHS, REACH
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 45 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 5
Ports & interfaces - PCI Express power cable length - 45 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power cable length - 150
Ports & interfaces - Peripheral (Molex) power cable length - 300 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Ports & interfaces - SATA power cable length - 150
Ports & interfaces - SATA power cable length - 300 mm
Power - AC input frequency - 50 Hz
Power - AC input voltage - 220 - 230 V
Power - Combined power (+3.3V) - 300 W
Power - Combined power (+5V) - 300 W
Power - Combined power (+5Vsb) - 18.5 W
Power - Combined power (+12V) - 384 W
Power - Combined power (-12V) - 18.5 W
Power - Efficiency - 70%
Power - Max output current (+3.3V) - 35 A
Power - Max output current (+5V) - 38 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 32 A
Power - Max output current (-12V) - 0.5 A
Power - Power Factor Correction (PFC) type - Passive
Power - Power protection features - Over current
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Total power - 700 W
Producer - Akyga
producerCode - AK-B1-700
ProducerCode - AK-B1-700
productName - Akyga AK-B1-700 power supply unit 700 W 20+4 pin ATX ATX Grey
productSize - Normal
ShortDescription - 700 | ATX | 120 mm | 20 + 4 pin | 150mm x 86mm x 140mm | standard |
sizeX - 243
sizeY - 94
sizeZ - 178
Technical details - Sustainability certificates - RoHS
warrantyLength - 24
warrantyType - G
weight - 1398
Weight & dimensions - Depth - 160 mm
Weight & dimensions - Height - 85 mm
Weight & dimensions - Weight - 1.26 kg
Weight & dimensions - Width - 150 mm
