ID: 1190865
Product code: BP008EU
Can be ordered 49 units Availability: 14 days after order approval
Warranty: 2 years

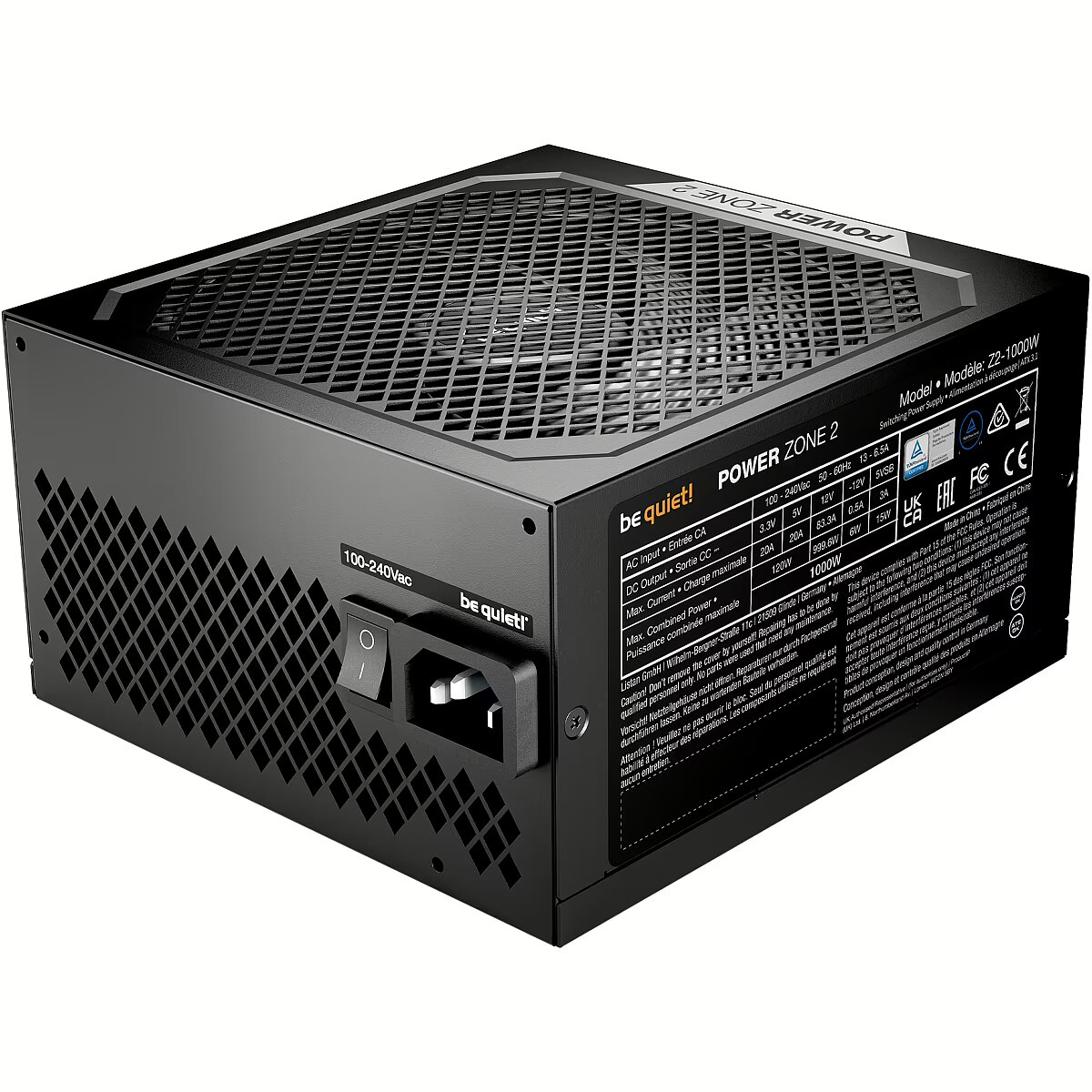

Be Quiet Power Zone 2, 1000W, 80PLUS Platinum, ATX 3.1, PCIe 5.1
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost 6.99 €: 11.04.2025
- Courier delivery 11.99 €: 11.04.2025
Main product parameters All parameters
- Producer: Be Quiet
- Power output: 1000W
- 80 PLUS certification: 80 PLUS Platinum
- Fan size: 140 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 3 x 6+2pin
Description
Available for purchase is a power supply produced by Be Quiet with a power output of 1000W. The product has been awarded an 80 PLUS Platinum energy efficiency certificate.
1000W power supply unit will satisfy the requirements of the best gaming computer. There will be enough power for an overclocked high-end processor, multiple high-class graphic cards, a wide water-cooling system, and multiple hard drives.
This power supply unit is equipped with a 140 mm fan. It will be significantly quieter than a regular 120 mm fan and will provide adequate cooling at lower speeds, thanks to the massive blade size.
The power supply unit has received the 80 PLUS Platinum energy efficiency certificate, which guarantees at least 92% efficiency at 50% load. This means that for every 100W of power the power supply unit receives from the electrical grid, at least 92W are delivered to your computer components, while the remaining 8W are lost as heat.
The color of the block is Melna. The block has flat cables, whose color is Melna.
The power supply unit has received the Cybenetics A + noise level certification – the noise produced by the unit will be 15-20 decibels.

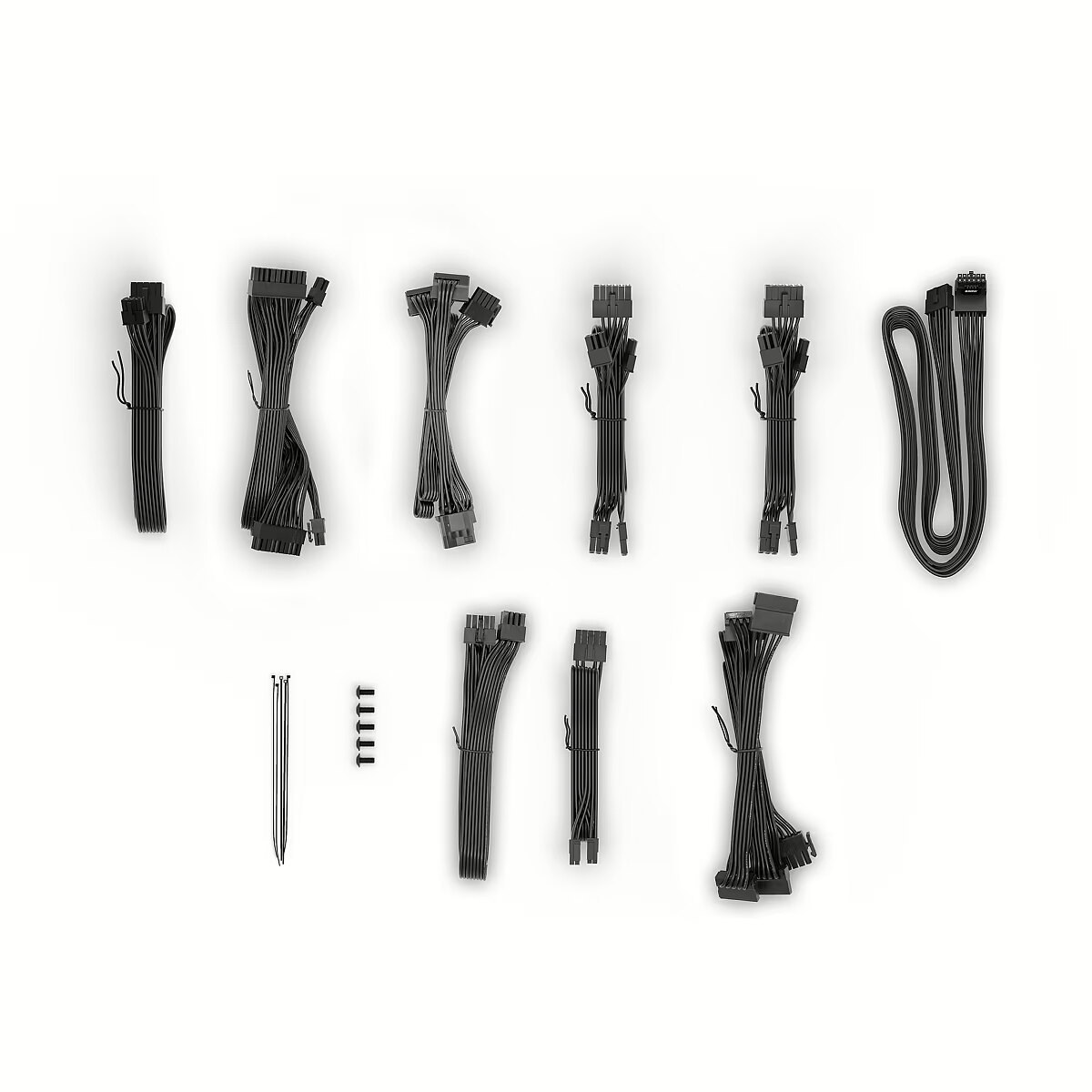

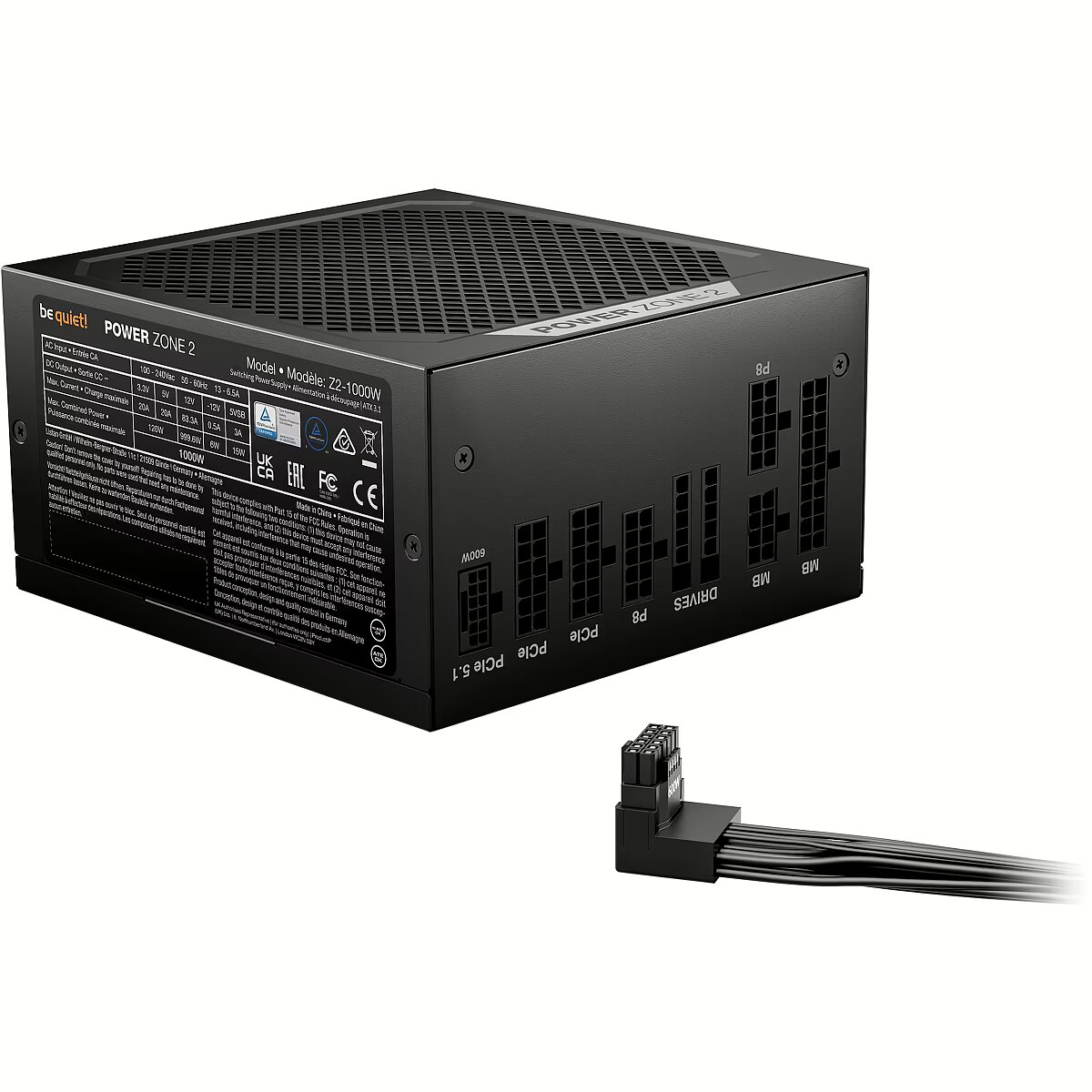

This power supply has modular cables, which provide the possibility to add video card cables, hard disk cables, etc. as needed from the supplied range. This way, the wire clutter in the computer is reduced, improving ventilation and the aesthetic factor (particularly important for those who purchase a partially transparent case).
This power supply manufacturer is Be Quiet. See all Be Quiet power supplies here.
Basic information
Cybenetics Efficiency certification
: Cybenetics Platinum
Cybenetics Noise level certification
: Cybenetics A +
Power supply type
: ATX
Power output
1000W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Platinum
Total amperage (+12V)
: 83.3A
Fan size
: 140 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Fully-Modular
Ports and equipment
PCI-E 5.0
: 1 x 600W 12V-2X6
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 3 x 6+2pin
SATA cconnectors
: 7
4pin Molex
: 1
More detailed specification
Brand - be quiet!
BrandPartCode - BP008EU
category - PC Components|Power Supplies|PSUs above 800 Watts
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category 1 - Netzteile
Category Code - PSU
Certificates - Compliance certificates - BSMI
Certificates - Compliance certificates - BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, TÜV mark, UKCA, WEEE
Certificates - Compliance certificates - CB
Certificates - Compliance certificates - CCC
Certificates - Compliance certificates - CE
Certificates - Compliance certificates - Federal Communications Commission (FCC)
Certificates - Compliance certificates - RCM
Certificates - Compliance certificates - RoHS
Certificates - Compliance certificates - TÜV mark
Certificates - Compliance certificates - UKCA
Certificates - Compliance certificates - WEEE
Certificates - Waste Electrical and Electronic Equipment (WEEE) compliance - Yes
CnCode CnCode - 85044095
code - BP008EU
Design - Cooling type - Active
Design - Fan diameter - 14 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1732
ean - 4260052191385
EAN - 4260052191385
Eans - 4260052191385
GTIN - 4260052191385
Logistics data - Products per shipping (inner) case - 6 pc(s)
Logistics data - Shipping (inner) case gross weight - 19.6 kg
Logistics data - Shipping (inner) case height - 34.6 cm
Logistics data - Shipping (inner) case length - 65.1 cm
Logistics data - Shipping (inner) case width - 28.2 cm
LongDesc - Exceptional efficiency for GamersPower Zone 2 1000W is a power supply with 80 PLUS® Platinum certification and semi-passive zero-RPM cooling for both efficient and quiet gaming sessions.PLATINUM CERTIFIEDHighly efficient operationPower Zone 2 1000W is certified with 80 PLUS Platinum and Cybenetics Platinum, resulting in an energy efficiency rating of up to 94.0%. This results in lower power consumption, overall cooler and quieter operation, and many other benefits for your high-end system.SEMI-PASSIVE ZERO-RPM COOLINGEnjoy the silenceA large Pure Wings 3 140mm fan is keeping Power Zone 2 1000W cool. While under low load, the fan turns off completely until its services are needed again for more demanding operations. This post-ventilation requires a short cooldown period of 2-5 minutes to avoid frequent and annoying starts and stops of the fan. Combined with the large fan for active cooling, this power supply is exceptionally silent in all load scenarios.PURE WINGS 3 FANSpecially designed for Power Zone 2No Power Supply is like the other. Hence, we have altered aspects of our renowned Pure Wings 3 140mm fan to make it the perfect match for Power Zone 2 1000W. The fan offers outstanding reliability and makes for a long-lasting companion. Due to its large diameter, the fan cools the interior of the PSU efficiently and quietly.FUTURE-PROOF YOUR SYSTEMWith 90° angled 12V-2x6 connector in scope of deliveryPower Zone 2 1000W is an ATX 3.1 PSU and comes with both native integration of the 12V-2x6 connector for next-generation PCIe 5.1 graphics cards, and 3 PCIe 6+2-pin connectors for support of current-gen GPUs. A 90° angled 12V-2x6 connector in the scope of delivery leaves no doubt that this PSU is here to stay. All of this makes Power Zone 2 1000W extremely versatile and the perfect choice for powerful systems of today and the ones to come.THE NEW STANDARD OF POWERFor massive transient loadsPower Zone 2 offers 1000W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Power Zone 2 1000W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.HIGH-CLASS TECHNOLOGIESAll packed in a stunning designWith its LLC topology, the Power Zone 2 1000W offers best-in-class voltage regulation and efficiency. This makes it perfect for building very quiet systems or upgrading gaming and media creation PCs. The inner values are what everyone cares about most in a power supply but looks cannot be completely ignored. That is why the Power Zone 2 1000W has a distinctive look with a newly designed mesh front. In addition, all cable designations are printed directly on the PSU’s case for a long-lasting impression and an unparalleled look and feel.
LongProductName - 80 PLUS Platinum, 1000W, PCIe 5.1/ATX 3.1, 160 x 150 x 86mm
LongSummaryDescription - be quiet! POWER ZONE 2 1000W. Total power: 1000 W, AC input voltage: 100 - 240 V, Peak power: 1070 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 550,700,850,1000 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 14 cm. Compliance certificates: BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, TÜV mark, UKCA, WEEE
Manufacturer - Be Quiet!
MPN - BP008EU
Name - 1000W be quiet! Power Zone 2
name - be quiet! Power Zone 2 80 PLUS Platinum Netzteil, vollmodular, ATX 3.1, PCIe 5.1 - 1.000 Watt, schwarz
Name - be quiet! Power Zone 2 1000W
Operational conditions - Operating relative humidity (H-H) - 0 - 85%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - Cable ties included - Yes
Other features - Screws included - Yes
Packaging data - Manual - Yes
Packaging data - Manual languages - English
Packaging data - Manual languages - French
Packaging data - Manual languages - German
Packaging data - Manual languages - German, English, Spanish, French, Polish, Russian, Ukrainian
Packaging data - Manual languages - Polish
Packaging data - Manual languages - Russian
Packaging data - Manual languages - Spanish
Packaging data - Manual languages - Ukrainian
Packaging data - Package depth - 328 mm
Packaging data - Package height - 102 mm
Packaging data - Package type - Box
Packaging data - Package weight - 3.28 kg
Packaging data - Package width - 248 mm
Performance - 80 PLUS certification - 80 PLUS Platinum
Performance - ATX version - 3.1
Performance - Bearing technology - Rifle
Performance - EPS version - 2.92
Performance - Mean time between failures (MTBF) - 100000 h

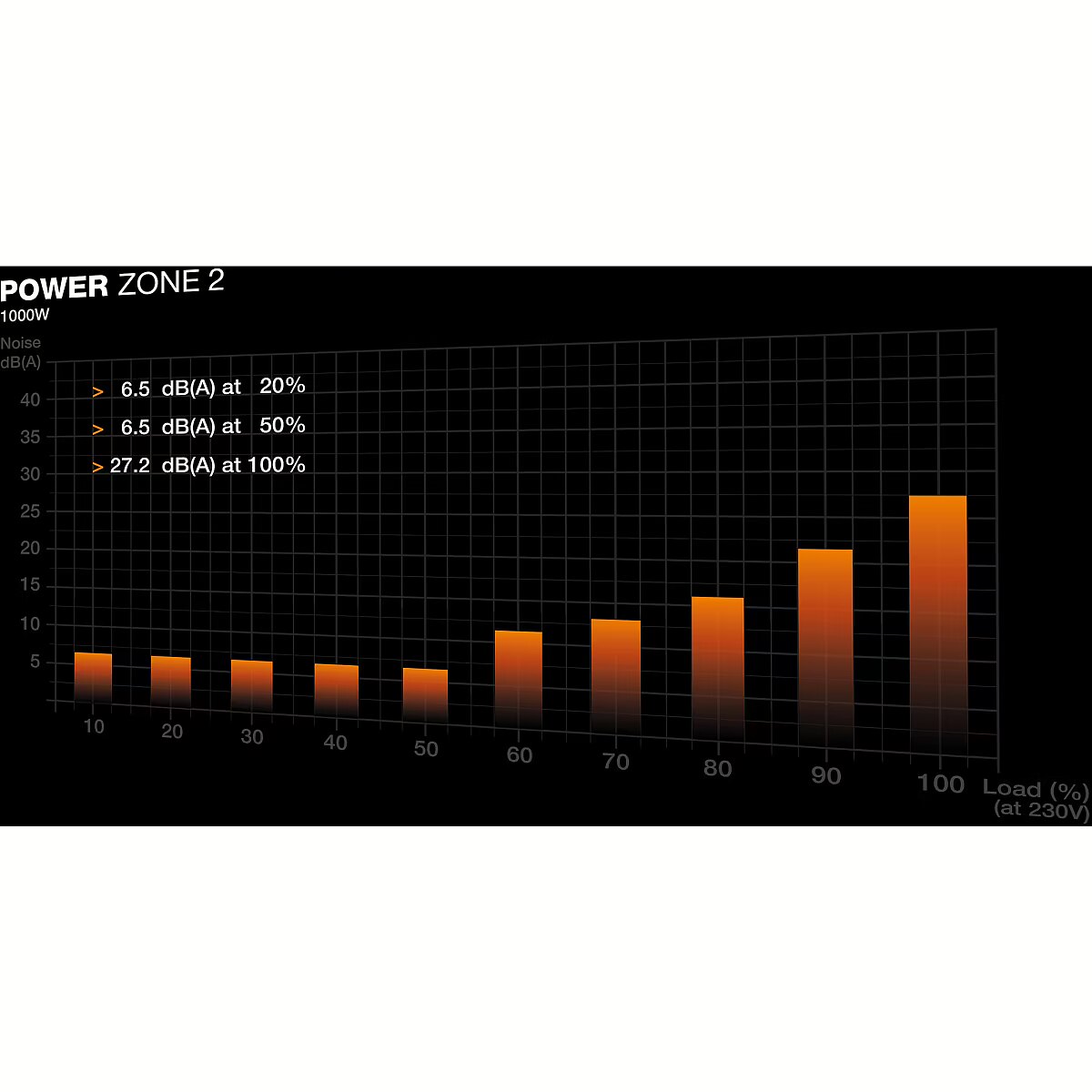

Performance - Noise level - 27.2 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU P4 connector (4-pin) - 1
Ports & interfaces - CPU power cable length - 70 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 7
Ports & interfaces - PCI Express power cable length - 60 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 3
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 1000 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 1
Ports & interfaces - SATA power cable length - 550 mm
Ports & interfaces - SATA power cable length - 550,700,850,1000 mm
Ports & interfaces - SATA power cable length - 700
Ports & interfaces - SATA power cable length - 850
Ports & interfaces - SATA power cable length - 1000 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 999.6 W
Power - Combined power (-12V) - 6 W
Power - Efficiency - 92.6%
Power - Hold time - 22.7 ms
Power - Maximum input current (@110V) - 13 A
Power - Maximum input current (@220V) - 6.5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 83.3 A
Power - Max output current (-12V) - 0.5 A
Power - Number of +12V rail(s) - 1
Power - Peak power - 1070 W
Power - Power factor - 0.98
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush, Under voltage
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Surge & inrush
Power - Power protection features - Under voltage
Power - Total power - 1000 W
Producer - be quiet!
producerCode - BP008EU
ProducerCode - BP008EU
productName - be quiet! POWER ZONE 2 1000W power supply unit 20+4 pin ATX ATX Black
ProductName - POWER ZONE 2 1000W
productSize - Normal
Shipping Box Depth Shipping/Package Box Dimensions - 10 cm
Shipping Box Height Shipping/Package Box Dimensions - 25 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 3.4 kg
Shipping Box Width Shipping/Package Box Dimensions - 33 cm
ShortDescription - 1000 | ATX | 135 mm | 20 + 4 pin | 150mm x 86mm x 160mm | 80 PLUS Platinum
ShortSummaryDescription - be quiet! POWER ZONE 2 1000W, 1000 W, 100 - 240 V, 1070 W, 50/60 Hz, 13 A, 6.5 A
sizeX - 330
sizeY - 105
sizeZ - 250
Technical details - Sustainability certificates - ENERGY STAR
Technical details - Sustainability certificates - ENERGY STAR, ErP, Triman
Technical details - Sustainability certificates - ErP
Technical details - Sustainability certificates - Triman
Title - be quiet! POWER ZONE 2 1000W power supply unit 20+4 pin ATX ATX Black
Unit Box Height - 0.25
Unit Box Length - 0.1
Unit Box Width - 0.33
Unit Brutto Volume - 0.00825 cubm
Unit Gross Weight - 3.4 kg
URL - https://www.bequiet.com/en/powersupply/5583
Warranty - 24 months
WarrantyInfo - 10-year manufacturer’s warranty
warrantyLength - 120
warrantyType - G
Weight - 3.38
weight - 3300
Weight & dimensions - Depth - 160 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 2.82 kg
Weight & dimensions - Width - 150 mm
BrandPartCode - BP008EU
category - PC Components|Power Supplies|PSUs above 800 Watts
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category 1 - Netzteile
Category Code - PSU
Certificates - Compliance certificates - BSMI
Certificates - Compliance certificates - BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, TÜV mark, UKCA, WEEE
Certificates - Compliance certificates - CB
Certificates - Compliance certificates - CCC
Certificates - Compliance certificates - CE
Certificates - Compliance certificates - Federal Communications Commission (FCC)
Certificates - Compliance certificates - RCM
Certificates - Compliance certificates - RoHS
Certificates - Compliance certificates - TÜV mark
Certificates - Compliance certificates - UKCA
Certificates - Compliance certificates - WEEE
Certificates - Waste Electrical and Electronic Equipment (WEEE) compliance - Yes
CnCode CnCode - 85044095
code - BP008EU
Design - Cooling type - Active
Design - Fan diameter - 14 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1732
ean - 4260052191385
EAN - 4260052191385
Eans - 4260052191385
GTIN - 4260052191385
Logistics data - Products per shipping (inner) case - 6 pc(s)
Logistics data - Shipping (inner) case gross weight - 19.6 kg
Logistics data - Shipping (inner) case height - 34.6 cm
Logistics data - Shipping (inner) case length - 65.1 cm
Logistics data - Shipping (inner) case width - 28.2 cm
LongDesc - Exceptional efficiency for GamersPower Zone 2 1000W is a power supply with 80 PLUS® Platinum certification and semi-passive zero-RPM cooling for both efficient and quiet gaming sessions.PLATINUM CERTIFIEDHighly efficient operationPower Zone 2 1000W is certified with 80 PLUS Platinum and Cybenetics Platinum, resulting in an energy efficiency rating of up to 94.0%. This results in lower power consumption, overall cooler and quieter operation, and many other benefits for your high-end system.SEMI-PASSIVE ZERO-RPM COOLINGEnjoy the silenceA large Pure Wings 3 140mm fan is keeping Power Zone 2 1000W cool. While under low load, the fan turns off completely until its services are needed again for more demanding operations. This post-ventilation requires a short cooldown period of 2-5 minutes to avoid frequent and annoying starts and stops of the fan. Combined with the large fan for active cooling, this power supply is exceptionally silent in all load scenarios.PURE WINGS 3 FANSpecially designed for Power Zone 2No Power Supply is like the other. Hence, we have altered aspects of our renowned Pure Wings 3 140mm fan to make it the perfect match for Power Zone 2 1000W. The fan offers outstanding reliability and makes for a long-lasting companion. Due to its large diameter, the fan cools the interior of the PSU efficiently and quietly.FUTURE-PROOF YOUR SYSTEMWith 90° angled 12V-2x6 connector in scope of deliveryPower Zone 2 1000W is an ATX 3.1 PSU and comes with both native integration of the 12V-2x6 connector for next-generation PCIe 5.1 graphics cards, and 3 PCIe 6+2-pin connectors for support of current-gen GPUs. A 90° angled 12V-2x6 connector in the scope of delivery leaves no doubt that this PSU is here to stay. All of this makes Power Zone 2 1000W extremely versatile and the perfect choice for powerful systems of today and the ones to come.THE NEW STANDARD OF POWERFor massive transient loadsPower Zone 2 offers 1000W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Power Zone 2 1000W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.HIGH-CLASS TECHNOLOGIESAll packed in a stunning designWith its LLC topology, the Power Zone 2 1000W offers best-in-class voltage regulation and efficiency. This makes it perfect for building very quiet systems or upgrading gaming and media creation PCs. The inner values are what everyone cares about most in a power supply but looks cannot be completely ignored. That is why the Power Zone 2 1000W has a distinctive look with a newly designed mesh front. In addition, all cable designations are printed directly on the PSU’s case for a long-lasting impression and an unparalleled look and feel.
LongProductName - 80 PLUS Platinum, 1000W, PCIe 5.1/ATX 3.1, 160 x 150 x 86mm
LongSummaryDescription - be quiet! POWER ZONE 2 1000W. Total power: 1000 W, AC input voltage: 100 - 240 V, Peak power: 1070 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 550,700,850,1000 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 14 cm. Compliance certificates: BSMI, CB, CCC, CE, Federal Communications Commission (FCC), RCM, RoHS, TÜV mark, UKCA, WEEE
Manufacturer - Be Quiet!
MPN - BP008EU
Name - 1000W be quiet! Power Zone 2
name - be quiet! Power Zone 2 80 PLUS Platinum Netzteil, vollmodular, ATX 3.1, PCIe 5.1 - 1.000 Watt, schwarz
Name - be quiet! Power Zone 2 1000W
Operational conditions - Operating relative humidity (H-H) - 0 - 85%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - Cable ties included - Yes
Other features - Screws included - Yes
Packaging data - Manual - Yes
Packaging data - Manual languages - English
Packaging data - Manual languages - French
Packaging data - Manual languages - German
Packaging data - Manual languages - German, English, Spanish, French, Polish, Russian, Ukrainian
Packaging data - Manual languages - Polish
Packaging data - Manual languages - Russian
Packaging data - Manual languages - Spanish
Packaging data - Manual languages - Ukrainian
Packaging data - Package depth - 328 mm
Packaging data - Package height - 102 mm
Packaging data - Package type - Box
Packaging data - Package weight - 3.28 kg
Packaging data - Package width - 248 mm
Performance - 80 PLUS certification - 80 PLUS Platinum
Performance - ATX version - 3.1
Performance - Bearing technology - Rifle
Performance - EPS version - 2.92
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Noise level - 27.2 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU P4 connector (4-pin) - 1
Ports & interfaces - CPU power cable length - 70 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 7
Ports & interfaces - PCI Express power cable length - 60 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 3
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 1000 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 1
Ports & interfaces - SATA power cable length - 550 mm
Ports & interfaces - SATA power cable length - 550,700,850,1000 mm
Ports & interfaces - SATA power cable length - 700
Ports & interfaces - SATA power cable length - 850
Ports & interfaces - SATA power cable length - 1000 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 999.6 W
Power - Combined power (-12V) - 6 W
Power - Efficiency - 92.6%
Power - Hold time - 22.7 ms
Power - Maximum input current (@110V) - 13 A
Power - Maximum input current (@220V) - 6.5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 83.3 A
Power - Max output current (-12V) - 0.5 A
Power - Number of +12V rail(s) - 1
Power - Peak power - 1070 W
Power - Power factor - 0.98
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush, Under voltage
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Surge & inrush
Power - Power protection features - Under voltage
Power - Total power - 1000 W
Producer - be quiet!
producerCode - BP008EU
ProducerCode - BP008EU
productName - be quiet! POWER ZONE 2 1000W power supply unit 20+4 pin ATX ATX Black
ProductName - POWER ZONE 2 1000W
productSize - Normal
Shipping Box Depth Shipping/Package Box Dimensions - 10 cm
Shipping Box Height Shipping/Package Box Dimensions - 25 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 3.4 kg
Shipping Box Width Shipping/Package Box Dimensions - 33 cm
ShortDescription - 1000 | ATX | 135 mm | 20 + 4 pin | 150mm x 86mm x 160mm | 80 PLUS Platinum
ShortSummaryDescription - be quiet! POWER ZONE 2 1000W, 1000 W, 100 - 240 V, 1070 W, 50/60 Hz, 13 A, 6.5 A
sizeX - 330
sizeY - 105
sizeZ - 250
Technical details - Sustainability certificates - ENERGY STAR
Technical details - Sustainability certificates - ENERGY STAR, ErP, Triman
Technical details - Sustainability certificates - ErP
Technical details - Sustainability certificates - Triman
Title - be quiet! POWER ZONE 2 1000W power supply unit 20+4 pin ATX ATX Black
Unit Box Height - 0.25
Unit Box Length - 0.1
Unit Box Width - 0.33
Unit Brutto Volume - 0.00825 cubm
Unit Gross Weight - 3.4 kg
URL - https://www.bequiet.com/en/powersupply/5583
Warranty - 24 months
WarrantyInfo - 10-year manufacturer’s warranty
warrantyLength - 120
warrantyType - G
Weight - 3.38
weight - 3300
Weight & dimensions - Depth - 160 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 2.82 kg
Weight & dimensions - Width - 150 mm
