ID: 1188933
Product code: TACMARS-MPB550SI
Can be ordered 43 units Availability: 14 days after order approval
Warranty: 2 years
Mars Gaming MPB550SI, 550W, 80PLUS Bronze
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost 6.99 €: 12.03.2025
- Courier delivery 11.99 €: 12.03.2025
Main product parameters All parameters
- Producer: Mars Gaming
- Power output: 550W
- 80 PLUS certification: 80 PLUS Bronze
- Fan size: 120 mm
- Modular cables: Nav
- Processor plug-in: 1 x 8-pin(4+4) EPS
- PCI-E: 1 X 6+2pin
Description
We offer to purchase a Tacens power supply unit with a power capacity of 550W, which has received the 80 PLUS Bronze energy efficiency certification.
The power of 550W is more than sufficient for office programs, web browsing, and light computer games. It will be able to run a basic computer with an integrated graphics card, budget-level processor, small SSD or hard drive. If you plan to upgrade your computer in the future, you should definitely consider a more powerful power supply.
The diameter of this power supply unit's fan is 120 mm, which will ensure quiet operation in mid-range computers. For especially quiet power supply unit operation, we recommend selecting a fan with a 135 mm or 140 mm diameter.
The power supply has received the 80 PLUS Bronze energy efficiency certificate, which guarantees at least 85% efficiency at 50% load. This means that for every 100W of power the power supply draws from the electrical grid, at least 85W is delivered to your computer components, while the remaining 15W is lost as heat.
The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.
ATX 2.0 standard, which is assigned to this power supply unit, ensures that the unit is equipped only with 6-pin and 8-pin connectors (with respective power of 75W and 150W). For a system with a very powerful graphics card (such as RTX 4070), an ATX 3.* standard unit will be required, and ATX 2.0 will not be sufficient.
This power supply has no removable cables and all cables are attached to the power supply. It has a simple design, but it works just as well as a power supply with modular cables.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
550W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Bronze
Total amperage (+12V)
: 45A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Nav
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 1 x 8-pin(4+4) EPS
Motherboard power
: 24-pin
PCI-E
: 1 X 6+2pin
SATA cconnectors
: 4
4pin Molex
: 2
More detailed specification
8-pin 12V power connectors - 0
Accessories included -
Certificates - Certification - CE, RoHS, TUV
Certificates 80+ - 80 PLUS Bronze
Description - Tacens Mars MPB550SI 550W The MPB550SI 550W ATX power supply redefines performance and efficiency with its Extreme Silence design and integrated advanced technology. Equipped with a copper and aluminium core SI fan and FDB bearings with intelligent AI2-RPM control, it automatically adjusts fan speed using artificial intelligence and machine learning to achieve the ideal balance between silence and cooling. Backed by a 7-year warranty and multiple protection systems, the MPB550SI offers total security and maximum reliability. With 80 Plus Bronze 230V EU certification and DC-DC and SMD technologies, it guarantees superior energy efficiency and exceptional durability.
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 1230
dimension depth - mm
dimension height - mm
Dimensions - 85 x 145 x 150 mm
dimension weight - g
dimension width - mm
ean - 8435693108504
Fan - 12 cm
Filters / protection - Circuit
Filters / protection - Overload
Filters / protection - Surge
Filters / protection - Voltage drop
Floppy power connectors - 0
guarantee - 24
guarantee_type - normal
MB power connector - 24 pin
Modular power supply - No
MOLEX power connectors - 2
name - Power supply Tacens Mars MPB550SI 550W 80Plus Bronze
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 0
Number of power connectors PCI-E 16-pin Gen 5 - 0
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 1
Number of USB 10p connectors - 0
Other features -
Packaging data - Package depth - 240 mm
Packaging data - Package height - 125 mm
Packaging data - Package weight - 1.6 kg
Packaging data - Package width - 205 mm
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - Noise level - 12 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 4
Ports & interfaces - PCI Express power connectors (6+2 pin) - 1
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2

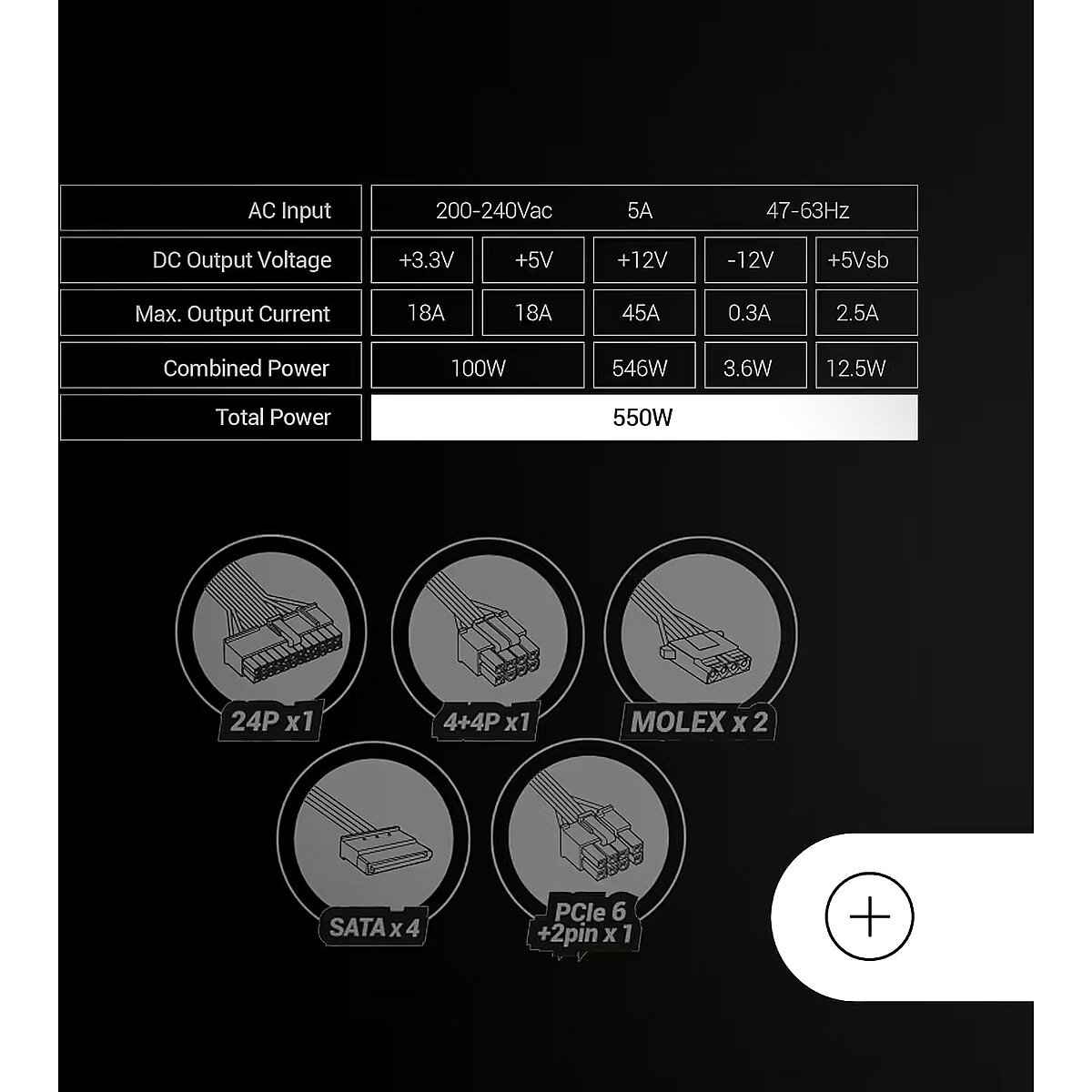

Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 220 - 240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 546 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Input current - 5 A
Power - Max output current (+3.3V) - 18 A
Power - Max output current (+5V) - 18 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 45.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 550 W
Power supply - 550 W
producer - AeroCool
producerCode - TACMARS-MPB550SI
productName - Mars Gaming MPB550SI power supply unit 550 W 24-pin ATX ATX Black
productSize - Normal
SATA power connectors - 4
sizeX - 240
sizeY - 205
sizeZ - 125
vendpn - TACMARS-MPB550SI
warrantyLength - 24
warrantyType - G
Weight - 1.45 kg
weight - 1595
Weight & dimensions - Depth - 145 mm
Weight & dimensions - Height - 85 mm
Weight & dimensions - Weight - 1.4 kg
Weight & dimensions - Width - 150 mm
Accessories included -
Certificates - Certification - CE, RoHS, TUV
Certificates 80+ - 80 PLUS Bronze
Description - Tacens Mars MPB550SI 550W The MPB550SI 550W ATX power supply redefines performance and efficiency with its Extreme Silence design and integrated advanced technology. Equipped with a copper and aluminium core SI fan and FDB bearings with intelligent AI2-RPM control, it automatically adjusts fan speed using artificial intelligence and machine learning to achieve the ideal balance between silence and cooling. Backed by a 7-year warranty and multiple protection systems, the MPB550SI offers total security and maximum reliability. With 80 Plus Bronze 230V EU certification and DC-DC and SMD technologies, it guarantees superior energy efficiency and exceptional durability.
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 1230
dimension depth - mm
dimension height - mm
Dimensions - 85 x 145 x 150 mm
dimension weight - g
dimension width - mm
ean - 8435693108504
Fan - 12 cm
Filters / protection - Circuit
Filters / protection - Overload
Filters / protection - Surge
Filters / protection - Voltage drop
Floppy power connectors - 0
guarantee - 24
guarantee_type - normal
MB power connector - 24 pin
Modular power supply - No
MOLEX power connectors - 2
name - Power supply Tacens Mars MPB550SI 550W 80Plus Bronze
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 0
Number of power connectors PCI-E 16-pin Gen 5 - 0
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 1
Number of USB 10p connectors - 0
Other features -
Packaging data - Package depth - 240 mm
Packaging data - Package height - 125 mm
Packaging data - Package weight - 1.6 kg
Packaging data - Package width - 205 mm
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - Noise level - 12 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 4
Ports & interfaces - PCI Express power connectors (6+2 pin) - 1
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 220 - 240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 546 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Input current - 5 A
Power - Max output current (+3.3V) - 18 A
Power - Max output current (+5V) - 18 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 45.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 550 W
Power supply - 550 W
producer - AeroCool
producerCode - TACMARS-MPB550SI
productName - Mars Gaming MPB550SI power supply unit 550 W 24-pin ATX ATX Black
productSize - Normal
SATA power connectors - 4
sizeX - 240
sizeY - 205
sizeZ - 125
vendpn - TACMARS-MPB550SI
warrantyLength - 24
warrantyType - G
Weight - 1.45 kg
weight - 1595
Weight & dimensions - Depth - 145 mm
Weight & dimensions - Height - 85 mm
Weight & dimensions - Weight - 1.4 kg
Weight & dimensions - Width - 150 mm
