ID: 1181529
Product code: GP-P750BS
In stock 50 units
Warranty: 3 years

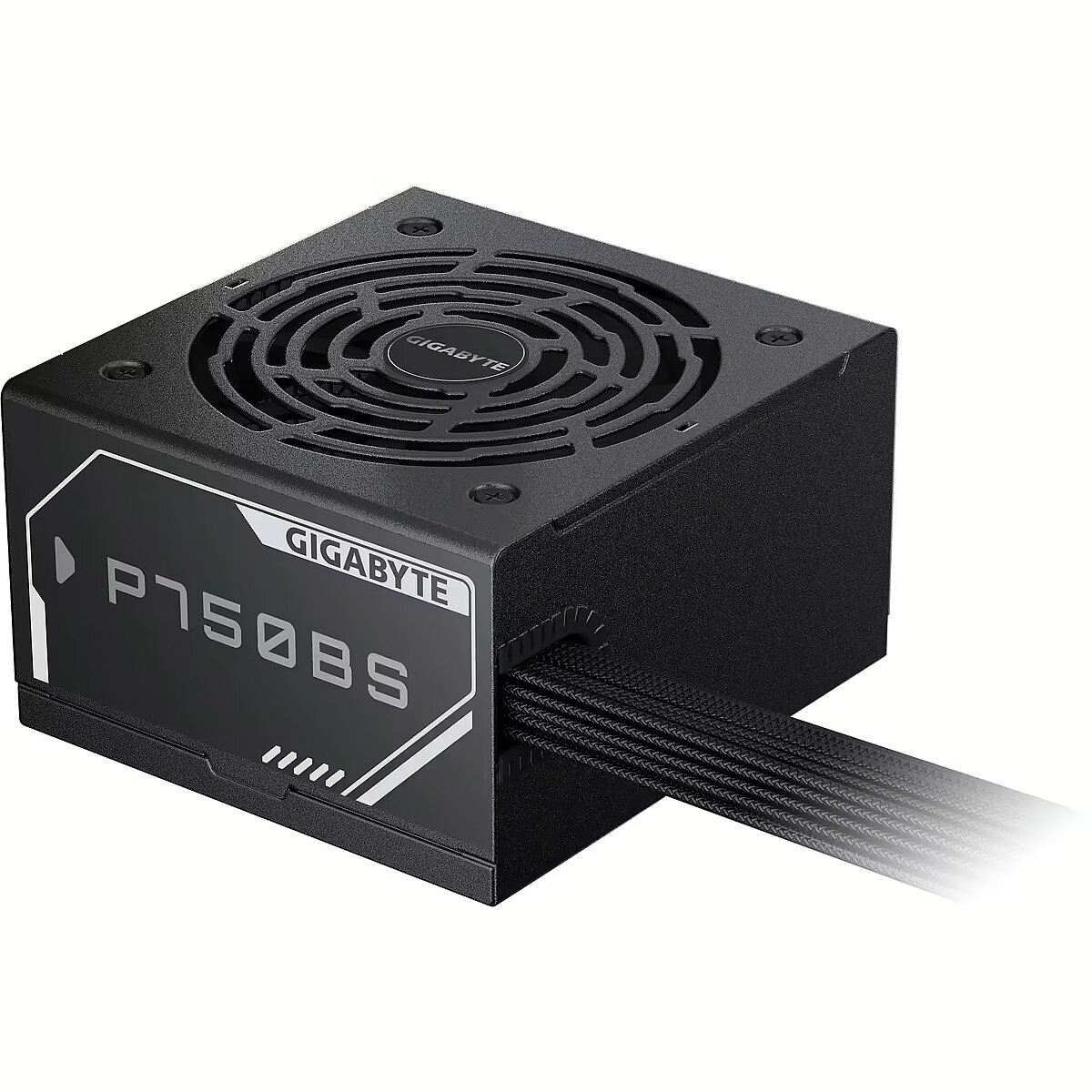

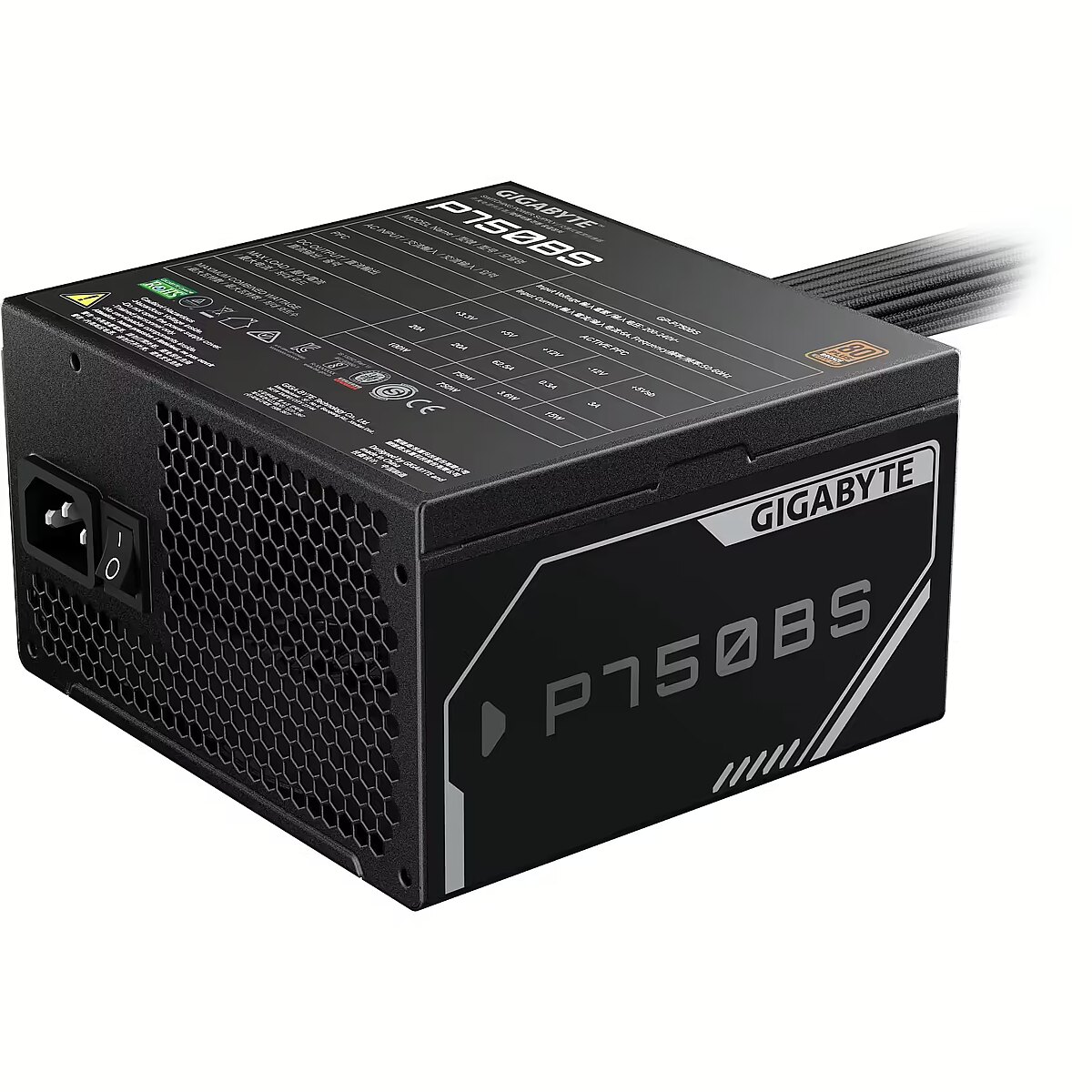

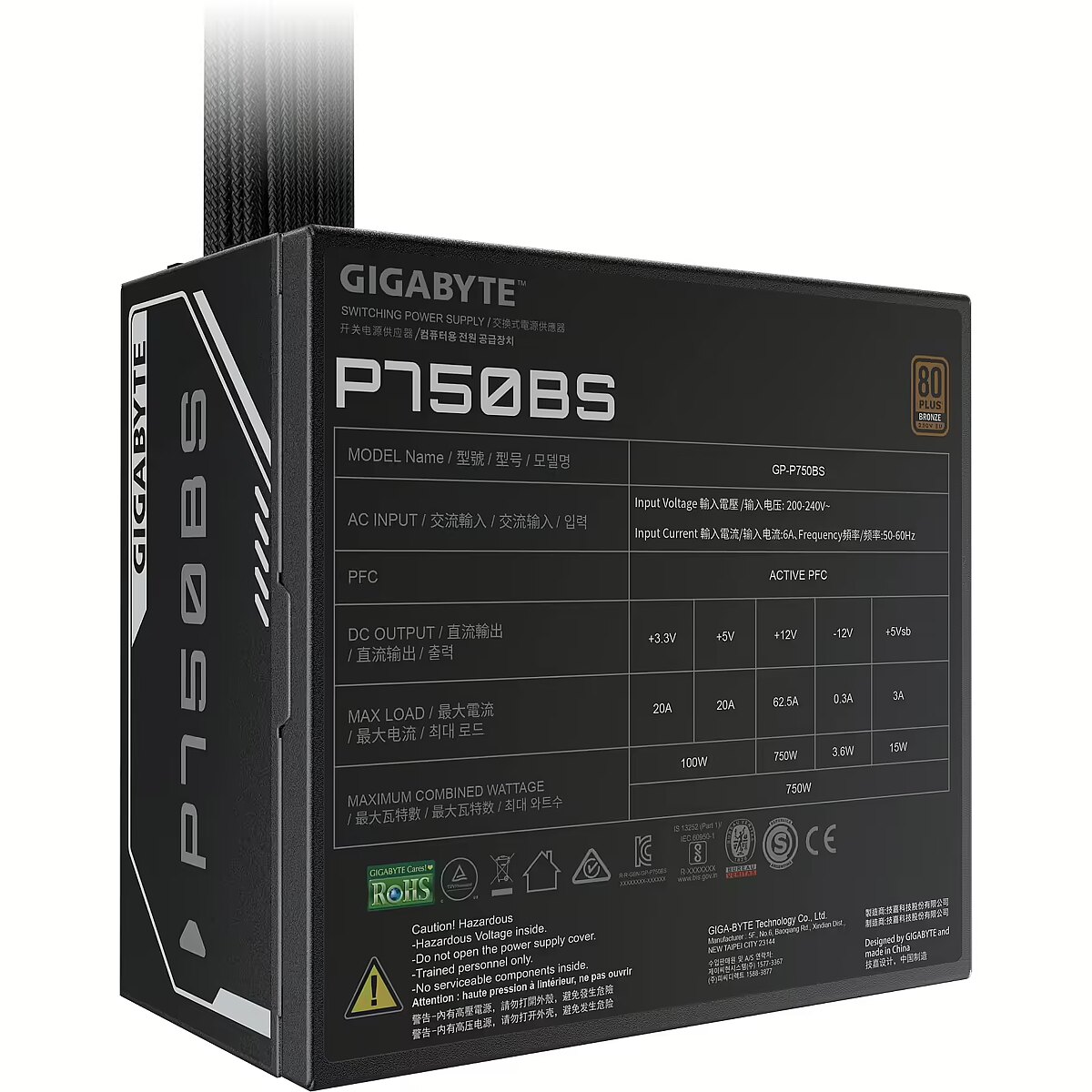

Gigabyte P750BS, 750W, 80 PLUS Bronze
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost 6.99 €: on Monday, 17.03.2025
- Courier delivery 11.99 €: on Monday, 17.03.2025
Main product parameters All parameters
- Producer: Gigabyte
- Power output: 750W
- 80 PLUS certification: 80 PLUS Bronze
- Fan size: 120 mm
- Modular cables: Nav
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 4 X 6+2pin
Description
We offer to purchase a Gigabyte power supply unit with a power capacity of 750W, which has received the 80 PLUS Bronze energy efficiency certification.
To ensure a good mid-range gaming experience, 750W of power will be sufficient. With this power supply unit, you will be able to run a computer with a high-end processor, multiple SSD/HDD drives, and a powerful mid-range graphics card (for example, RTX 4070).
The diameter of this power supply unit's fan is 120 mm, which will ensure quiet operation in mid-range computers. For especially quiet power supply unit operation, we recommend selecting a fan with a 135 mm or 140 mm diameter.
The power supply has received the 80 PLUS Bronze energy efficiency certificate, which guarantees at least 85% efficiency at 50% load. This means that for every 100W of power the power supply draws from the electrical grid, at least 85W is delivered to your computer components, while the remaining 15W is lost as heat.
The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.
ATX 2.0 standard, which is assigned to this power supply unit, ensures that the unit is equipped only with 6-pin and 8-pin connectors (with respective power of 75W and 150W). For a system with a very powerful graphics card (such as RTX 4070), an ATX 3.* standard unit will be required, and ATX 2.0 will not be sufficient.
This power supply unit does not have modular cables – all its cables are attached to the unit and are not detachable. Despite the simple design, it will fulfill its functions just as well as a power supply unit with modular cables.
The manufacturer of the power supply unit is Gigabyte. All power supply units produced by Gigabyte can be viewed here.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
750W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Bronze
Total amperage (+12V)
: 62.5A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Nav
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 4 X 6+2pin
SATA cconnectors
: 4
4pin Molex
: 2
More detailed specification
Brand - GIGABYTE
BrandPartCode - GP-P750BS EU
Category - Power Supply Units
Category Code - PSU
Colour - Black
Cooling System - 12cm fan
Description - GIGABYTE P750BS + Intel Form Factor ATX 12V + 80 PLUS Bronze certified (230V EU) + 120mm Silent Fluid Dynamic Bearing (FDB) fan + Soft-textured embossed cables + Single +12V rail + OVP/OPP/SCP/UVP/OCP/OTP protection
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1310
Dimensions - 150 x 140 x 86 mm
Efficiency - 80 PLUS BRONZE
Full Description Line - GP-P750BS|For gaming|750 Watts|Cooling System 12cm fan|80 PLUS BRONZE|PFC Active|MTBF 100000 hours|Colour Black
GTIN - 4719331555238
Logistics data - Warranty period - 3 year(s)
LongDesc - Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
LongProductName - P750BS Power Supply - PCIe 5.0, 80 PLUS Bronze, 120mm Fan, ATX compatible, EU Plug
LongSummaryDescription - GIGABYTE P750BS. Total power: 750 W, AC input voltage: 200 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Model name - GP-P750BS
MTBF - 100000 hours
Packaging data - Package depth - 206 mm
Packaging data - Package height - 117 mm
Packaging data - Package type - Box
Packaging data - Package weight - 2.68 kg
Packaging data - Package width - 254 mm
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - Bearing technology - FDB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Floppy drive power connector - 2
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 7
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - Peripheral (Molex) power cable length - 150
Ports & interfaces - Peripheral (Molex) power cable length - 150,600 mm
Ports & interfaces - Peripheral (Molex) power cable length - 600 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Ports & interfaces - SATA power cable length - 150
Ports & interfaces - SATA power cable length - 150,500 mm
Ports & interfaces - SATA power cable length - 500
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 200 - 240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 750 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 88%
Power - Hold time - 16 ms
Power - Input current - 6 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 62.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power Good signal delay range - 100 - 150 ms
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 750 W
producerCode - GP-P750BS
productName - GIGABYTE P750BS Power Supply - PCIe 5.0, 80 PLUS Bronze, Fully Modular Design, 120mm Fan, ATX compatible, EU Plug
ProductName - P750BS
productSize - Normal
PSU features - For gaming
PSU Output Power - 750 Watts
Shipping Box Depth Shipping/Package Box Dimensions - 62 cm
Shipping Box Height Shipping/Package Box Dimensions - 28.2 cm
Shipping box quantity - 5
Shipping Box Weight Shipping/Package Box Dimensions - 10.75 kg
Shipping Box Width Shipping/Package Box Dimensions - 22.5 cm
ShortSummaryDescription - GIGABYTE P750BS, 750 W, 200 - 240 V, 50/60 Hz, 6 A, Active, 100 W
sizeX - 260
sizeY - 210
sizeZ - 120
Title - GIGABYTE P750BS power supply unit 750 W 20+4 pin ATX ATX Black
Unit Box Height - 0.12
Unit Box Length - 0.256
Unit Box Width - 0.21
Unit Brutto Volume - 0.007868 cubm
Unit Gross Weight - 2.15 kg
Unit Net Weight - 2 kg
URL - https://www.gigabyte.com/
Vendor Homepage - www.gigabyte.com/Power-Supply/GP-P750BS#kf
Warranty - 36 months
WarrantyInfo - 3 years
warrantyLength - 36
warrantyType - G
weight - 1990
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 2.22 kg
Weight & dimensions - Width - 150 mm
