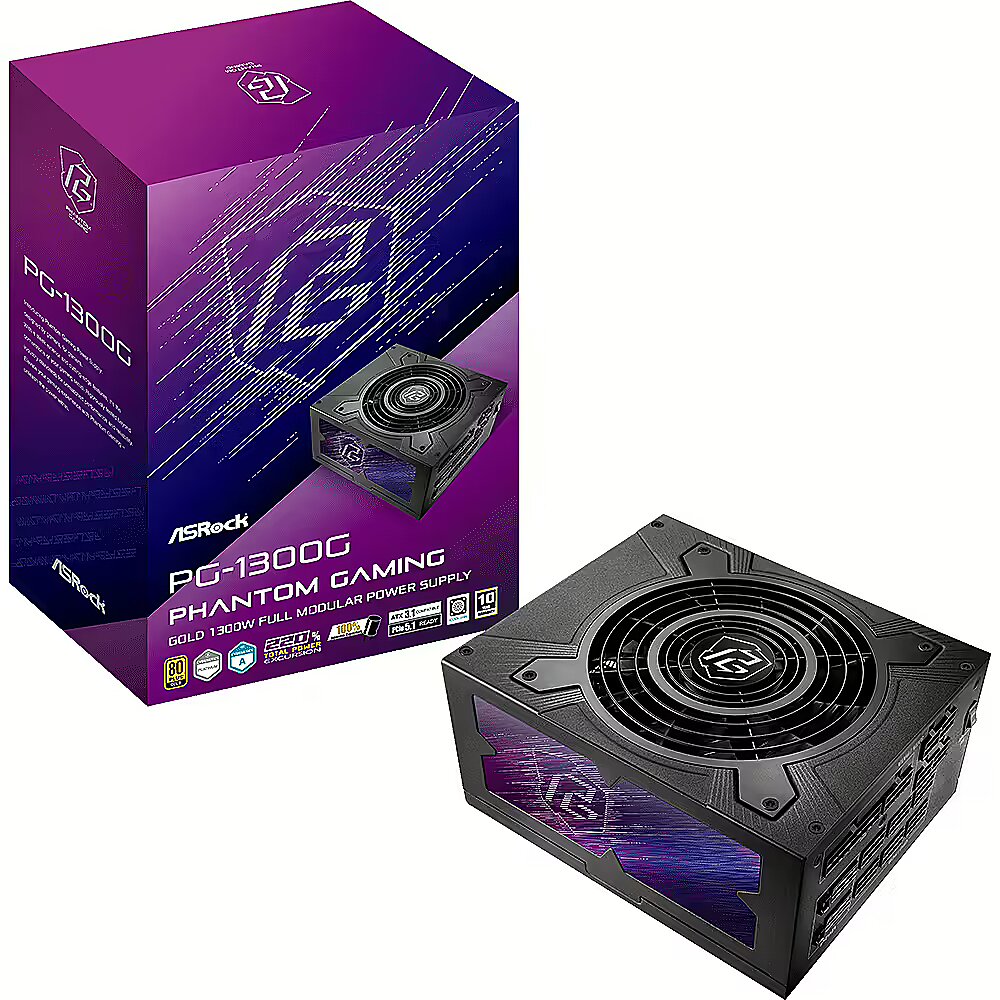

Asrock Phantom Gaming, 1300W, ATX 3.1, 80PLUS Gold, PCIe 5.1

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1170335 Product code: 90-UXP130-GFEAAB
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.fi website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years (Warranty for business entities 1 year)
Main product parameters All parameters
  • Producer: Asrock
  • Power output: 1300W
  • 80 PLUS certification: 80 PLUS Gold
  • Fan size: 135 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 6 x 6+2pin
Similar Products
This product Asrock Phantom Gaming, 1300W, ATX 3.1, 80PLUS Gold, PCIe 5.1
Recommended Cooler Master MWE Gold V2 750W, 80PLUS Gold, ATX 3.0
Recommended Gigabyte UD750GM PG5, 750W, 80PLUS Gold, PCIe 5.0
Recommended Gigabyte UD850GM PG5 White, 850W, 80PLUS Gold, PCIe 5.0
Recommended Gigabyte UD1000GM, 1000W, 80PLUS Gold
Show similar specs. Hide similar specs.
278.02 €
99.58 €
93.66 €
112.22 €
118.76 €
Basic information
Cybenetics Efficiency certification Cybenetics Platinum Nav Nav Cybenetics Platinum Nav
Cybenetics Noise level certification Cybenetics A Nav Nav Cybenetics Standard ++ Nav
Power supply type ATX ATX ATX ATX ATX
Power output 1300W 750W 750W 850W 1000W
80 PLUS certification 80 PLUS Gold 80 PLUS Gold 80 PLUS Gold 80 PLUS Gold 80 PLUS Gold
Total amperage (+12V) 108.3A 62.5A 62.5A 70.8A 83.3A
Fan size 135 mm 120 mm 120 mm 120 mm 120 mm
Functionality
Cable colour Melna Melna Melna White Melna
Lighting Nav Nav Nav Nav Nav
Color Melna Melna Melna White Melna
Modular cables Fully-Modular Fully-Modular Fully-Modular Fully-Modular Fully-Modular
Ports and equipment
PCI-E 5.0 2 x 600W 12V-2X6 1 x 450W 12VHPWR 1 x 450W 12VHPWR 1 x 600W 12VHPWR Nav
Processor plug-in 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS
Motherboard power 24-pin 24-pin 20+4pin 20+4pin 20+4pin
PCI-E 6 x 6+2pin 4 X 6+2pin 4 X 6+2pin 4 X 6+2pin 6 x 6+2pin
SATA cconnectors 9 12 Eight Core Eight Core Eight Core
4pin Molex 3 4 3 3 3
Description

This Asrock brand power supply unit has an 80 PLUS Gold energy efficiency certificate and a power output of 1300W.

Thanks to the large 135 mm cooling fan diameter, this power supply is much quieter than average. The fan has a larger blade area, which provides the necessary airflow at lower fan speeds, thereby reducing the overall noise and vibration levels to a minimum.

80 PLUS Gold energy efficiency certificate received by this power supply guarantees at least 90% efficiency at 50% load. In other words, for every 100 W of energy the power supply receives from the power grid, at least 90 W goes to your computer components, and the remaining 10 W is lost as heat.

The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.

The noise level of this power supply is 20-25 dB and it has a Cybenetics A noise level certificate.

Thanks to the fact that this power supply has modular cables, you can add hard drives, video cards, and other components as needed, using the various cables included in the package. This way, there are fewer wires in the computer, which improves ventilation and appearance (especially useful for those who choose a partially transparent case).

Basic information
Cybenetics Efficiency certification : Cybenetics Platinum
Cybenetics Noise level certification : Cybenetics A
Power supply type : ATX
Power output 1300W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Gold
Total amperage (+12V) : 108.3A
Fan size : 135 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Fully-Modular
Ports and equipment
PCI-E 5.0 : 2 x 600W 12V-2X6
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 24-pin
PCI-E : 6 x 6+2pin
SATA cconnectors : 9
4pin Molex : 3
More detailed specification
dimensionalWeight - 1847
producerCode - 90-UXP130-GFEAAB
productName - Zasilacz ASRock PHANTOM GAMING 1300W 80 Plus Gold
productSize - Normal
Safety warning - Hazard pictogram(s) - GHS02: Flammable
Safety warning - Hazard pictogram(s) - GHS07: Harmful
Safety warning - Hazard pictogram(s) - GHS09: Environmental hazard
sizeX - 312
sizeY - 235
sizeZ - 126
warrantyLength - 120
warrantyType - G
weight - 4720
