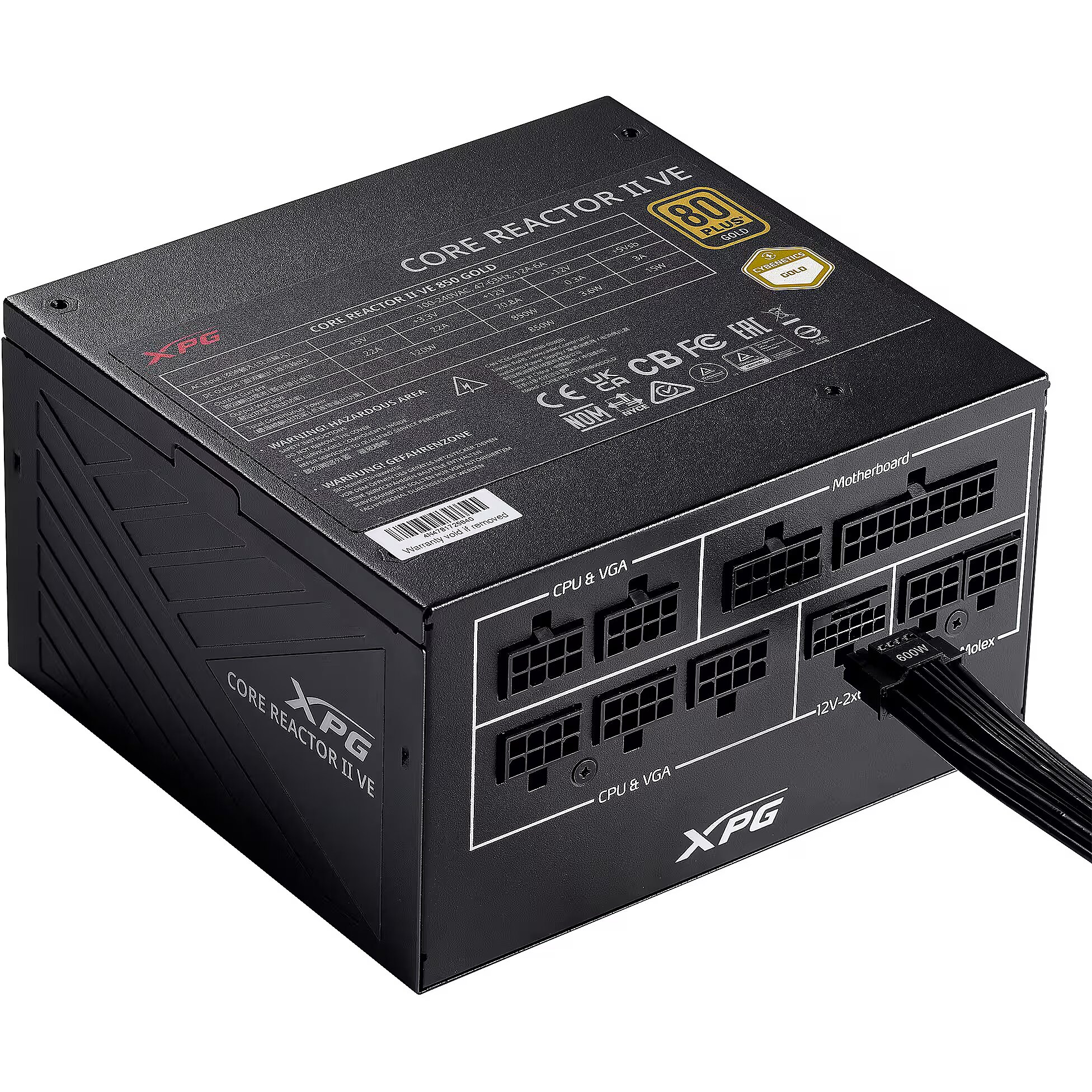

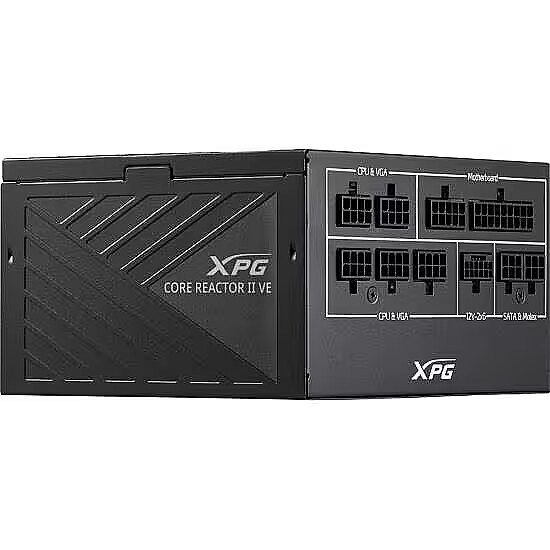

ADATA CORE REACTOR II VE, 850W, 80PLUS Gold, PCIe 5.0
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: on Wednesday, 27.11.2024
Main product parameters All parameters
- Producer: Adata
- Power output: 850W
- 80 PLUS certification: 80 PLUS Gold
- Fan size: 120 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 3 x 6+2pin
Description
This ADATA brand power supply unit has an 80 PLUS Gold energy efficiency certificate and a power output of 850W.
850W power supply will be suitable for a powerful workstation or gaming computer. It will provide power for a high-end video card (for example, RTX 4070 Ti SUPER), multiple hard drives (SSD/HDD), water cooling, and a top-tier processor (possibly overclocked).

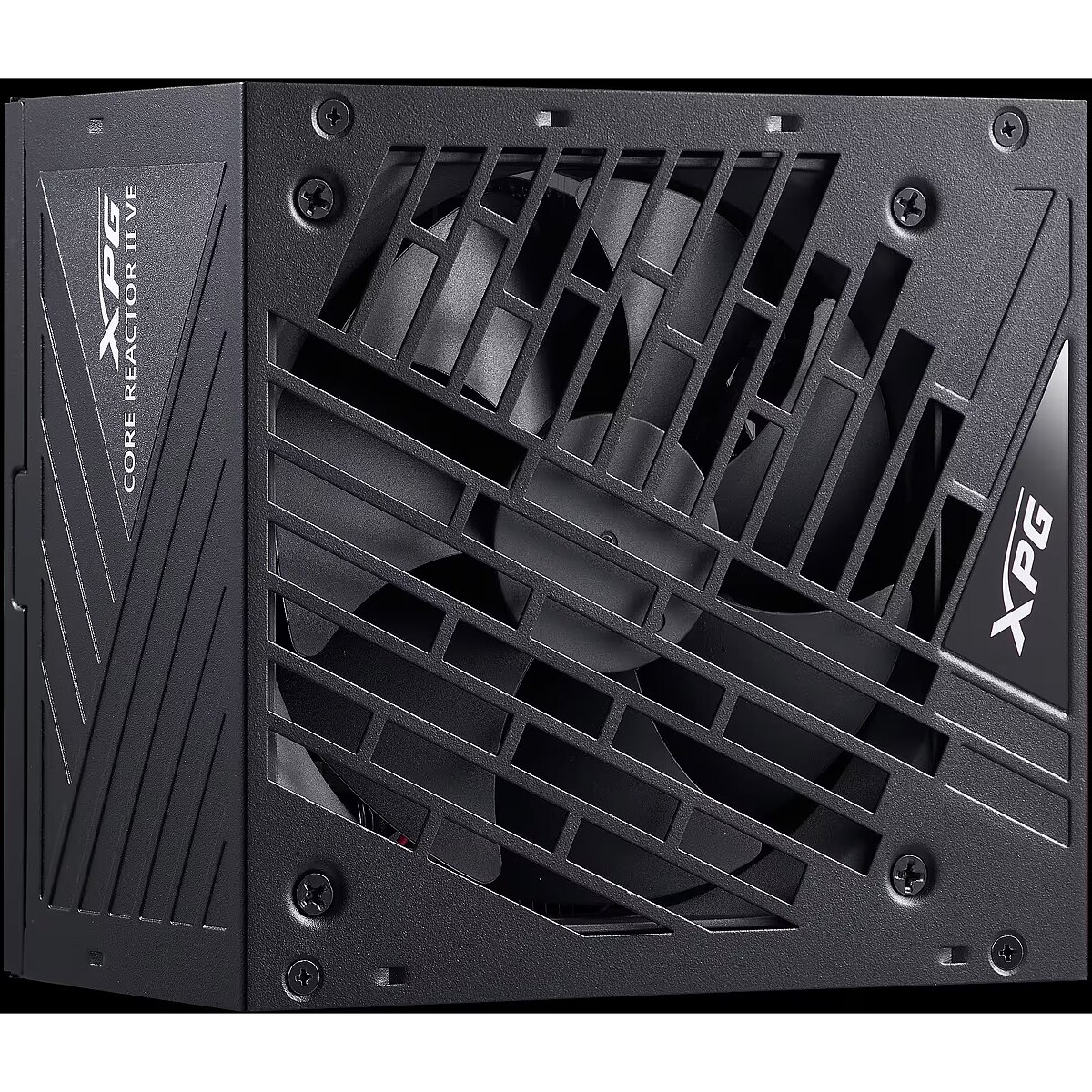

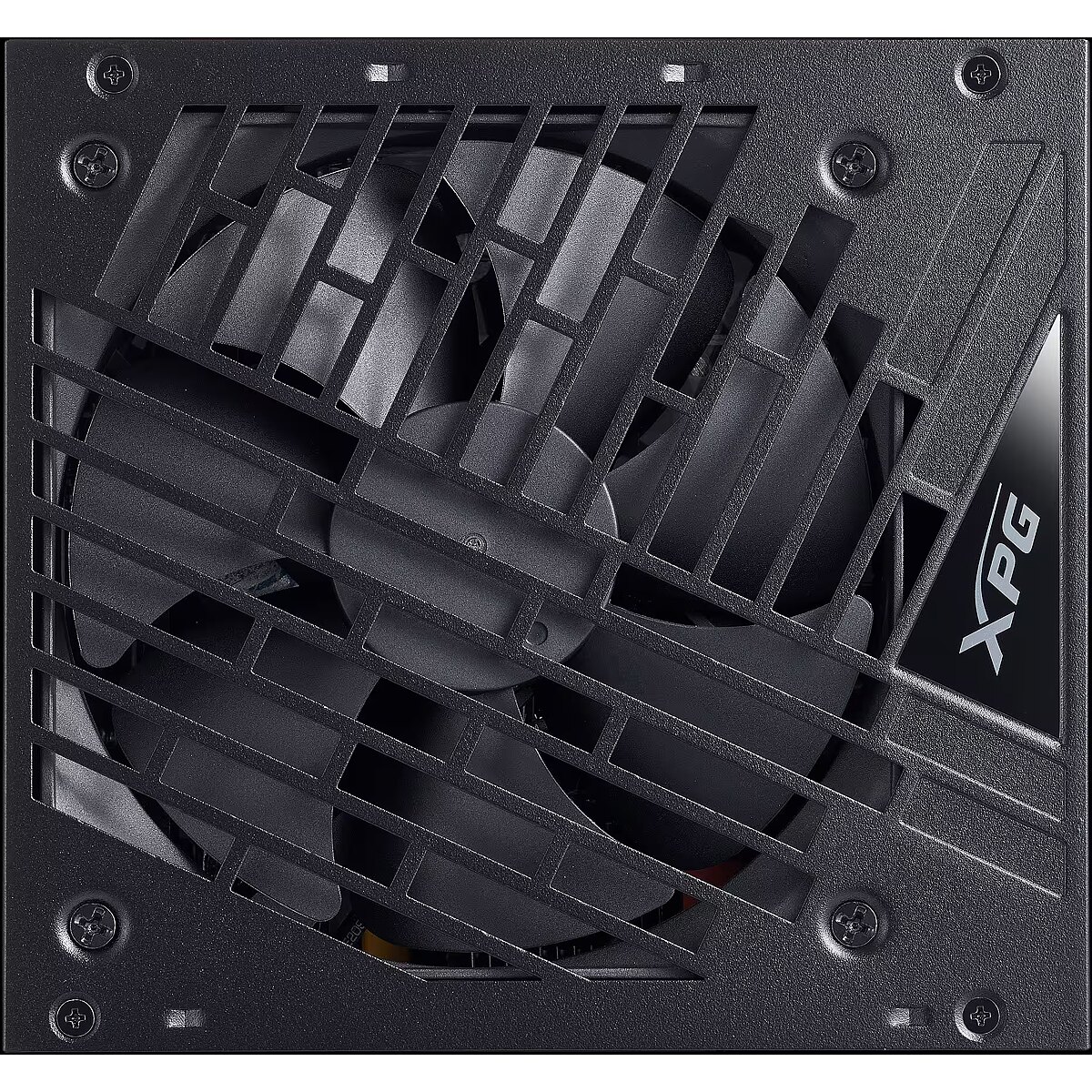

120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.
80 PLUS Gold energy efficiency certificate received by this power supply guarantees at least 90% efficiency at 50% load. In other words, for every 100 W of energy the power supply receives from the power grid, at least 90 W goes to your computer components, and the remaining 10 W is lost as heat.
The color of the block is Melna. The block has flat cables, whose color is Melna.
Thanks to the fact that this power supply has modular cables, you can add hard drives, video cards, and other components as needed, using the various cables included in the package. This way, there are fewer wires in the computer, which improves ventilation and appearance (especially useful for those who choose a partially transparent case).
Basic information
Cybenetics Efficiency certification
: Cybenetics Gold
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
850W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Gold
Total amperage (+12V)
: 70.8A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Fully-Modular

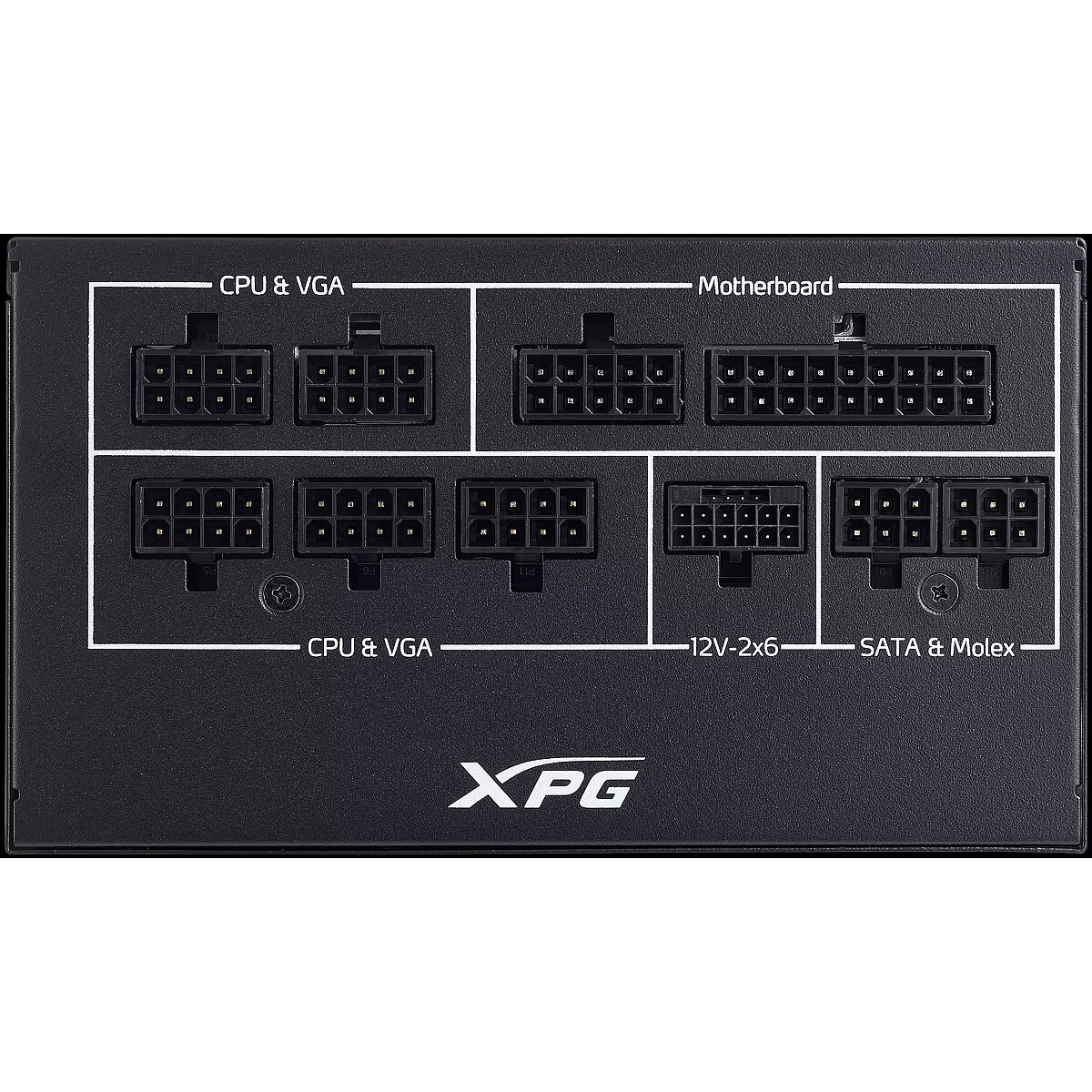

Ports and equipment
PCI-E 5.0
: 1 x 600W 12V-2X6
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 3 x 6+2pin
SATA cconnectors
: 6
4pin Molex
: 2
More detailed specification
Brand - XPG
BrandPartCode - 75261435
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category Code - PSU
Colour - Black
Cooling System - 12cm fan
Description - XPG CORE REACTOR II VE empowers your system with efficient power delivery. It’s compatible with Intel’s latest ATX 3.1 design guidelines and has a dedicated 12V-2x6 connector for the latest graphics cards. This unit boasts a DC-DC circuit design for enhanced performance, stability, and consistency, with exceptional ripple control and hold-up time surpassing Intel's specifications. It has 8 industrial protections fortifying its durability, safeguarding both the unit and your system.
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
Dimensions - 140 x 150 x 86mm
Eans - 4711085946256
Efficiency - 80 PLUS GOLD
Full Description Line - XPG CORE REACTOR II VE|For gaming|850 Watts|Cooling System 12cm fan|80 PLUS GOLD|Colour Black
GTIN - 0842243032468
GTIN - 842243032468
GTIN - 4711085946256
LongDesc - CORE REACTOR II VECORE COMPETENCEXPG CORE REACTOR II VE empowers your system with efficient power delivery. It’s compatible with Intel’s latest ATX 3.1 design guidelines and has a dedicated 12V-2x6 connector for the latest graphics cards. This unit boasts a DC-DC circuit design for enhanced performance, stability, and consistency, with exceptional ripple control and hold-up time surpassing Intel's specifications. It has 8 industrial protections fortifying its durability, safeguarding both the unit and your system.ATX 3.1 CompatibleXPG CORE REACTOR II VE integrates seamlessly with ATX 3.1 standards, enhancing performance and reliability. With a dedicated 12V-2x6 connector, it ensures optimal compatibility with the latest graphics card requirements, delivering advanced power delivery and efficiency.12V-2x6 ConnectorThe provided 12V-2x6 connector ensures direct and efficient power delivery to critical components, maximizing system stability and performance. By minimizing voltage drops and optimizing efficiency, this connector guarantees consistent and reliable power for your system's demanding needs.DC-DC Circuit DesignXPG CORE REACTOR II VE’s DC-DC circuit design maximizes efficiency and reliability by converting power directly to the required output voltage. This enhances system stability, reduces heat generation, and prolongs hardware lifespan.Low Ripple Noise DesignXPG CORE REACTOR II VE features a low ripple noise design, surpassing Intel's specifications with ripple levels below 60mV at +12V and below 40mV at +5V and +3.3V. This ensures stable power delivery, minimizes electrical interference, and enhances system performance, providing a seamless computing experience.15ms Hold Up TimeXPG CORE REACTOR II VE boasts an impressive hold-up time, surpassing Intel’s standards with over 15ms of uninterrupted power delivery. This ensures reliable operation under challenging conditions, making it the perfect choice for high-performance computing setups.8 Industrial ProtectionsXPG CORE REACTOR II VE offers 8 industrial-grade protections, shielding your system from over-voltage, under-voltage, overcurrent, short circuits, and more. With this comprehensive protection suite, you can rely on uninterrupted performance with peace of mind, even in the wake of electrical anomalies.140mm LengthXPG CORE REACTOR II VE's compact 140mm length design maximizes space efficiency without compromising on performance. Its sleek form factor ensures easy integration into various PC setups and chassis, delivering uncompromising power and reliability.PEAK PERFORMANCE AND RELIABILITYAll XPG ATX 3.0 and ATX 3.1 power supplies are designed to support up to 235% power excursion, enabling the system to handle sudden power spikes, ensuring stability, and preventing crashes during intense workloads like gaming, rendering, and data processing.
LongProductName - 850 W, 47Hz–63 Hz, Intel ATX 12V v3.1, GOLD, 140 x 150 x 86 mm, 120 mm FDB
LongSummaryDescription - XPG COREREACTOR II VE 850W Power Supply. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 150,450 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Model - COREREACTORIIVE850G-BKCEU
Model name - XPG CORE REACTOR II VE
Name - XPG CORE REACTOR II VE 850W
Packaging data - Package weight - 3.03 kg
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.1
Performance - Bearing technology - FDB
Performance - Certification - CB / CE / FCC / TUV / cTUVus / BSMI / CCC NOM / FCC IC / UKCA / TUV / TUV S-Mark / cTUVus
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - ATX power connector (12+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 75 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Motherboard power cable length - 65 cm
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power connectors (6+2 pin) - 3
Ports & interfaces - PCI Express power connectors (12+4 pin) cable length - 600 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Ports & interfaces - SATA power cable length - 150,450 mm
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 100 - 240 V
Power - Input current - 12 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 70.8 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.99
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage
Power - Total power - 850 W
Producer - XPG
ProducerCode - 75261435
ProductName - XPG COREREACTOR II VE 850W Power Supply
PSU features - For gaming
PSU Output Power - 850 Watts
Shipping box quantity - 1
ShortDescription - 850 | ATX | 120 mm | 20 + 4 pin |140 x 150 x 86 mm| 80 Plus Gold |
ShortSummaryDescription - XPG COREREACTOR II VE 850W Power Supply, 850 W, 100 - 240 V, 47 - 63 Hz, 12 A, 20 A, 70.8 A
Title - XPG COREREACTOR II VE 850W Power Supply
Unit Brutto Volume - 0.01388 cubm
Unit Gross Weight - 3.03 kg
Unit Net Weight - 2.8 kg
URL - https://www.xpg.com/en/xpg/pc-components-core-reactor-ii-ve
Vendor Homepage - www.xpg.com/en/xpg/pc-components-core-reactor-ii-ve
Warranty - 120 months
WarrantyInfo - 7 years
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.45 kg
Weight & dimensions - Width - 150 mm
