8-pin 12V power connectors - 0
Accessories included - Kabel zasilający
Category - Root/Electronics/PC parts/PC power supply units
category_en - Computers & Components > Computer components > Universal power supplies PSU
category_lv - Datortehnika > Datoru komponentes > Barošanas bloki PSU
category_ru - Datortehnika > Datoru komponentes > Barošanas bloki PSU
Certificates 80+ - Equivalent 80 PLUS Bronze

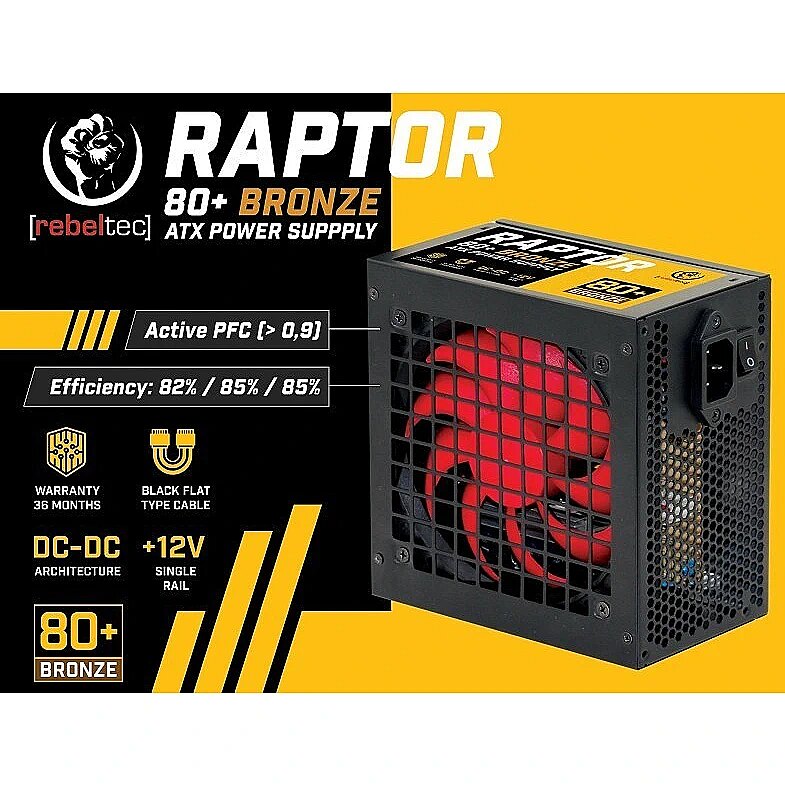

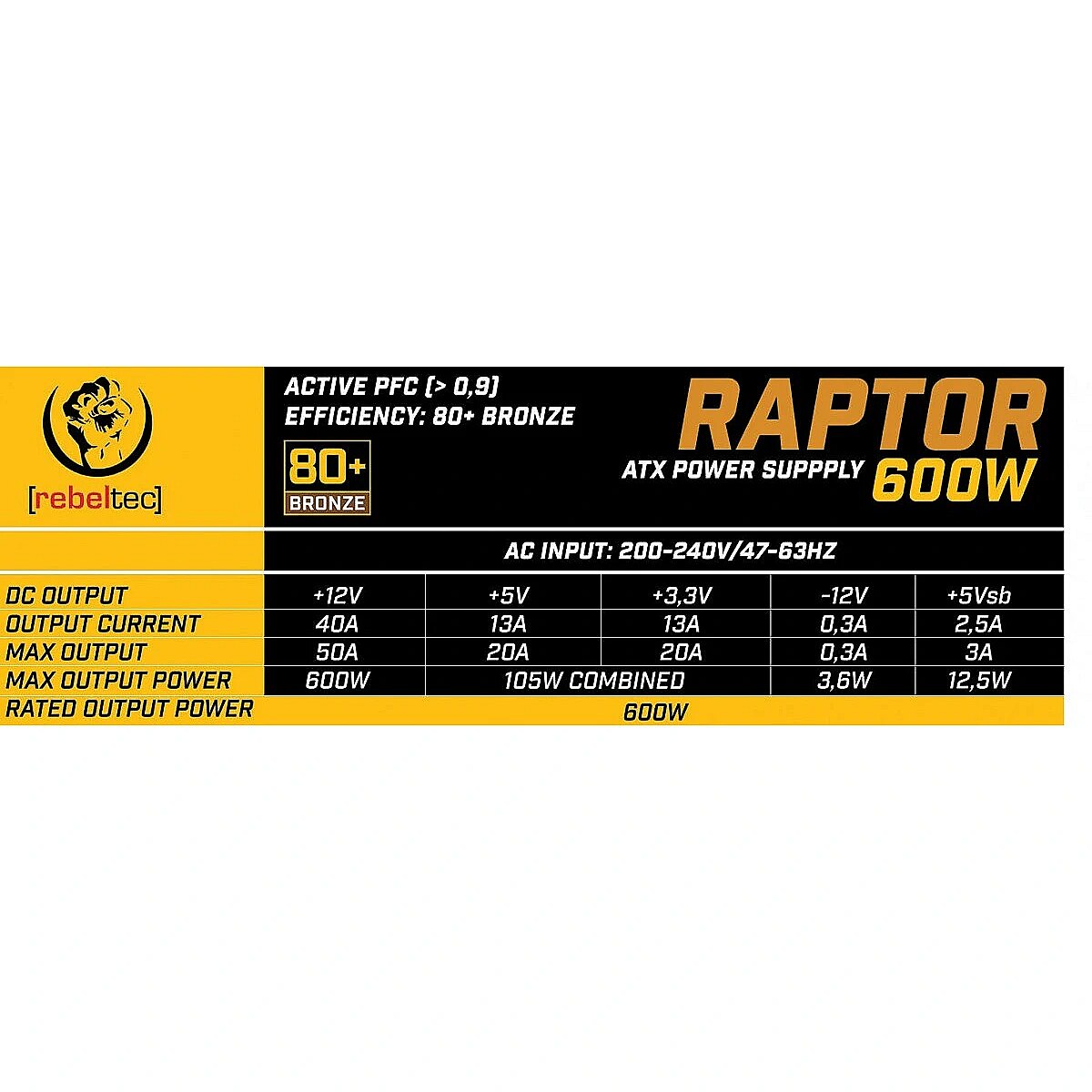

Description - ATX power supply RAPTOR 600W, BRONZE 80+, Single Rail, DC-DC RAPTOR 600W BRONZE 80+, DC-DC, Single Rail Premium ATX power supply Huge power reserve Thanks to the advanced design and the highest quality components, Raptor power supplies have a huge power reserve. In the RAPTOR 600W power supply, 600W is available on the +12V line alone (dedicated to powering the processor and graphics card, among other things), in addition to a total of 105W on the +3.3V and + 5V lines and 16.1W on the remaining lines. So the maximum power significantly (approx. 721W) exceeds the rated power of 600W. Efficiency above 85% High efficiency - over 85% at a load of 50% power, over 82% at a load of 20% and 100% power. This means less heat production and more efficient cooling, which translates into quiet operation. High efficiency reduces energy consumption, which in turn reduces equipment operating costs. Active PFC High-quality power supplies use active PFC, which is more effective than the passive PFC used in standard power supplies. Active PFC systems are specialized electronic circuits that adapt to the load and to the conditions in the electrical network, and are therefore able to correct the phase shift efficiently regardless of the operating conditions of the power supply. DC-DC Architecture Power supplies with "DC / DC" technology convert +12V DC in the main transformer and then use it as a basis for +3.3V and +5V - unlike conventional models, which generate all currents simultaneously. Only two additional converters reduce the voltage from +12V to +5V and +3.3V. This increases the efficiency of the entire power supply and also creates a strong +12V line, which is directly used by the most important components such as the processor and graphics card. In addition, it increases the stabilization of individual voltages and reduces to a minimum the impact of current spikes of a given voltage on other voltages. High-quality capacitors A high-quality main capacitor 105`C / 330° uF (in the RAPTOR 600 model) improves the durability of the power supplies and ensures the stability and reliability of the RAPTOR series of power supplies. In the converters reducing the voltage from +12V to +5V and +3.3V, polymer capacitors are used, which are characterized by very low losses. Single +12V RAIL The design with a single +12V rail ensures stable output current at high load and, above all, more optimal power distribution for individual computer components. This is especially important for units with efficient processors and graphics cards. Power cable included All REBELTEC power supplies are sold with a mains power cable, so you don't have to buy it separately - you save time and money. Non-modular design with FLAT BLACK flat cables The RAPTOR series is supplied with soft black FLAT BLACK cables, which allow for easy cable installation and ensure optimal voltage in the system and also cause. that the cables can be arranged more easily and are less visible, which is important in transparent housings. SPECIFICATION: The power supply meets the requirements of 80PLUS BRONZE standards Stable continuous power of 600W - maximum power on the 12V line is as much as 600W, combined on the 5V & 3.3V lines is 105W active PFC (>0.9) DC-DC architecture - ensures high voltage stabilization SINGLE RAIL 12V - optimal power distribution for key components efficiency >82% at 20% load efficiency >85% at 50% load efficiency >82% at 100% load ERP2013 compliance 12cm fan (ultra silent) thermally controlled operating speed black housing FLAT BLACK cables, thanks to which they are easy to arrange in the housing and remain invisible with transparent housings MTBF >100 000h w complete with 16A/250V cable 1.2m 3x0.75mm2 Size: 150 x 140 x 86 mm Weight: 1330g EAN code: 5902539602265 Secondary side wiring: 3x Molex connector (on 3 cables 60-75cm long, flat black, shared with SATA) 5x SATA connector (on 3 cables 45-60cm long, flat black) 1x CPU 12V 4+4pin connector (55cm long cable, flat black) 2x PCI-E 6+2pin connector (50+15cm long cable, flat black) 1x ATX 20+4pin pin connector (50cm long cable, flat black) Protections: OVP - protection overvoltage SCP - short circuit protection OPP - overload protection SIP - surge current protection UVP - undervoltage protection OTP - overheating protection
description_en - Power Output: 600W – provides stable power for both basic systems and more powerful computers with multiple components (e.g., powerful graphics cards, processors, and other devices).
80+ Bronze Certification: The power supply is highly efficient, delivering up to 85% energy efficiency at full load, reducing energy loss and heat generation.
Compatibility: Suitable for most standard ATX systems, making it a versatile choice for home, office, and gaming PCs.
Protection: Includes protection systems against short circuits, overloads, overheating, and voltage spikes, ensuring safety for both the power supply and other system components.
Efficient Cooling: Equipped with a high-quality fan that helps reduce noise levels and maintains optimal temperature for the unit's operation.
Low Noise: The fan operates efficiently, ensuring minimal noise levels even under load.
Compact Size: Despite its high power output, the power supply is compact, fitting into various PC cases and saving space.
Stable Operation: The built-in voltage stabilization system helps prevent voltage fluctuations, which increases the lifespan of computer components.
Easy Installation: The power supply is easy to install in standard ATX cases, with all necessary cables and connectors to power PC components.
Suitable for Various PCs: Ideal for building powerful gaming systems or office workstations where reliable and stable operation is required.
ower channels: Several 12V channels to evenly distribute load.
Dimensions: Standard ATX size, suitable for most cases.
Fan: Effective cooling system to maintain optimal operating temperature.
description_lv - Jaudas izeja: 600W – stabilai barošanai gan pamatsistēmām, gan jaudīgākām datoriem ar vairākiem komponentiem (piemēram, jaudīgām videokartēm, procesoriem un citiem ierīcēm).
80+ Bronze sertifikācija: Barošanas avots ir ļoti efektīvs, nodrošinot līdz 85% enerģijas efektivitāti pilnā slodzē, samazinot enerģijas zudumus un siltuma veidošanos.
Saderība: Saderīgs ar vairumu standarta ATX sistēmām, kas padara to universālu mājas, biroja un spēļu datoriem.
Aizsardzība: Iekļautas aizsardzības sistēmas pret īssavienojumiem, pārslogojumiem, pārkaršanu un pārspriegumiem, nodrošinot drošību gan barošanas avotam, gan citiem sistēmas komponentiem.
Efektīva dzesēšana: Aprīkots ar augstas kvalitātes ventilatoru, kas palīdz samazināt trokšņa līmeni un uztur optimālu temperatūru darbības laikā.
Zems trokšņu līmenis: Ventilators darbojas efektīvi, nodrošinot minimālu trokšņa līmeni, pat slodzes laikā.
Kompaktie izmēri: Neskatoties uz augsto jaudu, barošanas avots ir kompakts un der vairumam datoru korpusu, ietaupot vietu.
Stabila darbība: Iekļautā sprieguma stabilizācijas sistēma palīdz novērst sprieguma svārstības, kas palielina datoru komponentu kalpošanas laiku.
Viegla uzstādīšana: Barošanas avots ir viegli uzstādāms standarta ATX korpusos, tam ir visi nepieciešamie vadi un savienotāji, lai nodrošinātu datoru komponentu barošanu.
Piemērots dažādiem datoriem: Ideāli piemērots spēļu sistēmu un biroja darba staciju veidošanai, kurās nepieciešama uzticama un stabila darbība.
Barošanas kanāli: Vairāki 12V kanāli vienmērīgai slodzes sadalei.
Izmēri: Standarta ATX izmērs, piemērots vairumam korpusu.
Ventilators: Efektīva dzesēšanas sistēma optimālai darbības temperatūrai.
description_ru - Мощность: 600W – позволяет стабильно питать как базовые системы, так и более мощные компьютеры с несколькими компонентами (например, мощными видеокартами, процессорами и другими устройствами).
Сертификация 80+ Bronze: блок питания имеет высокую эффективность работы, обеспечивая до 85% энергоэффективности при полной нагрузке, что снижает потери энергии и уменьшает тепловыделение.
Совместимость: Блок питания подходит для большинства стандартных ATX систем, что делает его универсальным для большинства домашних, офисных и игровых ПК.
Защита: Встроенные системы защиты от короткого замыкания, перегрузки, перегрева и перенапряжения, обеспечивают безопасность как для блока питания, так и для других компонентов системы.
Эффективное охлаждение: Оснащен высококачественным вентилятором, который помогает снизить уровень шума и поддерживает оптимальную температуру работы блока.
Низкий уровень шума: Вентилятор работает эффективно, обеспечивая минимальный уровень шума, даже при нагрузке.
Компактные размеры: Несмотря на высокую мощность, блок питания имеет компактные размеры, что позволяет использовать его в различных корпусах ПК, экономя пространство.
Стабильность работы: Встроенная система стабилизации напряжения помогает предотвратить скачки напряжения, что увеличивает срок службы компонентов компьютера.
Удобство установки: Блок питания легко устанавливается в стандартные ATX корпуса, все необходимые кабели и разъемы для подключения устройств ПК присутствуют.
Подходит для различных типов ПК: Идеален для сборки как мощных игровых систем, так и для офисных рабочих станций, где требуется стабильная и надежная работа.
оличество каналов питания: несколько 12V каналов для равномерного распределения нагрузки.
Размеры: стандартные размеры для блока питания ATX, подходящие для большинства корпусов.
Вентилятор: с эффективной системой охлаждения, поддерживающей оптимальную температуру работы.
Designation - CE+WEEE
dimension depth - 90 mm
dimension height - 180 mm
Dimensions - 150 x 140 x 86 mm
dimension weight - 1571 g
dimension width - 240 mm
ean - 5902539602265
EAN - 5902539602265
Eans - 5902539602265
Fan - 12 cm
Fan speed (max) - 1800 rpm
Fan speed (min) - 880 rpm
Filters / protection - Circuit
Filters / protection - No
Filters / protection - Overload
Filters / protection - Surge
Filters / protection - Thermal
Filters / protection - Voltage drop
Floppy power connectors - 0
gross_weight - 1.59 kg
guarantee - 24
guarantee_type - normal
MB power connector - 20 + 4 pin
Model - RBLZAS00017
Modular power supply - Yes
MOLEX power connectors - 3
Name - Rebeltec RAPTOR 600W
name - The power supply ATX RAP TOR,600W,BRONZE 80+,Sin
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 0
Number of power connectors PCI-E 16-pin Gen 5 - 0
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 2
Number of USB 10p connectors - 0
Other features - W zasilaczach Raptor szybkość pracy wentylatorów jest kontolowana termicznie i wynosi od 800 do 1800 obr/min.
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
PFC - Yes
Power supply - 500 W
producer - Rebeltec
Producer - Rebeltec
ProducerCode - RBLZAS00017
SATA power connectors - 5
ShortDescription - 600W | ATX | 120 mm | 20 + 4 pin | 140mm x 150mm x 86mm |80PLUS BRONZE|
title_en - Rebeltec ATX RAP TOR BRONZE 80 Power Supply 600W
title_lv - Rebeltec ATX RAP TOR BRONZE 80 Barošanas Bloks 600W
title_ru - Rebeltec ATX RAP TOR BRONZE 80 Блок питания 600W
vendpn - RBLZAS00017
weight - 1.5 kg
Weight - 1330 g
