ID: 1151672
Product code: GP-P550SS ICE GEU1
In stock >50 units
Warranty: 3 years

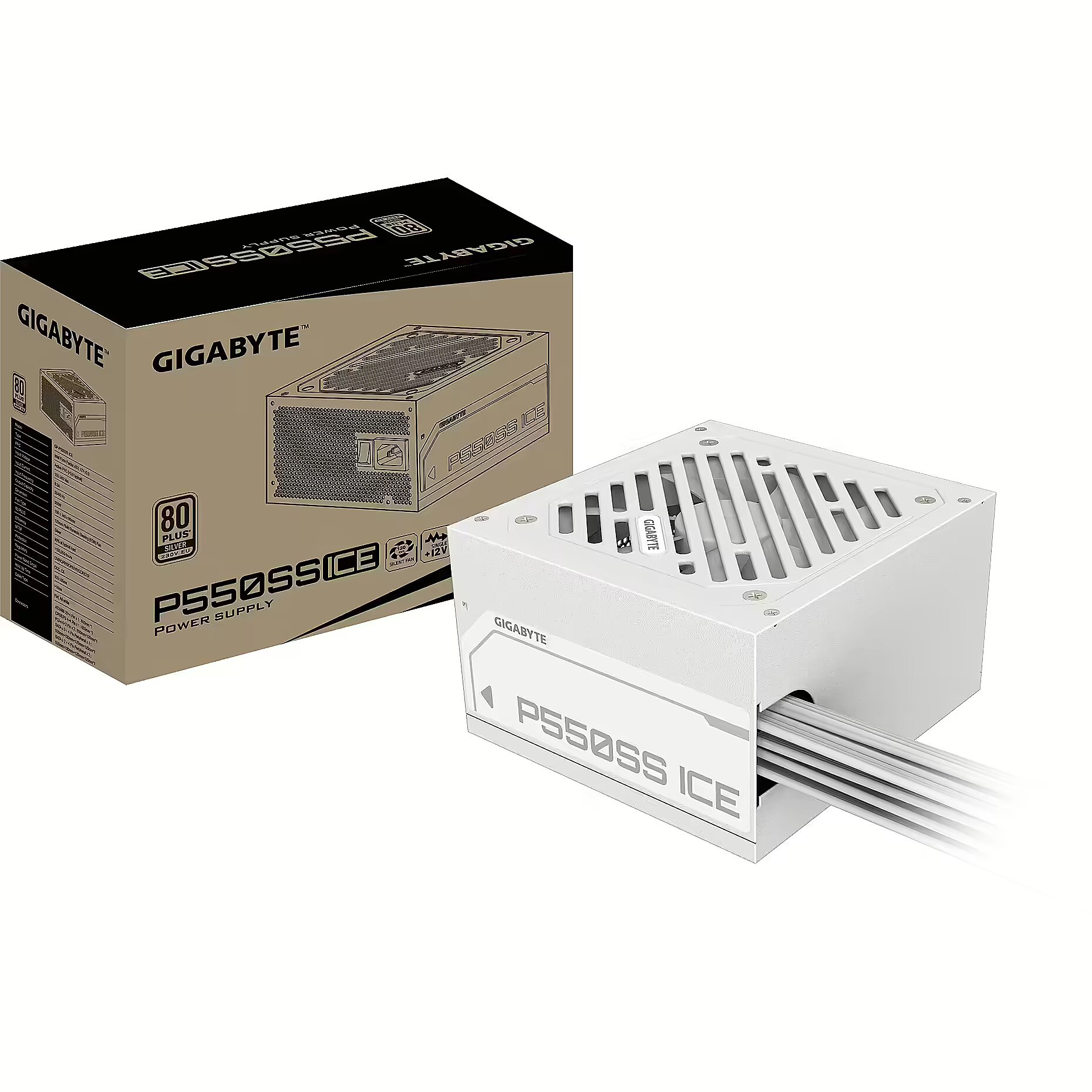

Gigabyte GP-P550SS ICE, 550W, 80PLUS Silver
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost 6.99 €: 04.02.2025
- Courier delivery 11.99 €: 04.02.2025
Main product parameters All parameters
- Producer: Gigabyte
- Power output: 550W
- 80 PLUS certification: 80 PLUS Silver
- Fan size: 120 mm
- Modular cables: Nav
- Processor plug-in: 1 x 8-pin(4+4) EPS
- PCI-E: 2 X 6+2pin
Description
Available for purchase is a power supply produced by Gigabyte with a power output of 550W. The product has been awarded an 80 PLUS Silver energy efficiency certificate.
The power of 550W is sufficient for basic computer gaming, web browsing, and Office applications use. The unit is designed for a computer with a budget processor, integrated graphics card, small SSD or hard drive. If you decide to upgrade your computer in the future, you should definitely consider purchasing a more powerful power supply.
The diameter of this power supply unit's fan is 120 mm, which will ensure quiet operation in mid-range computers. For especially quiet power supply unit operation, we recommend selecting a fan with a 135 mm or 140 mm diameter.
The power supply has been awarded an 80 PLUS Silver energy efficiency certificate, which ensures at least 88% efficiency at 50% load. This indicates that at least 88 W out of 100 W power received by the power supply from the electricity grid is delivered to the computer components, with the remaining 12 W lost as heat.
The color of this power supply is Balta. The cable color is Balta and they are flat.
This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.
This power supply unit does not have modular cables – all its cables are attached to the unit and are not detachable. Despite the simple design, it will fulfill its functions just as well as a power supply unit with modular cables.
The manufacturer of the power supply unit is Gigabyte. All power supply units produced by Gigabyte can be viewed here.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
550W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Silver
Total amperage (+12V)
:
Fan size
: 120 mm
Functionality
Cable colour
: White
Lighting
: Nav
Color
: White
Modular cables
: Nav
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 1 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 2 X 6+2pin
SATA cconnectors
: 5
4pin Molex
: 3
More detailed specification
Category Code - PSU
Code - GP-P550SS ICE GEU1
Colour - White
Description - GIGABYTE P550SS ICE + Ice white aesthetics + 80 PLUS Silver certified + Support Intel ATX 3.0 standard + 120mm Fluid Dynamic Bearing (FDB) Fan + Flat cable design + Powerful single +12V rail + OVP/OPP/SCP/UVP/OCP/OTP protection 80 PLUS SILVER CERTIFIED The 80 Plus Silver certification (230V EU) guarantees a 90% efficiency rate at a 50% load, resulting in reduced power wastage, diminished heat generation, and minimized fan noise. Support Intel ATX 3.0 standard The P550SS ICE can sustain up to 2x total power excursion. It is fully compatible with Intel PSDG (Power Supply Design Guide) ATX 3.0 standard which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards. 120MM FLUID DYNAMIC BEARING(FDB) FAN High-performance Fluid Dynamic Bearing fan uses oil film shock absorption technology to effectively reduce noise, making it quieter than conventional sleeve fan and providing more than twice the lifespan. In addition, the fan will detect the current power usage and temperature, automatically adjust the fan speed to minimize the noise. RELIABLE FLAT CABLE DESIGN The utilization of flat cables minimizes clutter while enhancing the thermal performance of the chassis. PROTECTION To guarantee the stable operation of your entire computer system under any circumstances, we have incorporated a range of protective features including OCP, OTP, OVP, OPP, UVP, and SCP. Moreover, we have obtained safety certifications from various countries to ensure the consistent and secure functioning of your system.
Dimensions - 150 x 140 x 86 mm
EAN - 4719331554910
Efficiency - 80 PLUS SILVER
Full Description Line - GP-P550SS ICE|For gaming|ATX 3.0|550 Watts|80 PLUS SILVER|PFC Active|MTBF 100000 hours|Colour White
Link - https://www.gigabyte.com/Power-Supply/GP-P550SS-ICE#kf
Model name - GP-P550SS ICE
MTBF - 100000 hours
Name - Gigabyte PSU | GP-P550SS ICE GEU1 | 550 W
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 150.00 mm
Package features > Gross height (mm) - 86.00 mm
Package features > Gross width (mm) - 140.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 457 pc(s)
Package features > Paper/Pasteboard - 170.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.19 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
PFC - Active
Power > Nominal power - 550 W
PSU - ATX 3.0
PSU features - For gaming
PSU Output Power - 550 Watts
Technical details > Gross weight - 2.19 kg
Technical details > Net weight - 2.00 kg
Technical details > Producer - Gigabyte
Technical details > Producer product family - PSU
Technical details > Producer product name - GP-P550SS ICE GEU1
Unit Brutto Volume - 0.007577 cubm
Unit Gross Weight - 2.2 kg
Unit Net Weight - 2 kg
Vendor Homepage - www.gigabyte.com/Power-Supply/GP-P550SS-ICE#kf
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
