ID: 1099813
Product code: PS-SPD-0650NNFABE-3
Can be ordered 146 units Availability: 14 days after order approval
Warranty: 3 years

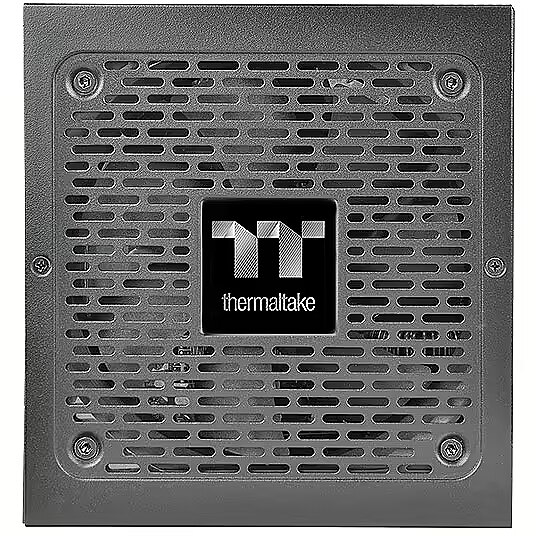

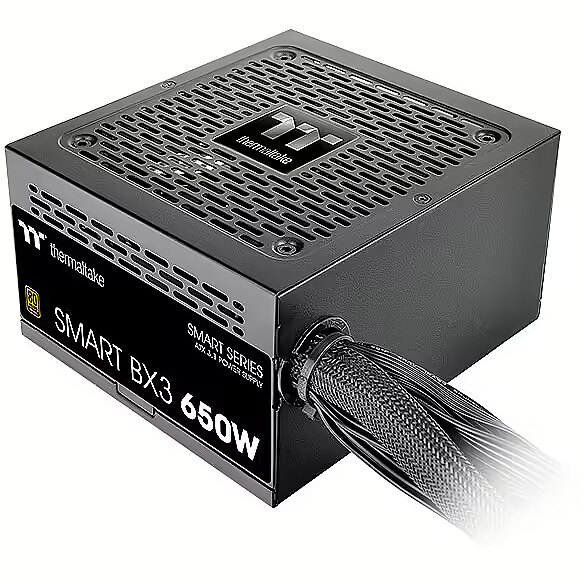

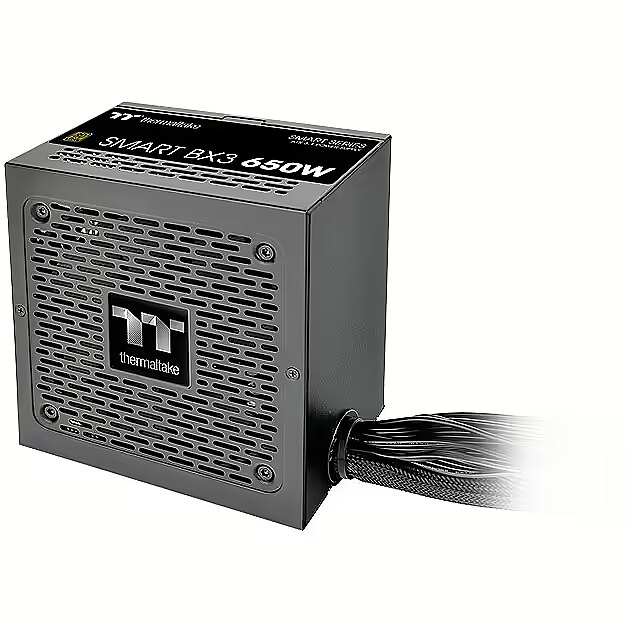

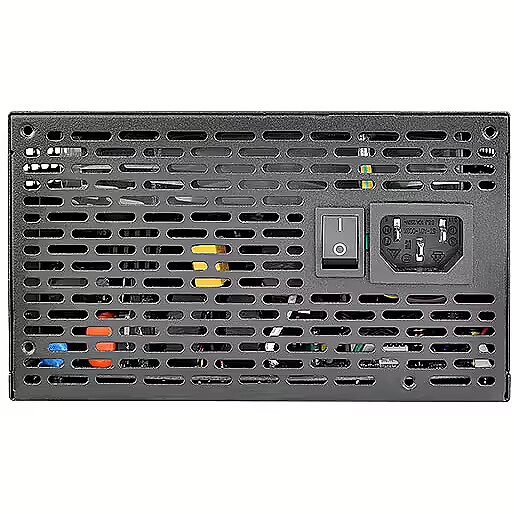

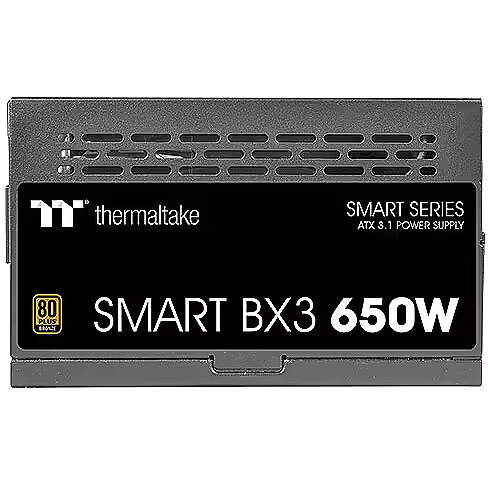

Thermaltake Smart BX3, 650W, 80PLUS Bronze
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 27.11.2024
Main product parameters All parameters
- Producer: Thermaltake
- Power output: 650W
- 80 PLUS certification: 80 PLUS Bronze
- Fan size: 120 mm
- Modular cables: Nav
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 2 X 6+2pin
Description
Available for purchase is a power supply produced by Thermaltake with a power output of 650W. The product has been awarded an 80 PLUS Bronze energy efficiency certificate.
650W power is sufficient for web browsing, Microsoft Office, and playing simple computer games. The power supply can run a computer with one or two hard drives, a mid-range graphics card (such as the GTX 1650), and a mid-range processor. If you are a serious computer games enthusiast, buy a more powerful power supply.
120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.
The power supply has received the 80 PLUS Bronze energy efficiency certificate, which guarantees at least 85% efficiency at 50% load. This means that for every 100W of power the power supply draws from the electrical grid, at least 85W is delivered to your computer components, while the remaining 15W is lost as heat.
The color of this power supply is Melna. The cable color is Melna and they are flat.
This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.
The power supply unit does not have modular cables; all cables are attached to the power supply unit and are not removable. Despite this, it will work just as well as a power supply unit with modular cables.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
650W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Bronze
Total amperage (+12V)
: 54.2A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Nav
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 24-pin
PCI-E
: 2 X 6+2pin
SATA cconnectors
: 4
4pin Molex
: 4
More detailed specification
8-pin 12V power connectors - 0
Accessories included - 150 x 86 x 140 mm
Category 1 - Netzteile
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Bronze
Description - Zasilacz Thermaltake Smart BX3 650W 80 Bronze ATX3.1 PCI-E 5.0 Single Rail DC-DC.
Zasilacz Smart BX3 to nie tylko urządzenie, które zapewni stabilne zasilanie dla Twojego komputera, ale także gwarantuje efektywność i niezawodność. Z mocą 650W oraz aktywnym systemem PFC, zasilacz ten spełni wymagania nawet najbardziej wymagających użytkowników.
Jednym z jego kluczowych elementów jest 12-centymetrowy wentylator, który zapewnia odpowiednie chłodzenie podzespołów, co przekłada się na wydajność i długą żywotność urządzenia. Dodatkowo, zasilacz posiada różnorodne złącza zasilające, takie jak złącza MOLEX, SATA, czy PCI-E, co pozwoli Ci podłączyć różnorodne komponenty komputerowe bez problemu.
Dzięki złączu MB 24-pin, zasilacz Smart BX3 jest kompatybilny z większością nowoczesnych płyt głównych, co sprawia, że jest uniwersalnym rozwiązaniem dla wielu konfiguracji komputerowych.
Design - Fan diameter - 12 cm
Design - Product colour - Black
dimensionalWeight - 1411
dimension depth - 120 mm
dimension height - 210 mm
Dimensions -
dimension weight - 2223 g
dimension width - 280 mm
ean - 4711475643048
EAN - 4711475643048
EAN_code - 4711475643048
Fan - 12 cm
Floppy power connectors - 0
guarantee - 60
guarantee_type - statutory
Manufacturer - Thermaltake
Manufacturer_code - PS-SPD-0650NNFABE-3
MB power connector - 24 pin
Modular power supply - Semi
MOLEX power connectors - 7
MPN - PS-SPD-0650NNFABE-3
Name - 650W Thermaltake Smart BX3 | 80+ Bronze
name - Thermaltake Smart BX3 6 50W
Name - Thermaltake SMART BX3 650W, PC power supply (black, 2x PCIe, 650 watts)
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 0
Number of power connectors PCI-E 16-pin Gen 5 - 1
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Other features -
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 3.1
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance - Silent mode - Yes
PFC - Active
Ports & interfaces - ATX Power connector (24-pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU P4 connector (4-pin) - 2
Ports & interfaces - Number of SATA power connectors - 4
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power cable length - 150
Ports & interfaces - Peripheral (Molex) power cable length - 500
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 110 W
Power - Combined power (+5V) - 110 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 650 W
Power - Combined power (-12V) - 3.6 W
Power - Hold time - 150 ms
Power - Input current - 15 A
Power - Max output current (+3.3V) - 18 A
Power - Max output current (+5V) - 18 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 54.2 A
Power - Max output current (-12V) - 0.3 A
Power - Peak power - 650 W
Power - Power Factor Correction (PFC) type - Active
Power - Total power - 650 W
Power supply - 650 W
producer - Thermaltake
producerCode - PS-SPD-0650NNFABE-3
productName - Thermaltake Smart BX3 power supply unit 650 W ATX Black
productSize - Normal
SATA power connectors - 3
sizeX - 280
sizeY - 210
sizeZ - 120
vendpn - PS-SPD-0650NNFABE-3
warrantyLength - 60
warrantyType - G
Weight - 2,20
Weight - 2.22
weight - 2190
Weight & dimensions - Depth - 86 mm
Weight & dimensions - Height - 140 mm
Weight & dimensions - Width - 150 mm
