ID: 1099812
Product code: PS-SPD-0550NNFABE-3
Can be ordered 120 units Availability: 14 days after order approval
Warranty: 3 years

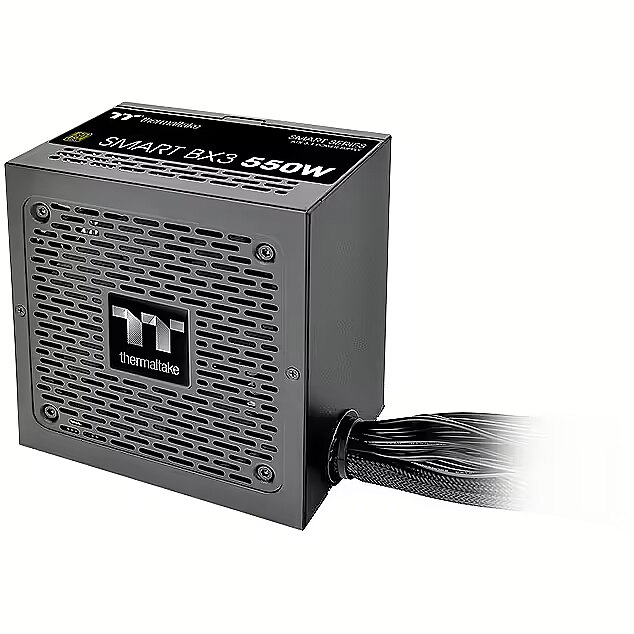

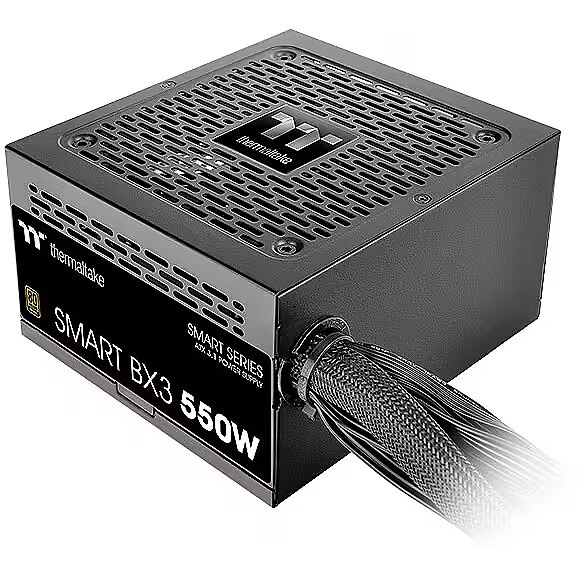

Thermaltake Smart BX3, 550W, 80PLUS Bronze
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 27.11.2024
Main product parameters All parameters
- Producer: Thermaltake
- Power output: 550W
- 80 PLUS certification: 80 PLUS Bronze
- Fan size: 120 mm
- Modular cables: Nav
- Processor plug-in: 1 x 8-pin(4+4) EPS
- PCI-E: 2 X 6+2pin
Description
We offer to purchase a Thermaltake power supply unit with a power capacity of 550W, which has received the 80 PLUS Bronze energy efficiency certification.
The power of 550W is sufficient for basic computer gaming, web browsing, and Office applications use. The unit is designed for a computer with a budget processor, integrated graphics card, small SSD or hard drive. If you decide to upgrade your computer in the future, you should definitely consider purchasing a more powerful power supply.
120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.
The power supply has received the 80 PLUS Bronze energy efficiency certificate, which guarantees at least 85% efficiency at 50% load. This means that for every 100W of power the power supply draws from the electrical grid, at least 85W is delivered to your computer components, while the remaining 15W is lost as heat.
The color of this power supply is Melna. The cable color is Melna and they are flat.
This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.
This power supply has no removable cables and all cables are attached to the power supply. It has a simple design, but it works just as well as a power supply with modular cables.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
550W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Bronze
Total amperage (+12V)
: 45.85A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Nav
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 1 x 8-pin(4+4) EPS
Motherboard power
: 24-pin
PCI-E
: 2 X 6+2pin
SATA cconnectors
: 4
4pin Molex
: 4
More detailed specification
8-pin 12V power connectors - 0
Accessories included -
Category 1 - Netzteile
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Bronze
Description - Zasilacz Thermaltake Smart BX3 550W 80 Bronze ATX3.1 PCI-E 5.0 Single Rail DC-DC.
Zasilacz Smart BX3 to nie tylko solidność i wydajność, ale także innowacyjność i nowoczesny design. Kompaktowe wymiary 150 x 86 x 140 mm sprawiają, że idealnie wpasuje się do większości obudów komputerowych, nie zajmując przy tym zbyt wiele miejsca. Moc zasilacza wynosząca 550 W gwarantuje stabilne i wystarczające zasilanie dla nawet najbardziej wymagających podzespołów.
Jedną z kluczowych cech tego zasilacza jest aktywny układ PFC, który sprawia, że urządzenie jest bardziej energooszczędne i przyjazne dla środowiska. Dodatkowo, zasilacz wyposażony jest w 12-centymetrowy wentylator, który skutecznie odprowadza ciepło, zapewniając optymalną temperaturę pracy.
Thermaltake Smart BX3 oferuje również szeroki zakres złączy zasilających, w tym złącza MOLEX, SATA, 4-pin 12V, 8-pin 12V, a także złącza PCI-E w różnych konfiguracjach. Dzięki nim, z łatwością podłączysz wszystkie niezbędne urządzenia, bez konieczności korzystania z dodatkowych adapterów czy rozgałęźników.
Design - Fan diameter - 12 cm
Design - Product colour - Black
dimensionalWeight - 1411
dimension depth - 120 mm
dimension height - 210 mm
Dimensions - 150 x 86 x 140 mm
dimension weight - 2132 g
dimension width - 280 mm
ean - 4711475642942
EAN - 4711475642942
EAN_code - 4711475642942
Fan - 12 cm
Floppy power connectors - 0
guarantee - 60
guarantee_type - statutory
Manufacturer - Thermaltake
Manufacturer_code - PS-SPD-0550NNFABE-3
MB power connector - 24 pin
Modular power supply - Semi
MOLEX power connectors - 7
MPN - PS-SPD-0550NNFABE-3
Name - 550W Thermaltake Smart BX3 | 80+ Bronze
name - Thermaltake Smart BX3 5 50W
Name - Thermaltake SMART BX3 550W, PC power supply (black, 2x PCIe, 550 watts)
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 0
Number of power connectors PCI-E 16-pin Gen 5 - 1
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 2
Operational conditions - Operating relative humidity (H-H) - 20 - 85%
Operational conditions - Operating temperature (T-T) - 5 - 45 °C
Operational conditions - Storage relative humidity (H-H) - 10 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 55 °C
Other features -
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 3.1
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance - Silent mode - Yes
PFC - Active
Ports & interfaces - Cabling type - Non-Modular
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 110 W
Power - Combined power (+5V) - 110 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 550 W
Power - Combined power (-12V) - 3.6 W
Power - Hold time - 150 ms
Power - Input current - 12 A
Power - Max output current (+3.3V) - 18 A
Power - Max output current (+5V) - 18 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 54.2 A
Power - Max output current (-12V) - 0.3 A
Power - Peak power - 550 W
Power - Power Factor Correction (PFC) type - Active
Power - Total power - 550 W
Power supply - 550 W
producer - Thermaltake
producerCode - PS-SPD-0550NNFABE-3
productName - Thermaltake Smart BX3 power supply unit 550 W ATX Black
productSize - Normal
SATA power connectors - 3
sizeX - 280
sizeY - 210
sizeZ - 120
vendpn - PS-SPD-0550NNFABE-3
warrantyLength - 60
warrantyType - G
Weight - 2,15
Weight - 2.14
weight - 2110
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
