ID: 1083573
Product code: 50342
Can be ordered 3 units Availability: 14 days after order approval
Warranty: 2 years

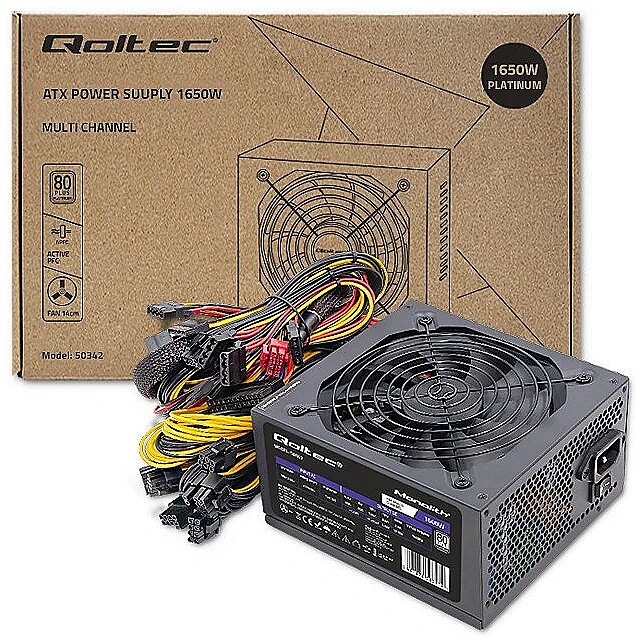

Qoltec 1650W, 80PLUS Platinum
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost 6.99 €: 08.05.2025
- Courier delivery 11.99 €: 08.05.2025
Main product parameters All parameters
- Producer: Qoltec
- Power output: 1650W
- 80 PLUS certification: 80 PLUS Platinum
- Fan size: 140 mm
- Modular cables: Nav
- Processor plug-in: 1 x 8-pin(4+4) EPS
- PCI-E: 12 x 6+2pin
Description
Available for purchase is a power supply produced by Qoltec with a power output of 1650W. The product has been awarded an 80 PLUS Platinum energy efficiency certificate.
This power supply unit is equipped with a 140 mm fan. Thanks to its massive size, it will provide excellent airflow, better cooling even at lower speeds, and will be noticeably quieter than a standard 120 mm fan.
The power supply has been awarded the 80 PLUS Platinum energy efficiency certificate, which ensures at least 92% efficiency at 50% load. This indicates that at least 92 W out of 100 W of power that the power supply receives from the power grid is delivered to the computer components, while the remaining 8 W is lost as heat.
The color of the block is Melna. The block has flat cables, whose color is Raiba.
ATX 2.0 standard, which is assigned to this power supply unit, ensures that the unit is equipped only with 6-pin and 8-pin connectors (with respective power of 75W and 150W). For a system with a very powerful graphics card (such as RTX 4070), an ATX 3.* standard unit will be required, and ATX 2.0 will not be sufficient.
This power supply unit does not have modular cables – all its cables are attached to the unit and are not detachable. Despite the simple design, it will fulfill its functions just as well as a power supply unit with modular cables.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
1650W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Platinum
Total amperage (+12V)
: 130A
Fan size
: 140 mm
Functionality
Cable colour
: Raiba
Lighting
: Nav
Color
: Melna
Modular cables
: Nav
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 1 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 12 x 6+2pin
SATA cconnectors
: Eight Core
4pin Molex
: 5
Case
More detailed specification
Accessories included - 1 x ATX power supply 1 x Warranty card
Certificates 80+ - 80 PLUS Platinum
Description - Powerful energy source for advanced systems
The engine that drives a device to function is its components. To ensure that all components function correctly and without fail, you need to ensure that they are properly powered. The more demanding the components, the more efficient the power supply you need. The Qoltec brand has prepared a wide range of products among which you can find the right model for you. The advanced protections used, such as short-circuit protection, overvoltage protection and overload protection, protect the connected components from potential damage and ensure safe use.
Your source of energy that pushes the boundaries of performance
The high energy efficiency is confirmed by the 80 PLUS Platinium certification standard - this means that when the power supply is running, more energy is used to power computer components and less is dissipated as heat. ATX power supply with 80 PLUS certification have several benefits, such as lower electricity bills, lower heat emission and less burden on the environment due to reduced energy consumption.
Discover powerful performance, excellent efficiency and reliability in one
The ATX motherboard standard is the most popular choice for users worldwide. Its popularity is due to its clearly defined size rules and convenient port layout. The task of an ATX power supply is to provide a stable voltage to the device. In addition, our product offers:
- 1650W power: allowing the PSU to be used in cryptocurrency miners or high-performance computer systems,
- active cooling system: extremely efficient during operation,
- advanced protection system: short-circuit, overvoltage and overload protection,
- 30000 hours of trouble-free operation: our power supply will stand up to even the most demanding tasks, providing uninterrupted power for many years,
- quality confirmed by certificates: CE, RoHS,
- eco box: our company makes every effort to protect the environment, therefore the presented model is packed in an elegant biodegradable box.
Active cooling
The power supply is equipped with an effective cooling system that ensures optimal temperatures during intensive operation. This is important for maintaining stable component operation and extending component life. Power supplies with an active cooling system are extremely efficient and are used in computers or high-powered cryptocurrency miners. Their principle of operation is very simple and relies on the continuous operation of a fan inside the unit.
Design - Fan diameter - 14 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 1525
dimension depth - 100 mm
dimension height - 310 mm

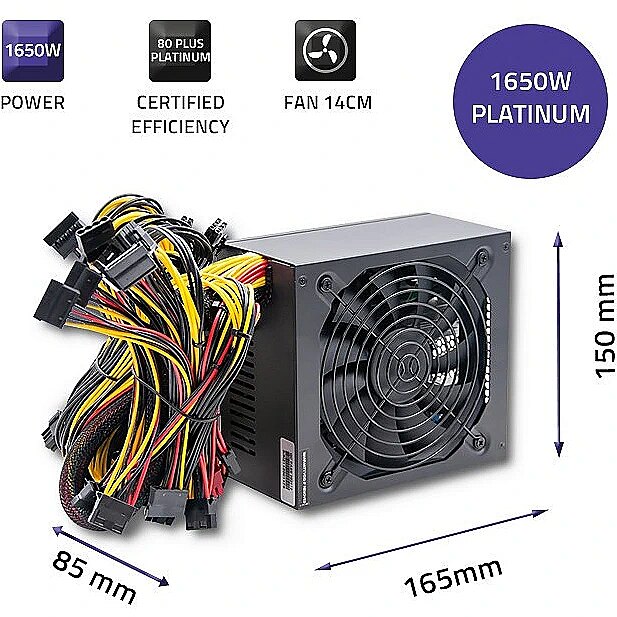

Dimensions - (D/L x W x H): 150 x 165 x 85 mm
dimension weight - 2500 g
dimension width - 210 mm
ean - 5901878503424
Fan - 14 cm
Fan - None
guarantee - 24
guarantee_type - external
name - ATX 1650W power supply 80 Plus Platinum
Other features - Connectors:
PCI-E 6+2 (8pin) 12 szt
MOLEX 5 szt
SATA 8 szt
ATX 20+4 (24) pin 1 szt
ESP / ATX 12V 2x4 (8) pin 1 szt
Performance - Mean time between failures (MTBF) - 30000 h
Performance - Noise level - 50 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express power connectors (6+2 pin) - 12
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 5
Power - AC input voltage - 180 - 240 V
Power - Input current - 15 - 8 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - OCP (overcurrent protection)
Power - Power protection features - OPP (overload protection)
Power - Power protection features - Overheating
Power - Power protection features - Over voltage
Power - Power protection features - Overvoltage protection
Power - Total power - 1650 W
Power supply - 1650 W
producer - Qoltec
producerCode - 50342
productName - Qoltec 50342 ATX 1650W power supply | 80 Plus Platinum
productSize - Normal
sizeX - 318
sizeY - 110
sizeZ - 218
vendpn - 50342
warrantyLength - 24
warrantyType - G
weight - 2500
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 85 mm
Weight & dimensions - Weight - 2.37 kg
Weight & dimensions - Width - 165 mm
Certificates 80+ - 80 PLUS Platinum
Description - Powerful energy source for advanced systems
The engine that drives a device to function is its components. To ensure that all components function correctly and without fail, you need to ensure that they are properly powered. The more demanding the components, the more efficient the power supply you need. The Qoltec brand has prepared a wide range of products among which you can find the right model for you. The advanced protections used, such as short-circuit protection, overvoltage protection and overload protection, protect the connected components from potential damage and ensure safe use.
Your source of energy that pushes the boundaries of performance
The high energy efficiency is confirmed by the 80 PLUS Platinium certification standard - this means that when the power supply is running, more energy is used to power computer components and less is dissipated as heat. ATX power supply with 80 PLUS certification have several benefits, such as lower electricity bills, lower heat emission and less burden on the environment due to reduced energy consumption.
Discover powerful performance, excellent efficiency and reliability in one
The ATX motherboard standard is the most popular choice for users worldwide. Its popularity is due to its clearly defined size rules and convenient port layout. The task of an ATX power supply is to provide a stable voltage to the device. In addition, our product offers:
- 1650W power: allowing the PSU to be used in cryptocurrency miners or high-performance computer systems,
- active cooling system: extremely efficient during operation,
- advanced protection system: short-circuit, overvoltage and overload protection,
- 30000 hours of trouble-free operation: our power supply will stand up to even the most demanding tasks, providing uninterrupted power for many years,
- quality confirmed by certificates: CE, RoHS,
- eco box: our company makes every effort to protect the environment, therefore the presented model is packed in an elegant biodegradable box.
Active cooling
The power supply is equipped with an effective cooling system that ensures optimal temperatures during intensive operation. This is important for maintaining stable component operation and extending component life. Power supplies with an active cooling system are extremely efficient and are used in computers or high-powered cryptocurrency miners. Their principle of operation is very simple and relies on the continuous operation of a fan inside the unit.
Design - Fan diameter - 14 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 1525
dimension depth - 100 mm
dimension height - 310 mm
Dimensions - (D/L x W x H): 150 x 165 x 85 mm
dimension weight - 2500 g
dimension width - 210 mm
ean - 5901878503424
Fan - 14 cm
Fan - None
guarantee - 24
guarantee_type - external
name - ATX 1650W power supply 80 Plus Platinum
Other features - Connectors:
PCI-E 6+2 (8pin) 12 szt
MOLEX 5 szt
SATA 8 szt
ATX 20+4 (24) pin 1 szt
ESP / ATX 12V 2x4 (8) pin 1 szt
Performance - Mean time between failures (MTBF) - 30000 h
Performance - Noise level - 50 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express power connectors (6+2 pin) - 12
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 5
Power - AC input voltage - 180 - 240 V
Power - Input current - 15 - 8 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - OCP (overcurrent protection)
Power - Power protection features - OPP (overload protection)
Power - Power protection features - Overheating
Power - Power protection features - Over voltage
Power - Power protection features - Overvoltage protection
Power - Total power - 1650 W
Power supply - 1650 W
producer - Qoltec
producerCode - 50342
productName - Qoltec 50342 ATX 1650W power supply | 80 Plus Platinum
productSize - Normal
sizeX - 318
sizeY - 110
sizeZ - 218
vendpn - 50342
warrantyLength - 24
warrantyType - G
weight - 2500
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 85 mm
Weight & dimensions - Weight - 2.37 kg
Weight & dimensions - Width - 165 mm
