ID: 1082437
Product code: BDK-550FC
Can be ordered 3 units Availability: 14 days after order approval
Warranty: 2 years

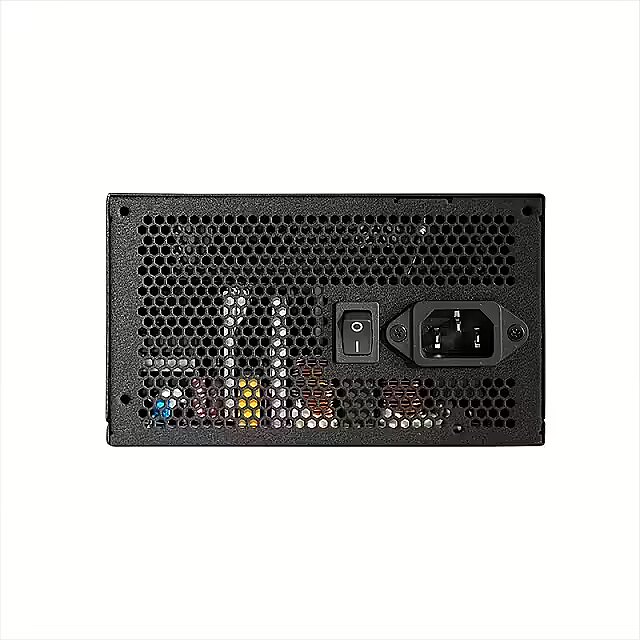

Chieftec SteelPower Series, 550W, 80PLUS Bronze
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 27.11.2024
Main product parameters All parameters
- Producer: Chieftec
- Power output: 550W
- 80 PLUS certification: 80 PLUS Bronze
- Fan size: 120 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 2 X 6+2pin
Description
We offer to purchase a Chieftec power supply unit with a power capacity of 550W, which has received the 80 PLUS Bronze energy efficiency certification.
The power of 550W is more than sufficient for office programs, web browsing, and light computer games. It will be able to run a basic computer with an integrated graphics card, budget-level processor, small SSD or hard drive. If you plan to upgrade your computer in the future, you should definitely consider a more powerful power supply.
This power supply unit is equipped with a 120 mm fan, which is the industry standard for ensuring quiet operation in average computers. If you want an especially quiet unit, look for one with a fan diameter of 135 mm or 140 mm.
80 PLUS Bronze energy efficiency certificate, received by this power supply unit, guarantees at least 85% efficiency at 50% load. In other words, for every 100 W of energy the power supply unit receives from the electrical grid, at least 85 W goes to your computer components, while the remaining 15 W is lost as heat.
The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.
ATX 2.0 standard, which is assigned to this power supply unit, ensures that the unit is equipped only with 6-pin and 8-pin connectors (with respective power of 75W and 150W). For a system with a very powerful graphics card (such as RTX 4070), an ATX 3.* standard unit will be required, and ATX 2.0 will not be sufficient.
Thanks to the fact that this power supply has modular cables, you can add hard drives, video cards, and other components as needed, using the various cables included in the package. This way, there are fewer wires in the computer, which improves ventilation and appearance (especially useful for those who choose a partially transparent case).
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
550W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Bronze
Total amperage (+12V)
: 45.5A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Fully-Modular
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 2 X 6+2pin
SATA cconnectors
: 6
4pin Molex
: 3
More detailed specification
Brand - Chieftec
BrandPartCode - BDK-550FC
Category - Power Supply Units
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
dimensionalWeight - 1809
GTIN - 753263077417
GTIN - 0753263077417
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - The SteelPower Series from Chieftronic brings many of the well-received and proven upmarket features and components from the PowerPlay series into the mainstream gamer’s market. Gamers can now benefit from the tight voltage regulation and low ripple thanks to the use of half-bridge LLC converters with DC-DC technology as well as premium Japanese capacitors in combination with 80PLUS Bronze efficiency and fully modular cable management. Offered in wattages of 550W, 650W and 750W, the SteelPower series benefits from a high power-density design allowing all the above mentioned to be packed into a compact 14cm long housing with a 120mm FDB silent fan. The design of the PSU comes in a rugged understated look.
LongProductName - 550W, FDB 12cm fan, 80 PLUS® Bronze
LongSummaryDescription - Chieftec BDK-550FC. Total power: 550 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 150,500 mm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Packaging data - Package weight - 2.17 kg
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 2.3
Performance - Bearing technology - FDB
Performance - Certification - EAC
FCC
CB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC/Server
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power cable length - 65 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power cable length - 150 mm
Ports & interfaces - Peripheral (Molex) power cable length - 150,500 mm
Ports & interfaces - Peripheral (Molex) power cable length - 500 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Ports & interfaces - SATA power cable length - 150
Ports & interfaces - SATA power cable length - 150,500 mm
Ports & interfaces - SATA power cable length - 500 mm
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 546 W
Power - Combined power (-12V) - 3.6 W
Power - Input current - 8 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 45.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current
Power - Power protection features - Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage
Power - Power protection features - Overheating
Power - Power protection features - Overload
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 550 W
producerCode - BDK-550FC
ProductName - BDK-550FC
productName - Chieftec BDK-550FC power supply unit 550 W 20+4 pin ATX ATX Black
productSize - Normal
ShortSummaryDescription - Chieftec BDK-550FC, 550 W, 100 - 240 V, 47 - 63 Hz, 8 A, Active, 100 W
sizeX - 128
sizeY - 228
sizeZ - 310
Technical details - Compliance certificates - CE, RoHS
Technical details - Sustainability certificates - CE
Technical details - Sustainability certificates - ErP
Technical details - Sustainability certificates - RoHS
Technical details - Sustainability compliance - Yes
Title - Chieftec BDK-550FC power supply unit 550 W 20+4 pin ATX ATX Black
URL - https://www.chieftec.eu/products-detail/504/SteelPower_SERIES
WarrantyInfo - 60 Months
warrantyLength - 24
warrantyType - G
weight - 2384
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.62 kg
Weight & dimensions - Width - 150 mm
