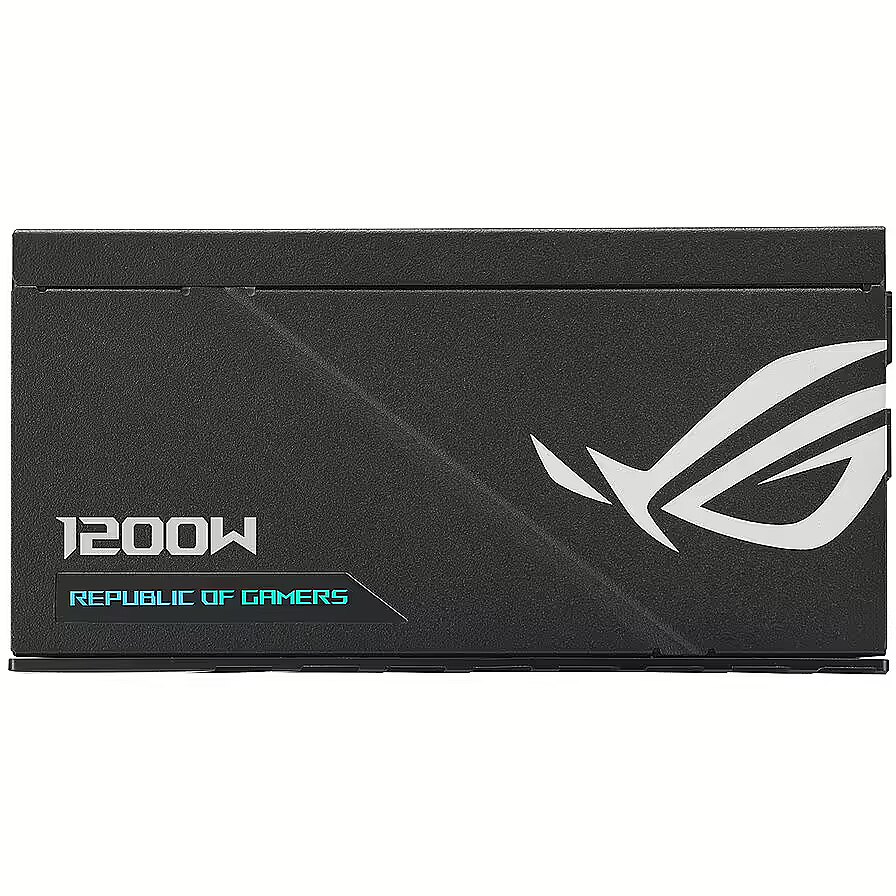

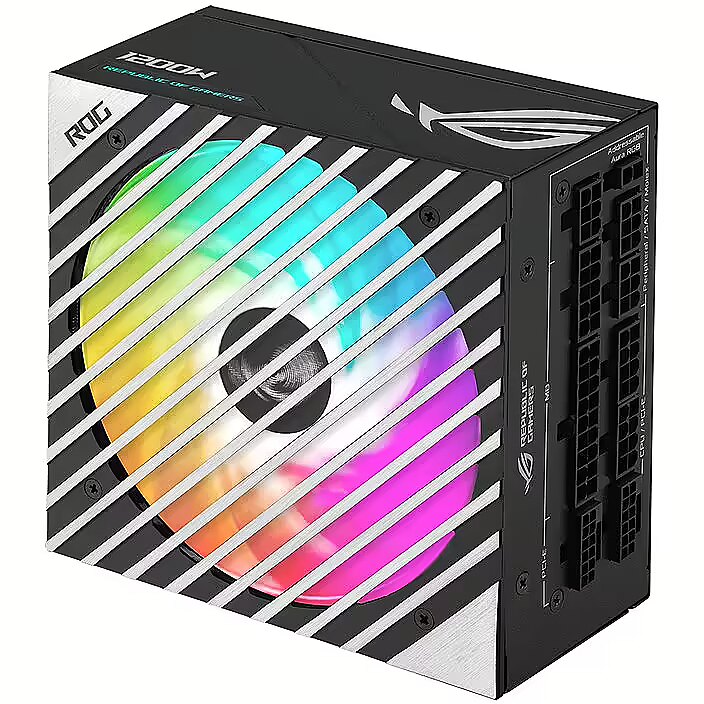

Asus ROG Loki SFX-L Titanium, 1200W, ATX 3.0, 80PLUS Titanium

+
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
+ Register your purchase on the ASUS website and get cash back!
ID: 1079599 Product code: 90YE00N0-B0NA00
Can be ordered 16 units Availability: 14 days after order approval
Warranty: 3 years
282.69 €
Main product parameters All parameters
  • Producer: Asus
  • Power output: 1200W
  • 80 PLUS certification: 80 PLUS Titanium
  • Fan size: 120 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 4 X 6+2pin
Description

We offer to purchase a Asus power supply unit with a power capacity of 1200W, which has received the 80 PLUS Titanium energy efficiency certification.

This power supply unit is equipped with a 120 mm fan, which is the industry standard for ensuring quiet operation in average computers. If you want an especially quiet unit, look for one with a fan diameter of 135 mm or 140 mm.

80 PLUS Titanium energy efficiency certificate, which this power supply unit has received, guarantees at least 94% efficiency at 50% load. In other words, for every 100 W of energy that the power supply unit receives from the electrical grid, at least 94 W goes to your computer components, while 6 W is lost as heat.

The power supply unit contains a connector designed for modern graphics cards, such as the Nvidia GeForce RTX 4070 or more powerful ones, the 2 x 600W 12VHPWR plug. Lower-level graphics cards (for example, RTX 4060) will suffice with a standard 8-pin connector.

The color of this power supply is Melna. The cable color is Melna and they are flat.

This power supply is assigned the ATX 3.0 standard. This means that the unit has a 16-pin (12VHPWR) connector, providing up to 600W of power for the newest generation (RTX 30 and 40 series) PCIe 5.0 graphics cards. Additionally, the ATX 3.0 standard supports a 200% power increase for 1 millisecond to ensure more stable power for the components.

The power supply has a Cybenetics Standard ++ noise level certificate, which means its noise level is 30-35 dB.

Thanks to the fact that this power supply has modular cables, you can add hard drives, video cards, and other components as needed, using the various cables included in the package. This way, there are fewer wires in the computer, which improves ventilation and appearance (especially useful for those who choose a partially transparent case).

This power supply has received RGB lighting.

This is a SFX (Small Form Factor eXtended) type power supply. It is smaller in size and power compared to AFX type units, but is ideally suited for small form (SFF) computers where space is limited. It has smaller size fans and it is compatible with such motherboards as Mini-ITX.

This power supply is manufactured by Asus. You can view all Asus power supplies here.

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Cybenetics Standard ++
Power supply type : SFX-L
Power output 1200W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Titanium
Total amperage (+12V) : 100A
Fan size : 120 mm
Functionality
Cable colour : Melna
Lighting : RGB
Color : Melna
Modular cables : Fully-Modular

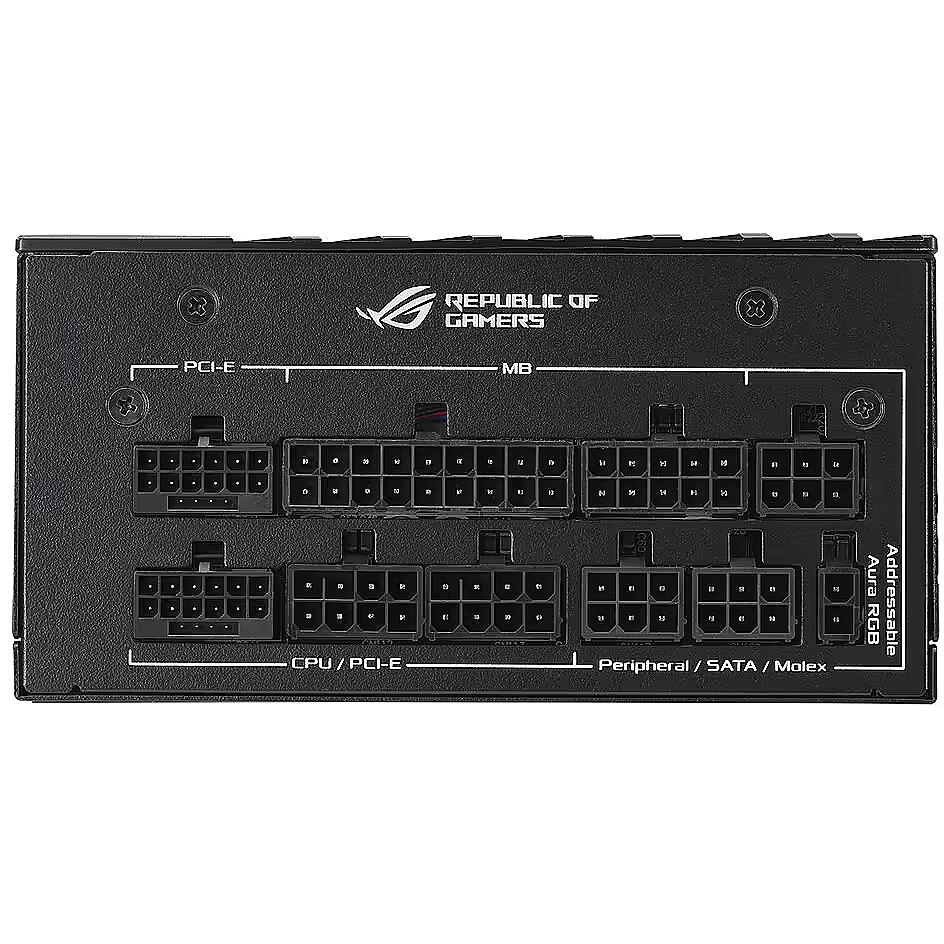

Ports and equipment
PCI-E 5.0 : 2 x 600W 12VHPWR
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 4 X 6+2pin
SATA cconnectors : 6
4pin Molex : 4
Register your purchase on the ASUS website and get cash back!
Case
More detailed specification
Additional information in manufacturers website Asus ROG Loki SFX-L Titanium, 1200W, ATX 3.0, 80PLUS Titanium
Brand - ASUS
BrandPartCode - 90YE00N0-B0NA00
category - PC Components|Power Supplies|PCIe 5.0
Category - Power Supply Units
code - 90YE00N0-B0NA00
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Illumination - Yes
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Design - Product colour - Black, Silver
Design - Product colour - Silver
dimensionalWeight - 1187
ean - 4711081721574
GTIN - 4711081721574
LongDesc - The World's Quietest and Most Powerful SFX-L PSUTaking after the ROG Thor, the ROG Loki 1200W Titanium brandishes the same enthusiast-grade components and features, all packed into an SFX-L form factor. Boasting quiet operation and high performance, the Loki is primed to power your next SFF build.COOLINGROG HeatsinksCool under pressureROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.Dual Ball Fan Bearings2x longer lifespanThe fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.0dB TechnologyQuiet intelligenceTo reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 40% or below.Lambda Standard ++ CertificationQuietly deviantOn average, ROG Loki 1200W Titanium emits less than 35 dB of noise – earning a coveted Cybenetics Lambda standard ++ certification.ENGINEERING80 PLUS Titanium CertifiedEffortless outputLow-ESR Japanese capacitors further improve efficiency and reduce heat, readying ROG Loki to reliably fuel your build for years to come.ATX 3.0 CompatibleStep into the futureThe latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ROG Loki steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, bringing large-scale capabilities to SFF rigs.EXPERIENCEARGB-illuminated Fan & Aura SyncMagical glowThe Loki's 120 mm fan features eight addressable LEDs ready to be customized with Aura Sync to create coordinated lighting patterns across your build.* If the connector cable is not used, the default color effect is rainbow.* To enjoy Aura Sync, you’ll need an Aura Sync-compatible ASUS or ROG motherboard. Similarly, the Smart Mode lighting effect, which reflects GPU temperature, requires use of a compatible ASUS or ROG graphics card.10-Year WarrantyA decade of powerWe're so confident about the reliability of the ROG Loki SFX-L 1200W Titanium that we back it with a 10-year warranty.*Core product operation is guaranteed for 10 years. The RGB LEDs are subject to a 3-year warranty.
LongProductName - ROG Loki SFX-L 1200W Titanium fully modular gaming power supply (120mm PWM ARGB fan, Aura Sync ARGB lighting, ATX 3.0 compatible, PCIe 5.0 Ready, incl. 16-pin cable, 80+ Titanium certification, Lambda Standard ++ certification)
LongSummaryDescription - ASUS ROG -LOKI-1200T-SFX-L-GAMING. Total power: 1200 W, AC input voltage: 100 - 240 V, Peak power: 1200 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 45 cm, SATA power cable length: 100,200,300 mm. Purpose: PC, Power supply unit (PSU) form factor: SFX-L, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Silver, Cooling type: Active, Fan diameter: 12 cm. Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA
name - ASUS ROG Loki SFX-L 1200W, 80 PLUS Titanium Netzteil, modular, PCIe 5.0 - 1200 Watt, weiß
Packaging content - Cables included - AC, CPU, PCIe, Peripheral (Molex), SATA
Packaging data - Manual - Yes
Packaging data - Package depth - 190 mm
Packaging data - Package height - 100 mm
Packaging data - Package type - Box
Packaging data - Package weight - 2.84 kg
Packaging data - Package width - 285 mm
Performance - 80 PLUS certification - 80 PLUS Platinum
Performance - ATX version - 3.0
Performance - Bearing technology - Ball bearing
Performance - Power supply unit (PSU) form factor - SFX-L
Performance - Purpose - PC
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 55 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 45 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power connectors (8-pin) - 4
Ports & interfaces - PCI Express power connectors (16-pin) - 2
Ports & interfaces - Peripheral (Molex) power cable length - 100
Ports & interfaces - Peripheral (Molex) power cable length - 100,300 mm
Ports & interfaces - Peripheral (Molex) power cable length - 300 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Ports & interfaces - SATA power cable length - 100
Ports & interfaces - SATA power cable length - 100,200,300 mm
Ports & interfaces - SATA power cable length - 200
Ports & interfaces - SATA power cable length - 300
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 110 W
Power - Combined power (+5V) - 110 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 1200 W
Power - Combined power (-12V) - 9.6 W
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 100 A
Power - Max output current (-12V) - 0.8 A
Power - Peak power - 1200 W
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Overcharge
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over power, Over voltage, Overcharge, Overheating, Short circuit, Under voltage
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 1200 W
producerCode - 90YE00N0-B0NA00
productName - ASUS ROG -LOKI-1200T-SFX-L-GAMING power supply unit 1200 W 20+4 pin ATX Black, Silver
ProductName - ROG-LOKI-1200T-SFX-L-GAMING
productSize - Normal
ShortSummaryDescription - ASUS ROG -LOKI-1200T-SFX-L-GAMING, 1200 W, 100 - 240 V, 1200 W, Active, 110 W, 1200 W
sizeX - 105
sizeY - 195
sizeZ - 290
Technical details - Compliance certificates - RoHS
Technical details - Sustainability certificates - RoHS
Technical details - Sustainability compliance - Yes
Technical details - Warranty period - 10 year(s)
Title - ASUS ROG -LOKI-1200T-SFX-L-GAMING power supply unit 1200 W 20+4 pin ATX Black, Silver
URL - https://rog.asus.com/power-supply-units/rog-loki/rog-loki-1200t-sfx-l-gaming-model/
WarrantyInfo - 10 years
warrantyLength - 72
warrantyType - G
weight - 2940
Weight & dimensions - Depth - 125 mm
Weight & dimensions - Height - 63.5 mm
Weight & dimensions - Weight - 2.15 kg
Weight & dimensions - Width - 125 mm
