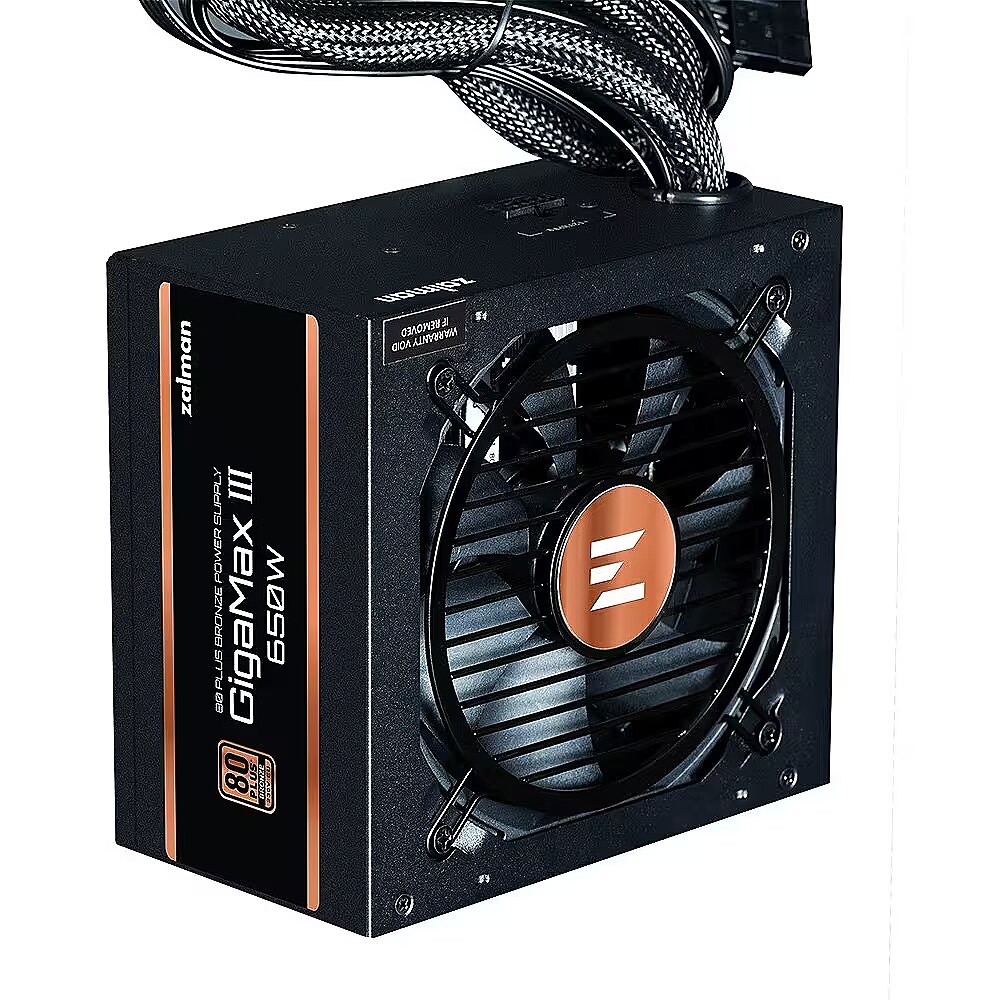

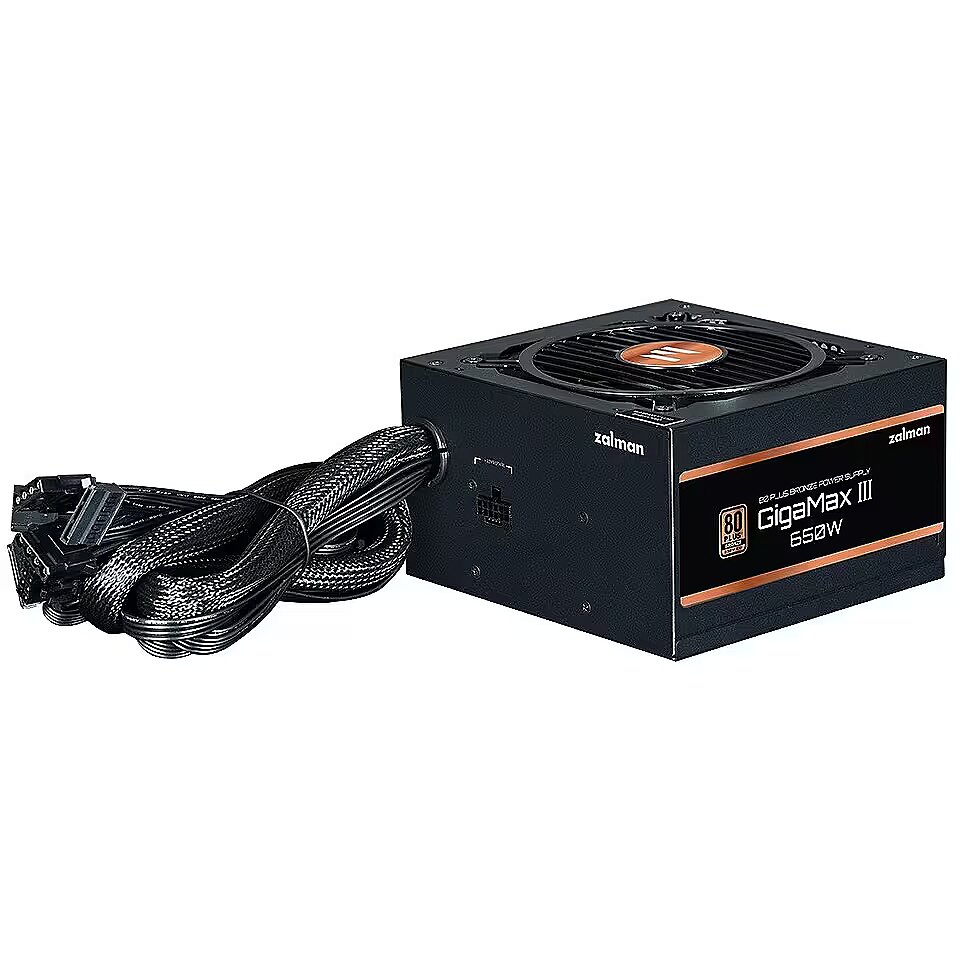

Zalman GigaMax III, 650W, 80PLUS Bronze, ATX 3.0

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1073642 Product code: ZM650-GV3
Can be ordered 25 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
73.70 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: 10.12.2024
Main product parameters All parameters
  • Producer: Zalman
  • Power output: 650W
  • 80 PLUS certification: 80 PLUS Bronze
  • Fan size: 120 mm
  • Modular cables: Semi-Modular
  • Processor plug-in: 1 x 8-pin(4+4) EPS
  • PCI-E: 2 X 6+2pin
Description

We offer to purchase a Zalman power supply unit with a power capacity of 650W, which has received the 80 PLUS Bronze energy efficiency certification.

650W power is sufficient for web browsing, Microsoft Office, and playing simple computer games. The power supply can run a computer with one or two hard drives, a mid-range graphics card (such as the GTX 1650), and a mid-range processor. If you are a serious computer games enthusiast, buy a more powerful power supply.

The diameter of this power supply unit's fan is 120 mm, which will ensure quiet operation in mid-range computers. For especially quiet power supply unit operation, we recommend selecting a fan with a 135 mm or 140 mm diameter.

The power supply has been awarded the 80 PLUS Bronze energy efficiency certificate, which ensures at least 85% efficiency at 50% load. This indicates that at least 85 W out of 100 W of power received by the power supply from the electrical grid is delivered to the computer components, with the remaining 15 W being lost as heat.

1 x 12VHPWR connector, with which this power supply unit is equipped, is intended for use with modern graphics cards such as Nvidia GeForce RTX 4070 and above (RTX 4060 and below use the standard 8-pin connector).

The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.

This power supply is assigned the ATX 3.0 standard. This means that the unit has a 16-pin (12VHPWR) connector, providing up to 600W of power for the newest generation (RTX 30 and 40 series) PCIe 5.0 graphics cards. Additionally, the ATX 3.0 standard supports a 200% power increase for 1 millisecond to ensure more stable power for the components.

This power supply unit's noise level is 30-35 dB, and it has a Cybenetics Standard ++ noise level certification.

This power supply unit uses semi-modular cables. It has cables attached to the unit, and others that can be added or removed as needed. We recommend such power supplies for those who do not want a fully modular system but desire some flexibility.

Basic information
Cybenetics Efficiency certification : Cybenetics Silver
Cybenetics Noise level certification : Cybenetics Standard ++
Power supply type : ATX
Power output 650W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Bronze
Total amperage (+12V) : 54.16A
Fan size : 120 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Semi-Modular
Ports and equipment
PCI-E 5.0 : 1 x 12VHPWR
Processor plug-in : 1 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 2 X 6+2pin
SATA cconnectors : 3
4pin Molex : 3
Case
More detailed specification
8-pin 12V power connectors - 0
Accessories included -
Certificates 80+ - 80 PLUS Bronze
Description - GigaMax III power supply ETA Silver GigaMax3 has an ETA Silver performance rating, which means it is guaranteed to deliver 85% typical performance. Lambda Not only the efficiency of power supplies is assessed, but also the noise they generate. The GigaMax 3 series is Lambda rated for a certified silent power supply. PCIe 5.0 and 12VHPWR Ready! Compatible with ATX 3.0, 100% ready for Intel and AMD PCIe 5.0 ready Supports dedicated 16-pin PCIe 5.0 connector for the latest graphics cards. EU 80 PLUS Bronze 230 V certified 80PLUS Bronze guarantees efficiency of 85%, 88%, 85% at 20%, 50% and 100% load, significantly reducing the overall energy consumption of the system. Higher power supply efficiency means less leakage current, which means less heat, high-frequency noise and fan noise. Semi-modular power supply Semi-modular design minimizes resistance and voltage drop across cables and lowers impedance to further increase energy efficiency by connecting only the cables your system needs to allow smooth airflow to cool the system
dimension depth - 280 mm
dimension height - 190 mm
Dimensions - 140 x 150 x 86 mm
dimension weight - 1900 g
dimension width - 110 mm
ean - 8809213763878
Fan - 12 cm
Floppy power connectors - 0
guarantee - 60
guarantee_type - normal
Modular power supply - Semi
MOLEX power connectors - 0
name - ZALMAN GigaMax III 650W 80+ BRONZE ATX 3.0
Number of power connectors 12VHPWR - 0
Number of power connectors PCI-E 16-pin Gen 5 - 1
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 2
Other features -
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
PFC - Active
Power supply - 650 W
producer - Zalman
SATA power connectors - 3
vendpn - ZM650-GV3
73.70 €
Zalman GigaMax III, 650W, 80PLUS Bronze, ATX 3.0
