ID: 1037184
Product code: MAGA850GLPCIE5WHITE
Can be ordered 17 units Availability: 14 days after order approval
Warranty: 2 years

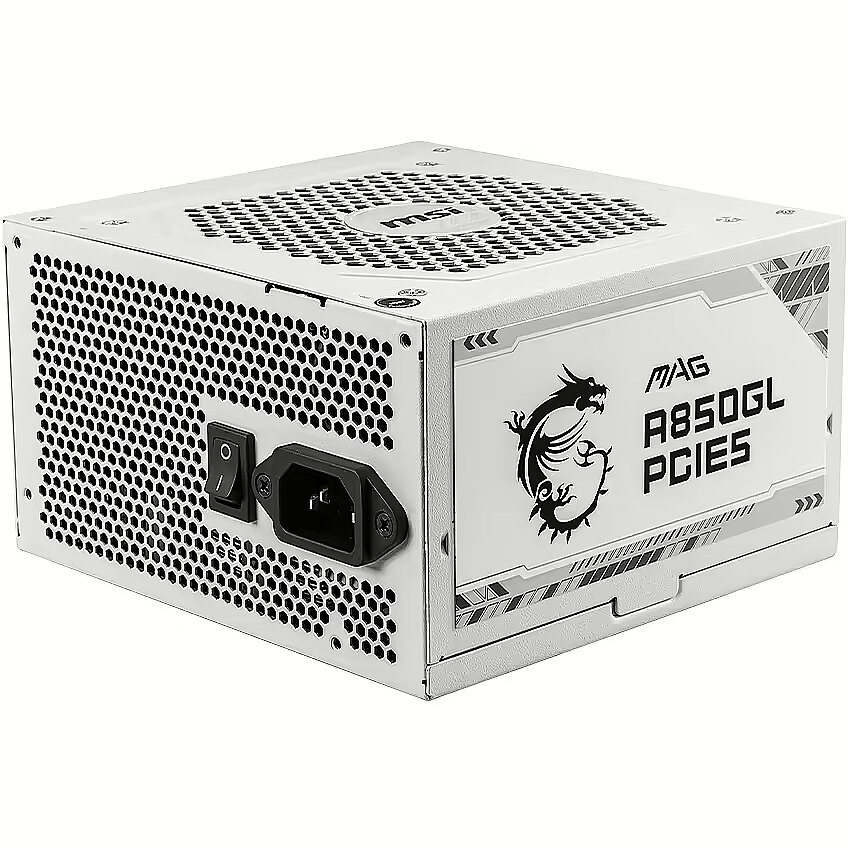

MSI MAG A850GL PCIE5 White, 850W, 80PLUS Gold
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Main product parameters All parameters
- Producer: MSI
- Power output: 850W
- 80 PLUS certification: 80 PLUS Gold
- Fan size: 120 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 4 X 6+2pin
Description
This MSI brand power supply unit has an 80 PLUS Gold energy efficiency certificate and a power output of 850W.
850W power supply will be suitable for a powerful workstation or gaming computer. It will provide power for a high-end video card (for example, RTX 4070 Ti SUPER), multiple hard drives (SSD/HDD), water cooling, and a top-tier processor (possibly overclocked).

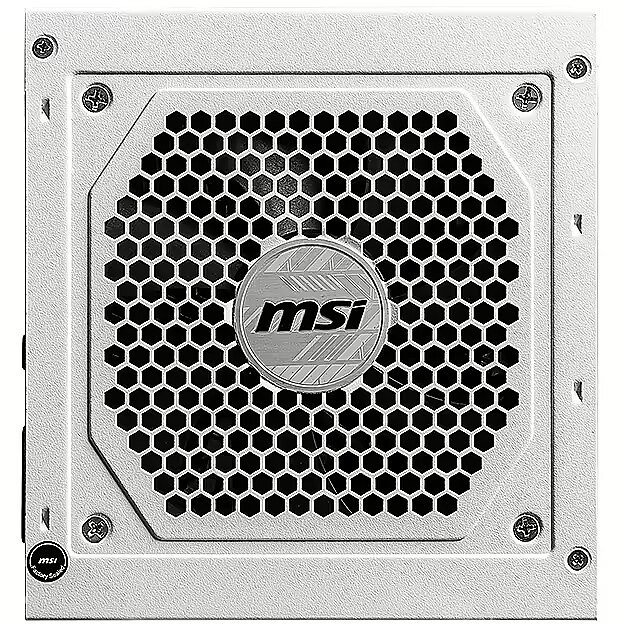

120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.
80 PLUS Gold energy efficiency certificate received by this power supply guarantees at least 90% efficiency at 50% load. In other words, for every 100 W of energy the power supply receives from the power grid, at least 90 W goes to your computer components, and the remaining 10 W is lost as heat.
1 x 600W 12VHPWR connector, with which this power supply unit is equipped, is intended for use with modern graphics cards such as Nvidia GeForce RTX 4070 and above (RTX 4060 and below use the standard 8-pin connector).
The color of this power supply is Balta. The cable color is Balta and they are flat.
This power supply unit conforms to the ATX 3.0 standard. It has a 16-pin (12VHPWR) connector, which can power the latest generation (RTX 30 and 40 series) PCIe 5.0 graphics cards with up to 600 W of power. To provide more stable current to components, ATX 3.0 also allows increasing the current by 200% for one millisecond.
This power supply unit has fully-modular cables (Fully-modular) – you can connect and disconnect all the included cables as needed, reducing clutter and improving ventilation. This will be useful for those with a partially transparent computer case and for whom the aesthetic factor is particularly important.
This power supply unit is manufactured by MSI. You can view all MSI power supply units here.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
850W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Gold
Total amperage (+12V)
: 70.5A
Fan size
: 120 mm
Functionality
Cable colour
: White
Lighting
: Nav
Color
: White
Modular cables
: Fully-Modular

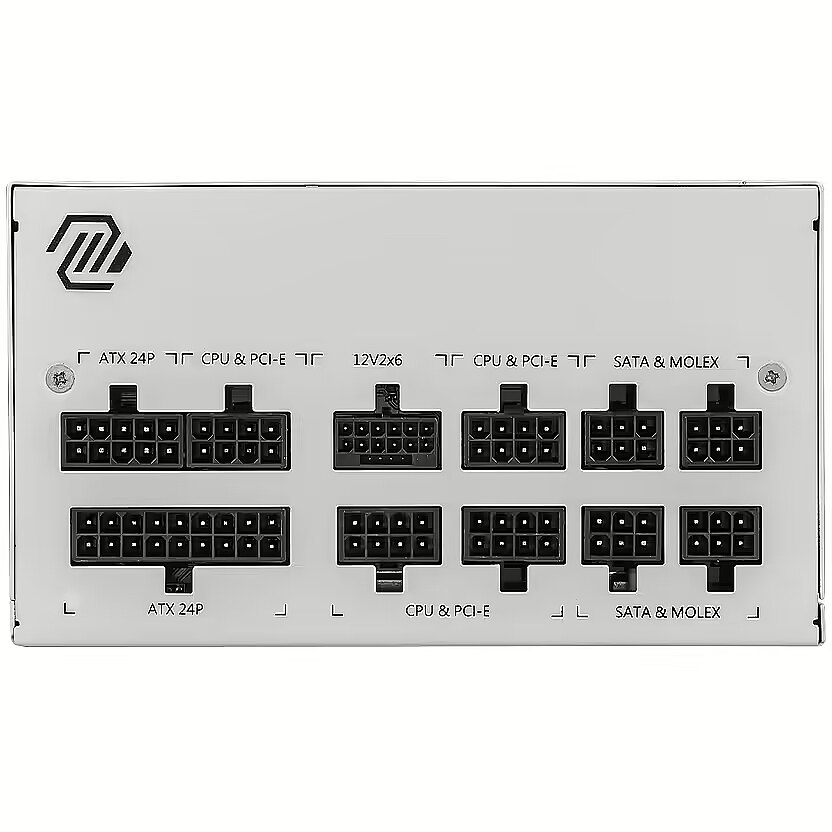

Ports and equipment
PCI-E 5.0
: 1 x 600W 12VHPWR
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 4 X 6+2pin
SATA cconnectors
: Eight Core
4pin Molex
: 4
More detailed specification
8-pin 12V power connectors - 0
Accessories included -
Brand - MSI
BrandPartCode - MAG A850GL PCIE5 WHITE
Category - Datortehnika :: Datoru komponentes :: Barošanas bloki (PSU)
category - PC Components|Power Supplies|PCIe 5.0
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category Code - PSU
category_en - Computers & Components > Computer components > Universal power supplies PSU
category_lv - Datortehnika > Datoru komponentes > Barošanas bloki PSU
category_ru - Datortehnika > Datoru komponentes > Barošanas bloki PSU
Certificates 80+ - 80 PLUS Gold
code - 306-7ZP8A24-CE0
Code - MAG A850GL PCIE5 WH
Colour - White
Cooling System - 12cm fan
Desc -
Description - - ATX 3.0 compatible, native PCIe 5.0 connector - Supports NVIDIA® GeForce RTX™ 40 Series graphics cards - Full modular design,Flat cables - 80 Plus Gold certified for high efficiency - Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP - 120mm Fluid Dynamic Bearing Fan - LLC Full Bridge Topology with DC-DC module design
Description - MAG A850GL PCIE5 Compatibility with the ATX 3.0 standard, native PCIe 5.0 connector Support for NVIDIA GeForce RTX 40 series graphics cards Fully modular design, flat cables 80 PLUS Gold certified, high performance guaranteed Active design of the PFC power factor correction system, Comprehensive circuit protection using industrial-class protections OVP, OCP, OPP, OTP, SCP, UVP 120 mm fan with hydrodynamic bearing Modular design of the DC-DC converter in the LLC Full Bridge topology Support for the ATX 3.0 standard The power supply is equipped with an output port compliant with PCIe 5.0 and Intel PSDG (Power Supply Design Guide) ATX 3.0 standards. Additionally, the MAG A850GL PCIE5 series power supplies are resistant to sudden spikes in power consumption up to twice the total power consumption, and are also able to withstand sudden spikes in power consumption up to three times the power consumed by the GPU. COMPACT SIZE The power supply is much smaller than typical power supplies available on the market, which saves a lot of space inside the computer case and makes cable management easier. This way you also have much more space inside your PC. EVERYTHING CAN BE MORE ORGANIZED Organizing cables is often the most tedious part of building a computer. The cables that come with the power supply are flat and black. Flat cables make running them inside your computer much easier! Thanks to flat cables, the entire system can be much more tidy, and there is more space inside the housing for unobstructed air flow. Use only the cables you need and store the rest in the included cable bag. DYNAMIC OIL BEARING The fan installed in the power supply is equipped with a dynamic oil bearing that perfectly balances cooling performance and noise level. Power circuit with DC converters and full bridge rectifier design Combining the power circuit with full-bridge rectifier DC converters allows for higher conversion efficiency, stable output voltage, and quick voltage adjustment for various usage scenarios. This ensures a much more stable power supply structure.
description_en - MSI MAG A850GL PCIE5
Total power: 850W
AC input voltage: 100 - 240V
AC input frequency: 47 - 63Hz
Motherboard power connector: 20+4 pin ATX
Motherboard power cord length: 60cm
Cable type: Modular
Target, result: PC (computer)
Power Supply Unit (PSU) Form Factor: ATX, 80 PLUS Certification: 80 PLUS Gold
Product color: White
Cooling type: Active
Fan diameter: 12cm
Packaging type: Box
description_lv - MSI MAG A850GL PCIE5
Kopējā jauda: 850W
Maiņstrāvas ievades spriegums: 100 - 240V
Maiņstrāvas ievades frekvence: 47 - 63Hz
Mātesplates strāvas konektors: 20+4 pin ATX
Mātesplates barošanas vada garums: 60cm
Kabeļu tips: Modulārs
Mērķis, rezultāts: PC (dators)
Strāvas padeves bloka (PSU) formas faktors: ATX, 80 PLUS Sertifikācija: 80 PLUS Gold
Produkta krāsa: Balts
Dzesēšanas tips: Aktīvs
Ventilatora diametrs: 12cm
Iepakojuma tips: Kaste
Savienotāji:
ATX (24 PIN): 1
EPS (4+4 PIN): 2
PCI-E 5.0 (16 PIN): 1 (600 W)
PCI-E (6+2 PIN): 4
SATA (15 PIN): 8
MOLEX (4 PIN): 4
FDD (4 PIN): 1
description_ru - MSI MAG A850GL PCIE5
Общая мощность: 850W
Входное напряжение переменного тока: 100–240 В
Входная частота переменного тока: 47–63 Гц
Разъем питания материнской платы: 20+4-контактный ATX
Длина шнура питания материнской платы: 60 см.
Тип кабеля: Модульный
Цель, результат: ПК (компьютер)
Форм-фактор блока питания: ATX, сертификация 80 PLUS: 80 PLUS Gold
Цвет товара: Белый
Тип охлаждения: Активное
Диаметр вентилятора: 12 см
Тип упаковки: Коробка
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Illumination - No
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - White
dimensionalWeight - 1716
dimension depth - 130 mm
dimension height - 225 mm
Dimensions - 86 x 150 x 140 mm
Dimensions - 140 x 150 x 86 mm
dimension weight - 2500 g
dimension width - 300 mm
EAN - 4711377115391
ean - 4711377115391
Eans - 4711377115391
Efficiency - 80 PLUS GOLD
Fan - 12 cm
Floppy power connectors - 1
Full Description Line - MAG A850GL PCIE5 WHITE|For gaming|ATX 3.0|850 Watts|Cooling System 12cm fan|80 PLUS GOLD|PFC Active|Colour White
gross_weight - 0.54 kg
GTIN - 4711377115391
guarantee - 84
guarantee_type - normal
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_113928_1.png
LargeDescHTML -
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - ATX 3.0 COMPATIBLEIt has an output port that is compliant with PCIe 5.0 and Intel PSDG(Power Supply Design Guide) ATX 3.0, also the MAG A850GL PCIE5 WHITE power supply can hold up to 2x total power excursion and 3x GPU power excursion.LEVEL UP YOUR GAMEWith native 16 PIN PCIe connector this power supply is ready for Nvidia® GeForce RTXTM 40 Series graphics cards.It can freely pipe up to 600W of power to PCIe 5.0 graphics cards.80 PLUS GOLD CERTIFIEDThe efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.COMPACT SIZINGSmaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.ONLY WHAT YOU NEEDThe connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. Additionally, the included cable pack provides a storage solution for any unused cables.ALL THE MORE ORGANIZEDOrganizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.FLUID DYNAMIC BEARINGThe power supply’s fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.DC TO DC & FULL BRIDGEDC to DC and Full bridge be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.THE POWER YOU HAVEThe single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's 5 CPU & PCI-E slots are more than plenty.PROTECTION MECHANISMSTo make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.
LongProductName - 850W, 47-63Hz, 120 mm, Active PFC, ATX 3.0, PCIe 5.0
LongSummaryDescription - MSI MAG A850GL PCIE5 WHITE. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Cooling type: Active, Fan diameter: 12 cm. Package type: Box
MB power connector - 24 pin
Model - 306-7ZP8A24-CE0
Model name - MAG A850GL PCIE5 WHITE
Modular power supply - Yes
MOLEX power connectors - 4
Name - Barošanas bloks MSI MAG A850GL PCIE5 850W White
name - Modular power supply MAG A850GL PCIE5 850W 80PLUS GOLD white
Name - MSI MAG A850GL PCIE5 WHITE
name - MSI MAG A850GL PCIe5 White Netzteil, 80 PLUS Gold, vollmodular, ATX 3.0, PCIe 5.0 - 850 Watt
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 0
Number of power connectors PCI-E 16-pin Gen 5 - 1
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Other features -
Packaging data - Package type - Box
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - No
Ports & interfaces - ATX Power connector (24-pin) - No
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - No
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 110 W
Power - Combined power (+5V) - 110 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 846 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Maximum input current (@110V) - 8 A
Power - Maximum input current (@220V) - 4 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 70.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Total power - 850 W
Power supply - 850 W
producer - MSI
Producer - MSI
producerCode - 306-7ZP8A24-CE0
ProducerCode - MAG A850GL PCIE5 WHITE
ProductName - MAG A850GL PCIE5 WHITE
productName - MSI MAG A850GL PCIE5 WHITE power supply unit 850 W 20+4 pin ATX ATX
productSize - Normal
PSU - ATX 3.0
PSU features - For gaming
PSU Output Power - 850 Watts
SATA power connectors - 8
Security - Over Current Protection (OCP) Anti-overload protection (OPP) Thermal (OTP) Overvoltage protection (OVP) Short circuit protection (SCP) Against undervoltage (UVP)
Shipping Box Depth Shipping/Package Box Dimensions - 46.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 32.5 cm
Shipping box quantity - 6
Shipping Box Weight Shipping/Package Box Dimensions - 17.9 kg
Shipping Box Width Shipping/Package Box Dimensions - 39.5 cm
ShortDescription - 850 | biały |ATX | 135 mm | 20 + 4 pin |300mm x 220mm x 125mm | 80PLUS GOLD | modularny |
ShortSummaryDescription - MSI MAG A850GL PCIE5 WHITE, 850 W, 100 - 240 V, 47 - 63 Hz, 8 A, 4 A, Active
sizeX - 300
sizeY - 130
sizeZ - 220
Title - MSI MAG A850GL PCIE5 WHITE power supply unit 850 W 20+4 pin ATX ATX
title_en - MSI MAG A850GL PCIE5 Power supply 850W
title_lv - MSI MAG A850GL PCIE5 Barošanas bloks 850W
title_ru - MSI MAG A850GL PCIE5 Блок питания 850W
Unit Box Height - 0.13
Unit Box Length - 0.3
Unit Box Width - 0.22
Unit Brutto Volume - 0.009949 cubm
Unit Gross Weight - 2.98 kg
Unit Net Weight - 1.5 kg
URL - https://www.msi.com/Power-Supply/MAG-A850GL-PCIE5-WHITE
Vendor Homepage - www.msi.com/Power-Supply/MAG-A850GL-PCIE5-WHITE/Overview
vendpn - MAG A850GL PCIE5 WHITE
Warranty - 24 months
WarrantyInfo -
warrantyLength - 84
warrantyType - G
weight - 0.5 kg
weight - 2820
Accessories included -
Brand - MSI
BrandPartCode - MAG A850GL PCIE5 WHITE
Category - Datortehnika :: Datoru komponentes :: Barošanas bloki (PSU)
category - PC Components|Power Supplies|PCIe 5.0
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category Code - PSU
category_en - Computers & Components > Computer components > Universal power supplies PSU
category_lv - Datortehnika > Datoru komponentes > Barošanas bloki PSU
category_ru - Datortehnika > Datoru komponentes > Barošanas bloki PSU
Certificates 80+ - 80 PLUS Gold
code - 306-7ZP8A24-CE0
Code - MAG A850GL PCIE5 WH
Colour - White
Cooling System - 12cm fan
Desc -
Description - - ATX 3.0 compatible, native PCIe 5.0 connector - Supports NVIDIA® GeForce RTX™ 40 Series graphics cards - Full modular design,Flat cables - 80 Plus Gold certified for high efficiency - Active PFC design,Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP - 120mm Fluid Dynamic Bearing Fan - LLC Full Bridge Topology with DC-DC module design
Description - MAG A850GL PCIE5 Compatibility with the ATX 3.0 standard, native PCIe 5.0 connector Support for NVIDIA GeForce RTX 40 series graphics cards Fully modular design, flat cables 80 PLUS Gold certified, high performance guaranteed Active design of the PFC power factor correction system, Comprehensive circuit protection using industrial-class protections OVP, OCP, OPP, OTP, SCP, UVP 120 mm fan with hydrodynamic bearing Modular design of the DC-DC converter in the LLC Full Bridge topology Support for the ATX 3.0 standard The power supply is equipped with an output port compliant with PCIe 5.0 and Intel PSDG (Power Supply Design Guide) ATX 3.0 standards. Additionally, the MAG A850GL PCIE5 series power supplies are resistant to sudden spikes in power consumption up to twice the total power consumption, and are also able to withstand sudden spikes in power consumption up to three times the power consumed by the GPU. COMPACT SIZE The power supply is much smaller than typical power supplies available on the market, which saves a lot of space inside the computer case and makes cable management easier. This way you also have much more space inside your PC. EVERYTHING CAN BE MORE ORGANIZED Organizing cables is often the most tedious part of building a computer. The cables that come with the power supply are flat and black. Flat cables make running them inside your computer much easier! Thanks to flat cables, the entire system can be much more tidy, and there is more space inside the housing for unobstructed air flow. Use only the cables you need and store the rest in the included cable bag. DYNAMIC OIL BEARING The fan installed in the power supply is equipped with a dynamic oil bearing that perfectly balances cooling performance and noise level. Power circuit with DC converters and full bridge rectifier design Combining the power circuit with full-bridge rectifier DC converters allows for higher conversion efficiency, stable output voltage, and quick voltage adjustment for various usage scenarios. This ensures a much more stable power supply structure.
description_en - MSI MAG A850GL PCIE5
Total power: 850W
AC input voltage: 100 - 240V
AC input frequency: 47 - 63Hz
Motherboard power connector: 20+4 pin ATX
Motherboard power cord length: 60cm
Cable type: Modular
Target, result: PC (computer)
Power Supply Unit (PSU) Form Factor: ATX, 80 PLUS Certification: 80 PLUS Gold
Product color: White
Cooling type: Active
Fan diameter: 12cm
Packaging type: Box
description_lv - MSI MAG A850GL PCIE5
Kopējā jauda: 850W
Maiņstrāvas ievades spriegums: 100 - 240V
Maiņstrāvas ievades frekvence: 47 - 63Hz
Mātesplates strāvas konektors: 20+4 pin ATX
Mātesplates barošanas vada garums: 60cm
Kabeļu tips: Modulārs
Mērķis, rezultāts: PC (dators)
Strāvas padeves bloka (PSU) formas faktors: ATX, 80 PLUS Sertifikācija: 80 PLUS Gold
Produkta krāsa: Balts
Dzesēšanas tips: Aktīvs
Ventilatora diametrs: 12cm
Iepakojuma tips: Kaste
Savienotāji:
ATX (24 PIN): 1
EPS (4+4 PIN): 2
PCI-E 5.0 (16 PIN): 1 (600 W)
PCI-E (6+2 PIN): 4
SATA (15 PIN): 8
MOLEX (4 PIN): 4
FDD (4 PIN): 1
description_ru - MSI MAG A850GL PCIE5
Общая мощность: 850W
Входное напряжение переменного тока: 100–240 В
Входная частота переменного тока: 47–63 Гц
Разъем питания материнской платы: 20+4-контактный ATX
Длина шнура питания материнской платы: 60 см.
Тип кабеля: Модульный
Цель, результат: ПК (компьютер)
Форм-фактор блока питания: ATX, сертификация 80 PLUS: 80 PLUS Gold
Цвет товара: Белый
Тип охлаждения: Активное
Диаметр вентилятора: 12 см
Тип упаковки: Коробка
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Illumination - No
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - White
dimensionalWeight - 1716
dimension depth - 130 mm
dimension height - 225 mm
Dimensions - 86 x 150 x 140 mm
Dimensions - 140 x 150 x 86 mm
dimension weight - 2500 g
dimension width - 300 mm
EAN - 4711377115391
ean - 4711377115391
Eans - 4711377115391
Efficiency - 80 PLUS GOLD
Fan - 12 cm
Floppy power connectors - 1
Full Description Line - MAG A850GL PCIE5 WHITE|For gaming|ATX 3.0|850 Watts|Cooling System 12cm fan|80 PLUS GOLD|PFC Active|Colour White
gross_weight - 0.54 kg
GTIN - 4711377115391
guarantee - 84
guarantee_type - normal
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_113928_1.png
LargeDescHTML -
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - ATX 3.0 COMPATIBLEIt has an output port that is compliant with PCIe 5.0 and Intel PSDG(Power Supply Design Guide) ATX 3.0, also the MAG A850GL PCIE5 WHITE power supply can hold up to 2x total power excursion and 3x GPU power excursion.LEVEL UP YOUR GAMEWith native 16 PIN PCIe connector this power supply is ready for Nvidia® GeForce RTXTM 40 Series graphics cards.It can freely pipe up to 600W of power to PCIe 5.0 graphics cards.80 PLUS GOLD CERTIFIEDThe efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.COMPACT SIZINGSmaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.ONLY WHAT YOU NEEDThe connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. Additionally, the included cable pack provides a storage solution for any unused cables.ALL THE MORE ORGANIZEDOrganizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.FLUID DYNAMIC BEARINGThe power supply’s fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.DC TO DC & FULL BRIDGEDC to DC and Full bridge be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.THE POWER YOU HAVEThe single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's 5 CPU & PCI-E slots are more than plenty.PROTECTION MECHANISMSTo make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.
LongProductName - 850W, 47-63Hz, 120 mm, Active PFC, ATX 3.0, PCIe 5.0
LongSummaryDescription - MSI MAG A850GL PCIE5 WHITE. Total power: 850 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Cooling type: Active, Fan diameter: 12 cm. Package type: Box
MB power connector - 24 pin
Model - 306-7ZP8A24-CE0
Model name - MAG A850GL PCIE5 WHITE
Modular power supply - Yes
MOLEX power connectors - 4
Name - Barošanas bloks MSI MAG A850GL PCIE5 850W White
name - Modular power supply MAG A850GL PCIE5 850W 80PLUS GOLD white
Name - MSI MAG A850GL PCIE5 WHITE
name - MSI MAG A850GL PCIe5 White Netzteil, 80 PLUS Gold, vollmodular, ATX 3.0, PCIe 5.0 - 850 Watt
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 0
Number of power connectors PCI-E 16-pin Gen 5 - 1
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Other features -
Packaging data - Package type - Box
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - ATX power connector (20+4 pin) - No
Ports & interfaces - ATX Power connector (24-pin) - No
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - No
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 110 W
Power - Combined power (+5V) - 110 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 846 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Maximum input current (@110V) - 8 A
Power - Maximum input current (@220V) - 4 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 70.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Total power - 850 W
Power supply - 850 W
producer - MSI
Producer - MSI
producerCode - 306-7ZP8A24-CE0
ProducerCode - MAG A850GL PCIE5 WHITE
ProductName - MAG A850GL PCIE5 WHITE
productName - MSI MAG A850GL PCIE5 WHITE power supply unit 850 W 20+4 pin ATX ATX
productSize - Normal
PSU - ATX 3.0
PSU features - For gaming
PSU Output Power - 850 Watts
SATA power connectors - 8
Security - Over Current Protection (OCP) Anti-overload protection (OPP) Thermal (OTP) Overvoltage protection (OVP) Short circuit protection (SCP) Against undervoltage (UVP)
Shipping Box Depth Shipping/Package Box Dimensions - 46.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 32.5 cm
Shipping box quantity - 6
Shipping Box Weight Shipping/Package Box Dimensions - 17.9 kg
Shipping Box Width Shipping/Package Box Dimensions - 39.5 cm
ShortDescription - 850 | biały |ATX | 135 mm | 20 + 4 pin |300mm x 220mm x 125mm | 80PLUS GOLD | modularny |
ShortSummaryDescription - MSI MAG A850GL PCIE5 WHITE, 850 W, 100 - 240 V, 47 - 63 Hz, 8 A, 4 A, Active
sizeX - 300
sizeY - 130
sizeZ - 220
Title - MSI MAG A850GL PCIE5 WHITE power supply unit 850 W 20+4 pin ATX ATX
title_en - MSI MAG A850GL PCIE5 Power supply 850W
title_lv - MSI MAG A850GL PCIE5 Barošanas bloks 850W
title_ru - MSI MAG A850GL PCIE5 Блок питания 850W
Unit Box Height - 0.13
Unit Box Length - 0.3
Unit Box Width - 0.22
Unit Brutto Volume - 0.009949 cubm
Unit Gross Weight - 2.98 kg
Unit Net Weight - 1.5 kg
URL - https://www.msi.com/Power-Supply/MAG-A850GL-PCIE5-WHITE
Vendor Homepage - www.msi.com/Power-Supply/MAG-A850GL-PCIE5-WHITE/Overview
vendpn - MAG A850GL PCIE5 WHITE
Warranty - 24 months
WarrantyInfo -
warrantyLength - 84
warrantyType - G
weight - 0.5 kg
weight - 2820
