Enermax REVOLUTION DFX, 1050W, 80PLUS Gold, ATX 3.0

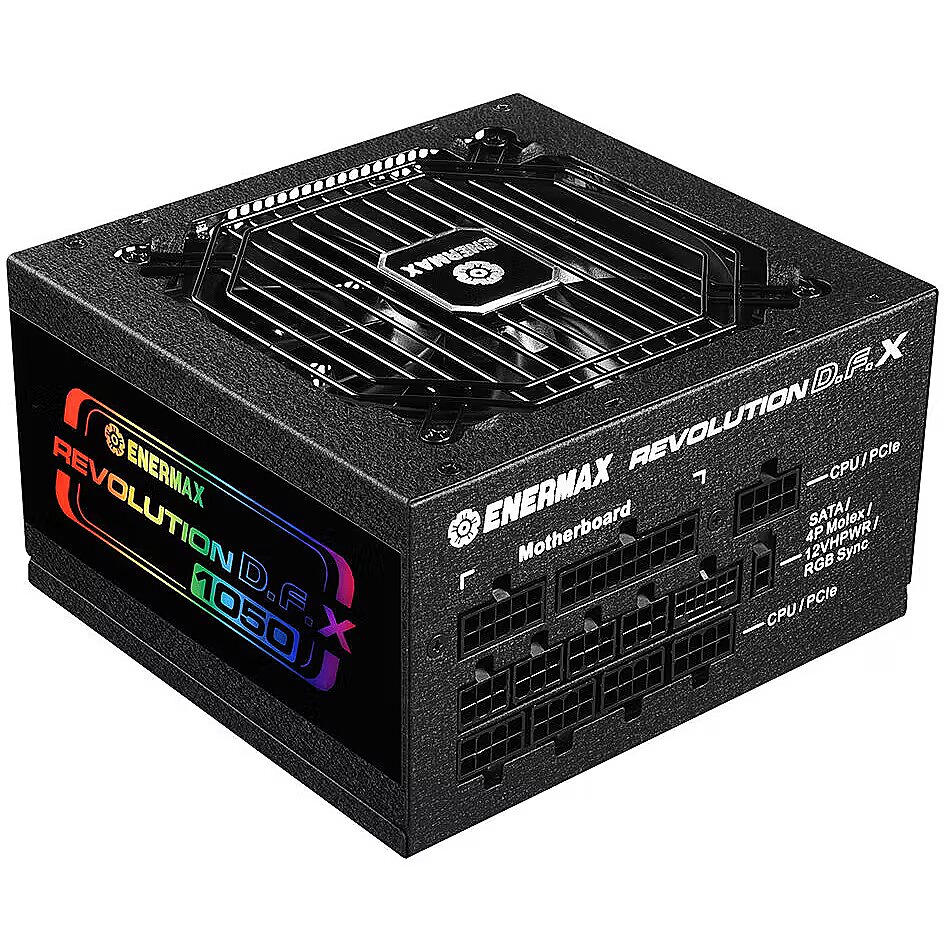

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1014593 Product code: ERT1050EWT
Can be ordered 52 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
152.51 €
Main product parameters All parameters
  • Producer: Enermax
  • Power output: 1050W
  • 80 PLUS certification: 80 PLUS Gold
  • Fan size: 120 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 4 X 6+2pin
Description

We offer to purchase a Enermax power supply unit with a power capacity of 1050W, which has received the 80 PLUS Gold energy efficiency certification.

The diameter of this power supply unit's fan is 120 mm, which will ensure quiet operation in mid-range computers. For especially quiet power supply unit operation, we recommend selecting a fan with a 135 mm or 140 mm diameter.

The power supply has been awarded the 80 PLUS Gold energy efficiency certificate, which provides at least 90% efficiency at 50% load. This indicates that at least 90 W out of 100 W of power drawn from the electrical grid by the power supply is delivered to the computer components, with the remaining 10 W lost as heat.

This power supply unit is equipped with a 1 x 600W 12VHPWR plug intended for use with modern graphics cards – Nvidia GeForce RTX 4070 and up. The RTX 4060 uses a standard 8-pin connector.

The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.

This power supply unit conforms to the ATX 3.0 standard. It has a 16-pin (12VHPWR) connector, which can power the latest generation (RTX 30 and 40 series) PCIe 5.0 graphics cards with up to 600 W of power. To provide more stable current to components, ATX 3.0 also allows increasing the current by 200% for one millisecond.

This power supply unit's noise level is 30-35 dB, and it has a Cybenetics Standard ++ noise level certification.

Thanks to the fact that this power supply has modular cables, you can add hard drives, video cards, and other components as needed, using the various cables included in the package. This way, there are fewer wires in the computer, which improves ventilation and appearance (especially useful for those who choose a partially transparent case).

This power supply has received RGB lighting.

Basic information
Cybenetics Efficiency certification : Cybenetics Platinum
Cybenetics Noise level certification : Cybenetics Standard ++
Power supply type : ATX
Power output 1050W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Gold
Total amperage (+12V) : 87.5A
Fan size : 120 mm
Functionality
Cable colour : Melna
Lighting : RGB
Color : Melna
Modular cables : Fully-Modular
Ports and equipment
PCI-E 5.0 : 1 x 600W 12VHPWR
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 24-pin
PCI-E : 4 X 6+2pin
SATA cconnectors : 12
4pin Molex : 6
Case
More detailed specification
Category_1 - Power
Category_2 - Computer Power Supplies
EAN_code - 4713157727404
Manufacturer - Enermax
Manufacturer_code - ERT1050EWT
Name - Enermax REVOLUTION DFX 1050W, PC power supply (black, 2x 12VHPWR, 4x PCIe, cable management, 1050 watts)
Weight - 2,88
