ID: 1013973
Product code: EY7A007
Can be ordered 19 units Availability: 14 days after order approval
Warranty: 2 years
Endorfy Supremo FM5 Gold, 650W, 80PLUS Gold
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
- Courier delivery 11.99 €: 10.12.2024
Main product parameters All parameters
- Producer: Endorfy
- Power output: 650W
- 80 PLUS certification: 80 PLUS Gold
- Fan size: 120 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 2 X 6+2pin
Description
Available for purchase is a power supply produced by Endorfy with a power output of 650W. The product has been awarded an 80 PLUS Gold energy efficiency certificate.
650W power is sufficient to run Microsoft Office, surf the web, and play budget computer games. With this power supply, you can run a computer with a mid-range processor, a mid-range graphics card (such as the GTX 1650), and one or two hard drives. If you plan to seriously play games, get a power supply with higher wattage.
120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.
The power supply has been awarded the 80 PLUS Gold energy efficiency certificate, which provides at least 90% efficiency at 50% load. This indicates that at least 90 W out of 100 W of power drawn from the electrical grid by the power supply is delivered to the computer components, with the remaining 10 W lost as heat.
The color of the block is Melna. The block has flat cables, whose color is Melna.
This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.

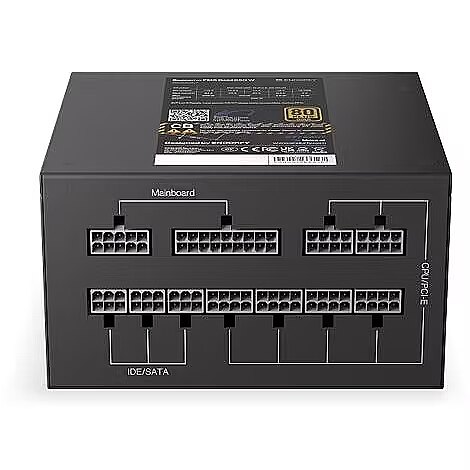

This power supply has modular cables, which provide the possibility to add video card cables, hard disk cables, etc. as needed from the supplied range. This way, the wire clutter in the computer is reduced, improving ventilation and the aesthetic factor (particularly important for those who purchase a partially transparent case).
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
650W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Gold
Total amperage (+12V)
: 54A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Fully-Modular
Ports and equipment
PCI-E 5.0
: Nav
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 24-pin
PCI-E
: 2 X 6+2pin
SATA cconnectors
: 5
4pin Molex
: 1
More detailed specification
8-pin 12V power connectors - 0
Accessories included - Supremo FM5 Gold 650W power supply Modular cabling Power cable Mounting kit User manual
Category - Root/Electronics/PC parts/PC power supply units
Certificates 80+ - 80 PLUS Gold
Description - Supremo FM5 Gold 650W Supremo FM5 Gold 650W is an efficient power supply with a 120 mm Fluctus fan that ensures stable operation of your PC without unexpected reset interruptions. This bad boy is equipped with Japanese electrolytic and aluminum-polymer capacitors, so you can get the most out of it from the factory. No wonder it is 80 PLUS Gold certified Supremo FM5 Gold 650W When you spend half your life at a computer, you know that stable operation of components = failure-free battles with bosses (including those in the office). That's why we created Supremo FM5 Gold 650W. This is an efficient and small (14 cm long) DC-DC power supply dedicated to demanding components. We mean seriously, we packed everything we thought we needed to precisely regulate voltages and deliver 650W of continuous power without unexpected resets or blue screens. There is also room for a 120 mm Fluctus fan, which will (literally!) ensure the appropriate temperature inside the power supply. No wonder our Supremo got the 80 PLUS Gold certificate, right? :) No blue screen Supremo FM5 Gold 650W is equipment with which you can go crazy without worrying that your PC will surprise you with a blue screen in a moment. We designed it in such a way that it provides stable voltage separately on each line because we know that you do not have time for resets during skirmishes with virtual opponents. This is due to the DC-DC conversion, which guarantees precise voltage regulation, stable operation and a total continuous power of 650 W. In addition, you get a full package of protections protecting against, among others, short circuits and overload. Thanks to them, in the event of a failure or overvoltage in the electrical installation, the power supply will simply turn off. So quiet you can hear yourself think We tested Supremo FM5 Gold 650W in various scenarios and we can say one thing: our power supply is so quiet that you can hear your thoughts. And this is even when you squeeze the last juices out of your computer (we checked it ourselves). This is due to our greatest pride in the silent Fluctus 120 PWM fan, which we developed in cooperation with Synergy Cooling. It's small, but it cools you like the best air conditioning. Thanks to it, the entire power supply maintains a low temperature even during the most demanding tasks, and you can work and play without monotonous background noise. Only Japanese capacitors Supremo FM5 Gold 650W is a power supply that can easily handle the most hardcore temperatures. Where water begins to boil, it will not boil due to effort and is designed to work even at 105° Celsius. This is due to Japanese electrolytic and aluminum polymer capacitors (solid state). They are small, but they contain the true power of samurai - we are considering installing tiny katanas in the next version. 7 years warranty Together with Supremo FM5 Gold 650W, we give you a long, 7-year warranty. You probably won't use it anyway (hey, they're ENDORPHS!), but it's good to have this option.
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1128
dimension depth - 95 mm
dimension height - 220 mm
Dimensions - 87 × 140 × 150 mm
dimension weight - 2425 g
dimension width - 270 mm
ean - 5903018666167
Eans - 5903018666167
Fan - 12 cm
Floppy power connectors - 0
guarantee - 84
guarantee_type - normal
MB power connector - 24 pin
Modular power supply - Yes
MOLEX power connectors - 1
Name - ENDORFY Supremo FM5 Gold 650 W
name - Supremo FM5 Gold 650W power supply
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 0
Number of power connectors PCI-E 16-pin Gen 5 - 0
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 2
Other features - Security: OVP UVP OCP SCP OPP SIP OTP
Packaging data - Package weight - 2.42 kg
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 2.31
Performance - Power supply unit (PSU) form factor - ATX
PFC - Active
Ports & interfaces - EPS power connector (4+4 pin) - 2
Ports & interfaces - Length of EPS power connectors (4+4 pin) - 705 mm
Ports & interfaces - Modular cabling - Y
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 5
Ports & interfaces - PCI Express power cable length - 56 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power cable length - 880 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 1
Ports & interfaces - SATA power cable length - 560 mm
Ports & interfaces - SATA power cable length - 880 mm
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 115 - 240 V
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 54 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - OCP (overcurrent protection)
Power - Power protection features - OPP (overload protection)
Power - Power protection features - OTP (overheat protection)
Power - Power protection features - OVP (overvoltage protection)
Power - Power protection features - SCP (short circuit protection)
Power - Power protection features - SIP (surge and shock protection)
Power - Power protection features - UVP (undervoltage protection)
Power - Total power - 650 W
Power supply - 650 W
producer - Endorfy
Producer - Endorfy
producerCode - EY7A007
ProducerCode - EY7A007
productName - Power supply Endorfy Supremo FM5 Gold 650W (EY7A007)
productSize - Normal
SATA power connectors - 5
ShortDescription - 650 | ATX | 120 mm | 87 mm 140mm 150 mm | 80PLUS GOLD | modularny |
sizeX - 270
sizeY - 220
sizeZ - 95
vendpn - EY7A007
warrantyLength - 24
warrantyType - F
weight - 2400
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 87 mm
Weight & dimensions - Weight - 1.44 kg
Weight & dimensions - Width - 150 mm
