Thermaltake Toughpower GF A3 Snow Edition, 850W, 80PLUS Gold

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1013910 Product code: PS-TPD-0850FNFAGE-N
Can be ordered 31 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
123.96 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: 27.11.2024
Main product parameters All parameters
  • Producer: Thermaltake
  • Power output: 850W
  • 80 PLUS certification: 80 PLUS Gold
  • Fan size: 120 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 4 X 6+2pin
Description

This Thermaltake brand power supply unit has an 80 PLUS Gold energy efficiency certificate and a power output of 850W.

This 850W power supply unit is intended for a workstation or high-performance gaming computer. It will be able to power multiple hard drives (SSD/HDD), water cooling, a high-end graphics card (for example, RTX 4070 Ti SUPER), and a top-tier processor (possibly overclocked).

The diameter of this power supply unit's fan is 120 mm, which will ensure quiet operation in mid-range computers. For especially quiet power supply unit operation, we recommend selecting a fan with a 135 mm or 140 mm diameter.

The power supply has been awarded the 80 PLUS Gold energy efficiency certificate, which provides at least 90% efficiency at 50% load. This indicates that at least 90 W out of 100 W of power drawn from the electrical grid by the power supply is delivered to the computer components, with the remaining 10 W lost as heat.

This power supply unit is equipped with a 1 x 450W 12VHPWR plug intended for use with modern graphics cards – Nvidia GeForce RTX 4070 and up. The RTX 4060 uses a standard 8-pin connector.

The color of the power supply is Balta. It is equipped with flat cables, whose color is Balta.

This power supply unit conforms to the ATX 3.0 standard. It has a 16-pin (12VHPWR) connector, which can power the latest generation (RTX 30 and 40 series) PCIe 5.0 graphics cards with up to 600 W of power. To provide more stable current to components, ATX 3.0 also allows increasing the current by 200% for one millisecond.

This power supply's noise level is 25-30 dB and it has a Cybenetics A - noise level certificate.

Thanks to the fact that this power supply has modular cables, you can add hard drives, video cards, and other components as needed, using the various cables included in the package. This way, there are fewer wires in the computer, which improves ventilation and appearance (especially useful for those who choose a partially transparent case).

Basic information
Cybenetics Efficiency certification : Cybenetics Platinum
Cybenetics Noise level certification : Cybenetics A -
Power supply type : ATX
Power output 850W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Gold
Total amperage (+12V) : 70.8A
Fan size : 120 mm
Functionality
Cable colour : White
Lighting : Nav
Color : White
Modular cables : Fully-Modular

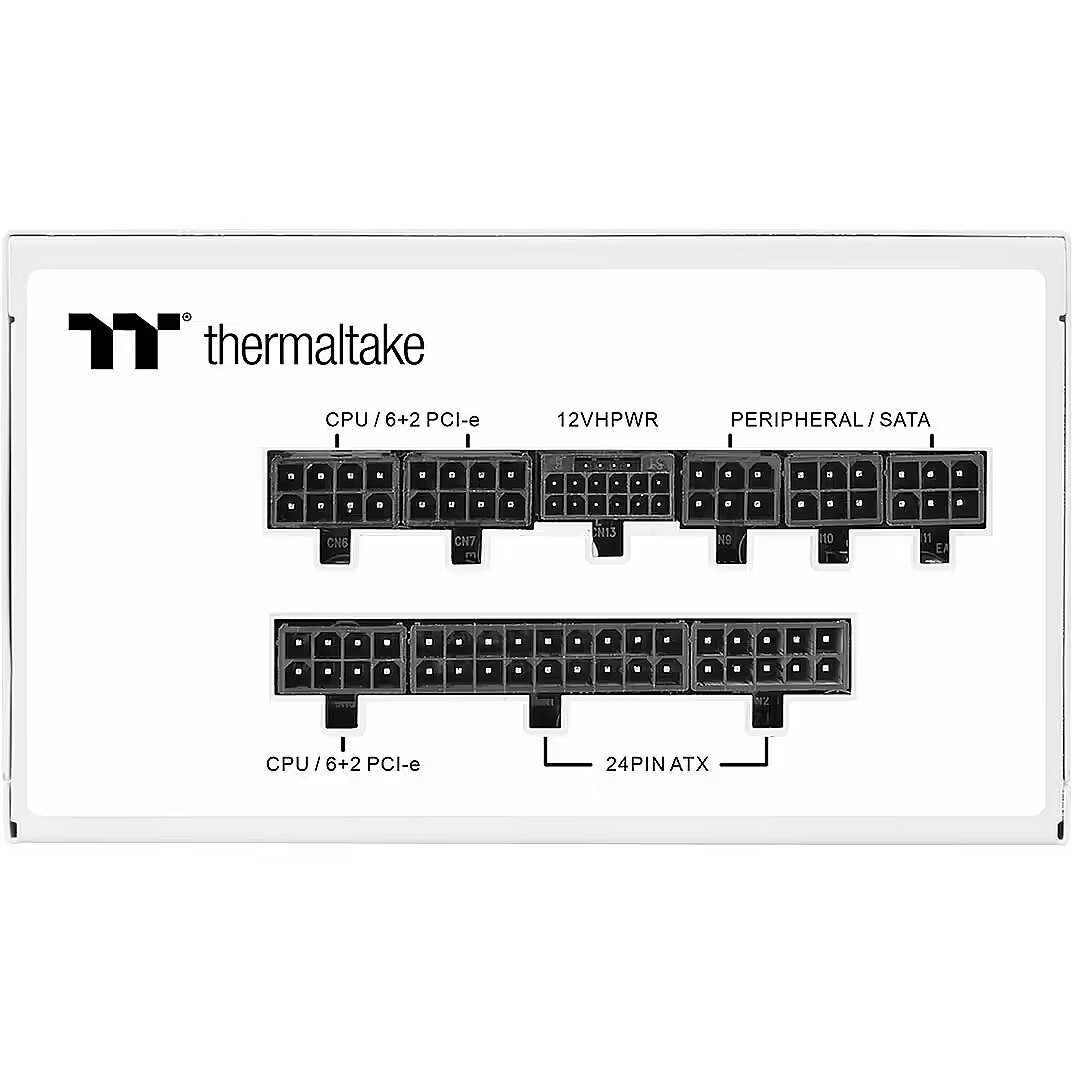

Ports and equipment
PCI-E 5.0 : 1 x 450W 12VHPWR
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 24-pin
PCI-E : 4 X 6+2pin
SATA cconnectors : 5
4pin Molex : Eight Core
Case
More detailed specification
8-pin 12V power connectors - 0
Accessories included -
Category - Root/Electronics/PC parts/PC power supply units
Category 1 - Netzteile
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Gold
Description - The Toughpower GF A3 850W Gold F Modular 12cm Gen5 Snow power supply is characterized by solid workmanship and impressive power of up to 850 W. Thanks to this, it will easily power even the most demanding computer configurations, ensuring stable and reliable operation. Equipped with an active power factor correction (PFC) system, which translates into efficiency and energy savings. An additional advantage is the 80 PLUS Gold certificate, confirming the high efficiency of the power supply and low energy consumption. The modular design of the power supply allows you to optimize energy conduction in the computer case, eliminating unnecessary cables and improving air flow. Thanks to this, the entire structure becomes more transparent and aesthetic. The Toughpower GF A3 850W Gold F Modular 12cm Gen5 Snow power supply also has a rich set of connectors, including: power connectors SATA, PCI-E 6-pin, PCI-E 6+2-pin and PCI-E 8-pin. This makes it easy to connect various devices and graphics cards without worrying about the lack of appropriate connectors. A 12-cm fan that effectively dissipates heat outside, ensuring proper cooling of computer components. Thanks to this, the power supply operates more quietly and efficiently, which is important especially during long-term use.
dimension depth - 135 mm
dimension height - 225 mm
Dimensions - 150 x 86 x 140 mm
dimension weight - 2880 g
dimension width - 325 mm
ean - 4711475640092
EAN - 4711475640092
Eans - 4711475640092
EAN_code - 4711475640092
Fan - 12 cm
Floppy power connectors - 1
guarantee - 60
guarantee_type - statutory
Manufacturer - Thermaltake
Manufacturer_code - PS-TPD-0850FNFAGE-N
MB power connector - 24 pin
Modular power supply - Yes
MOLEX power connectors - 8
MPN - PS-TPD-0850FNFAGE-N
Name - 850W Thermaltake Toughpower GF A3 Snow
name - Thermaltake Toughpower GF A3 850W Gold Snow
Name - Thermaltake Toughpower GF A3 850W White
Name - Thermaltake Toughpower GF A3 Snow 850W, PC power supply (white, 1x 12VHPWR, 5x PCIe, cable management, 850 watts)
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 0
Number of power connectors PCI-E 16-pin Gen 5 - 1
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Other features -
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
PFC - Active
Power supply - 850 W
producer - Thermaltake
Producer - Thermaltake
ProducerCode - PS-TPD-0850FNFAGE-N
SATA power connectors - 5
ShortDescription - 850 | ATX | 120mm | 20+4 | 86mm x 150mm x 140mm | modularny | 80+ Gold EU | PCIe Gen 5.0 | biały
Technical_details - The Thermaltake Toughpower GF A3 Series is 80 PLUS Gold certified and compatible with Intel's ATX 3.0 specifications. It is equipped with a native PCIe Gen 5.0 connector and can power next-generation technology with a new 12VHPWR cable. The wattage shown on the 12VHPWR connector is the recommended wattage (Ref. Intel Design Guideline). The GF A3 850W's native 16 PIN (12VHPWR) PCIe connector can deliver up to 600W for PCIe 5.0 graphics cards. The 120mm liquid bearing fan provides excellent airflow. Additionally, the Smart Zero Fan only rotates when the load exceeds 40% of the power supply, minimizing unwanted noise. Item No.: 100000161 Type PC power supply color white EAN 4711475640092 Manufacturer no. PS-TPD-0850FNFAGE-N Total power 850 W Control Temperature controlled Standard ATX12V 3.0 ATX design Certification 80 PLUS Gold Current strengths +3.3 V 22 A Power factor correction Active PFC Connectors 1x 24-pin ATX12V-2.x, 1x 4+4-pin 12V, 4x 4-pin 5.25", 4x 6+2-pin graphics, 1x 8-pin 12V, 1x 12VHPWR, 12x 15-pin SATA Cable lengths mainboard main connection 24-pin: 60 cm, mainboard additional connections 8-pin: 2x 65 cm, drive connections 5.25 inch: 1x 50 cm, 1x 65 cm, 1x 80 cm, 1x 95 cm, drive connections 3.5 inch Floppy: 10 cm, drive connectors SATA: 3x 50 cm, 3x 65 cm, 3x 80 cm, 3x 95 cm, graphics connectors 6-/8-pin: 2x 50 cm, 2x 65 cm, graphics connectors 12VHPWR: 50 cm Cooling Number of fans 1x 140 mm fan Volume 0 dB(A) at 20% load, 8.7 dB(A) at 50% load, 23.4 dB(A) at 100% load Protection functions Current surge protection (OCP), Over voltage protection (OVP), Under voltage protection (UVP), Overload protection (OLP/OPP), Short circuit protection (SCP), Overheating protection (OTP) Accessories available: 1x floppy adapter Dimensions Width: 150mm x Height: 86mm x Depth/Length: 160mm
vendpn - PS-TPD-0850FNFAGE-N
Weight - 1.98
Weight - 2,92
