FSP Hydro K PRO, 600W, 80PLUS Bronze

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1006551 Product code: PPA6005605
Can be ordered 19 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
58.87 €
Main product parameters All parameters
  • Producer: FSP
  • Power output: 600W
  • 80 PLUS certification: 80 PLUS Bronze
  • Fan size: 120 mm
  • Modular cables: Nav
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 2 X 6+2pin
Description

We offer to purchase a FSP power supply unit with a power capacity of 600W, which has received the 80 PLUS Bronze energy efficiency certification.

The 600W power will be enough for running Microsoft Office programs, browsing the internet, and budget-level computer games. The power supply unit will be able to run a computer with a mid-range processor, mid-range graphics card (for example, GTX 1650), and 1-2 hard drives. For serious gaming, a more powerful power supply unit is needed.

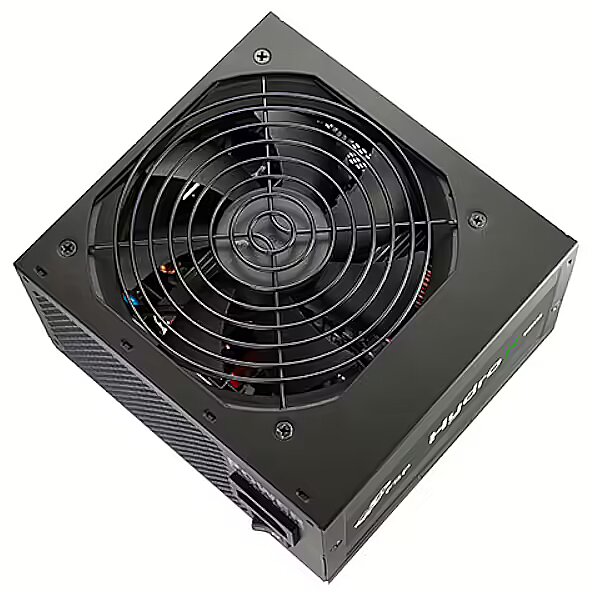

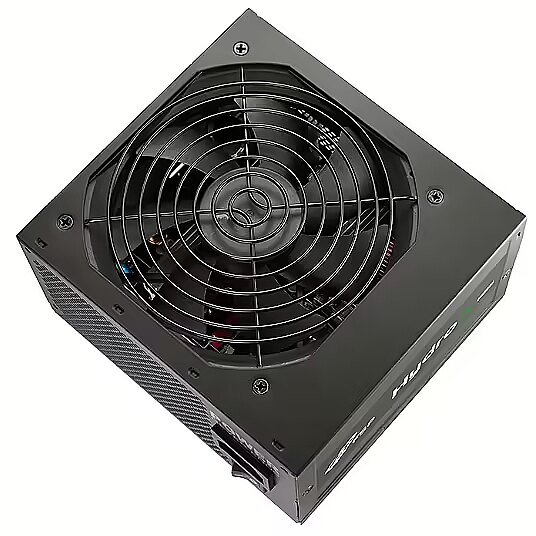

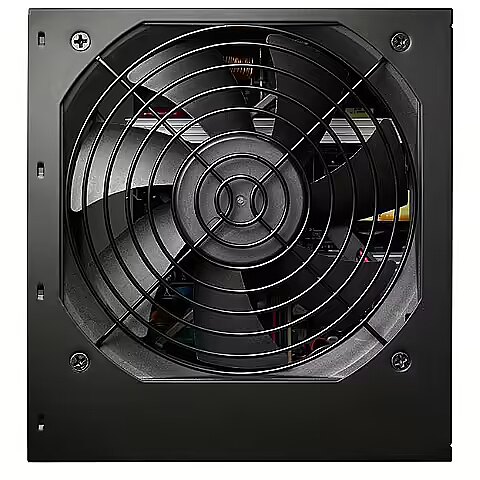

This power supply unit is equipped with a 120 mm fan, which is the industry standard for ensuring quiet operation in average computers. If you want an especially quiet unit, look for one with a fan diameter of 135 mm or 140 mm.

The power supply has received the 80 PLUS Bronze energy efficiency certificate, which guarantees at least 85% efficiency at 50% load. This means that for every 100W of power the power supply draws from the electrical grid, at least 85W is delivered to your computer components, while the remaining 15W is lost as heat.

The color of the block is Melna. The block has flat cables, whose color is Melna.

This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.

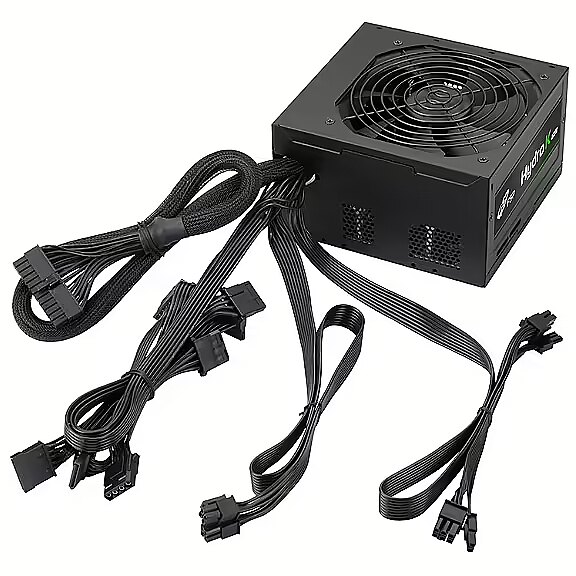

This power supply unit does not have modular cables – all its cables are attached to the unit and are not detachable. Despite the simple design, it will fulfill its functions just as well as a power supply unit with modular cables.

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 600W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Bronze
Total amperage (+12V) : 50A
Fan size : 120 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Nav
Ports and equipment
PCI-E 5.0 : Nav
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 24-pin
PCI-E : 2 X 6+2pin
SATA cconnectors : 5
4pin Molex : 2
Case
More detailed specification
Brand - FSP
BrandPartCode - PPA6005605
Category - Power Supply Units
Category 1 - Netzteile
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
EAN - 4713224525957
GTIN - 4713224525957
LongDesc - The new Hydro K PRO PSUs comply fully ATX12 v2.52 standard and the latest safety 62368 regulation as well and comes with high-grade ribbon cables, give your PC a polished look. The Hydro K PRO series is designed as a powerful single +12V rail that continually delivers maximum performance for the most demanding graphic cards, while FSP’s custom DC-DC design provides safety and power efficiency. Besides, with an 230V 80 Plus® rating, delivers over 88% high efficiency and low noise levels thanks to its hydraulic bearing fan design, where a large 120mm fan takes care of cooling duties when required, making it excellent for situations that are sensitive to size and noise.Up-to-date Circuit DesignA dual forward topology integrated with active PFC and PWM technology and double EMI filter delivers full power and enhance stability to your system.Stable DC to DC Output QualityDC to DC modules with low ripple noise and prolongs system lifetime.Double Layer EMI FilterTo reduce electromagnetic interference and suppress noise.Low Noise, Less HeatHydro K PRO series is equipped with the 120mm hydraulic bearing fan (HYB) which makes optimum cooling and reduces noise. Moreover, the lifespan of fan is longer than standard one.+12V Single Rail DesignDesigned for power-intensive VGA cards, provides strong power to any overloading condition.80 Plus® Bronze CertificationWith an 230V 80 Plus® rating, Hydro K PRO series delivers over 88% high efficiency.Energy Related ErP/Eup 2013Green Power! The total AC power consumption less than 5Vsb rail to meet the new EU Regulation ErP 2013 for modern systems.
LongProductName - 600W, 80 PLUS Bronze, Ef. 88%, Active PFC, HYB Fan 120mm
LongSummaryDescription - FSP HP2-600. Total power: 600 W, AC input voltage: 200 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 50 cm, CPU power cable length: 85 cm. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: CPU, PCIe, Peripheral (Molex), SATA
Manufacturer - FSP
MPN - PPA6005605
Name - 600W FSP HYDRO K PRO 600
Packaging content - Cables included - CPU, PCIe, Peripheral (Molex), SATA
Packaging data - Package type - Box
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 3.0
Performance - Bearing technology - HYB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC/Server
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power cable length - 85 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power cable length - 50 cm
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 5
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 200 - 240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 600 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 88%
Power - Input current - 4.5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 50 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current, Over power, Over voltage, Short circuit
Power - Total power - 600 W
ProductName - HP2-600
ShortSummaryDescription - FSP HP2-600, 600 W, 200 - 240 V, 50 - 60 Hz, 4.5 A, Active, 100 W
Title - FSP HP2-600 power supply unit 600 W 24-pin ATX ATX Black
URL - https://www.fsplifestyle.com/en/product/HydroKPRO600W.html
WarrantyInfo -
Weight - 1.78
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 140 mm
