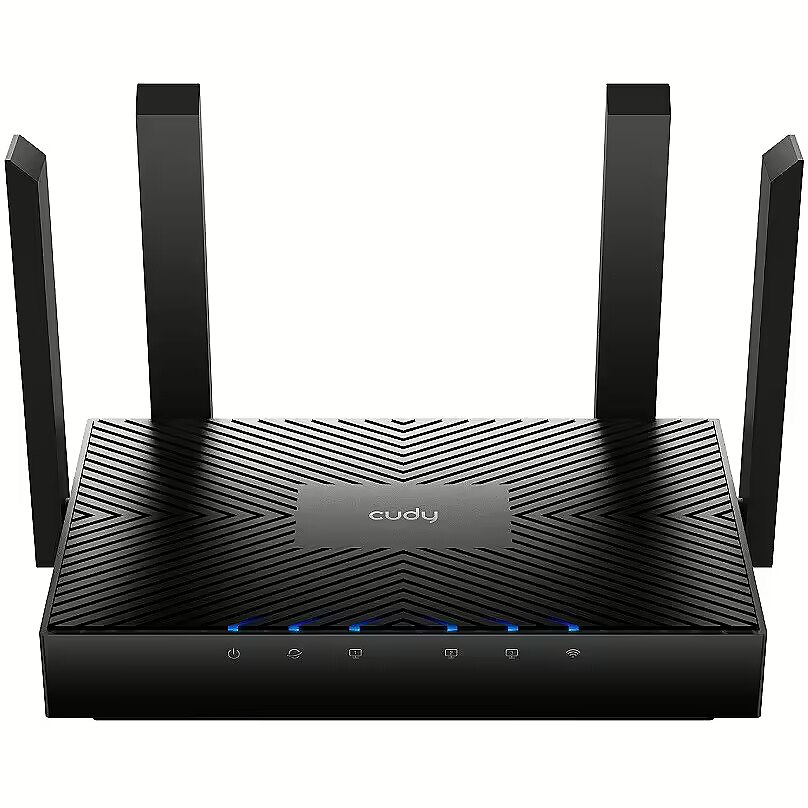

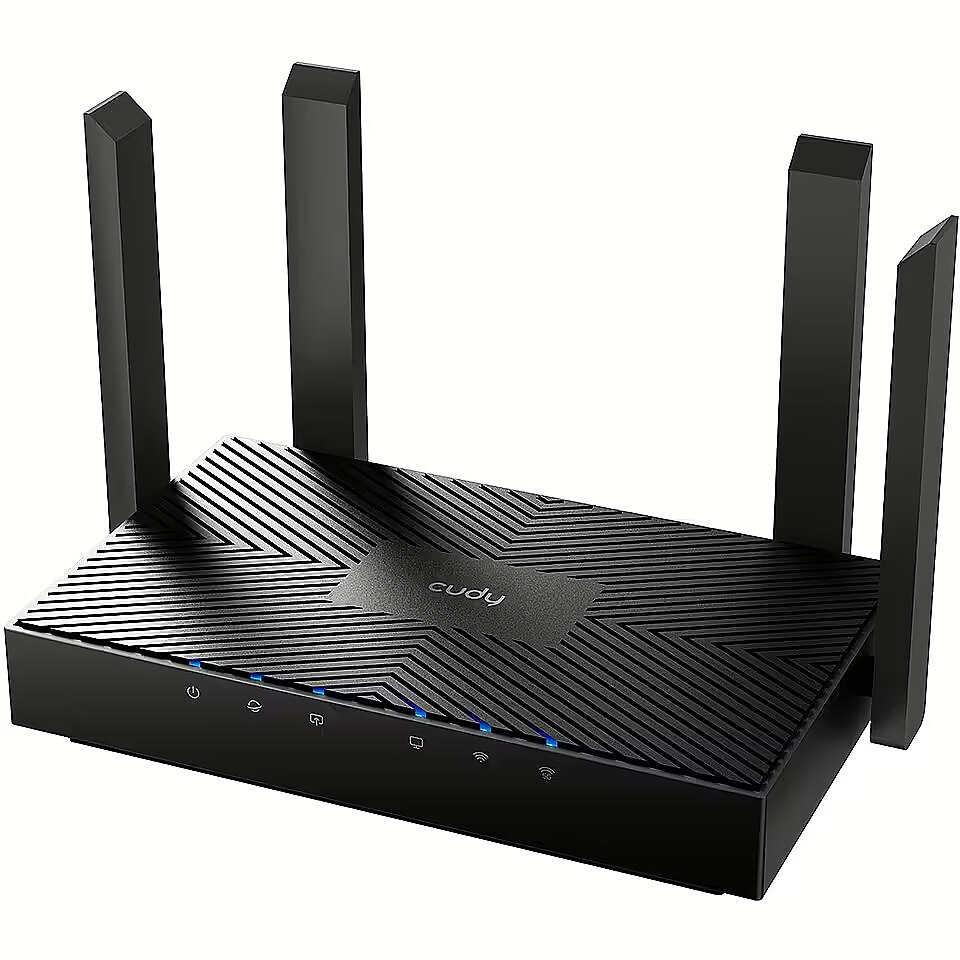

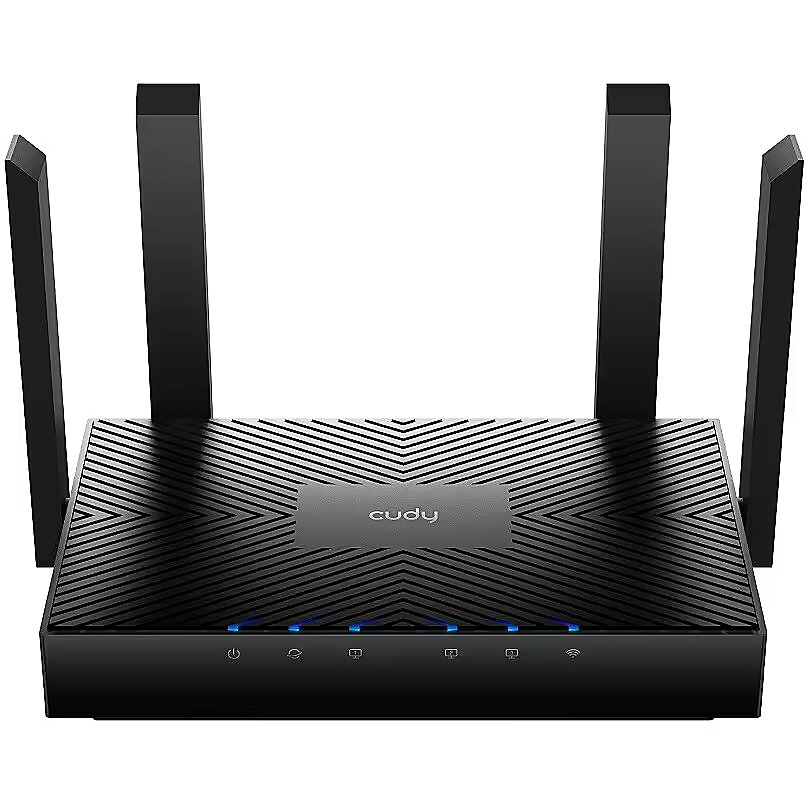

Cudy Router Mesh Gigabit WiFi WR3000 AX3000

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 989635 Product code: WR3000
Can be ordered 58 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
57.13 €
Main product parameters All parameters
  • Speed index: 3000
  • Type of device: Router
  • Wi-Fi standard: Wi-Fi 6 (802.11ax)
Basic information
Speed index : 3000
Type of device Router

Access Point - bezvadu piekļuves punkts, kas nodrošina kabeļu tīkla paplašināšanas pārraidi bezvadu tīklā izmantojot vienu LAN pieslēgvietu. Access point nav rūteris, un nespēj sadalīt vienu interneta pieslēguma adresi vairākiem datoriem, tamdēļ šo iekārtu slēdziet tikai aiz esoša kabeļu rūtera.

Router, jeb maršrutētājs - bezvadu piekļuves punkts, kas nodrošina viena interneta pieslēguma sadalīšanu vairākiem datoriem, gan caur tīkla vadiem, gan bezvadu tīklā. Parasti bezvadu maršrutētājam ir viena kabeļu interneta pieslēgvieta, četras datoru pieslēgvietas (kuras var papildināt, izmantojot switch komutatoru) un antenas, kas nodrošina apraidi datoriem un citām WiFi iekārtām.

Range Extender - bezvadu tīkla apraides attāluma pastiprinātājs. Paredzēts esoša signāla pastiprināšanai, lai palielinātu uzveršanas un pārraides attālumu.

Wifi adapter - Bezvadu tīkla karte, paredzēta datora pieslēgšanai pie bezvadu WiFi rūtera vai piekļuves punkta. PCI, PCI-E ir paredzēti galddatoriem, savukārt PCMCIA un USB - portatīvajiem datoriem. Jāpiebilst, ka lielākā daļa portatīvo datoru jau rūpnīcā tiek komplektēti ar bezvadu tīkla kartēm.

USB tīkla karte ir pēdējā izvēle, jo USB2.0 caurlaidības ātrums ir samērā zems ~22MB/s, kas nozīmē to, ka netiks izmantots bezvadu tīkla maksimālais iespējamais ātrums. Ja ir iespēja, labāk izvēlēties kādu citu pieslēguma veidu.

Wi-Fi standard : Wi-Fi 6 (802.11ax)
Functionality
3G/4G support Nav

A possibility to put the SIM card of mobile operators or the USB Dongle adapter in the router providing access to the 3G mobile Internet.

Prior to buying a router with the 3G support you should verify whether the device supports the 3G USB Dongle receiver of the particular mobile communications operator at the manufacturer's website.

Band mode Dual-Band

SingleBand is a standard wireless technology characteristic of all the modern wireless devices.

DualBand is 2.4GHz with an additional 5.0GHz channel providing better receiving of the signal and more stable high-speed operation. For using this function both devices, i.e. the router and the wireless network card, have to support the DualBand mode.

Ethernet 100/1000

LAN or ethernet cables connection slots operational mode.

10/100 MB.s is the standard speed characteristic of almost all the routers.

10/100/1000 MB.s, or GigaBit is tens of times faster standard which, in combination of GigaBit LAN network cards, provides great data transmission speed advantages between computers connected within the internal network. This solution is usually required in offices where large data volumes are copied between computers or fast Internet connection is used (no ~30 MB/s) simultaneously in several computers.



Ports and equipment
LAN ports : 4
Wireless card
More detailed specification
Accessories included - AX3000 WiFi 4-Stream Router 6 Charger RJ45 ethernet cable Quick Installation Guide
Antenna - Fixed external
Category - Root/Electronics/Networks and communication/Routers
Color - Black
Description - WR3000 AX3000 Gigabit Dual Band WiFi 6 Router Dual-core Cortex-A53 1.3GHz processor Extremely fast AX3000 Wi-Fi 6 technology 4 10/100/1000Mbps Ethernet ports 4 x external high-gain antennas 20/40/80/160MHz bandwidth supported OFDMA, Beamforming and MU-MIMO supported IPv4/IPv6, TR069/TR098/TR181/TR111
dimension depth - 230 mm
dimension height - 240 mm
Dimensions - 180 x 107 x 35mm (without antennas) 200 x 117 x 35mm (with antennas)
dimension weight - 620 g
dimension width - 60 mm
ean - 6971690792831
Eans - 6971690792831
guarantee - 24
guarantee_type - normal

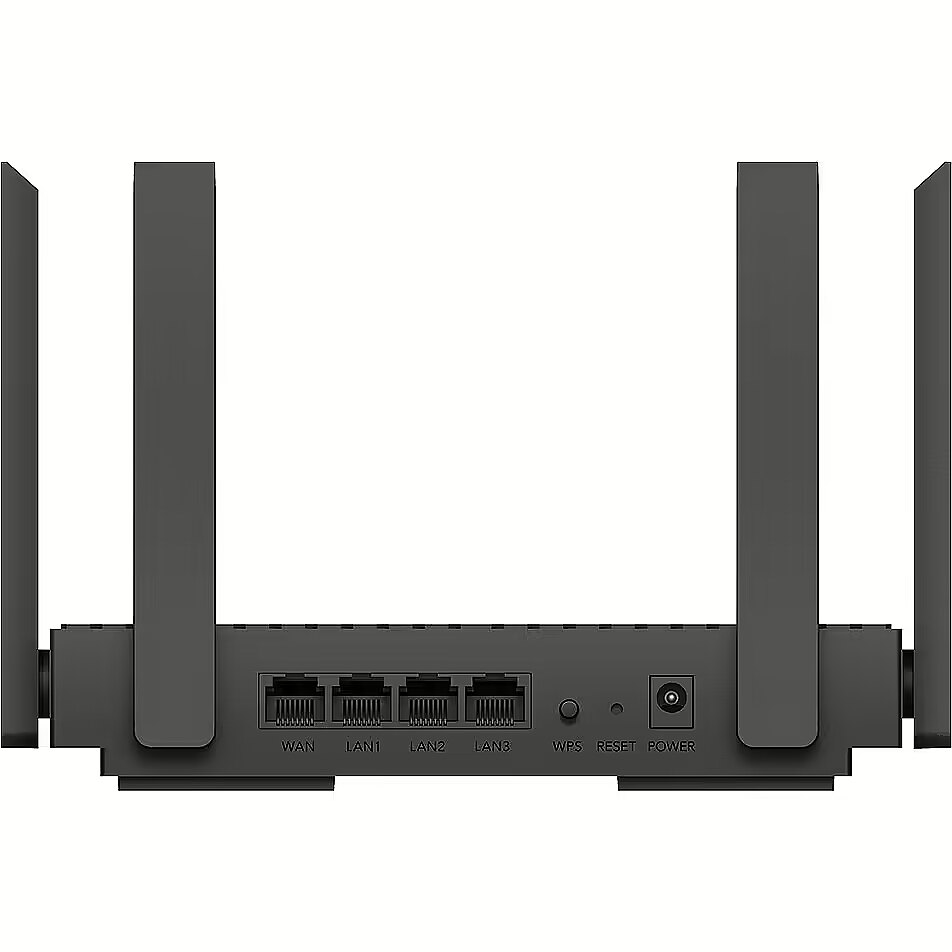

I/O ports - 1 x 10/100/1000Base-T RJ-45 port (WAN)
I/O ports - 3 x 10/100/1000 Mbit/s
Management, monitoring, configuration - WAN Type: Dynamic IP/Static IP/PPPoE DHCP: Server, DHCP Client List, Address Reservation Dynamic DNS: Compatible with 15 more DDNS providers Guest Network: 2.4GHz guest network × 1; 5GHz guest network × 1 NAT: Port Forwarding, Port Triggering, UPnP, DMZ Wireless Modes: Enable/Disable Wireless Radio, WMM MU-MIMO Beamforming
Model - WR3000
Name - Cudy WR3000
name - Router Mesh Gigabit WiFi WR3000 AX3000
Network architecture - GigabitEthernet
Number of antennas - 4
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Other features - Processor: 1.3GHz Dual Core Cortex-A53 WPS button, reset button Bandwidth supported: 20/40/80/160MHz Data transmission speed: 2402Mbps (5GHz), 574Mbps (2.4GHz)
Power supply - External power supply: 12V/1A
producer - Cudy
Producer - Cudy
ProducerCode - WR3000
Security - WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPA3
ShortDescription -
Software -
Special functions -
Standards - 802.11a
Standards - 802.11ac
Standards - 802.11ax
Standards - 802.11b
Standards - 802.11g
Standards - 802.11n
Supported operating systems - Linux
Supported operating systems - Mac OS
Supported operating systems - Novell NetWare
Supported operating systems - Unix
Supported operating systems - Windows 7
Supported operating systems - Windows 8
Supported operating systems - Windows 8.1
Supported operating systems - Windows 10
Supported operating systems - Windows 98 SE
Supported operating systems - Windows 2000
Supported operating systems - Windows NT
Supported operating systems - Windows Vista
Supported operating systems - Windows XP
System Requirements - Firefox 12.0, Chrome 20.0, Safari 4.0 or other Java-enabled browser Cable or DSL modem
Type - xDSL
vendpn - WR3000
