10/100/1000M LAN Ports - 1
Accessories included - EAP613 Mounting kit Installation Guide
Antenna - Built-in
Antenna - Antenna gain level (max) - 5 dBi
Antenna - Antennas quantity - 4
Antenna - Antenna type - Internal
Antenna gain - 5 dBi
ARTIKEL1 - AX1800 WI-FI 6 ACCESS POINT
ARTIKEL2 - CEILING MOUNT DUAL-BAND OMADA
Brand - TP-Link
BrandPartCode - EAP613
Category - Wireless Access Points
Category 1 - Netzwerk
Category 2 - Accesspoints
Category Code - WAP
Category_1 - Network and Servers
Category_2 - Network - WiFi Access Points
Certificates - CE FCC RoHS
Certificates - Certification - CE, FCC, RoHS
Color - White
Colour - White
Data transmission speed - 1800 Mbps
Description - AX1800 Ceiling Mount WiFi 6 Access Point. Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.† High-Efficiency WiFi 6: More connected devices can enjoy faster speeds. Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app. Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.§ Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§ PoE+ Powered: Supports DC (adapter is not included), 802.3at PoE+, and Passive PoE for flexible installations. Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility. Secure Guest Network: Along with multiple authentication options (SMS/Voucher, etc.) and abundant wireless security technologies.
Description - EAP613 AX1800 Standard Dual Band Wireless Ceiling Mount Access Point Lightning-fast Wi-Fi 6 speeds: Simultaneous support for speeds of up to 574 Mbps on the 2.4 GHz band and 1201 Mbps on the 5 GHz band for a total of up to 1775 Mbps. High-performance Wi-Fi 6: Connect more devices at high speeds. Centralized management: Management is extremely convenient thanks to cloud access and the easy-to-use Omada application. Seamless roaming: Video streams and ongoing voice calls are not interrupted when users change location. Omada Mesh: The ability to wirelessly connect APs to maintain large network coverage and location flexibility Support for PoE+ power supply: Selection of the location for the device and its installation do not cause any major difficulties thanks to the support for PoE+ power supply (802.3at standard) and DC power supply (power adapter not included). Compact Design: Dimensions 160mm x 33.6mm and elegant design. Secure guest network: Multiple authentication methods are available (SMS/Facebook Wi-Fi/Voucher, etc.) and numerous technologies that protect access to wireless networks. AX1800 WiFi 6 574 Mbps in the 2.4 GHz band 1201 Mbps in the 5 GHz band High-performance WiFi 6 More connected devices, faster speed. Centralized management in the Cloud Manage your network locally and remotely via the Cloud. Seamless Roaming Uninterrupted streaming while moving between access points. Omada Mesh technology Convenient and flexible wireless network deployment. PoE+ powered Supports 802.3at PoE+, Passive PoE and DC power (power adapter not included). Compact design Dimensions 160 mm × 33.6 mm and elegant design. Gigabit Ethernet Increases overall throughput with a Gigabit Ethernet port. Powerful WiFi Portal Authentication, MU-MIMO, Band Steering, Airtime Fairness and Load Balancing. Lightning-fast speeds with Wi-Fi 6 Upgrade your wireless network to WiFi 6 with speeds up to 1775Mbps. Every online activity will be noticeably smoother. Integration with the Omada SDN platform The Omada Software Defined Networking (SDN) platform integrates network devices such as Access Points, Switches and Routers to provide 100% centralized cloud management and a highly scalable network managed from a single interface Automatic Channel Selection and Power Control optimize performance Provides high wireless performance while reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring access points on the same network. Simple installation and high efficiency thanks to Omada Mesh Easy pairing, less wires Based on Mesh technology, Omada EAPs require no additional wires by wirelessly forwarding your WiFi signal for easy installation in places where cables are difficult to route. Network performance optimization Smart optimization chooses the best path between EAP APs, and Self-healing ensures they stay online even if one AP goes down. Seamless switching with Fast Roaming It provides users with uninterrupted streaming when they move nearby by automatically switching their devices to access points with optimal signal. Ultra-compact design Outstanding performance and compact design ensure simple WiFi installation while saving space. The elegant design makes the EAP613 a perfect fit for any modern office, hotel, classroom and coffee shop. Increased network security and performance Secure guest network with up to 16 SSIDs The guest network provides enhanced security for users. Different SSIDs allow for easy management. Guest network with Facebook WiFi and SMS login A welcome page (including SMS, Facebook WiFi and Voucher) and 802.1x authentication help keep guests authorized and online. Grow your business with a custom advertising page. WPA3 for open public networks With advanced enterprise-grade security, WPA3 provides enhanced data security for hitherto unsecured WiFi hotspots. Band steering Dual-band devices are automatically connected to the wider 5GHz band, giving them access to faster connections. Bandwidth load balancing A heavily trafficked network works smoothly and without interruption even when many devices are connected to it. Airtime Fairness Improves network performance by reducing inefficient use of bandwidth.
Design - LED indicators - Yes
Design - Placement - Ceiling, Wall
Design - Product colour - White
Design - Reset button - Yes
dimensionalWeight - 690
dimension depth - 65 mm
dimension height - 230 mm
Dimensions - 160 x 160 x 33,6 mm
dimension weight - 794 g
dimension width - 245 mm
ean - 4895252500516
EAN - 4895252500516
EANCode - 4895252500516
EAN_code - 4895252500516
Environment requirements - Allowable operating temperature: 0-40 C (32104 F) Storage Temperature: -40-70 C (-40,158 F) Permissible air humidity: 10%-90%, non-condensing Permissible storage humidity: 5%-90%, non-condensing
Features - 2.4 GHz - Yes
Features - 5 GHz - Yes
Features - 6 GHz - No
Features - Airtime Fairness (ATF) - Yes
Features - Automatic channel scanning - Yes
Features - Automatic channel selection - Yes
Features - Band steering - Yes
Features - BeamForming - Yes
Features - Ethernet LAN data rates - 100
Features - Ethernet LAN data rates - 100,1000 Mbit/s
Features - Ethernet LAN data rates - 1000
Features - Frequency band - 2.4 - 5 GHz
Features - Maximum data transfer rate - 1775 Mbit/s
Features - Maximum data transfer rate (2.4 GHz) - 574 Mbit/s
Features - Maximum data transfer rate (5 GHz) - 1201 Mbit/s
Features - MIMO - Yes
Features - MIMO type - Multi User MIMO
Features - Networking standards - IEEE 802.11a
Features - Networking standards - IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Features - Networking standards - IEEE 802.11ac
Features - Networking standards - IEEE 802.11ax
Features - Networking standards - IEEE 802.11b
Features - Networking standards - IEEE 802.11g
Features - Networking standards - IEEE 802.11n
Features - Rate limiting - Yes
Features - Spread spectrum method - OFDMA
Features - Transmitting power (CE) - Features - Transmitting power (FCC) - Features - VLAN support - Yes
Features - Wi-Fi Multimedia (WMM)/(WME) - Yes
Features - Wireless isolation - Yes
Full Description Line - Type Wireless Access Point|Data transmission speed 1800 Mbps|Wi-Fi 6|1x10/100/1000M|Wireless Frequency Range 2.4 GHz and 5 GHz|Power supply requirements 802.3at PoE, 48 V Passive PoE, 12 V / 1 A DC (Power Adapter IS NOT included)|Colour White
Gross Weight Kg - 0,69
GRUPPE1 - Network
GRUPPE2 - Wireless Lan Ap
GTIN - 0840030704307
GTIN - 840030704307
GTIN - 4895252500516
guarantee - 60
guarantee_type - normal
HERSTELLER - TP-LINK
HSTNUMMER - EAP613
I/O ports - 1 x 10/100/1000 Mbit/s PoE
LongDesc - Easily Upgrade to Business WiFi 6 NetworkAX1800 Ceiling Mount WiFi 6 Access PointAX1800 WiFi 6 Speed574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz†Seamless RoamingUninterrupted streaming when moving between APs§Ultra-Slim DesignΦ160 mm × 33.6 mm elegant design brings more agilityHigh-Efficiency WiFi 6More connected devices can enjoy faster speedsOmada Mesh TechnologyMore flexible and convenient wireless deploymentGigabit Wired PerformanceBoosts overall throughput with a Gigabit Ethernet portCentralized Cloud ManagementManage the whole network locally or from the cloudPoE+ PoweredSupports DC (adapter is not included), 802.3at PoE+, and Passive PoE for flexible installationsOptimized WiFi PerformanceWith Portal Authentication, MU-MIMO, Band Steering, Airtime Fairness, and Load BalanceUpgrade to WiFi 6, Power up Your BusinessWiFi 6 brings faster speeds, less lag, and higher capacity.Superior WiFi 6 SpeedsUpgrade to WiFi 6 with speeds up to 1775 Mbps brings 50% faster speeds than WiFi 5.† Every application feels more fluid with drastically improved Wi-Fi speedsSeamless Integration into Omada SDNThe Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.Auto Channel Selection and Power Adjustment to Optimize Overall PerformanceProvides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same networkEasy Deployment & Higher Performance by Omada Mesh Easy Pairing, Less WiringWith Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.Optimized Network PerformanceIntelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.Always Stay Smooth with Fast RoamingEnsures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.Ultra-Slim Design Brings More AgilityExceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP613 perfectly blend into any modern office, hotel, classroom, or café.Easy to Mount with Refined Industrial DesignBoosted Network Security and EfficiencySecure Guest Network with Up to 16 SSIDsGuest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.Guest Network with SMS LoginCaptive portal (including SMS and Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing pageWPA3 for Worry-Free Open Public NetworksWith advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.Band SteeringAutomatically moves dual band devices onto the wider 5GHz band for faster connections.Load BalanceEnsures large numbers of users have smooth network experiences in high-density business networksAirtime FairnessIncreases average network throughput in heavily congested environments
LongProductName - 2.4 GHz (574 Mbps), 5 GHz (1201 Mbps), 802.11ax/ac/n/g/b/a, 1x Gigabit Ethernet (RJ-45), 160 x 160 x 33.6 mm
LongSummaryDescription - TP-Link Omada AX1800 Ceiling Mount WiFi 6 Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1775 Mbit/s. Security algorithms: HTTPS, SNMP, SNMPv2, SNMPv3, WPA, WPA2, WPA3. Ethernet LAN data rates: 100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 10.6 W
Management, monitoring, configuration - 1024-QAM 4 times longer OFDM symbol OFDMA Multi-SSID (up to 16 SSIDs, 8 for each band) On/Off wireless transmission Automatic channel selection Transmission power control (based on dBm) QoS (WMM) MU-MIMO Seamless roaming Omada Mesh§ Band steering Bandwidth load balancing Airtime Fairness Beamforming Speed limiting Reboot schedule Wireless scheduler Wireless statistics based on SSID/AP/client Email notifications Diode switch Access control by MAC addresses SNMP: v1, v2c, v3 System log: Local and remote SSH Web Based Management: HTTP/HTTPS L3 management Multi-site management VLAN management Unattended ZTP Setup - Requires the use of the Cloud-based Omada Controller central management: Omada Cloud based controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada software controller Cloud access via: Omada Cloud based controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada software controller
Management features - Management platform - Omada
Management features - Web-based management - Yes
Manufacturer - TP-Link
Manufacturer Code - EAP613
Manufacturer Name - TP-LINK
Manufacturer_code - EAP613
Model - EAP613
MPN - EAP613
name - Access Point EAP613 AX1800
Name - TP-Link EAP613 AX1800
Name - TP-Link Omada EAP613 AX1800 Wifi6
Network architecture - GigabitEthernet
Network Device Type - Wireless Access Point
Number of antennas - 4
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Operational conditions - Operating relative humidity (H-H) - 0 - 40%
Operational conditions - Operating temperature (T-T) - 10 - 90 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C

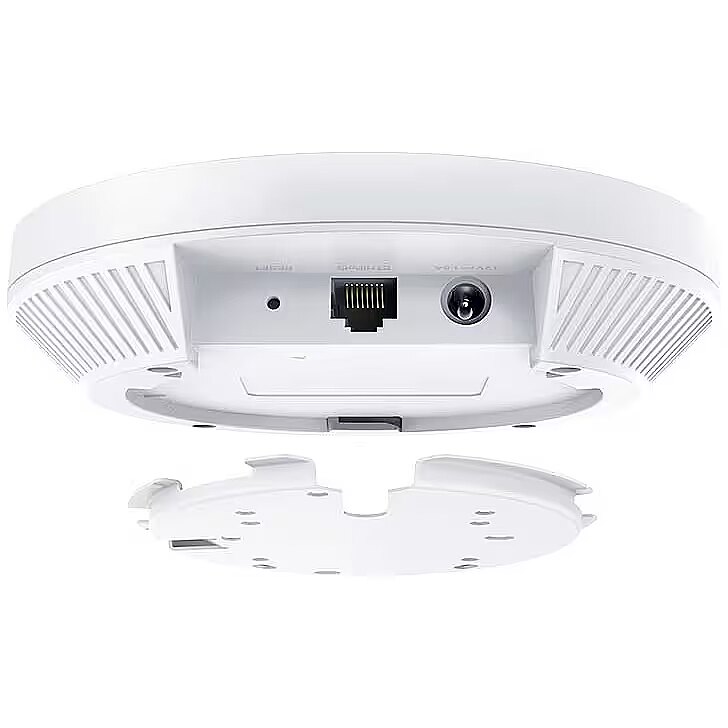

Other features - Reset button Ceiling/wall mount (mounting kit included) Mounting on a junction box Transmission speed: 5GHz: Up to 1201Mbps 2.4GHz: Up to 574Mbps
Packaging content - Mounting kit - Yes
Packaging content - Quantity per pack - 1 pc(s)
Packaging content - Quick start guide - Yes
Performance - Compatible operating systems - Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - DC voltage range - 12 V
Power - Input current - 1 A
Power - Power consumption (max) - 10.6 W
Power - Power consumption (typical) - 9.6 W
Power - Power over Ethernet (PoE) - Yes
Power - Power over Ethernet (PoE) type supported - Passive PoE
Power supply - 802.3at PoE 48V Passive PoE 12 V / 1 A DC (Power adapter NOT included) Power consumption: 11.0W (PoE); 9.9W (DC)
Power supply requirements - 802.3at PoE, 48 V Passive PoE, 12 V / 1 A DC (Power Adapter IS NOT included)
producer - TP-LINK
producerCode - EAP613
ProductName - AX1800 Ceiling Mount WiFi 6 Access Point
productName - TP-Link Omada AX1800 Ceiling Mount WiFi 6 Access Point
productSize - Normal
Security - Welcome page authentication Access control MAC address filtering Isolation of clients connected to the wireless network SSID to VLAN mapping Detection of unauthorized APs 802.1X support WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise encryption
Security - Number of SSID supported - 16
Security - Security algorithms - HTTPS
Security - Security algorithms - HTTPS, SNMP, SNMPv2, SNMPv3, WPA, WPA2, WPA3
Security - Security algorithms - SNMP
Security - Security algorithms - SNMPv2
Security - Security algorithms - SNMPv3
Security - Security algorithms - WPA
Security - Security algorithms - WPA2
Security - Security algorithms - WPA3
Shipping Box Depth Shipping/Package Box Dimensions - 51 cm
Shipping Box Height Shipping/Package Box Dimensions - 29 cm
Shipping box quantity - 16
Shipping Box Weight Shipping/Package Box Dimensions - 14.2 kg
Shipping Box Width Shipping/Package Box Dimensions - 48 cm
Short description - TP-LINK WLAN AX1800 PoE+ Access Point Dualband EAP613 Omada Mesh, 574Mbps 2.4 GHz +1201 Mbps 5 GHz
ShortSummaryDescription - TP-Link Omada AX1800 Ceiling Mount WiFi 6 Access Point, 2.4 GHz, 5 GHz, 1775 Mbit/s, HTTPS, SNMP, SNMPv2, SNMPv3, WPA, WPA2, WPA3, 100,1000 Mbit/s
sizeX - 230
sizeY - 60
sizeZ - 250
Software - Omada app
Special functions -
Standards - 802.1x
Standards - 802.3at
Standards - 802.11a
Standards - 802.11ac
Standards - 802.11ax
Standards - 802.11b
Standards - 802.11g
Standards - 802.11n
Stck_Kart - 16
Stck_Pal - 0
Storno - Y
System Requirements - Compatible operating systems: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Title - TP-Link Omada AX1800 Ceiling Mount WiFi 6 Access Point
Unit Brutto Volume - 0.004437 cubm
Unit Gross Weight - 0.887 kg
Unit Net Weight - 0.4 kg
URL - https://www.tp-link.com/th/business-networking/omada-sdn-access-point/eap613/#overview
Vendor Homepage - www.tp-link.com/us/business-networking/omada-sdn-access-point/eap613/
vendpn - EAP613
Warranty - 60 months
WarrantyInfo - 5-Year
warrantyLength - 60
warrantyType - G
Weight - 0,79
Weight - 0.76
weight - 780
Weight & dimensions - Depth - 160 mm
Weight & dimensions - Height - 33.6 mm
Weight & dimensions - Width - 160 mm
Wi-Fi 6 Network standard - Yes
Wireless Frequency Range - 2.4 GHz and 5 GHz
