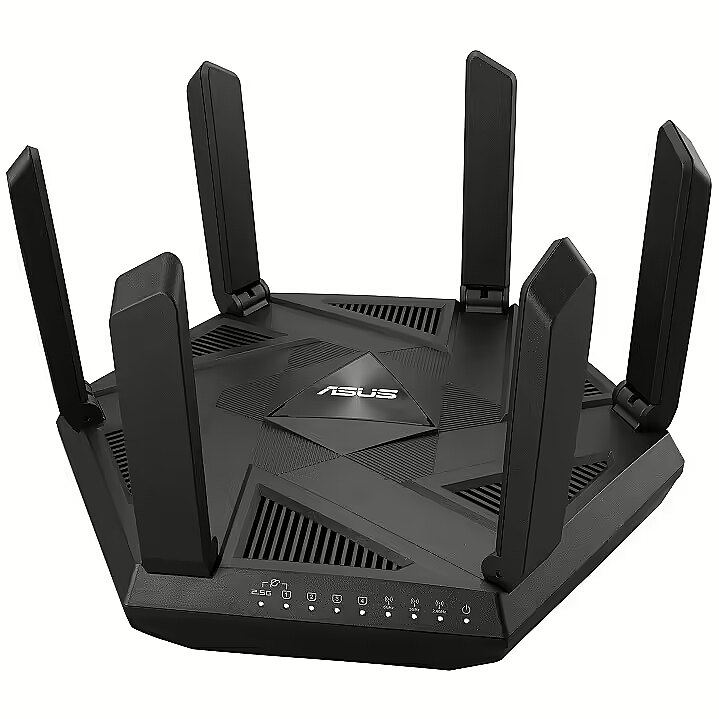

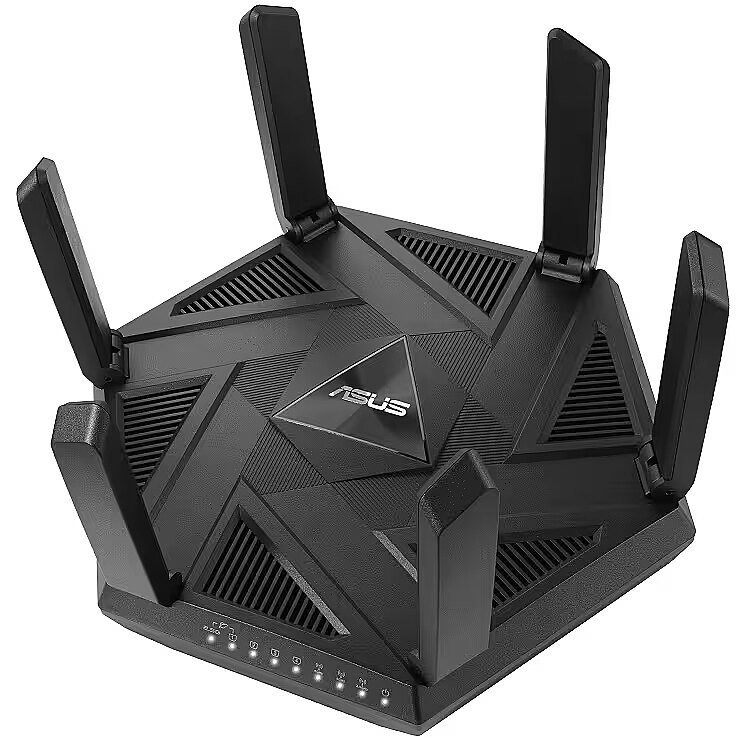

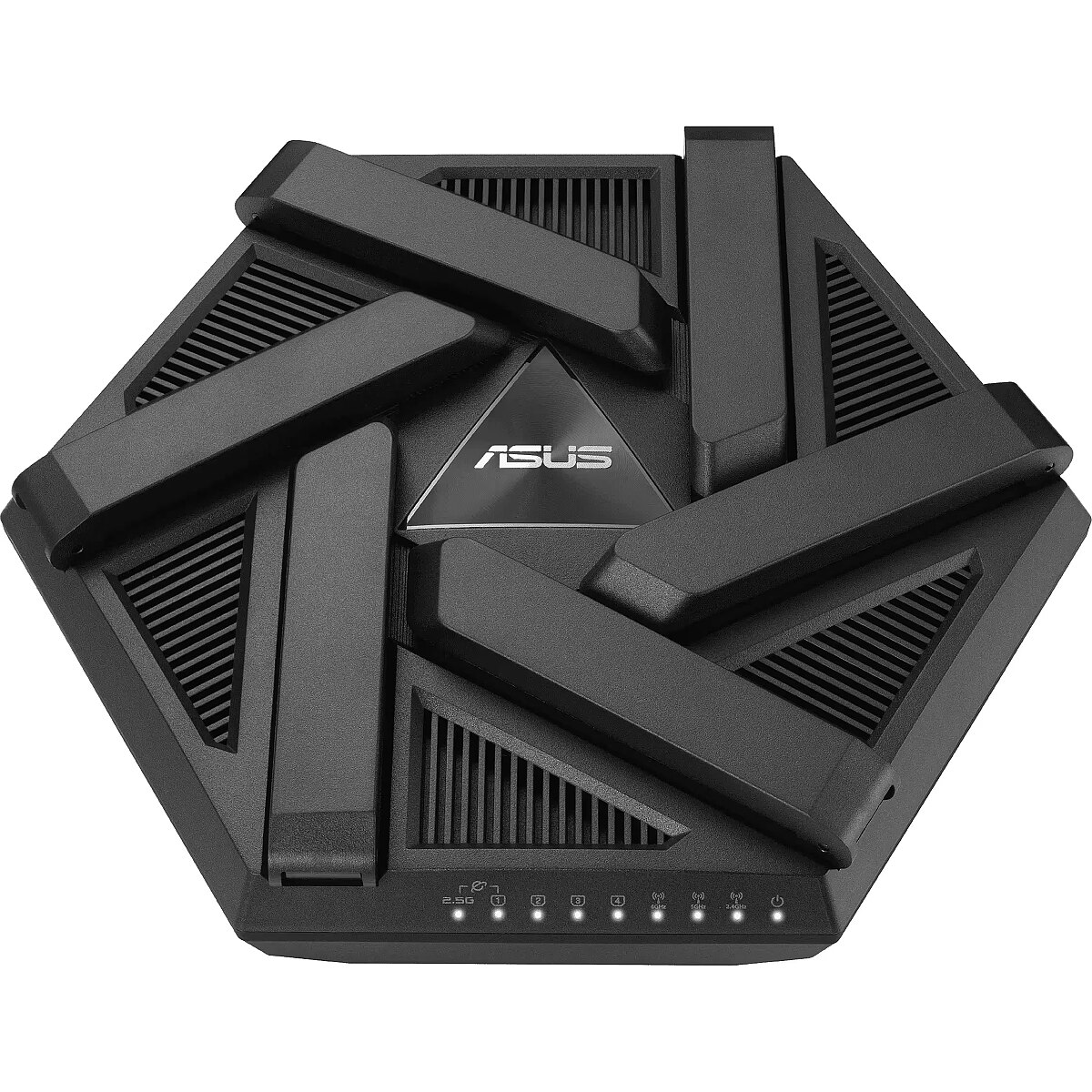

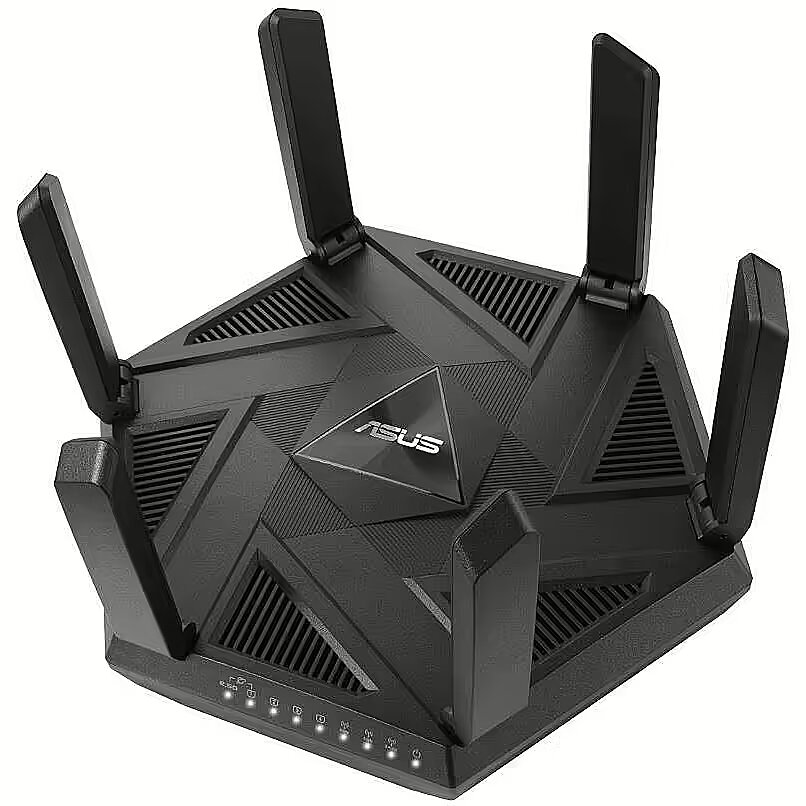

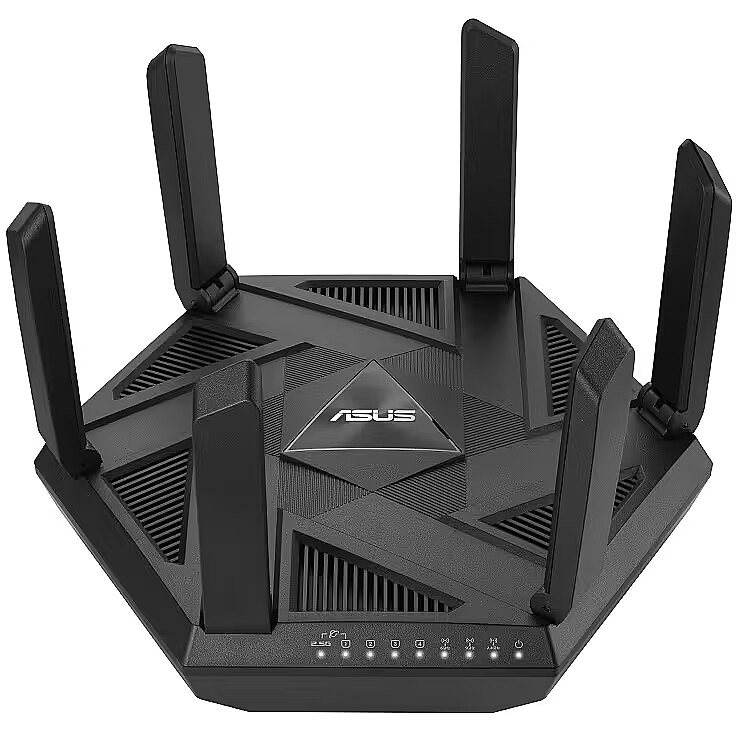

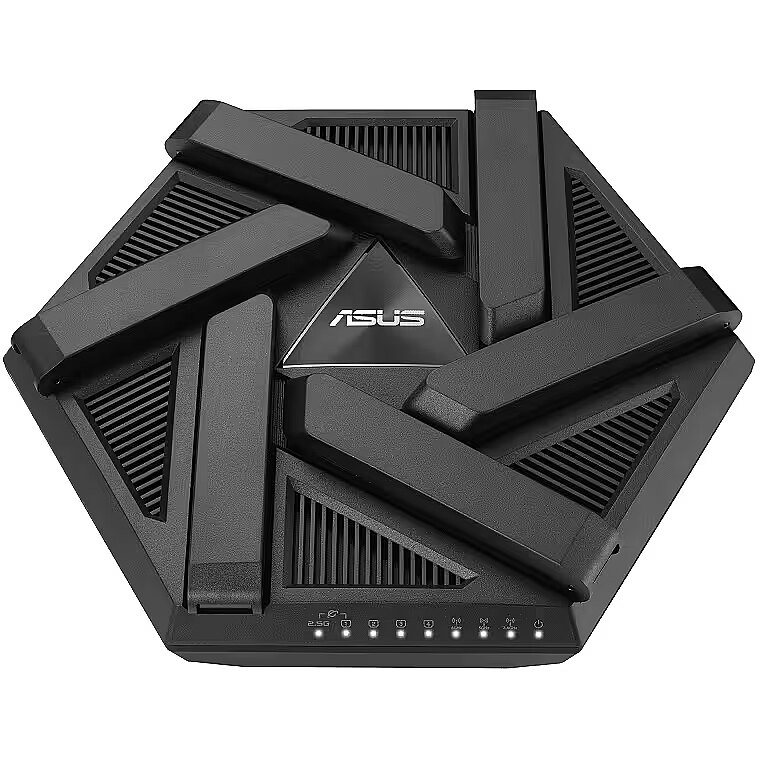

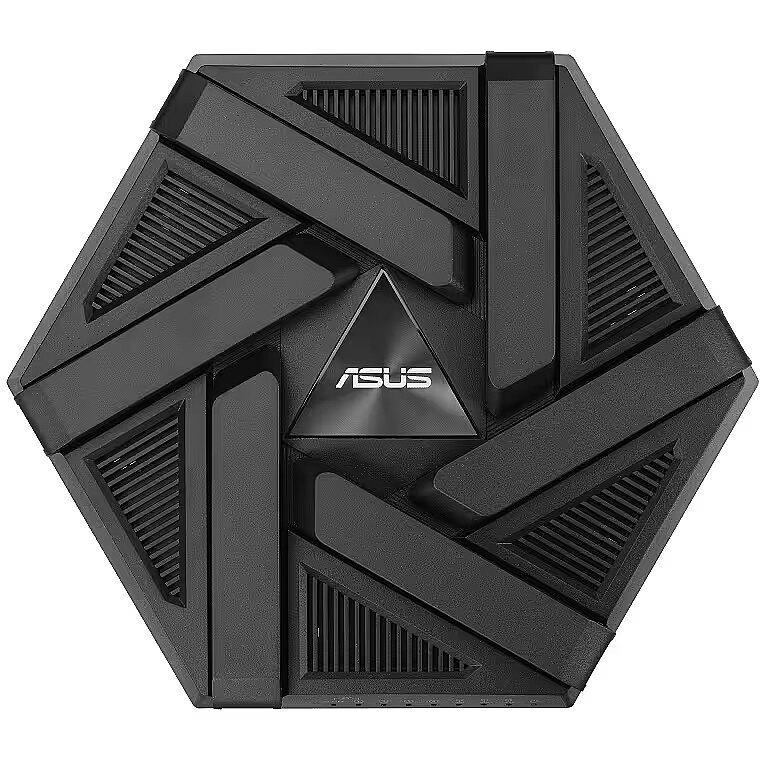

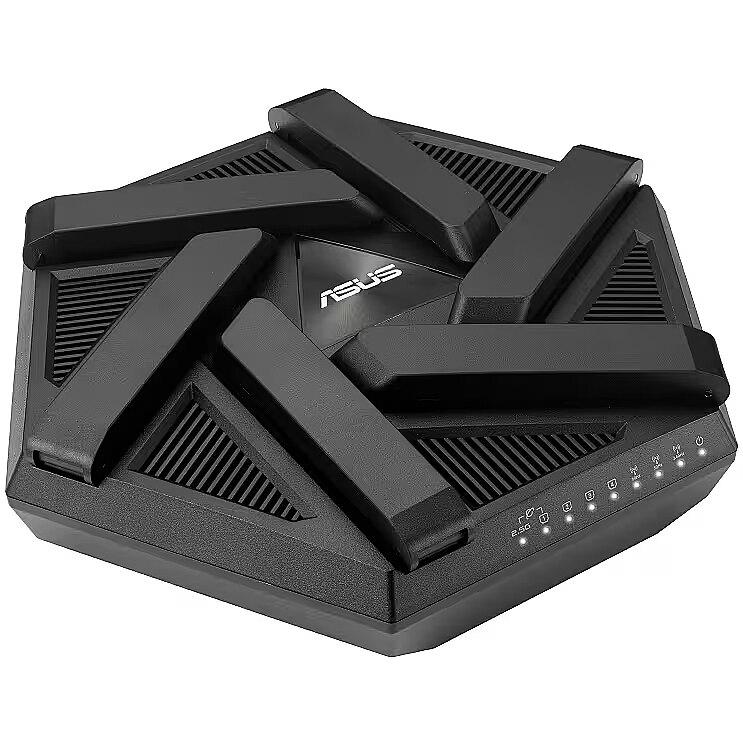

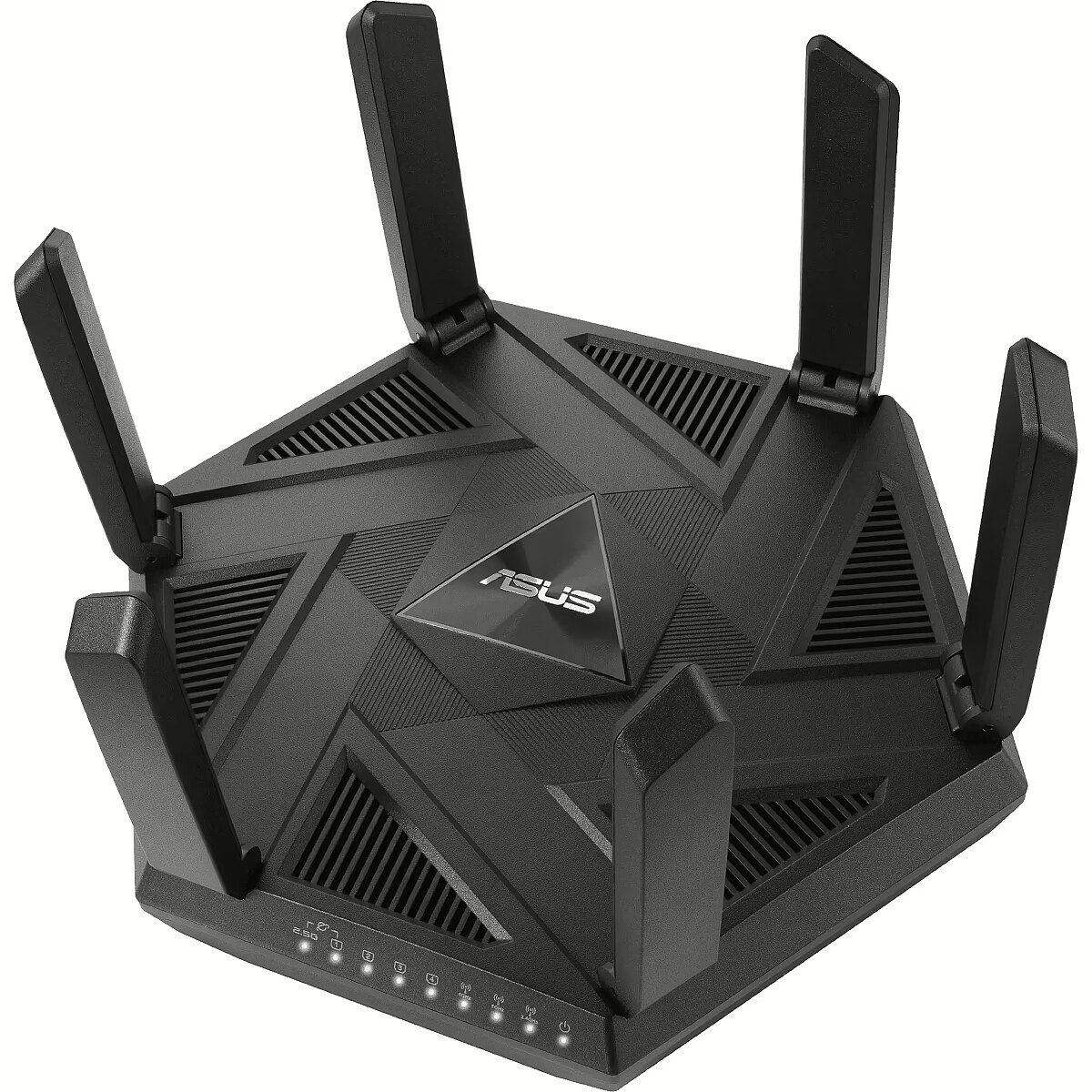

Asus RT-AXE7800, AXE7800 Tri-band WiFi 6E (802.11ax) Router

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 923237 Product code: RT-AXE7800
In stock 2 units
Warranty: 3 years
201.63 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: on Thursday, 28.11.2024
Main product parameters All parameters
  • Speed index: 7800
  • Type of device: Router
  • Wi-Fi standard: Wi-Fi 6E (802.11ax)
Basic information
Speed index : 7800
Type of device Router

Access Point - bezvadu piekļuves punkts, kas nodrošina kabeļu tīkla paplašināšanas pārraidi bezvadu tīklā izmantojot vienu LAN pieslēgvietu. Access point nav rūteris, un nespēj sadalīt vienu interneta pieslēguma adresi vairākiem datoriem, tamdēļ šo iekārtu slēdziet tikai aiz esoša kabeļu rūtera.

Router, jeb maršrutētājs - bezvadu piekļuves punkts, kas nodrošina viena interneta pieslēguma sadalīšanu vairākiem datoriem, gan caur tīkla vadiem, gan bezvadu tīklā. Parasti bezvadu maršrutētājam ir viena kabeļu interneta pieslēgvieta, četras datoru pieslēgvietas (kuras var papildināt, izmantojot switch komutatoru) un antenas, kas nodrošina apraidi datoriem un citām WiFi iekārtām.

Range Extender - bezvadu tīkla apraides attāluma pastiprinātājs. Paredzēts esoša signāla pastiprināšanai, lai palielinātu uzveršanas un pārraides attālumu.

Wifi adapter - Bezvadu tīkla karte, paredzēta datora pieslēgšanai pie bezvadu WiFi rūtera vai piekļuves punkta. PCI, PCI-E ir paredzēti galddatoriem, savukārt PCMCIA un USB - portatīvajiem datoriem. Jāpiebilst, ka lielākā daļa portatīvo datoru jau rūpnīcā tiek komplektēti ar bezvadu tīkla kartēm.

USB tīkla karte ir pēdējā izvēle, jo USB2.0 caurlaidības ātrums ir samērā zems ~22MB/s, kas nozīmē to, ka netiks izmantots bezvadu tīkla maksimālais iespējamais ātrums. Ja ir iespēja, labāk izvēlēties kādu citu pieslēguma veidu.

Wi-Fi standard : Wi-Fi 6E (802.11ax)
Functionality
3G/4G support Nav

A possibility to put the SIM card of mobile operators or the USB Dongle adapter in the router providing access to the 3G mobile Internet.

Prior to buying a router with the 3G support you should verify whether the device supports the 3G USB Dongle receiver of the particular mobile communications operator at the manufacturer's website.

Band mode Tri-Band

SingleBand is a standard wireless technology characteristic of all the modern wireless devices.

DualBand is 2.4GHz with an additional 5.0GHz channel providing better receiving of the signal and more stable high-speed operation. For using this function both devices, i.e. the router and the wireless network card, have to support the DualBand mode.

Ethernet 100/1000

LAN or ethernet cables connection slots operational mode.

10/100 MB.s is the standard speed characteristic of almost all the routers.

10/100/1000 MB.s, or GigaBit is tens of times faster standard which, in combination of GigaBit LAN network cards, provides great data transmission speed advantages between computers connected within the internal network. This solution is usually required in offices where large data volumes are copied between computers or fast Internet connection is used (no ~30 MB/s) simultaneously in several computers.



Ports and equipment
LAN ports : 3
Register your purchase on the ASUS website and get cash back!
Wireless card
More detailed specification
1 WAN Fixed ports - Yes
2.5GbE LAN Ports - 1
10/100/1000M LAN Ports - 3
Accessories included - RT-AXE7800 WiFi Router RJ-45 cable Charger Quick Start Guide Warranty Card
Antenna - Fixed external
Antenna - Antenna design - External
Antenna - Antennas quantity - 6
Antenna - Detachable antenna(s) - No
Antenna > Antennas quantity - 6
Antenna > Antenna type - External
Available bandwidth - 7800 Mbps
Brand - ASUS
BrandPartCode - 90IG07B0-MU9B00
category - Peripherals|Networking & WLAN|Routers
Category - Root/Electronics/Networks and communication/Routers
Category - Wireless Routers
Category Code - WRO
Category_1 - Network and Servers
Category_2 - Network - Routers
code - 90IG07B0-MU9B00
Code - 90IG07B0-MU9B00
Color - Black
Colour - Black
Data transmission speed - 4804 Mbps
Description - AXE7800 Tri-Band Wi-Fi 6E (802.11ax) Router, New 6GHz Band Support, ASUS Safe Browsing, Enhanced Network Security with AiProtection Pro and Instant Guard Shared Secure VPN, Free Parental Control Suite, 2.5G Port, Link Aggregation Ultra-fast Wi-Fi 6E technology, the latest 6 GHz band, dramatically increases network throughput for faster Wi-Fi performance and more stable connections with speeds up to 7800 Mbps. Safer Internet browsing at the touch of a button You can block unwanted content with ASUS Safe Browsing and protect your children's online browsing by filtering adult content from search results. More security everywhere Protect your home network with a free lifetime subscription to AiProtection Pro by Trend Micro. And when you're away from home, you can activate a secure VPN connection with the ASUS Instant Guard app with just one click. Free Parental Control Suite more flexible customization to protect your kids online. AiMesh Support Expand your wireless connectivity with ASUS AiMesh compatible routers and enjoy powerful, flexible and uninterrupted Wi-Fi throughout your home. Secure connections, excellent speed Get cutting-edge technology with the ASUS RT-AXE7800 Tri-Band Wi-Fi 6E Router. Its breakthrough performance and Wi-Fi speeds of up to 7800 Mbps more than meets your internet connectivity needs. Plus, you get comprehensive network protection with ASUS advanced security technology. Equip yourself with ultra-fast connectivity! Low latency and less interference The recently released 6 GHz frequency band is dedicated only to devices operating in the Wi-Fi 6E standard. Thanks to this, devices working in older Wi-Fi standards do not interfere with the 6E signal at all, and devices that support 6E benefit from even faster and more reliable connections. One-click safe internet surfing At the touch of a button, ASUS Safe Browsing helps you block malicious content, annoying ads, or adult-only content, protecting your family. On the Internet, you sometimes encounter inappropriate content, intrusive advertisements or other threats. ASUS Safe Browsing allows you to block unwanted content at the touch of a button without the need for additional applications. Resource-free DNS-based filtering* does not limit router performance. This feature can even filter out adult-only content from your search results to help protect your kids while online. Full security for your home network In addition to the latest WPA3 security protocol, the ASUS RT-AXE7800 router also offers AiProtection Pro by Trend Micro, with automatic and regular security signature updates. This keeps your devices and personal data safe from online threats.
Description - AXE7800 Tri-band WiFi 6E (802.11ax) Router, New 6GHz Band, ASUS Safe Browsing, Enhanced Network Security with AiProtection Pro and Instant Guard Sharable Secure VPN, Free Parental Controls, 2.5G Port, Link Aggregation - Ultra-fast WiFi 6E Technology – The whole-new 6 GHz band dramatically increases network capacity, delivering higher WiFi performance and more stable connectivity with speeds up to 7800 Mbps. - One-Tap Safe Browsing – Block undesirable content with ASUS Safe Browsing, and protect your kids online by filtering explicit content from search results. - Enhanced Security Anywhere – Protect your home network with a free lifetime subscription to AiProtection Pro, powered by Trend Micro™. And when away from home, ASUS Instant Guard gives you a one-click sharable secure VPN. - Free Parental Controls – More flexible customizations to protect your kids online. - AiMesh Supported – Expand your wireless network with ASUS AiMesh-compatible routers and enjoy powerful, flexible and seamless whole-home WiFi.
Design - LED indicators - LAN, Power, WAN
Design - On/off switch - Yes
Design - Product colour - Black
Design - Product type - Tabletop router
Design > Colour of product - Black
dimension depth - 100 mm
dimension height - 260 mm
Dimensions -
dimension weight - 1670 g
dimension width - 270 mm
EAN - 4711081632917
ean - 4711081632917
Eans - 4711081632917
EAN_code - 4711081632917
Features - Built-in processor - Yes
Features - Firmware upgradeable - Yes
Features - Flash memory - 256 MB
Features - Internal memory - 512 MB
Features - Processor cores - 4
Features - Processor frequency - 1700 MHz
Features - Works with Amazon Alexa - Yes
Features > Mesh Support - Yes
Features > Mobile Broadband - No mobile broadband
Features > MU-MiMO - Yes
Full Description Line - RT-AXE7800|Wireless Router|Available bandwidth 7800 Mbps|Data transmission speed 4804 Mbps|Mesh|Wi-Fi 5|Wi-Fi 6|Wi-Fi 6e|IEEE 802.11a|IEEE 802.11b|IEEE 802.11n|USB 3.2|1 WAN|3x10/100/1000M|1x2.5GbE|Number of antennas 6|Wireless Frequency Range 2.4 GHz / 5 GHz / 6 GHz|Power supply requirements AC Input : 110V~240V(50~60Hz); DC Output: 12 V with max. 3.0 A current|Colour Black
GTIN - 4711081632917
guarantee - 36
guarantee_type - normal

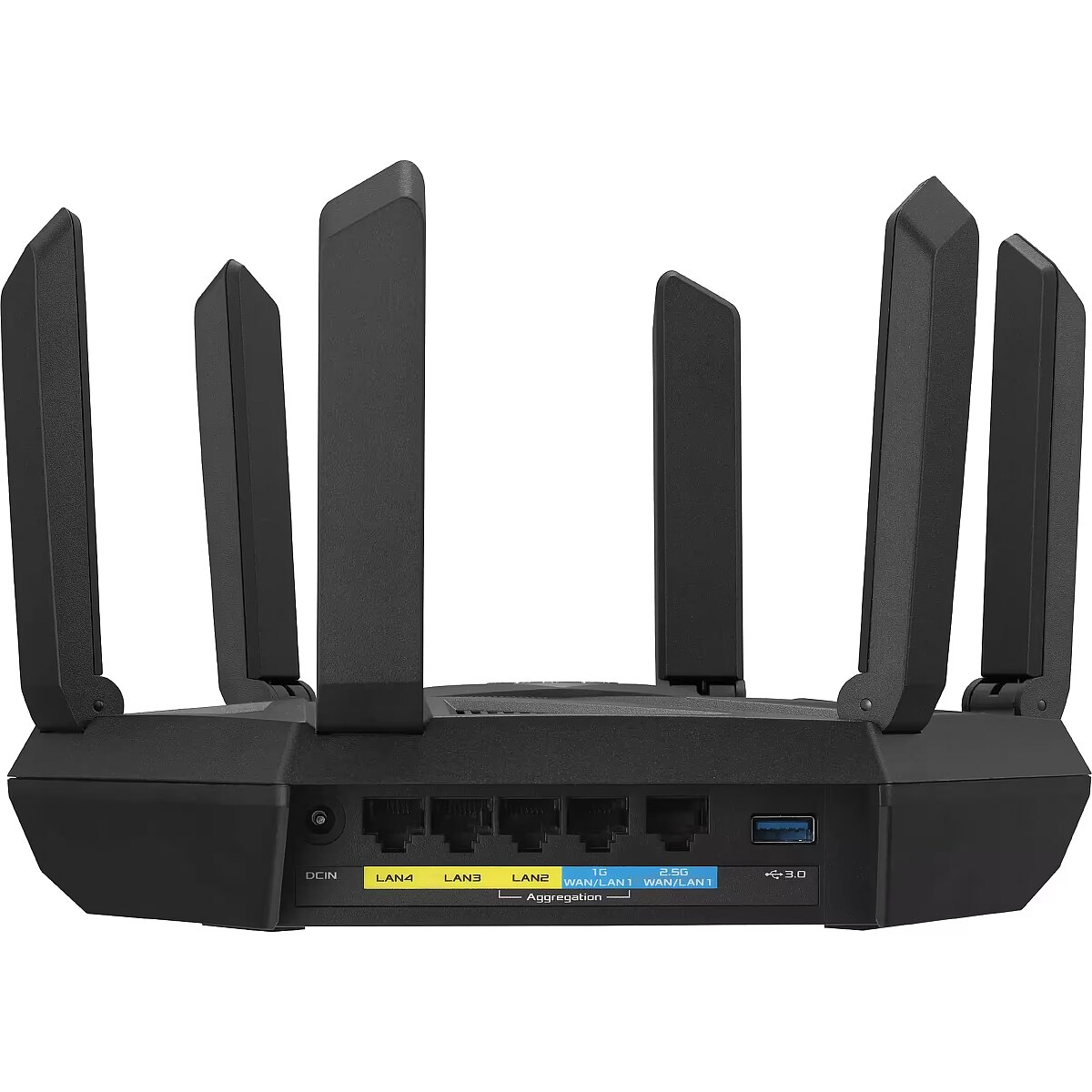

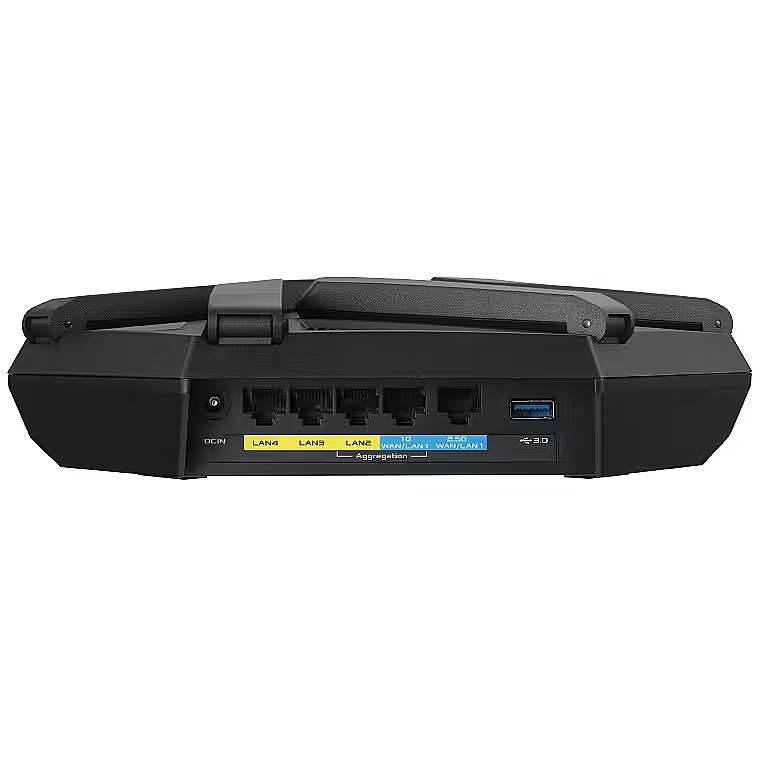

I/O ports - 1 x 10/100/1000/2500 RJ-45 port (WAN)
I/O ports - 1 x USB 3.0 Type A
I/O ports - 1 x WAN (RJ-45)
I/O ports - 3 x 10/100/1000 Mbit/s
IEEE 802.11a Network standard - Yes
IEEE 802.11b Network standard - Yes
IEEE 802.11n Network standard - Yes
Link - https://www.asus.com/networking-iot-servers/wifi-routers/asus-wifi-routers/rt-axe7800/
LongDesc - Low Latency & Less InterferenceThe newly available 6 GHz frequency band is dedicated purely to WiFi 6E devices. This means that older WiFi devices can’t interfere with 6E signals at all, enabling faster and more reliable connections for your 6E devices.One-Tap Safe BrowsingIn just a single tap, ASUS Safe Browsing helps you block malicious content, annoying ads, or explicit content to protect your family.pauseThe internet can contain inappropriate content, intrusive ads or other dangers and safety risks. ASUS Safe Browsing helps block undesirable content in one tap -- no extra apps required. Its lightweight DNS-based filtering* won’t affect router performance. It can even filter explicit content from search engine results to protect your kids online.*By using Safe Browsing, you acknowledge and agree that the standard for blocked and filtered content is established by a third-party DNS provider.Complete Security for Your Home NetworkAlongside the latest WPA3 security protocol, the ASUS RT-AXE7800 also features AiProtection Pro powered by Trend Micro™, with automatic, regularly updated security signatures to protect your devices and personal data from internet threats.Multi-Gigabit Wired ConnectionEquipped with a 2.5 Gbps WAN/LAN port, the ASUS RT-AXE7800 also features both WAN and LAN aggregation*, providing you with more options when assembling your network**. This flexibility lets you deliver massive bandwidth to your wired devices and takes advantage of ultra-high-speed internet connections in many scenarios***.*To use the Link Aggregation Control Protocol (LACP) function, devices must support the IEEE 802.3ad protocol. WAN and LAN aggregation also leverage the same 1G WAN/LAN port and cannot be enabled at the same time.**The 2.5G port does not support WAN aggregation. Please set the 1G WAN/LAN1 port as WAN to enable WAN aggregation. For more details, please visit the ASUS support site (https://www.asus.com/support/FAQ/1048826).***Internet speeds are dependent on your ISP.Network Control in Your WayEasily setup and manage your RT-AXE7800 router with the intuitive ASUS Router app interface. You can also access the Web GUI to explore advanced settings and unlock more router features.Simple but Complete FunctionsThe easy-to-use ASUS Router mobile app offers simple setup and management for your RT-AXE7800 router. There’s even more for you to explore with upgraded features including complete VPN settings, new parental control time scheduling, visualized connection diagnostics, and more.
LongProductName - AXE7800 Tri-band WiFi 6E (802.11ax) Router, New 6GHz Band, ASUS Safe Browsing, Enhanced Network Security with AiProtection Pro and Instant Guard Sharable Secure VPN, Free Parental Controls, 2.5G Port, Link Aggregation
LongSummaryDescription - ASUS RT-AXE7800. WAN connection type: RJ-45. Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 6 GHz), Top Wi-Fi standard: Wi-Fi 6E (802.11ax), WLAN data transfer rate (max): 4804 Mbit/s. Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X), VPN server: IPSec, OVPN, PPTP. Security algorithms: SSH, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, WPS, NAT functionality: PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough, PPPoE relay. Product type: Tabletop router, Product colour: Black, LED indicators: LAN, Power, WAN
Management, monitoring, configuration -
Management features - Bandwidth control - Yes
Management features - Intelligent Mesh technology - Yes
Management features - MU-MIMO technology - Yes
Management features - Quality of Service (QoS) support - Yes
Management features - Reset button - Yes
Management features - Wake-on-LAN ready - Yes
Management features - Web-based management - Yes
Management features - WPS push button - Yes
Manufacturer - Asus
Manufacturer_code - 90IG07B0-MU9B00
Mesh support - Yes
Model -
Model name - RT-AXE7800
Name - ASUS RT-AXE7800
name - ASUS RT-AXE7800 AiMesh WLAN Router
Name - Asus RT-AXE7800, router
name - Router RT-AXE7800 WiFi 6E AX7800
Name - Wifi 6 802.11ax Tri-band Gigabit Gaming Router | RT-AXE7800 | 802.11ax | 574+4804+2402 Mbit/s | 10/100/1000 Mbit/s | Ethernet LAN (RJ-45) ports 4 | Mesh Support Yes | MU-MiMO Yes | No mobile broadband | Antenna type External
Network - Built-in FTP server - Yes
Network - Cabling technology - 10/100/1000Base-T(X)
Network - Dynamic DNS (DDNS) - Yes
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Media server - Yes
Network - Number of guest networks (2.4 GHz) - 3
Network - Number of guest networks (5 GHz) - 3
Network - Port forwarding - Yes
Network - Port triggering - Yes
Network - Support Samba (storage) - Yes
Network - VPN server - IPSec, OVPN, PPTP
Network - VPN support - VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
Network architecture - GigabitEthernet
Network Device Type - Wireless Router
Number of antennas - 6
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Operating frequency - 6 GHz
Other features -
Other features > Compatible operating systems - Windows, Linux, MAC
Other features > Ethernet LAN (RJ-45) ports - 4
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 266.00 mm
Package features > Gross height (mm) - 112.00 mm
Package features > Gross width (mm) - 266.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 218 pc(s)
Package features > Paper/Pasteboard - 776.00 g
Package features > Plastic (No PET) - 194.00 g
Package features > Tare weight (kg) - 0.97 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - AC adapter included - Yes
Packaging content - Cables included - LAN (RJ-45)
Packaging content - Quick start guide - Yes
Packaging content - Warranty card - Yes
Performance > Ethernet LAN data rates - 10/100/1000 Mbit/s
Performance > Wi-Fi data rate (max) - 574+4804+2402 Mbit/s
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 5
Ports & interfaces - USB port - Yes
Ports & interfaces > USB port - USB 3.2 Gen 1
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 110 - 240 V
Power - Output current - 3 A
Power - Output voltage - 12 V
Power - Power source type - AC, DC
Power supply - AC Input: 110V~240V(50~60Hz) DC output: 12 V with max. Current 3.0A
Power supply requirements - AC Input : 110V~240V(50~60Hz); DC Output: 12 V with max. 3.0 A current
producer - Asus
Producer - Asus
ProducerCode - RT-AXE7800
Producer product family - Wifi 6 802.11ax Tri-band Gigabit Gaming Router
Producer product name - RT-AXE7800
ProductName - RT-AXE7800
Protocols - DHCP server - Yes
Security -
Security - DMZ support - Yes
Security - Firewall - Yes
Security - Guest access - Yes
Security - MAC address filtering - Yes
Security - NAT functionality - PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough, PPPoE relay
Security - Network address translation (NAT) - Yes
Security - Parental control - Yes
Security - Security algorithms - SSH, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, WPS
Security - System event log - Yes
Security - URL filtering - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 26.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 11 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.653 kg
Shipping Box Width Shipping/Package Box Dimensions - 26.5 cm
ShortDescription -
ShortSummaryDescription - ASUS RT-AXE7800, Wi-Fi 6E (802.11ax), Tri-band (2.4 GHz / 5 GHz / 6 GHz), Ethernet LAN, Black, Tabletop router
Software -
Special functions -
Standards - 802.11a
Standards - 802.11ac
Standards - 802.11ax
Standards - 802.11b
Standards - 802.11g
Standards - 802.11n
System Requirements -
Technical details > Gross weight - 1.71 kg
Technical details > Net weight - 0.74 kg
Technical details > Producer - Asus
Technical details > Warranty - 3 year(s)
Title - ASUS RT-AXE7800 wireless router Tri-band (2.4 GHz / 5 GHz / 6 GHz) Black
Type - xDSL
Unit Box Height - 0.11
Unit Box Length - 0.265
Unit Box Width - 0.265
Unit Brutto Volume - 0.0077248 cubm
Unit Gross Weight - 1.653 kg
Unit Net Weight - 1.033 kg
URL - https://www.asus.com/networking-iot-servers/wifi-routers/asus-wifi-routers/rt-axe7800/
USB 3.2 Fixed ports - Yes
Vendor Homepage - www.asus.com/networking-iot-servers/wifi-routers/asus-wifi-routers/rt-axe7800/
vendpn - RT-AXE7800
WAN connection - 3G/4G USB modem compatibility - Yes
WAN connection - DSL WAN - No
WAN connection - Ethernet WAN - Yes
WAN connection - SIM card slot - No
WAN connection - WAN connection type - RJ-45
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
WarrantyInfo -
Weight - 1,65
Weight - 1033 g
Weight & dimensions - Weight - 1.03 kg
Wi-Fi 5 Network standard - Yes
Wi-Fi 6 Network standard - Yes
Wi-Fi 6e Network standard - Yes
Wireless Frequency Range - 2.4 GHz / 5 GHz / 6 GHz
Wireless LAN features - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Wireless LAN features - Wi-Fi band - Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Wireless LAN features - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Wireless LAN features - WLAN data transfer rate (first band) - 574 Mbit/s
Wireless LAN features - WLAN data transfer rate (max) - 4804 Mbit/s
Wireless LAN features - WLAN data transfer rate (second band) - 4804 Mbit/s
Wireless LAN features - WLAN data transfer rate (third band) - 2402 Mbit/s
Wireless LAN features > Wi-Fi band - 802.11ax
Wireless LAN features > Wi-Fi standards - 802.11a/b/g/n/ac/ax
