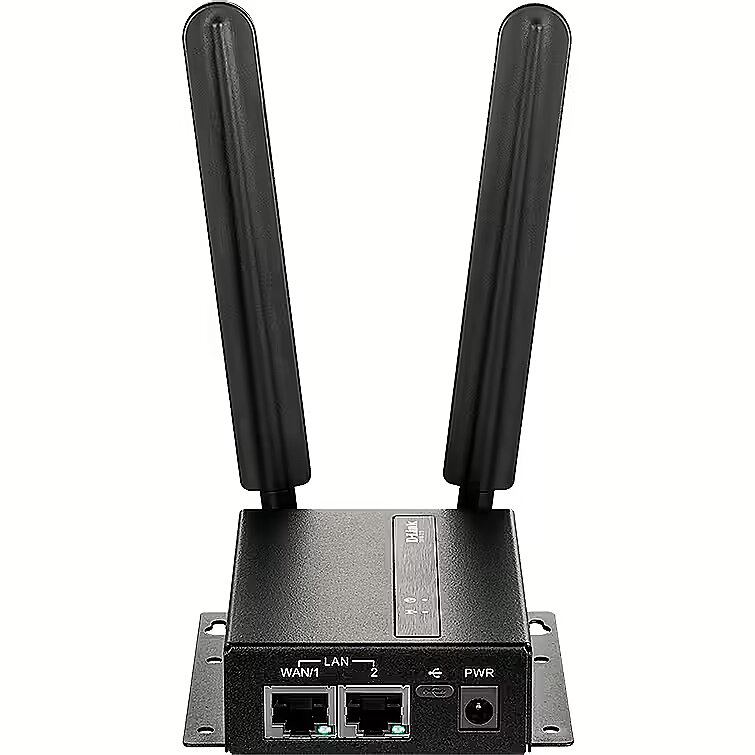

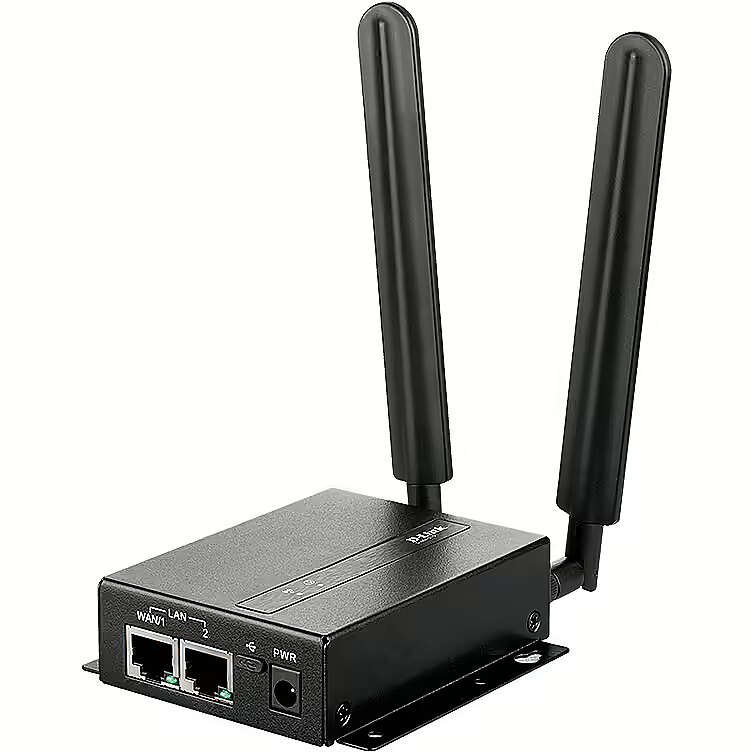

D-Link 4G LTE M2M Router DWM-315 802.1q, 10/100/1000 Mbit/s, Ethernet LAN (RJ-45) ports 1, Mesh Support No, MU-MiMO No

Name: D-Link 4G LTE M2M Router DWM-315 802.1q, 10/100/1000 Mbit/s, Ethernet LAN (RJ-45) ports 1, Mesh Support No, MU-MiMO No
Brand: D-Link
SKU: 898644
Price: 397.3 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 898644 Product code: DWM-315

In stock 1 units

Warranty: 2 years

Compare

Delivery options

Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
Courier delivery 11.99 €: 29.11.2024

Main product parameters All parameters

Speed index: 1000
Type of device: 3G/4G Modem
Wi-Fi standard: Wi-Fi 6 (802.11ax)

Basic information

Speed index : 1000

Type of device 3G/4G Modem

Access Point - bezvadu piekļuves punkts, kas nodrošina kabeļu tīkla paplašināšanas pārraidi bezvadu tīklā izmantojot vienu LAN pieslēgvietu. Access point nav rūteris, un nespēj sadalīt vienu interneta pieslēguma adresi vairākiem datoriem, tamdēļ šo iekārtu slēdziet tikai aiz esoša kabeļu rūtera.

Router, jeb maršrutētājs - bezvadu piekļuves punkts, kas nodrošina viena interneta pieslēguma sadalīšanu vairākiem datoriem, gan caur tīkla vadiem, gan bezvadu tīklā. Parasti bezvadu maršrutētājam ir viena kabeļu interneta pieslēgvieta, četras datoru pieslēgvietas (kuras var papildināt, izmantojot switch komutatoru) un antenas, kas nodrošina apraidi datoriem un citām WiFi iekārtām.

Range Extender - bezvadu tīkla apraides attāluma pastiprinātājs. Paredzēts esoša signāla pastiprināšanai, lai palielinātu uzveršanas un pārraides attālumu.

Wifi adapter - Bezvadu tīkla karte, paredzēta datora pieslēgšanai pie bezvadu WiFi rūtera vai piekļuves punkta. PCI, PCI-E ir paredzēti galddatoriem, savukārt PCMCIA un USB - portatīvajiem datoriem. Jāpiebilst, ka lielākā daļa portatīvo datoru jau rūpnīcā tiek komplektēti ar bezvadu tīkla kartēm.

USB tīkla karte ir pēdējā izvēle, jo USB2.0 caurlaidības ātrums ir samērā zems ~22MB/s, kas nozīmē to, ka netiks izmantots bezvadu tīkla maksimālais iespējamais ātrums. Ja ir iespēja, labāk izvēlēties kādu citu pieslēguma veidu.

Wi-Fi standard : Wi-Fi 6 (802.11ax)

Functionality

3G/4G support SIM slot

A possibility to put the SIM card of mobile operators or the USB Dongle adapter in the router providing access to the 3G mobile Internet.

Prior to buying a router with the 3G support you should verify whether the device supports the 3G USB Dongle receiver of the particular mobile communications operator at the manufacturer's website.

Band mode N/A

SingleBand is a standard wireless technology characteristic of all the modern wireless devices.

DualBand is 2.4GHz with an additional 5.0GHz channel providing better receiving of the signal and more stable high-speed operation. For using this function both devices, i.e. the router and the wireless network card, have to support the DualBand mode.

Ethernet 100/1000

LAN or ethernet cables connection slots operational mode.

10/100 MB.s is the standard speed characteristic of almost all the routers.

10/100/1000 MB.s, or GigaBit is tens of times faster standard which, in combination of GigaBit LAN network cards, provides great data transmission speed advantages between computers connected within the internal network. This solution is usually required in offices where large data volumes are copied between computers or fast Internet connection is used (no ~30 MB/s) simultaneously in several computers.

Ports and equipment

LAN ports : 1

More detailed specification

Additional information in manufacturers website D-Link 4G LTE M2M Router DWM-315 802.1q, 10/100/1000 Mbit/s, Ethernet LAN (RJ-45) ports 1, Mesh Support No, MU-MiMO No

Antenna - Antenna connector type - SMA
Antenna - Antenna design - External
Antenna - Antennas quantity - 2
Antenna - Detachable antenna(s) - Yes
Brand - D-Link
BrandPartCode - DWM-315
Category - Wireless Routers
Code - DWM-315
Design - Product colour - Black
Design - Product type - Tabletop router
Design - Wall mountable - Yes
EAN - 790069462535
Features - Certification - CE
Features > Mesh Support - No
Features > Mobile Broadband - 4G
Features > MU-MiMO - No
GTIN - 790069462535
GTIN - 0790069462535
Link - https://www.dlink.com/en/products/dwm-315-4g-lte-m2m-router
LongDesc - Scalable LTE M2M Routing Solution The D-Link DWM-315 4G LTE M2M Router is an easy-to-deploy, high-performance 3G/4G router designed for remote Machine-to-Machine (M2M) deployments. It features a dedicated Fast Ethernet port and dual-SIM 4G LTE mobile broadband for maximum redundancy and flexibility, while powerful VPN tools and advanced remote management make the DWM-315 well-suited for both large-scale and individual deployments.Connectivity Where You Need It MostEasily connect to your high-speed 3G/4G LTE mobile connection with the DWM-315 4G LTE M2M Router and enjoy fast downlink speeds of up to 300Mbps and uplink speeds of up to 50Mbps, giving you the speed you need for fast, responsive Internet access. Deploy it in remote locations to ensure your Machine-to-Machine connectivity never fails. Configurable Dual-SIM fallback provides reliability and flexibility in mixed network environments.Reliable High-Speed VPNThe DWM-315 4G LTE M2M Router’s integrated VPN Client and Server support almost any VPN policy. The hardware engine supports and manages multiple VPN configurations. It also supports IPSec, PPTP, L2TPv2, and GRE protocols in Server mode, while handling passthrough traffic as well. Advanced VPN configuration options include multiple encryption options, key management, negotiation modes, and VPN authentication using an internal user database.Robust Build QualityThe industrial-grade casing allows the DWM-315 to provide reliable high-speed connectivity in extreme conditions. The corrosion-resistant zinc-plated steel case and wide operating temperature and humidity tolerance mean that the DWM-315 is ready for the most demanding M2M applications in virtually any environment. Wallmounts allow the DWM-315 to be mounted virtually anywhere, while flexible power input allows the router to utilize any convenient power source.
LongProductName - 1 x 10/100/1000 Fast Ethernet WAN/LAN, 1 x 10/100/1000 Fast Ethernet LAN port, 93 x 70 x 23.6 mm, 210 g
LongSummaryDescription - D-Link DWM-315. WAN connection type: RJ-45. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000Base-T(X). Mobile network generation: 4G, 3G standards: DC-HSDPA, HSUPA, WCDMA, 4G standard: LTE-TDD & LTE-FDD. Product type: Tabletop router, Product colour: Black. Antenna design: External, Antenna connector type: SMA
Management features - Web-based management - Yes
Mobile network - 3G standards - DC-HSDPA, HSUPA, WCDMA
Mobile network - 4G standard - LTE-TDD & LTE-FDD
Mobile network - Dual SIM support - Yes
Mobile network - Mobile network generation - 4G
Name - 4G LTE M2M Router | DWM-315 | 802.1q | 10/100/1000 Mbit/s | Ethernet LAN (RJ-45) ports 1 | Mesh Support No | MU-MiMO No | 4G
Network - Cabling technology - 10/100/1000Base-T(X)
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Ethernet LAN interface type - Gigabit Ethernet
Operational conditions - Operating relative humidity (H-H) - 5 - 85%
Operational conditions - Operating temperature (T-T) - -20 - 60 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Other features > Ethernet LAN (RJ-45) ports - 1
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 100.00 mm
Package features > Gross height (mm) - 40.00 mm
Package features > Gross width (mm) - 80.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 2439 pc(s)
Package features > Paper/Pasteboard - 190.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Performance > Ethernet LAN data rates - 10/100/1000 Mbit/s
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - USB port - Yes
Power - Power source type - DC
Producer product family - 4G LTE M2M Router
Producer product name - DWM-315
ProductName - DWM-315
ShortSummaryDescription - D-Link DWM-315, Ethernet LAN, 4G, Black, Tabletop router
Technical details > Gross weight - 0.41 kg
Technical details > Net weight - 0.21 kg
Technical details > Producer - D-Link
Title - D-Link DWM-315 wireless router Gigabit Ethernet 4G Black
URL - https://www.dlink.com/en/products/dwm-315-4g-lte-m2m-router
WAN connection - 3G/4G USB modem compatibility - No
WAN connection - DSL WAN - No
WAN connection - Ethernet WAN - Yes
WAN connection - SIM card slot - Yes
WAN connection - WAN connection type - RJ-45
Warranty - 24
Warranty - 24 month(s)
WarrantyInfo -
Weight & dimensions - Depth - 23.6 mm
Weight & dimensions - Height - 93 mm
Weight & dimensions - Weight - 210 g
Weight & dimensions - Width - 70 mm
Wireless LAN features > Wi-Fi band - 802.1q
