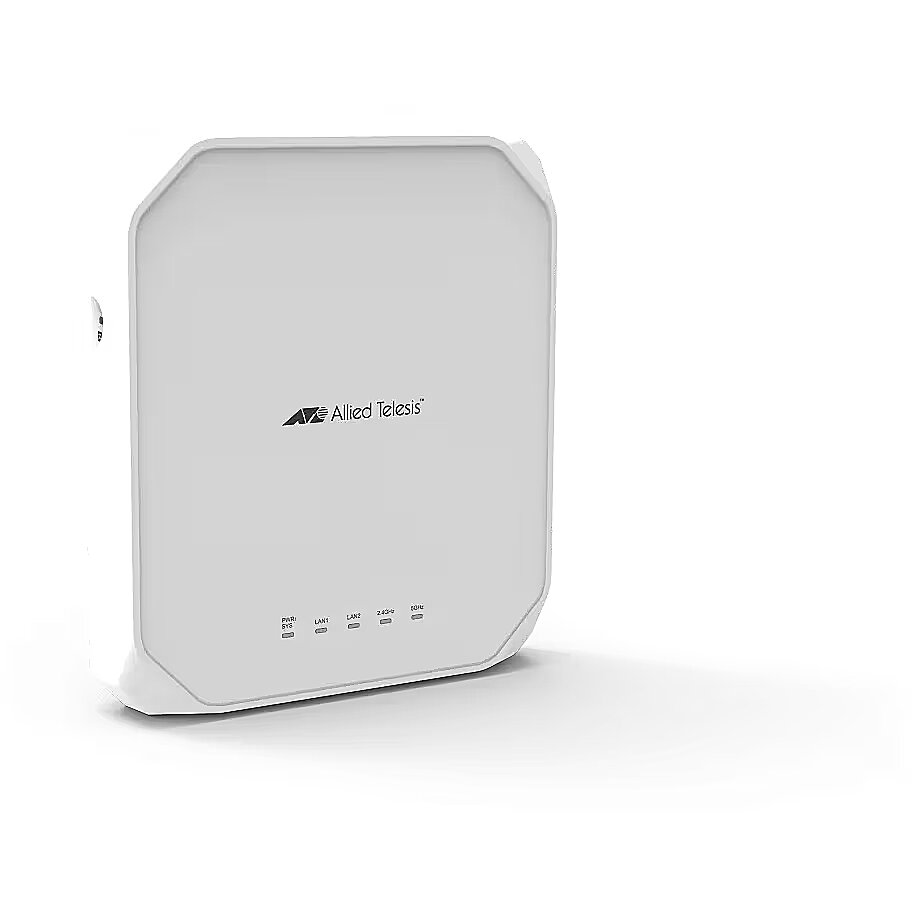

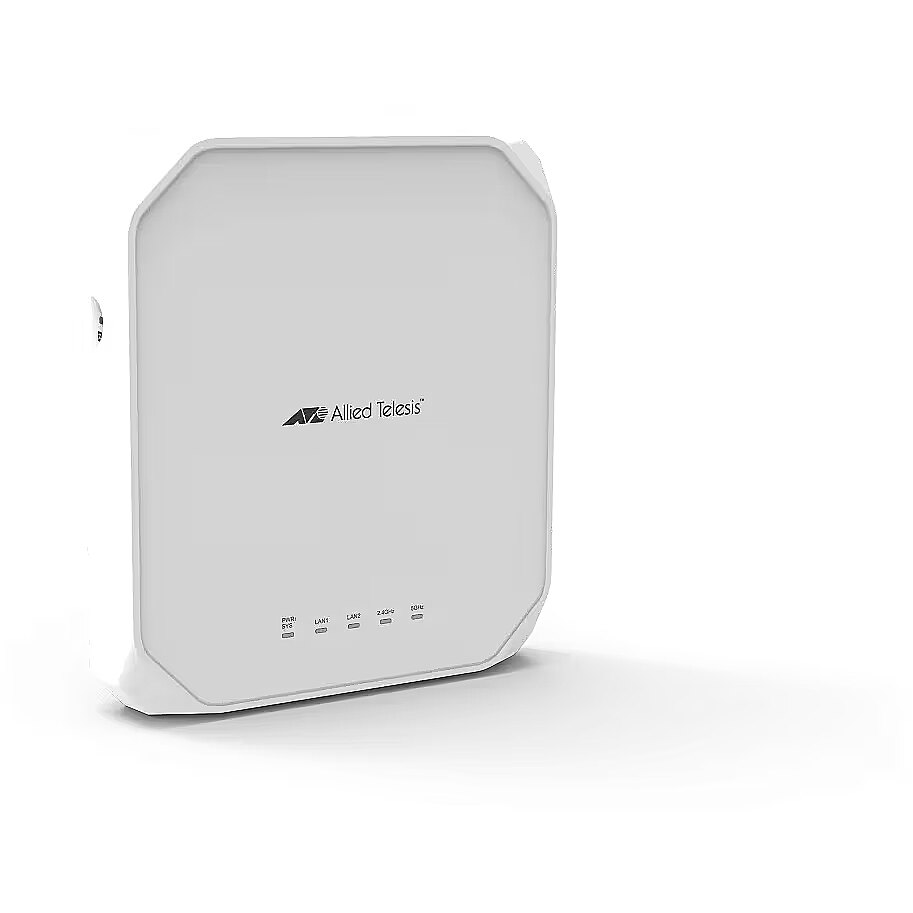

Allied Telesis TQ6602 GEN2

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 890152 Product code: AT-TQ6602 GEN2-00
Can be ordered 4 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
1,167.00 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: 10.12.2024
Main product parameters All parameters
  • Speed index: 2500
  • Type of device: Access Point
  • Wi-Fi standard: Wi-Fi 6 (802.11ax)
Basic information
Speed index : 2500
Type of device Access Point

Access Point - bezvadu piekļuves punkts, kas nodrošina kabeļu tīkla paplašināšanas pārraidi bezvadu tīklā izmantojot vienu LAN pieslēgvietu. Access point nav rūteris, un nespēj sadalīt vienu interneta pieslēguma adresi vairākiem datoriem, tamdēļ šo iekārtu slēdziet tikai aiz esoša kabeļu rūtera.

Router, jeb maršrutētājs - bezvadu piekļuves punkts, kas nodrošina viena interneta pieslēguma sadalīšanu vairākiem datoriem, gan caur tīkla vadiem, gan bezvadu tīklā. Parasti bezvadu maršrutētājam ir viena kabeļu interneta pieslēgvieta, četras datoru pieslēgvietas (kuras var papildināt, izmantojot switch komutatoru) un antenas, kas nodrošina apraidi datoriem un citām WiFi iekārtām.

Range Extender - bezvadu tīkla apraides attāluma pastiprinātājs. Paredzēts esoša signāla pastiprināšanai, lai palielinātu uzveršanas un pārraides attālumu.

Wifi adapter - Bezvadu tīkla karte, paredzēta datora pieslēgšanai pie bezvadu WiFi rūtera vai piekļuves punkta. PCI, PCI-E ir paredzēti galddatoriem, savukārt PCMCIA un USB - portatīvajiem datoriem. Jāpiebilst, ka lielākā daļa portatīvo datoru jau rūpnīcā tiek komplektēti ar bezvadu tīkla kartēm.

USB tīkla karte ir pēdējā izvēle, jo USB2.0 caurlaidības ātrums ir samērā zems ~22MB/s, kas nozīmē to, ka netiks izmantots bezvadu tīkla maksimālais iespējamais ātrums. Ja ir iespēja, labāk izvēlēties kādu citu pieslēguma veidu.

Wi-Fi standard : Wi-Fi 6 (802.11ax)
Functionality
3G/4G support Nav

A possibility to put the SIM card of mobile operators or the USB Dongle adapter in the router providing access to the 3G mobile Internet.

Prior to buying a router with the 3G support you should verify whether the device supports the 3G USB Dongle receiver of the particular mobile communications operator at the manufacturer's website.

Band mode Dual-Band

SingleBand is a standard wireless technology characteristic of all the modern wireless devices.

DualBand is 2.4GHz with an additional 5.0GHz channel providing better receiving of the signal and more stable high-speed operation. For using this function both devices, i.e. the router and the wireless network card, have to support the DualBand mode.

Ethernet 2.5 Gbps

LAN or ethernet cables connection slots operational mode.

10/100 MB.s is the standard speed characteristic of almost all the routers.

10/100/1000 MB.s, or GigaBit is tens of times faster standard which, in combination of GigaBit LAN network cards, provides great data transmission speed advantages between computers connected within the internal network. This solution is usually required in offices where large data volumes are copied between computers or fast Internet connection is used (no ~30 MB/s) simultaneously in several computers.



Ports and equipment
LAN ports : 2
Wireless
  • Alternatives
  • Alternatives
More detailed specification
Additional information in manufacturers website Allied Telesis TQ6602 GEN2
Antenna - Antenna direction type - Omni-directional
Antenna - Antenna gain level (max) - 5.93 dBi
Antenna - Antenna type - Internal
ARTIKEL1 - IEEE802.11AX WRLESSACCSPOINT W
ARTIKEL2 - 2BANDRADIOS+EMBDANTENNA 4STREAMS
Brand - Allied Telesis
BrandPartCode - AT-TQ6602 GEN2-00
Category - Wireless Access Points
Design - Cable lock slot - Yes
Design - Cable lock slot type - Kensington
Design - Product colour - White
EANCode - 0767035224619
Features - 2.4 GHz - Yes
Features - 5 GHz - Yes
Features - 6 GHz - No
Features - MIMO - Yes
Features - MIMO type - Multi User MIMO
Features - Networking standards - IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
GRUPPE1 - Network
GRUPPE2 - Wireless Lan Ap
GTIN - 0767035224619
GTIN - 767035224619
HERSTELLER - ALLIED TELESIS
HSTNUMMER - AT-TQ6602 GEN2-00
LongDesc - The Allied Telesis Enterprise-class TQ6602 GEN2 hybrid wireless AP features Wi-Fi 6 technology with 4 spatial streams (4x4) to deliver a raw capacity of 3.55 Gigabits. Multi-Gigabit uplink ports ensure maximum wireless network performance and eliminate bottlenecks.
LongProductName - Enterprise-Class Wi-Fi 6 AP with 2 radios (4x4 2.4GHZ and 8x8 5GHz) and embedded antenna
LongSummaryDescription - Allied Telesis AT-TQ6602 GEN2-00. Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE..., MIMO type: Multi User MIMO. Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA2, WPA2-AES, WPA2-CCMP, WPA3. AC input voltage: 100 - 240 V, Power consumption (typical): 15 W, Power consumption (max): 19 W. Product colour: White, Cable lock slot type: Kensington. Antenna type: Internal, Antenna direction type: Omni-directional, Antenna gain level (max): 5.93 dBi
Operational conditions - Operating relative humidity (H-H) - 5 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -25 - 70 °C
Power - AC input voltage - 100 - 240 V
Power - Power consumption (max) - 19 W
Power - Power consumption (typical) - 15 W
Power - Power over Ethernet (PoE) - Yes
ProductName - AT-TQ6602 GEN2-00
Protocols - DHCP client - Yes
Security - Security algorithms - 64-bit WEP, 128-bit WEP, WPA, WPA2, WPA2-AES, WPA2-CCMP, WPA3
ShortSummaryDescription - Allied Telesis AT-TQ6602 GEN2-00, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE..., Multi User MIMO, 64-bit WEP, 128-bit WEP, WPA, WPA2, WPA2-AES, WPA2-CCMP, WPA3, 100 - 240 V, 15 W, 19 W
Stck_Kart - 6
Stck_Pal - 60
Storno - Y
Title - Allied Telesis AT-TQ6602 GEN2-00 wireless access point White Power over Ethernet (PoE)
URL - https://www.alliedtelesis.com/ua/en/products/wireless/tq6602-gen2#specifications-tab
WarrantyInfo -
Weight & dimensions - Depth - 240 mm
Weight & dimensions - Height - 45 mm
Weight & dimensions - Weight - 1.2 kg
Weight & dimensions - Width - 200 mm
