2.5GbE LAN Ports - 1
10/100/1000M LAN Ports - 4
Antenna - Antenna design - External
Antenna - Antenna gain level (max) - 6 dBi
Antenna - Antennas quantity - 2
Antenna > Antennas quantity - 4
Antenna Gain - 6 dB
brand - MikroTik
category - MikroTik > Mobilā tīkla produkti > 4G Rūteri
Category Code - WRO
Certificates > Certification - CE, EAC, ROHS
CnCode CnCode - 85176200
Code - S53UG+5HaxD2HaxD-TC&EG18-EA

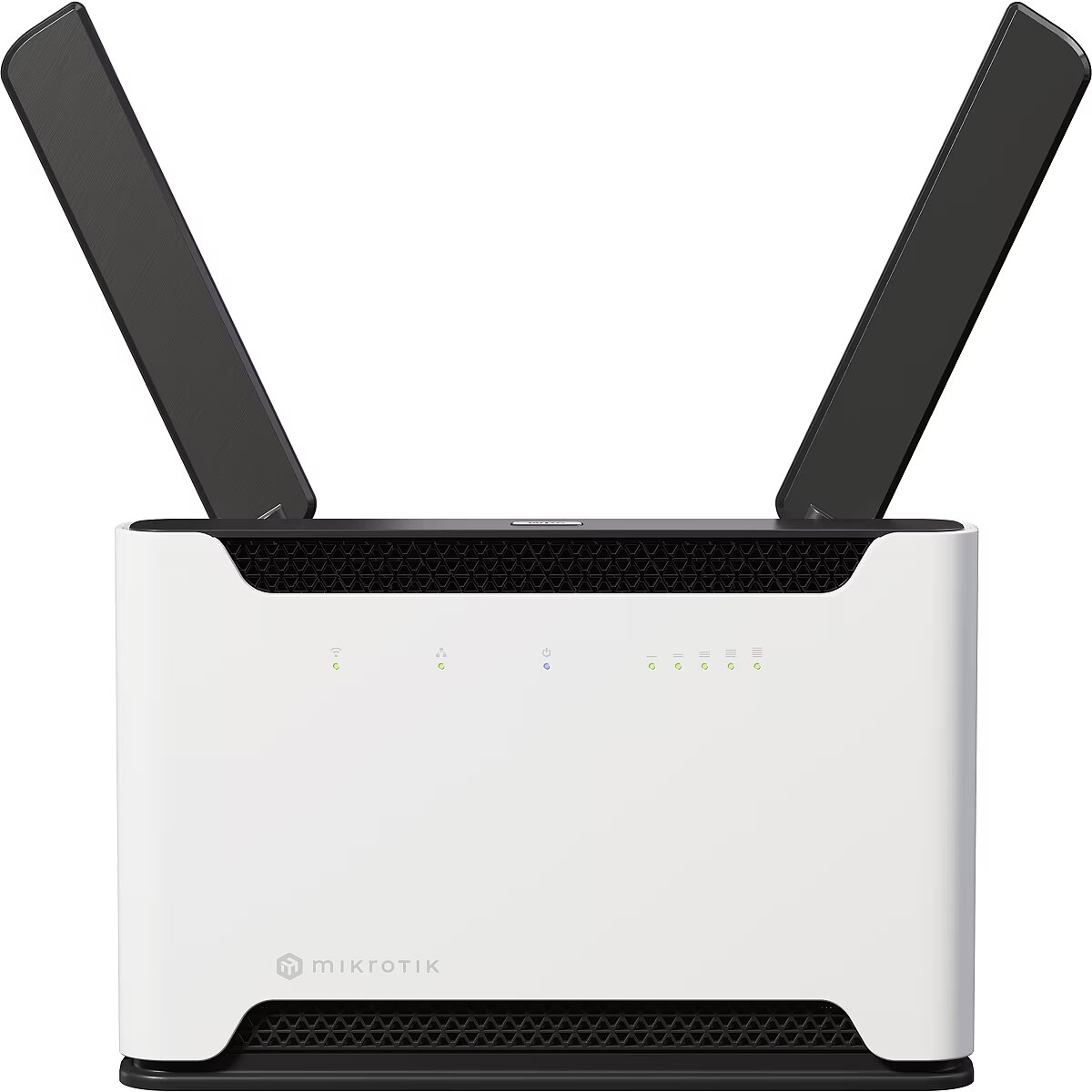

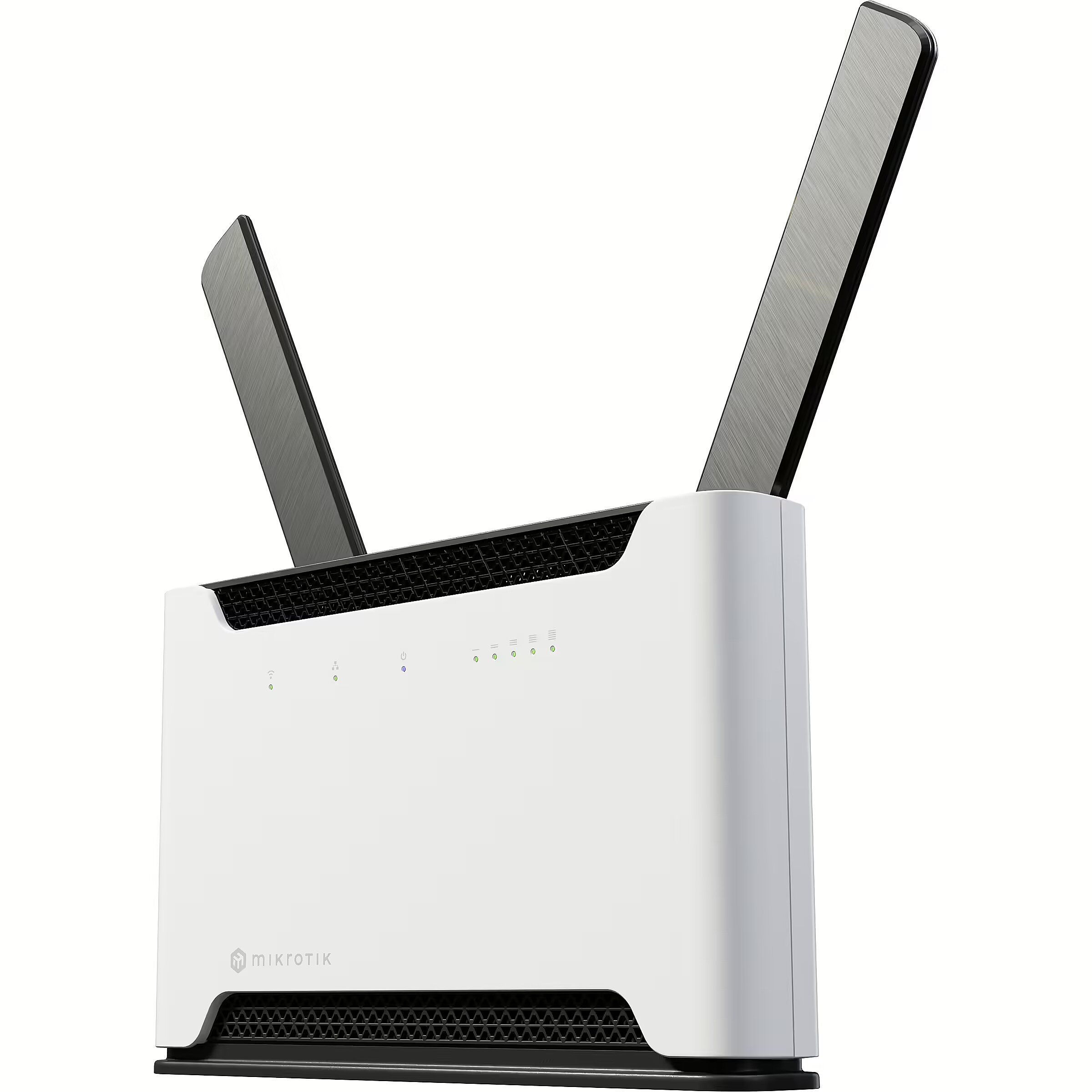

Description - Chateau LTE18 ax The best home AP just got even better. Generation 6 version of the Chateau LTE18. Much faster wireless, improved CPU, and now – with 2.5 Gigabit Ethernet! With the Generation6 802.11ax wireless standard and Wave 2 support, Chateau LTE18 ax can deliver unprecedented speed. If we compare it to the previous generation, we’re looking at up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum! We’ve made massive improvements to the wireless radio and antennas. Chateau LTE18 ax supports MIMO 4x4 on LTE. There are 4 built-in LTE antennas and 2 optional external network antennas for exceptional coverage in your whole home! With speeds like that, the ports also had to rise to the occasion. We kept four Gigabit Ethernet ports and added a 2.5 Gigabit Ethernet port on top. And let’s not forget the USB 3.0 which can be handy for storage purposes. The modern quad-core CPU running at 1.8 GHz combined with a solid GB of RAM packs a hefty punch when it comes to heavy operations like complex firewall rules, IPsec hardware encryption, using more threads or experimenting with advanced RouterOS features. And with the addition of WPA3 advanced encryption support, you’re safer than ever before.
Design - Product colour - White
Design - Product type - Tabletop router
Design - Wall mountable - Yes
dimensionalWeight - 1380
Dimensions - 240 x 156 x 44 mm
EAN - 4752224007889
Features - Built-in processor - Yes
Features - Certification - CE, EAC
Features - Flash memory - 128 MB
Features - Internal memory - 128 MB
Features - Processor cores - 4
Features - Processor frequency - 864 MHz
Features - RAM capacity (Wi-Fi point) - 1000 MB
Features > Mobile Broadband - 4G
Full Description Line - Chateau LTE18 ax|Wi-Fi 6|IEEE 802.11a/b/g|IEEE 802.11n|IEEE 802.11ac|IEEE 802.11ax|USB 2.0|4x10/100/1000M|1x2.5GbE|Antenna Gain 6 dB|Wireless Frequency Range 2.4 GHz/5 GHz|Included Accessories 24V 1.2A power adapter; UTP Flat Cable (1.5m)|Power supply requirements 1 (DC jack); 12-28 V; 19W|Dimensions 240 x 156 x 44 mm
Hard drive > Storage capacity - 128 MB, NAND MB
height - 0.098 m
IEEE 802.11a/b/g Network standard - Yes
IEEE 802.11ac Network standard - Yes
IEEE 802.11ax Network standard - Yes
IEEE 802.11n Network standard - Yes
Included Accessories - 24V 1.2A power adapter; UTP Flat Cable (1.5m)
length - 0.35 m
Link - https://help.mikrotik.com/docs/display/QG/Quick+Guide+-+Chateau+LTE18+ax
Link - https://help.mikrotik.com/docs/display/UM/Chateau+LTE18+ax
Link - https://mikrotik.com/product/chateaulte18_ax#fndtn-downloads
Link - https://wiki.mikrotik.com/wiki/Manual:TOC
Management features - Quality of Service (QoS) support - Yes
Management features - Reset button - Yes
Mobile network - 4G bands supported - 700
Mobile network - 4G bands supported - 800
Mobile network - 4G bands supported - 850
Mobile network - 4G bands supported - 900
Mobile network - 4G bands supported - 1800
Mobile network - 4G bands supported - 2100
Mobile network - 4G bands supported - 2300
Mobile network - 4G bands supported - 2500
Mobile network - 4G bands supported - 2600 MHz
Mobile network - 4G standard - LTE-TDD & LTE-FDD
Mobile network - GSM bands supported - 850
Mobile network - GSM bands supported - 900
Mobile network - GSM bands supported - 1800
Mobile network - GSM bands supported - 2100 MHz
Mobile network - Mobile network generation - 4G
Mobile network - Short Message Service (SMS) - Yes
Mobile network - SIM card type - MicroSIM
Model - S53UG+5HaxD2HaxD-TC&EG18-EA
Model name - Chateau LTE18 ax
mpn - S53UG+5HaxD2HaxD-TC&EG18-EA
Name - MikroTik Chateau LTE18 ax S53UG+5HaxD2HaxD-TC&EG18-EA 802.11ax, 574 Mbit/s (2.4 GHz) / 1200 Mbit/s (5 GHz) Mbit/s, Ethernet LAN (RJ-45) ports 4, 4G, 1 | Chateau LTE18 ax | S53UG+5HaxD2HaxD-TC&EG18-EA | 802.11ax | 574 Mbit/s (2.4 GHz) / 1200 Mbit/s (5 GHz) Mbit/s | Ethernet LAN (RJ-45) ports 4 | 4G | 1
Network - Cabling technology - 10/100/1000Base-T(X)
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 2500
Network - Ethernet LAN interface type - Ethernet
Network - Networking standards - IEEE 802.11a
Network - Networking standards - IEEE 802.11ac
Network - Networking standards - IEEE 802.11ax
Network - Networking standards - IEEE 802.11b
Network - Networking standards - IEEE 802.11g
Network - Networking standards - IEEE 802.11n
Operational conditions - Operating temperature (T-T) - -40 - 65 °C
Operational conditions > Operating temperature (T-T) - -40°C to +65°C °C
Other features > Box contents - 24 V 1.2 A power adapter + UTP Flat Cable (1.5m)
Other features > Ethernet LAN (RJ-45) ports - 4
Other features > Special features - 2Chateau LTE18 ax On the surface, the new Chateau is very similair to the previous models. We had a fantastic LTE18 launch with our partners at LMT – the leading mobile operator in Latvia. Our Chateau replaced the usual brands – and the client satisfaction skyrocketed. Most users appreciated better speed and stability, as well as the abundance of useful RouterOS features and general flexibility. And don’t forget the elegant look that fits right in anywhere – from traditional homes and luxury residences to modern office and corporate environments. The next obvious step in the Chateau series was perfecting the wireless capabilities. With the Generation6 802.11ax wireless standard and Wave 2 support, Chateau LTE18 ax can deliver unprecedented speed. If we compare it to the previous generation, we’re looking at up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum! We’ve made massive improvements to the wireless radio and antennas. Chateau LTE18 ax supports MIMO 4x4 on LTE. There are 4 built-in LTE antennas and 2 optional external network antennas for exceptional coverage in your whole home. The modern quad-core CPU running at 1.8 GHz combined with a solid GB of RAM packs a hefty punch when it comes to heavy operations like complex firewall rules, IPsec hardware encryption, using more threads or experimenting with advanced RouterOS features. And with the addition of WPA3 advanced encryption support, you’re safer than ever before.
Other features > USB ports quantity - 1
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 330.00 mm
Package features > Gross height (mm) - 160.00 mm
Package features > Gross width (mm) - 57.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 574 pc(s)
Package features > Paper/Pasteboard - 200.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - AC adapter included - Yes
Packaging content - Cables included - UTP
PDF - https://www.blobs.lt/products/0/6/7/2/7/3/c0ac65eb0e52ad7ba7349431a53a8f97/original.pdf
Performance > 2.4 GHz - Y
Performance > 5 GHz - Y
Performance > Wi-Fi data rate (max) - 574 Mbit/s (2.4 GHz) / 1200 Mbit/s (5 GHz) Mbit/s
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 4
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB port - Yes
Power - External power adapter - Yes
Power - Output voltage - 12 - 28 V
Power - Power consumption (typical) - 16 W
Power - Power source type - DC
Power > Power consumption (max) - 19 W W
Power supply requirements - 1 (DC jack); 12-28 V; 19W
producerCode - S53UG+5HaxD2HaxD-TC&EG18-EA
Producer product family - Chateau LTE18 ax
Producer product name - S53UG+5HaxD2HaxD-TC&EG18-EA
productName - MikroTik Chateau LTE18 ax S53UG+5HaxD2HaxD-TC&EG18-EA 802.11ax, 574 Mbit/s (2.4 GHz) / 1200 Mbit/s (5 GHz) Mbit/s, Ethernet LAN (RJ-45) ports 4, 4G, 1 MikroTik 802.11ax, 574 Mbit/s (2.4 GHz) / 1200 Mbit/s (5 GHz) Mbit/s, Ethernet LAN (RJ-45) ports 4, 4G,
productSize - Normal
Shipping Box Depth Shipping/Package Box Dimensions - 34.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 25 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 1.183 kg
Shipping Box Width Shipping/Package Box Dimensions - 7.5 cm
sizeX - 345
sizeY - 80
sizeZ - 250
Technical details - Compliance certificates - RoHS
Technical details > Gross weight - 0.90 kg
Technical details > Net weight - 0.70 kg
Technical details > Other features - Quad-Core IPQ-6010 1.8 GHz CPU, 1 GB RAM, LTE18 (1.2Gbps Downlink, 150Mbps Uplink), 1xMicro SIM slot, 1x2.5G Ethernet port
Technical details > Producer - MikroTik
Technical details > Software type - RouterOS v7, License level 4
Technical details > Wireless connection - 2.4 GHz 802.11ax dual-chain, 5 GHz 802.11ax dual-chain
title - MikroTik Chateau LTE18 ax
Unit Box Height - 0.25
Unit Box Length - 0.345
Unit Box Width - 0.075
Unit Brutto Volume - 0.006469 cubm
Unit Gross Weight - 1.18 kg
Unit Net Weight - 0.3 kg
USB 2.0 Fixed ports - Yes
Vendor Homepage - mikrotik.com/product/chateaulte18_ax
WAN connection - 3G/4G USB modem compatibility - Yes
WAN connection - Ethernet WAN - Yes
WAN connection - SIM card slot - Yes
WAN connection - WAN connection type - RJ-45
Warranty - 12
Warranty - 12 month(s)
Warranty - 12 months
warrantyLength - 24
warrantyType - F
weight - 1.32 kg
weight - 1180
Weight & dimensions - Depth - 156 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Width - 240 mm
Weight & dimensions > Depth - 0,44 cm
Weight & dimensions > Height - 24,0 cm
Weight & dimensions > Width - 15,6 cm
Wi-Fi 6 Network standard - Yes
width - 0.25 m
Wireless Frequency Range - 2.4 GHz/5 GHz
Wireless LAN features - Top Wi-Fi standard - Wi-Fi 6 (802.11ax)
Wireless LAN features - Wi-Fi band - Dual-band (2.4 GHz / 5 GHz)
Wireless LAN features - Wi-Fi standards - 802.11a
Wireless LAN features - Wi-Fi standards - 802.11b
Wireless LAN features - Wi-Fi standards - 802.11g
Wireless LAN features - Wi-Fi standards - Wi-Fi 4 (802.11n)
Wireless LAN features - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Wireless LAN features - Wi-Fi standards - Wi-Fi 6 (802.11ax)
Wireless LAN features - WLAN data transfer rate (first band) - 574 Mbit/s
Wireless LAN features - WLAN data transfer rate (max) - 1200 Mbit/s
Wireless LAN features - WLAN data transfer rate (second band) - 1200 Mbit/s
Wireless LAN features > Dual-band - Y
Wireless LAN features > Wi-Fi band - 802.11ax
