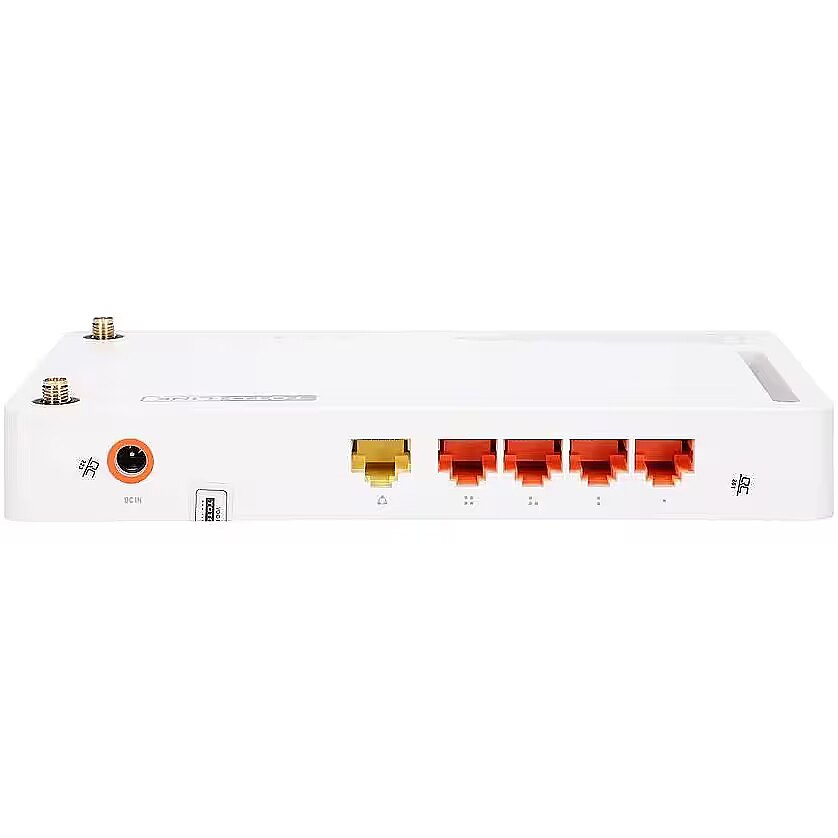

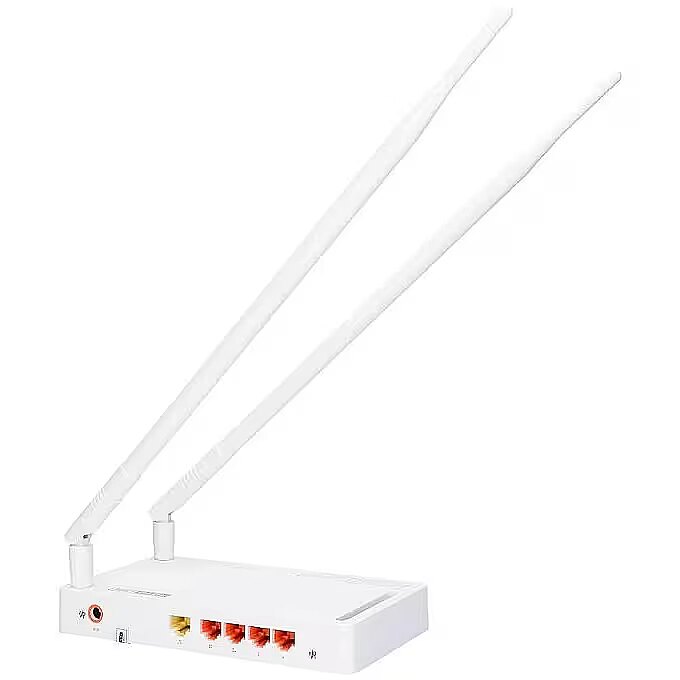

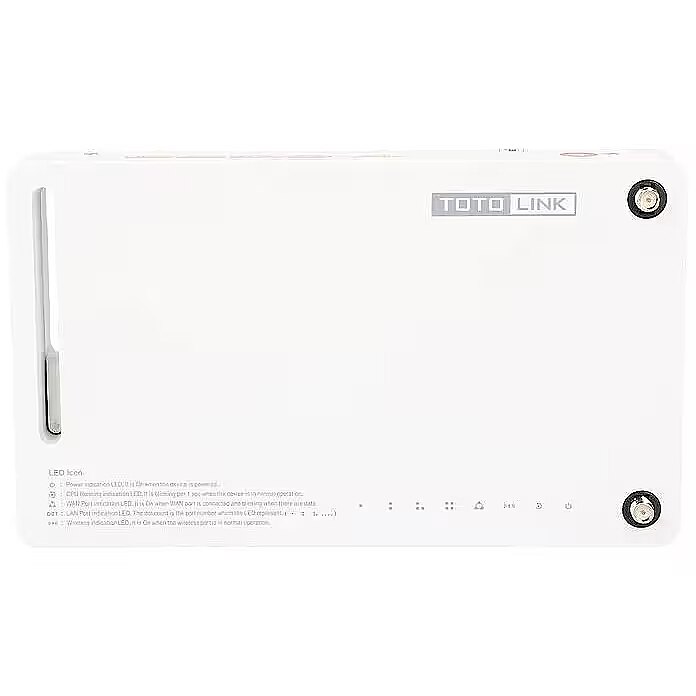

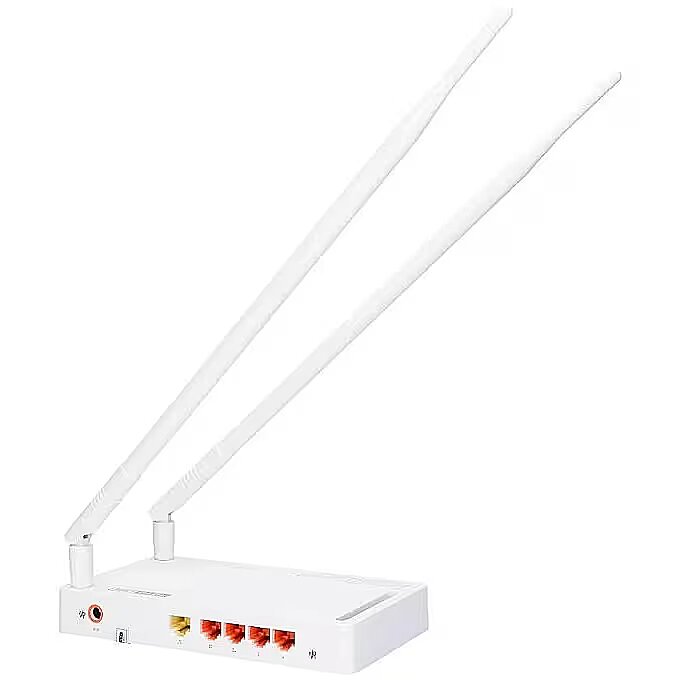

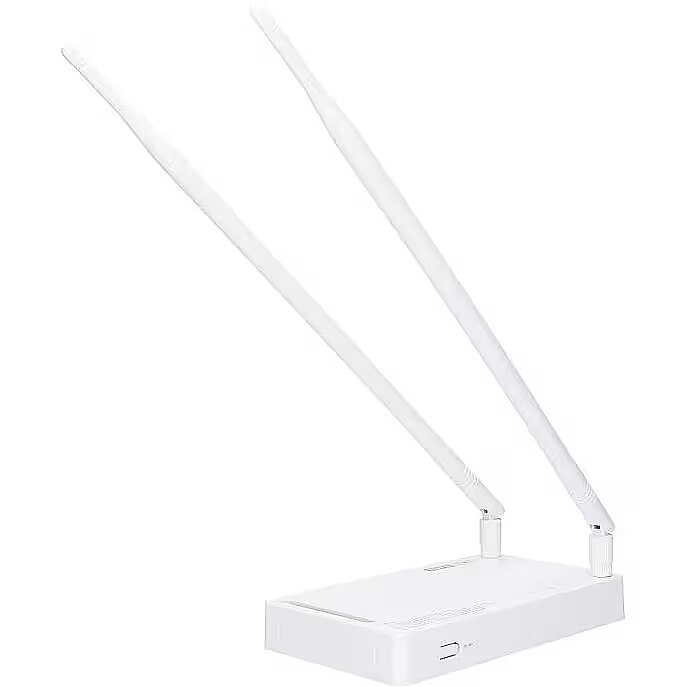

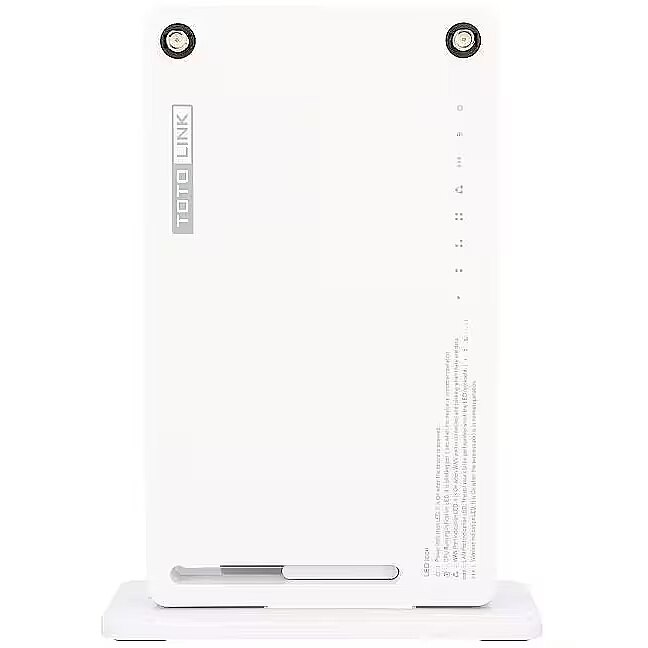

Totolink N300RH

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 865419 Product code: N300RH
Can be ordered 1 units Availability: 14 days after order approval
Warranty: 3 years
34.11 €
Main product parameters All parameters
  • Speed index: 300
  • Type of device: Router
  • Wi-Fi standard: Wi-Fi 4 (802.11n)
Basic information
Speed index : 300
Type of device Router

Access Point - bezvadu piekļuves punkts, kas nodrošina kabeļu tīkla paplašināšanas pārraidi bezvadu tīklā izmantojot vienu LAN pieslēgvietu. Access point nav rūteris, un nespēj sadalīt vienu interneta pieslēguma adresi vairākiem datoriem, tamdēļ šo iekārtu slēdziet tikai aiz esoša kabeļu rūtera.

Router, jeb maršrutētājs - bezvadu piekļuves punkts, kas nodrošina viena interneta pieslēguma sadalīšanu vairākiem datoriem, gan caur tīkla vadiem, gan bezvadu tīklā. Parasti bezvadu maršrutētājam ir viena kabeļu interneta pieslēgvieta, četras datoru pieslēgvietas (kuras var papildināt, izmantojot switch komutatoru) un antenas, kas nodrošina apraidi datoriem un citām WiFi iekārtām.

Range Extender - bezvadu tīkla apraides attāluma pastiprinātājs. Paredzēts esoša signāla pastiprināšanai, lai palielinātu uzveršanas un pārraides attālumu.

Wifi adapter - Bezvadu tīkla karte, paredzēta datora pieslēgšanai pie bezvadu WiFi rūtera vai piekļuves punkta. PCI, PCI-E ir paredzēti galddatoriem, savukārt PCMCIA un USB - portatīvajiem datoriem. Jāpiebilst, ka lielākā daļa portatīvo datoru jau rūpnīcā tiek komplektēti ar bezvadu tīkla kartēm.

USB tīkla karte ir pēdējā izvēle, jo USB2.0 caurlaidības ātrums ir samērā zems ~22MB/s, kas nozīmē to, ka netiks izmantots bezvadu tīkla maksimālais iespējamais ātrums. Ja ir iespēja, labāk izvēlēties kādu citu pieslēguma veidu.

Wi-Fi standard : Wi-Fi 4 (802.11n)
Functionality
3G/4G support Nav

A possibility to put the SIM card of mobile operators or the USB Dongle adapter in the router providing access to the 3G mobile Internet.

Prior to buying a router with the 3G support you should verify whether the device supports the 3G USB Dongle receiver of the particular mobile communications operator at the manufacturer's website.

Band mode Single Band

SingleBand is a standard wireless technology characteristic of all the modern wireless devices.

DualBand is 2.4GHz with an additional 5.0GHz channel providing better receiving of the signal and more stable high-speed operation. For using this function both devices, i.e. the router and the wireless network card, have to support the DualBand mode.

Ethernet 10/100

LAN or ethernet cables connection slots operational mode.

10/100 MB.s is the standard speed characteristic of almost all the routers.

10/100/1000 MB.s, or GigaBit is tens of times faster standard which, in combination of GigaBit LAN network cards, provides great data transmission speed advantages between computers connected within the internal network. This solution is usually required in offices where large data volumes are copied between computers or fast Internet connection is used (no ~30 MB/s) simultaneously in several computers.



Ports and equipment
LAN ports : 5
Wireless card
  • Alternatives
  • Alternatives
More detailed specification
Additional information in manufacturers website Totolink N300RH
Accessories included - N300RH 2 x 11 dBi antenna Power supply Network cable User manual
Antenna - Detachable external
Antenna - Antenna design - External
Antenna - Antenna gain level (max) - 8 dBi
Antenna - Antennas quantity - 2
Antenna - Detachable antenna(s) - Yes
Antenna gain - 11 dBi
Category - Root/Electronics/Networks and communication/Routers
Color - White
Description - TOTOLINK N300RH 300 Mbps - bezprzewodowy router 11dbi o wysokiej mocy
Totolink N300RH  to bezprzewodowy router 11dbi o zwiększonym zasięgu, zgodny ze standardem 802.11n. N300RH dostarczać bezprzewodową transmisję danych do 300 Mbps. Ten router 11dbi wyposażony jest w dwie odkręcane anteny o wysokim zysku. Pasywne zasilanie PoE w N300RH umożliwia również bardziej elastyczne rozmieszczenie urządzenia. Jest to idealne rozwiązanie do użytku w domu (możliwa również funcja kontroli rodzicielskiej wifi) lub w małym biurze. Duży zasięg sieci bezprzewodowej
Router Totolink N300RH gwarantuje duży zasięg sieci bezprzewodowej. Router posiada dwie anteny o zysku 11 dBi oraz wysokiej wydajności znacznie zwiększają stabilność sygnału i rozszerzają zasięg sieci bezprzewodowej. Kontrola rodzicielska oraz IPTV | Totolink N300RH
Harmonogram Wi-Fi pomaga rodzicom ustawić dostępność do Internetu w określonych godzinach. Skutecznie zapobiega to używaniu Internetu przez dzieci o nieodpowiedniej porze. Omawiany model posiada także funkcję IPTV. Możesz korzystać jednocześnie z IPTV oraz szybkiego  dostępu bezprzewodowego do Internetu.
Design - LED indicators - LAN, Power, WAN
Design - Product colour - White
Design - Product type - Tabletop router
dimensionalWeight - 1219
dimension depth - 80 mm
dimension height - 240 mm
Dimensions - 180 x 106 x 24.5 mm
dimension weight - 665 g
dimension width - 340 mm
ean - 6952887401149
Eans - 6952887401149
Environment requirements - Temperatura pracy: 0° C do -40° C (32 F ~ 104 F) Wilgotność podczas pracy: 10% - 90% niekondensująca
Features - Firmware upgradeable - Yes
guarantee - 24
guarantee_type - normal
I/O ports - 1 x WAN (RJ-45)
I/O ports - 4 x 10/100 Mbit/s
Management, monitoring, configuration - Firmware update Q08 TR-069 DDNS Access control SSH server
Management features - Quality of Service (QoS) support - Yes
Management features - Reset button - Yes
Management features - WPS push button - Yes
Mobile network - 3G - No
Mobile network - 4G - No
Model - N300RH
name - Router WiFi N300RH
Name - Totolink N300RH
Network - Cabling technology - 10/100Base-T(X)
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 100
Network - Ethernet LAN interface type - Fast Ethernet
Network - Networking standards - IEEE 802.11b
Network - Networking standards - IEEE 802.11g
Network - Networking standards - IEEE 802.11n
Network - Port forwarding - Yes
Network architecture - FastEthernet
Number of antennas - 2
Operating frequency - 2,4 GHz
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - Pasywne PoE: Port WAN oraz port LAN obok portu WAN Przyciski: RST/WPS   Kontrolki LED: Power CPU Wireless WAN 4 x LAN   Częstotliwość pracy: 2.4~2.4835 GHz   Prędkość transmisji danych: 802.11n: do 300 Mbps 802.11g: do 54 Mbps (dynamic) 802.11b: do 11 Mbps (dynamic)   EIRP: < 20 dBm   Czułość: 270M: -61 dBm@10% PER 135M: -65 dBm@10% PER 54M: -68 dBrn@10% PER 11M: -85 dBm@8% PER 6M1 -88 dBm@10% PER 1M: -90 dBm@8% PER
Packaging content - Cables included - LAN (RJ-45)
Packaging content - Quick start guide - Yes
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 5
Ports & interfaces - Memory card slot(s) - No
Ports & interfaces - USB port - No
Power - Output current - 1 A
Power - Power source type - DC
Power supply - 12V DC/1A
producer - Totolink
Producer - TotoLink
producerCode - N300RH
ProducerCode - N300RH
productName - TOTOLINK N300RH wireless router Fast Ethernet Single-band (2.4 GHz) White
productSize - Normal
Security - 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
Security - DMZ support - Yes
Security - Filtering - Yes
Security - Firewall - Yes
Security - IP address filtering - Yes
Security - MAC address filtering - Yes
Security - URL filtering - Yes
ShortDescription -
sizeX - 340
sizeY - 78
sizeZ - 230
Software -
Special functions -
Standards - 802.11b
Standards - 802.11g
Standards - 802.11n
Standards - IPv6
System Requirements -
Type - xDSL
vendpn - N300RH
WAN connection - 3G/4G USB modem compatibility - No
WAN connection - DSL WAN - No
WAN connection - Ethernet WAN - Yes
WAN connection - SIM card slot - No
warrantyLength - 36
warrantyType - G
weight - 650
Weight & dimensions - Depth - 106 mm
Weight & dimensions - Height - 24.5 mm
Weight & dimensions - Width - 180 mm
Wireless LAN features - Top Wi-Fi standard - Wi-Fi 4 (802.11n)
Wireless LAN features - Wi-Fi band - Single-band (2.4 GHz)
Wireless LAN features - Wi-Fi standards - 802.11b
Wireless LAN features - Wi-Fi standards - 802.11g
Wireless LAN features - Wi-Fi standards - Wi-Fi 4 (802.11n)
Wireless LAN features - WLAN data transfer rate (first band) - 300 Mbit/s
Wireless LAN features - WLAN data transfer rate (max) - 300 Mbit/s
Wireless LAN features - WLAN data transfer rate (second band) - 54 Mbit/s
Wireless LAN features - WLAN data transfer rate (third band) - 11 Mbit/s
