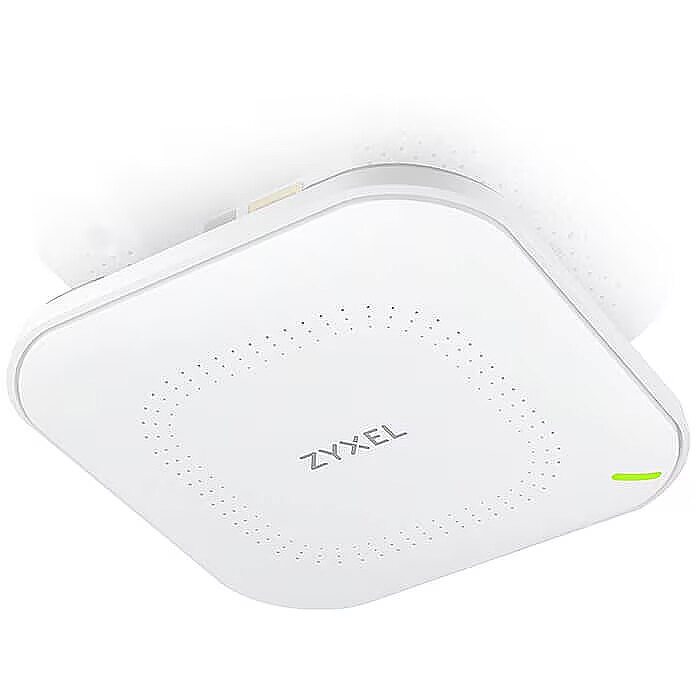

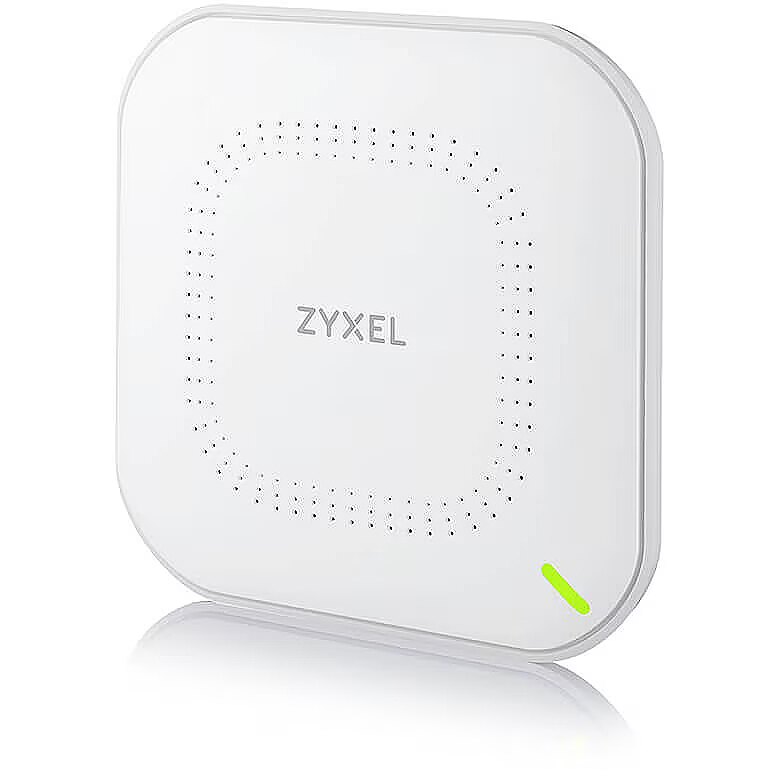

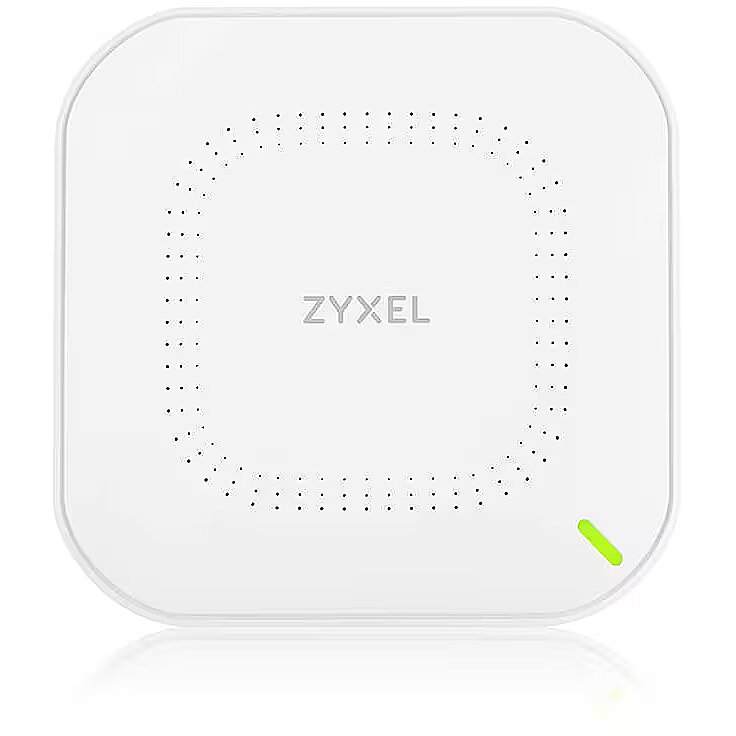

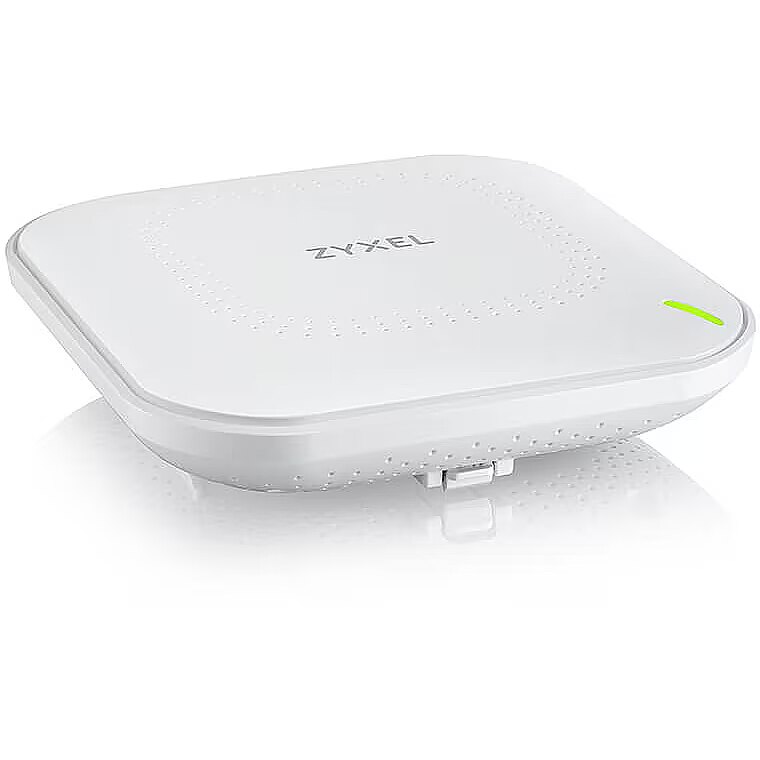

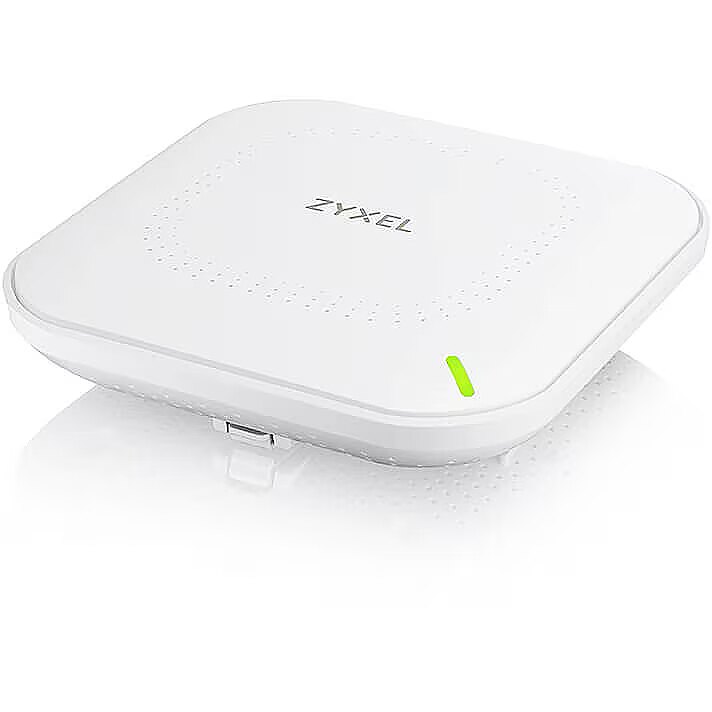

Zyxel NWA50AX

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 775627 Product code: NWA50AX-EU0102F
In stock 20 units
Warranty: 2 years
94.84 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: on Thursday, 28.11.2024
Main product parameters All parameters
  • Speed index: 1800
  • Type of device: Access Point
  • Wi-Fi standard: Wi-Fi 6 (802.11ax)
Basic information
Speed index : 1800
Type of device Access Point

Access Point - bezvadu piekļuves punkts, kas nodrošina kabeļu tīkla paplašināšanas pārraidi bezvadu tīklā izmantojot vienu LAN pieslēgvietu. Access point nav rūteris, un nespēj sadalīt vienu interneta pieslēguma adresi vairākiem datoriem, tamdēļ šo iekārtu slēdziet tikai aiz esoša kabeļu rūtera.

Router, jeb maršrutētājs - bezvadu piekļuves punkts, kas nodrošina viena interneta pieslēguma sadalīšanu vairākiem datoriem, gan caur tīkla vadiem, gan bezvadu tīklā. Parasti bezvadu maršrutētājam ir viena kabeļu interneta pieslēgvieta, četras datoru pieslēgvietas (kuras var papildināt, izmantojot switch komutatoru) un antenas, kas nodrošina apraidi datoriem un citām WiFi iekārtām.

Range Extender - bezvadu tīkla apraides attāluma pastiprinātājs. Paredzēts esoša signāla pastiprināšanai, lai palielinātu uzveršanas un pārraides attālumu.

Wifi adapter - Bezvadu tīkla karte, paredzēta datora pieslēgšanai pie bezvadu WiFi rūtera vai piekļuves punkta. PCI, PCI-E ir paredzēti galddatoriem, savukārt PCMCIA un USB - portatīvajiem datoriem. Jāpiebilst, ka lielākā daļa portatīvo datoru jau rūpnīcā tiek komplektēti ar bezvadu tīkla kartēm.

USB tīkla karte ir pēdējā izvēle, jo USB2.0 caurlaidības ātrums ir samērā zems ~22MB/s, kas nozīmē to, ka netiks izmantots bezvadu tīkla maksimālais iespējamais ātrums. Ja ir iespēja, labāk izvēlēties kādu citu pieslēguma veidu.

Wi-Fi standard : Wi-Fi 6 (802.11ax)
Functionality
3G/4G support Nav

A possibility to put the SIM card of mobile operators or the USB Dongle adapter in the router providing access to the 3G mobile Internet.

Prior to buying a router with the 3G support you should verify whether the device supports the 3G USB Dongle receiver of the particular mobile communications operator at the manufacturer's website.

Band mode Dual-Band

SingleBand is a standard wireless technology characteristic of all the modern wireless devices.

DualBand is 2.4GHz with an additional 5.0GHz channel providing better receiving of the signal and more stable high-speed operation. For using this function both devices, i.e. the router and the wireless network card, have to support the DualBand mode.

Ethernet 100/1000

LAN or ethernet cables connection slots operational mode.

10/100 MB.s is the standard speed characteristic of almost all the routers.

10/100/1000 MB.s, or GigaBit is tens of times faster standard which, in combination of GigaBit LAN network cards, provides great data transmission speed advantages between computers connected within the internal network. This solution is usually required in offices where large data volumes are copied between computers or fast Internet connection is used (no ~30 MB/s) simultaneously in several computers.



Ports and equipment

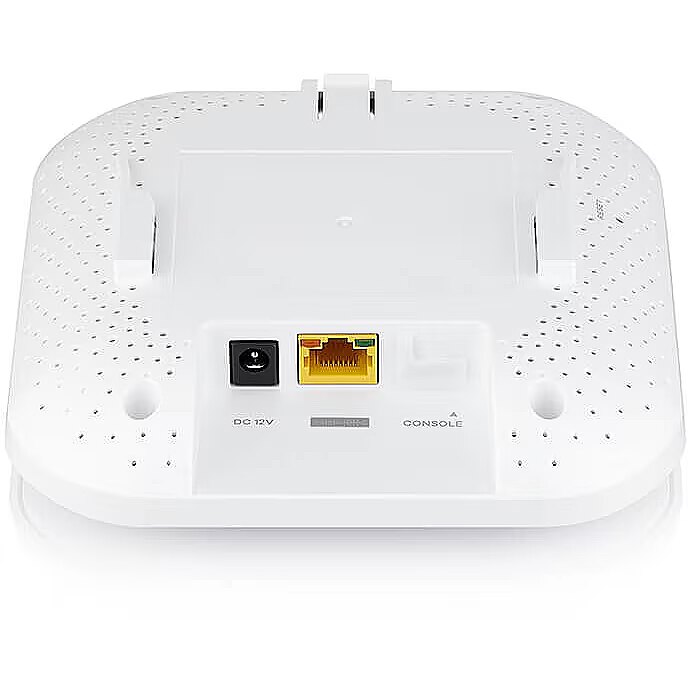

LAN ports : 1
Wireless
  • Alternatives
  • Alternatives
More detailed specification
Accessories included - Adapter zasilania Płyta montażowa Śruby montażowe
Antenna - Built-in
Antenna - Antenna gain level (max) - 4 dBi
Antenna - Antenna type - Internal
Antenna gain - 4 dBi
Antenna gain level (max), dBi - 2.4GHz: 3 dBi
5GHz: 4 dBi
Antenna type - 2x2 + 2x2 MIMO
ARTIKEL1 - NWA50AX 802.11AX WIFI 6
ARTIKEL2 - NEBULAFLEX AP
Brand - Zyxel
BrandPartCode - NWA50AX-EU0102F
Breite - 0.16
Category - Root/Electronics/Networks and communication/Access points
Category - Wireless Access Points
Category 1 - Netzwerk
Category 2 - Accesspoints
Category_1 - Network and Servers
Category_2 - Network - WiFi Access Points
Color - White
Description - ZYXEL NWA50AX, SINGLE PACK 802.11AX
Description - Zyxel NWA50AX to punkt dostępowy WiFi 6, który posiada odpowiedni zestaw funkcji dla małych firm i użytkowników SoHo chcących przejść na 11ax (WiFi 6). Obsługuje zarówno lokalne zarządzanie GUI, jak i zarządzanie siecią w chmurze Nebula, prosta konfiguracja Zyxel NWA50AX pozwala na szybkie skonfigurowanie punktu dostępowego za pomocą zaledwie kilku kliknięć, co sprawia, że bardzo łatwo jest samodzielnie skonfigurować sieć dla gości i pracowników i zacząć cieszyć się ultraszybkimi prędkościami WiFi 6 w mgnieniu oka. Obsługa zarówno 2.4Ghz i 5Ghz częstotliwości ma na celu umożliwienie Ci cieszenia się wszystkimi najlepszymi rzeczami jakie WiFi 6 ma do zaoferowania, takich jak szybsze prędkości nawet w zatłoczonych środowiskach. Rozszerzony zasięg w sieci bezprzewodowej, zwiększona pojemność dla wdrożeń IoT, i o wiele więcej.
Design - Placement - Ceiling, Wall
Design - Product colour - White
dimensionalWeight - 460
dimension depth - 60 mm
dimension height - 235 mm
Dimensions - 140 x 140 x 37.5 mm
Dimensions W x D x H, mm - 140 x 140 x 37.5
dimension weight - 617 g
dimension width - 155 mm
ean - 4718937618743
EAN - 4718937618743
EANCode - 4718937618743
Eans - 4718937618743
EAN_code - 4718937618743
Ethernet LAN (RJ-45) ports quantity - 1
Features - 2.4 GHz - Yes
Features - 5 GHz - Yes
Features - Band steering - Yes
Features - Ethernet LAN data rates - 10
Features - Ethernet LAN data rates - 10,100,1000 Mbit/s
Features - Ethernet LAN data rates - 100
Features - Ethernet LAN data rates - 1000 Mbit/s
Features - Fast roaming - Yes
Features - Maximum data transfer rate - 1775 Mbit/s
Features - Maximum data transfer rate (2.4 GHz) - 575 Mbit/s
Features - Maximum data transfer rate (5 GHz) - 1200 Mbit/s
Features - MIMO - Yes
Features - MIMO type - Multi User MIMO
Features - Networking standards - IEEE 802.3at
Features - Networking standards - IEEE 802.11a
Features - Networking standards - IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at
Features - Networking standards - IEEE 802.11ac
Features - Networking standards - IEEE 802.11ax
Features - Networking standards - IEEE 802.11b
Features - Networking standards - IEEE 802.11g
Features - Networking standards - IEEE 802.11n
Features - VLAN support - Yes
Features - Wi-Fi Multimedia (WMM)/(WME) - Yes
Gewicht - 0.63
GRUPPE1 - Network
GRUPPE2 - Wireless Lan Ap
GTIN - 4718937618743
guarantee - 24
guarantee_type - external
Height - 58.000000
HERSTELLER - ZYXEL
Hoehe - 0.06
HSTNUMMER - NWA50AX-EU0102F
I/O ports - 1 x 10/100/1000 Mbit/s
Laenge - 0.24
Length - 240.000000
Logistics data - Country of origin - China
Logistics data - Harmonized System (HS) code - 85176990
Logistics data - Master (outer) case gross weight - 13 kg
Logistics data - Master (outer) case height - 332 mm
Logistics data - Master (outer) case length - 483 mm
Logistics data - Master (outer) case width - 315 mm
Logistics data - Products per master (outer) case - 20 pc(s)
LongSummaryDescription - Zyxel NWA50AX. 2.4 GHz, 5 GHz, Maximum data transfer rate: 1775 Mbit/s. Security algorithms: WPA, WPA2, WPA3. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White
MAC address filtering - Yes
Management, monitoring, configuration - Centralized and batch configurations IP configuration IP renew Device reboot Device locating Web GUI access Firmware upgrade Password configuration
Manufacturer - Zyxel
Manufacturer - ZYXEL COMMUNICATIONS A/S
ManufacturerPartNumber - NWA50AX-EU0102F
Manufacturer_code - NWA50AX-EU0102F
MPN - NWA50AX-EU0102F
name - Access point NWA50AX-EU0102F Nebula AP SP WiFi6 802.11ax
Name - Zyxel NWA50AX-EU0102F
Name - ZyXEL NWA50AX 1GE / WiFi6 / AP
Name - Zyxel WIFI6 AX1800 NWA50AX
Network architecture - GigabitEthernet
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 10 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features -
Packaging content - AC adapter included - Yes
Packaging content - Mounting kit - Yes
Packaging content - Number of products included - 1 pc(s)
PeriodofWarranty - 24 M
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Input current - 0.3 A
Power - Output current - 1.5 A
Power - Output voltage - 12 V
Power - Power over Ethernet (PoE) - Yes
Power supply - Input: AC 100 - 240V - 50/60 Hz 0.3A; Output: DC +12V 1.5A
producer - Zyxel
Producer - Zyxel
producerCode - NWA50AX-EU0102F
ProducerCode - NWA50AX-EU0102F
ProductName - NWA50AX
productName - Zyxel NWA50AX 1775 Mbit/s White Power over Ethernet (PoE)
productSize - Normal
Security - WPA/WPA2/WPA3 Personal MAC filtering/ Rogue AP detection
Security - Auto Wireless Distribution System (WDS) - Yes
Security - MAC address filtering - Yes
Security - Security algorithms - WPA
Security - Security algorithms - WPA, WPA2, WPA3
Security - Security algorithms - WPA2
Security - Security algorithms - WPA3
Security algorithms supported - WPA Personal, WPA2 Personal, WPA3 Personal
ShortDescription -
ShortSummaryDescription - Zyxel NWA50AX, 2.4 GHz, 5 GHz, 1775 Mbit/s, WPA, WPA2, WPA3, 10,100,1000 Mbit/s
sizeX - 240
sizeY - 160
sizeZ - 60
Software -
Special functions -
Standards - 802.11a
Standards - 802.11ac
Standards - 802.11ax
Standards - 802.11b
Standards - 802.11g
Standards - 802.11n
Stck_Kart - 20
Stck_Pal - 0
Storno - Y
System Requirements -
Title - Zyxel NWA50AX 1775 Mbit/s White Power over Ethernet (PoE)
vendpn - NWA50AX-EU0102F
warrantyLength - 24
warrantyType - F
Weight - 0,60
Weight - 0.62
Weight - 0.630000
Weight - 290 g
weight - 625
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 37.5 mm
Weight & dimensions - Weight - 290 g
Weight & dimensions - Width - 140 mm
Weight, g - 290
Width - 158.000000
Wireless standard - 802.11 a
Wireless standard - 802.11 ac
Wireless standard - 802.11 ax
Wireless standard - 802.11 b
Wireless standard - 802.11 g
Wireless standard - 802.11 n
WLAN data transfer rates supported, Mbit/s - 2.4GHz: 575 Mbps
5GHz: 1200 Mbps
