Accessories included - RUT300 router 9W power supply Ethernet cable (1.5 m) QSG (Quick Start Guide) RMS leaflet
Category 1 - Netzwerk
Category 2 - Router
Certificates -
Color - Aluminium
Description - RUTX08 router RUTX08 is a rugged and efficient industrial Ethernet-to-Ethernet VPN router. A VPN router that runs on RutOS - an advanced operating system based on OpenWRT. It has four Gigabit Ethernet ports with speeds up to 1000 Mbps. The durable aluminum housing and support for industrial networking protocols make the RUTX08 an excellent choice for professional applications. Multiple supported VPN services, an advanced firewall and a remote management system (RMS) make the RUTX08 a great device that does not require cellular or Wi-Fi connectivity.
Design - Flash memory - 16 MB
Design - Housing material - Aluminium
Design - LED integrated - Yes
Design - On/off switch - No
Design - Processor frequency - 0.65 GHz
Design - Product colour - Aluminium
Design - Product type - Tabletop router
Design - RAM capacity - 64 MB
Design - RAM type - DDR2
dimensionalWeight - 367
dimension depth - 70 mm
dimension height - 175 mm
Dimensions - 100 x 30 x 85 mm
dimension weight - 433 g
dimension width - 150 mm
ean - 4779027312903
EAN - 4779027312903
Environment requirements - Operating temperature: -40 C to 75 C Humidity during operation: 10% to 90% non-condensing
Features - Certification - CE, RoHS, X.509
Features - Operating temperature (T-T) - -40 - 75 °C
guarantee - 24
guarantee_type - normal
I/O ports - 1 x 10/100 Mbit/s WAN
I/O ports - 1 x USB 2.0
I/O ports - 4 x 10/100 Mbit/s
Management, monitoring, configuration - Routing: Static routes, Routing rules, Dynamic routes (BGP, OSPFv2, RIPv1/v2, EIGRP, NHRP VPN: OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard Monitoring and management: WEB UI, CLI, SSH, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS Cloud: RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx Services: DDNS, Wake On Lan (WOL), WEB filter, UPNP, Network shares (Samba), Traffic Logging Administration: Multi user, Configuration profiles, Diagnostics, logs, Configuration backup
Management features - Management software - RutOS
Management features - Number of VLANs - 4096
Management features - Reset button - Yes
Management features - Secure File Transfer Protocol (SFTP) using SSH v2 - Yes
Management features - SSH/SSL support - Yes
Management features - Universal Plug and Play (UPnP) - Yes
Management features - User operation log - Yes
Management features - VLAN support - Yes
Management features - Web-based management - Yes
Manufacturer - Teltonika
Model - RUT300
Mounting - Mounting - DIN TH-35 mounting rail
Mounting - Mounting options - Flat surface
MPN - RUT300000000
name - Router RUT300 4xLAN, 1xWAN, USB
Name - Teltonika RUT300 Industrial LTE Router
Network - DHCP client - Yes
Network - Dynamic DNS (DDNS) - Yes
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10,100 Mbit/s
Network - Ethernet LAN interface type - Fast Ethernet
Network - IPv4 & IPv6 features - Dual stack IPv4/IPv6
Network - Network address translation (NAT) - Yes
Network - Port forwarding - Yes
Network - Quality of Service (QoS) support - Yes
Network architecture - FastEthernet
Number of antennas - None
Other features - Processor: QCA9531, MIPS 24kc, 650 MHz RAM: 64 MB, DDR2 Memory: 16 MB, SPI Flash
Packaging content - Package contents - LAN cable
Packaging content - Package contents - Power supply
Packaging content - Package contents - Router
Packaging content - Package contents - User manual

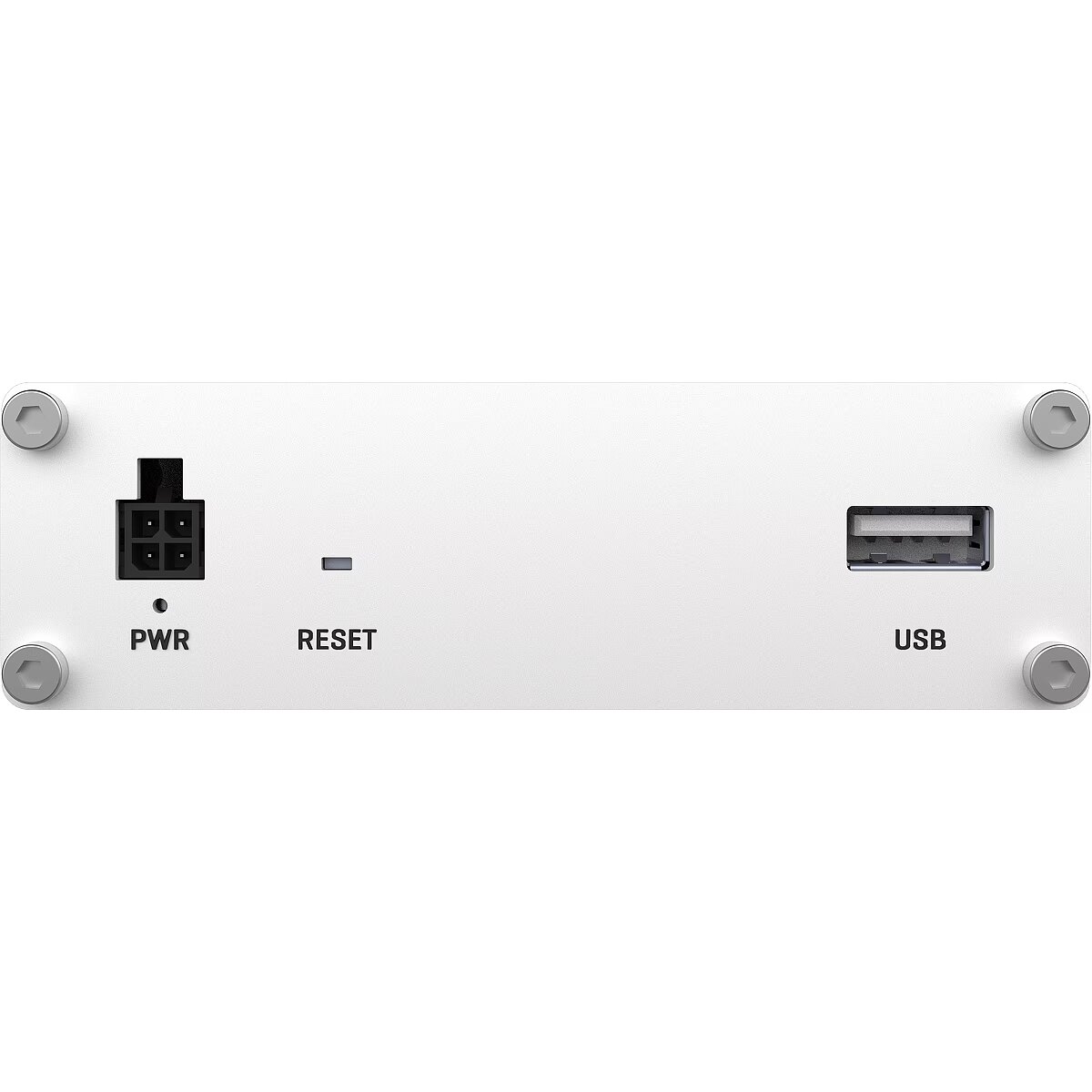

Ports & interfaces - DC-in jack - Yes

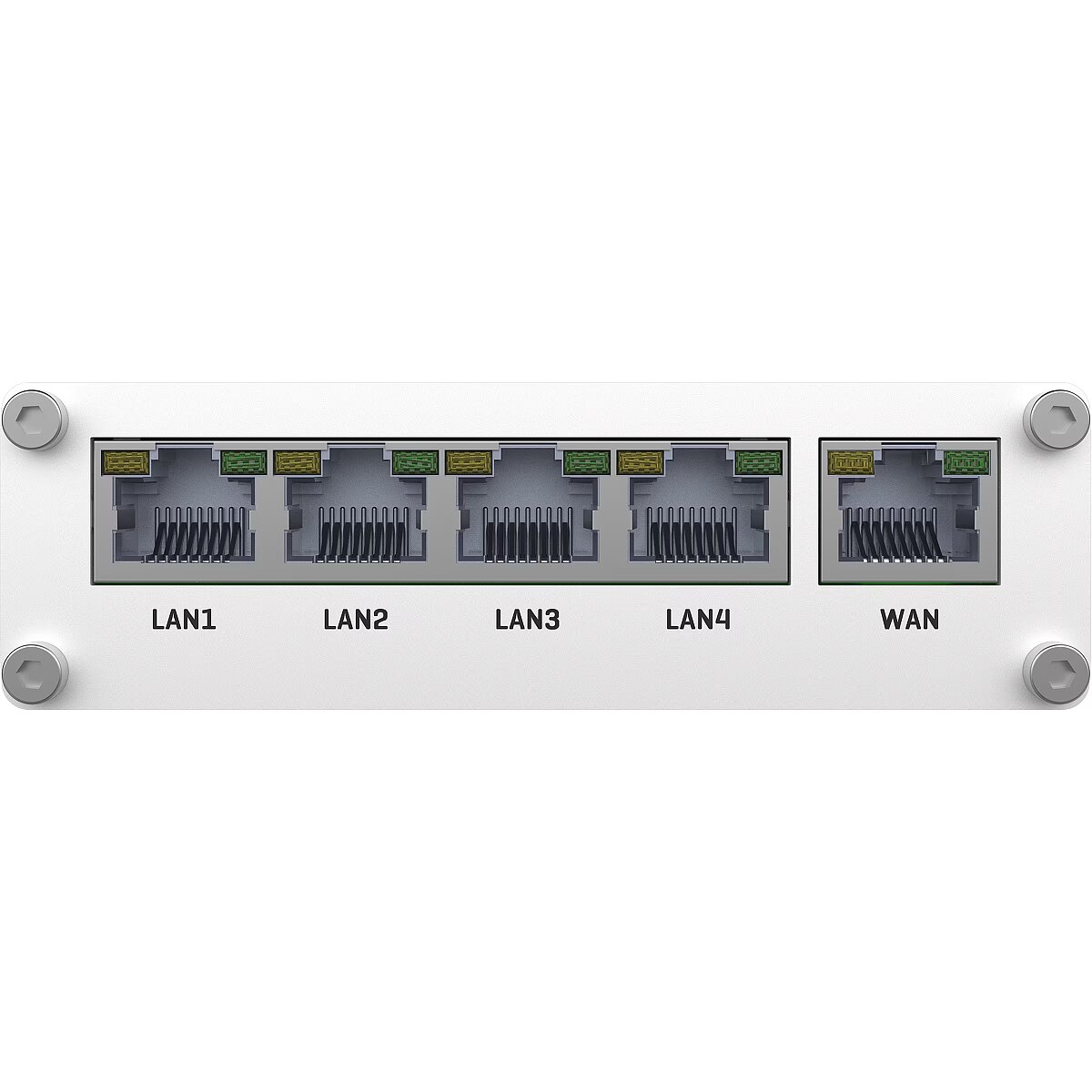

Ports & interfaces - Ethernet LAN (RJ-45) ports - 4
Ports & interfaces - Memory card slot(s) - No
Ports & interfaces - SIM card slot - No
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB connector type - USB Type-A
Ports & interfaces - WAN connection - Ethernet (RJ-45)
Power - Output voltage - 7-30 V
Power - Power consumption (idle) - 1.3 W
Power - Power consumption (typical) - 3 W
Power - Power over Ethernet (PoE) - Yes
Power - Power source type - DC
Power supply - 4-pin socket, 7-30 VDC
producer - TELTONIKA
producerCode - RUT300
productName - TELTONIKA RUT300 Industrial wired router 5X RJ45 100MB / S
productSize - Normal
Security - Authentication: Pre-shared key, digital certificates, X.509 certificates Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) VLAN: Port and tag based VLAN separation WEB filter (planned): Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter
Security - DoS attack prevention - Yes
Security - Firewall security - Yes
Security - Guest access - Yes
Security - ICMP attack prevention - Yes
Security - VPN tunnels quantity - 10
sizeX - 70
sizeY - 150
sizeZ - 175
Software - RutOS (OpenWrt based Linux OS)
Special functions -
Standards - 802.3
Standards - 802.3u
Standards - 802.11e
System Requirements -
Type - xDSL
vendpn - RUT300 000000
WAN connection - Ethernet WAN - Yes
WAN connection - SIM card slot - No
WAN connection - WAN connection type - RJ-45
warrantyLength - 24
warrantyType - G
Weight - 0.44
Weight - 229 g
weight - 430
Weight & dimensions - Depth - 85 mm
Weight & dimensions - Height - 30 mm
Weight & dimensions - Weight - 229 g
Weight & dimensions - Width - 100 mm
