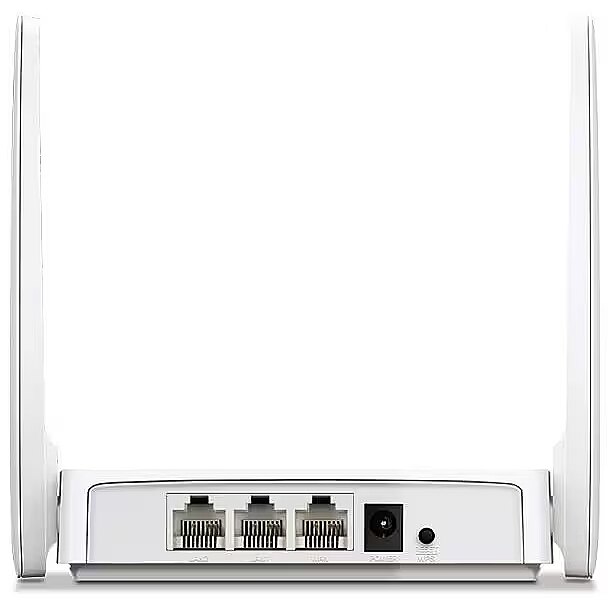

Mercusys WRL ROUTER 1200MBPS 10/100M/2PORT AC10

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 626776 Product code: AC10
In stock 41 units
Warranty: 2 years
21.93 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: 29.11.2024
Main product parameters All parameters
  • Speed index: 1200
  • Type of device: Router
  • Wi-Fi standard: Wi-Fi 5 (802.11ac)
Basic information
Speed index : 1200
Type of device Router

Access Point - bezvadu piekļuves punkts, kas nodrošina kabeļu tīkla paplašināšanas pārraidi bezvadu tīklā izmantojot vienu LAN pieslēgvietu. Access point nav rūteris, un nespēj sadalīt vienu interneta pieslēguma adresi vairākiem datoriem, tamdēļ šo iekārtu slēdziet tikai aiz esoša kabeļu rūtera.

Router, jeb maršrutētājs - bezvadu piekļuves punkts, kas nodrošina viena interneta pieslēguma sadalīšanu vairākiem datoriem, gan caur tīkla vadiem, gan bezvadu tīklā. Parasti bezvadu maršrutētājam ir viena kabeļu interneta pieslēgvieta, četras datoru pieslēgvietas (kuras var papildināt, izmantojot switch komutatoru) un antenas, kas nodrošina apraidi datoriem un citām WiFi iekārtām.

Range Extender - bezvadu tīkla apraides attāluma pastiprinātājs. Paredzēts esoša signāla pastiprināšanai, lai palielinātu uzveršanas un pārraides attālumu.

Wifi adapter - Bezvadu tīkla karte, paredzēta datora pieslēgšanai pie bezvadu WiFi rūtera vai piekļuves punkta. PCI, PCI-E ir paredzēti galddatoriem, savukārt PCMCIA un USB - portatīvajiem datoriem. Jāpiebilst, ka lielākā daļa portatīvo datoru jau rūpnīcā tiek komplektēti ar bezvadu tīkla kartēm.

USB tīkla karte ir pēdējā izvēle, jo USB2.0 caurlaidības ātrums ir samērā zems ~22MB/s, kas nozīmē to, ka netiks izmantots bezvadu tīkla maksimālais iespējamais ātrums. Ja ir iespēja, labāk izvēlēties kādu citu pieslēguma veidu.

Wi-Fi standard : Wi-Fi 5 (802.11ac)
Functionality
3G/4G support Nav

A possibility to put the SIM card of mobile operators or the USB Dongle adapter in the router providing access to the 3G mobile Internet.

Prior to buying a router with the 3G support you should verify whether the device supports the 3G USB Dongle receiver of the particular mobile communications operator at the manufacturer's website.

Band mode Dual-Band

SingleBand is a standard wireless technology characteristic of all the modern wireless devices.

DualBand is 2.4GHz with an additional 5.0GHz channel providing better receiving of the signal and more stable high-speed operation. For using this function both devices, i.e. the router and the wireless network card, have to support the DualBand mode.

Ethernet 10/100

LAN or ethernet cables connection slots operational mode.

10/100 MB.s is the standard speed characteristic of almost all the routers.

10/100/1000 MB.s, or GigaBit is tens of times faster standard which, in combination of GigaBit LAN network cards, provides great data transmission speed advantages between computers connected within the internal network. This solution is usually required in offices where large data volumes are copied between computers or fast Internet connection is used (no ~30 MB/s) simultaneously in several computers.



Ports and equipment
LAN ports : 2
Wireless card
  • Alternatives
  • Alternatives
More detailed specification
Additional information in manufacturers website Mercusys WRL ROUTER 1200MBPS 10/100M/2PORT AC10
1 WAN Fixed ports - Yes
10/100M LAN Ports - 2
Antenna - Antenna design - External
Antenna - Antenna gain level (max) - 5 dBi
Antenna - Antennas quantity - 4
Antenna > Antenna type - 4xFixed
Antenna Gain - 5 dB
Antenna Type - Omni-Directional
Available bandwidth - 1167 Mbps
Category - Root/Electronics/Networks and communication/Routers
Category Code - WRO
Code - AC10
Data transmission speed - 867 Mbps
Description - MERCUSYS AC1200 Wireless Dual Band Router AC10 High-Speed Wi-Fi Stream with fast and stable connections, reaching speeds up to 1167 Mbps (300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band) 4 High-Gain External Antennas Receive strong Wi-Fi signals in every corner of your home Easy Installation Set up in minutes guided by an intuitive web UI Active Parental Controls Protect your family by setting appropriate access policies for responsible, safe internet use IPTV and IPv6 Supported
Design - Product colour - White
Design - Product type - Tabletop router
Design > Colour of product - White
dimensionalWeight - 433
Dimensions - 114 × 94 × 26 mm
EAN - 6935364088040
Eans - 6935364088040
Features > Mesh Support - No
Features > Mobile Broadband - No mobile broadband
Features > MU-MiMO - Yes
Full Description Line - AC10|Available bandwidth 1167 Mbps|Data transmission speed 867 Mbps|1 WAN|2x10/100M|Antenna Type Omni-Directional|Antenna Gain 5 dB|Number of antennas 4|Wireless Frequency Range 2.4 GHz, 5 GHz|Wireless Transmit Power 20 dBm|Power supply requirements 9V/0.85A|Dimensions 114 × 94 × 26 mm
Link - https://www.mercusys.com/en/product/details/ac10
Management features - MU-MIMO technology - Yes
Management features - Reset button - Yes
Management features - WPS push button - Yes
Mobile network - 3G - No
Mobile network - 4G - No
Model name - AC10
Name - AC1200 Wireless Dual Band Router | AC10 | 802.11ac | 300+867 Mbit/s | 10/100 Mbit/s | Ethernet LAN (RJ-45) ports 2 | Mesh Support No | MU-MiMO Yes | No mobile broadband | Antenna type 4xFixed | No
Name - Mercusys AC10
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 100 Mbit/s
Network - Ethernet LAN interface type - Fast Ethernet
Network - Networking standards - IEEE 802.11a
Network - Networking standards - IEEE 802.11ac
Network - Networking standards - IEEE 802.11b
Network - Networking standards - IEEE 802.11g
Network - Networking standards - IEEE 802.11n
Number of antennas - 4
Other features > Ethernet LAN (RJ-45) ports - 2
Other features > USB ports quantity - No
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 229 mm
Package features > Gross depth master carton - 475 mm
Package features > Gross height (mm) - 60.00 mm
Package features > Gross height master carton - 387 mm
Package features > Gross width (mm) - 160.00 mm
Package features > Gross width master carton - 344 mm
Package features > Net weight master carton - 8.952 kg
Package features > Packing quantity - 24 pc(s)
Package features > Palette Qty - 648 pc(s)
Package features > Paper/Pasteboard - 200.00 g
Package features > Plastic (No PET) - 50.00 g
Package features > Tare weight (kg) - 0.25 kg
Package features > Tare weight master carton - 1.075 kg
Package features > TI weight (kg) - 0.15 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.0021984 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Performance > Ethernet LAN data rates - 10/100 Mbit/s
Performance > Wi-Fi data rate (max) - 300+867 Mbit/s
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces > WAN connection - 1*10/100Mbps WAN Port
Power - Output current - 0.85 A
Power - Output voltage - 9 V
Power - Power source type - AC
Power supply requirements - 9V/0.85A
Producer - Mercusys
producerCode - AC10
ProducerCode - AC10
Producer product family - AC1200 Wireless Dual Band Router
Producer product name - AC10
productName - Mercusys AC10 wireless router Fast Ethernet Dual-band (2.4 GHz / 5 GHz) White
productSize - Normal
Security - Security algorithms - WEP
Security - Security algorithms - WPA
Security - Security algorithms - WPA-PSK
Security - Security algorithms - WPA2
Security - Security algorithms - WPA2-PSK
Shipping Box Depth Shipping/Package Box Dimensions - 23 cm
Shipping Box Height Shipping/Package Box Dimensions - 16 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.391 kg
Shipping Box Width Shipping/Package Box Dimensions - 6 cm
ShortDescription -
sizeX - 226
sizeY - 160
sizeZ - 60
Technical details > Gross weight - 0.373 kg
Technical details > Net weight - 0.123 kg
Technical details > Producer - Mercusys
Unit Box Height - 0.16
Unit Box Length - 0.23
Unit Box Width - 0.06
Unit Brutto Volume - 0.002208 cubm
Unit Gross Weight - 0.391 kg
Unit Net Weight - 0.32 kg
Vendor Homepage - www.mercusys.com/en/product/details/ac10
WAN connection - 3G/4G USB modem compatibility - No
WAN connection - DSL WAN - No
WAN connection - Ethernet WAN - Yes
WAN connection - SIM card slot - No
Warranty - 24
Warranty - 24 month(s)
Warranty - 36 months
warrantyLength - 24
warrantyType - G
weight - 384
Wireless Frequency Range - 2.4 GHz, 5 GHz
Wireless LAN features - Top Wi-Fi standard - Wi-Fi 5 (802.11ac)
Wireless LAN features - Wi-Fi band - Dual-band (2.4 GHz / 5 GHz)
Wireless LAN features - Wi-Fi standards - 802.11a
Wireless LAN features - Wi-Fi standards - 802.11b
Wireless LAN features - Wi-Fi standards - 802.11g
Wireless LAN features - Wi-Fi standards - Wi-Fi 4 (802.11n)
Wireless LAN features - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Wireless LAN features - WLAN data transfer rate (first band) - 300 Mbit/s
Wireless LAN features - WLAN data transfer rate (max) - 867 Mbit/s
Wireless LAN features - WLAN data transfer rate (second band) - 867 Mbit/s
Wireless LAN features > Wi-Fi band - 802.11ac
Wireless Transmit Power - 20 dBm
