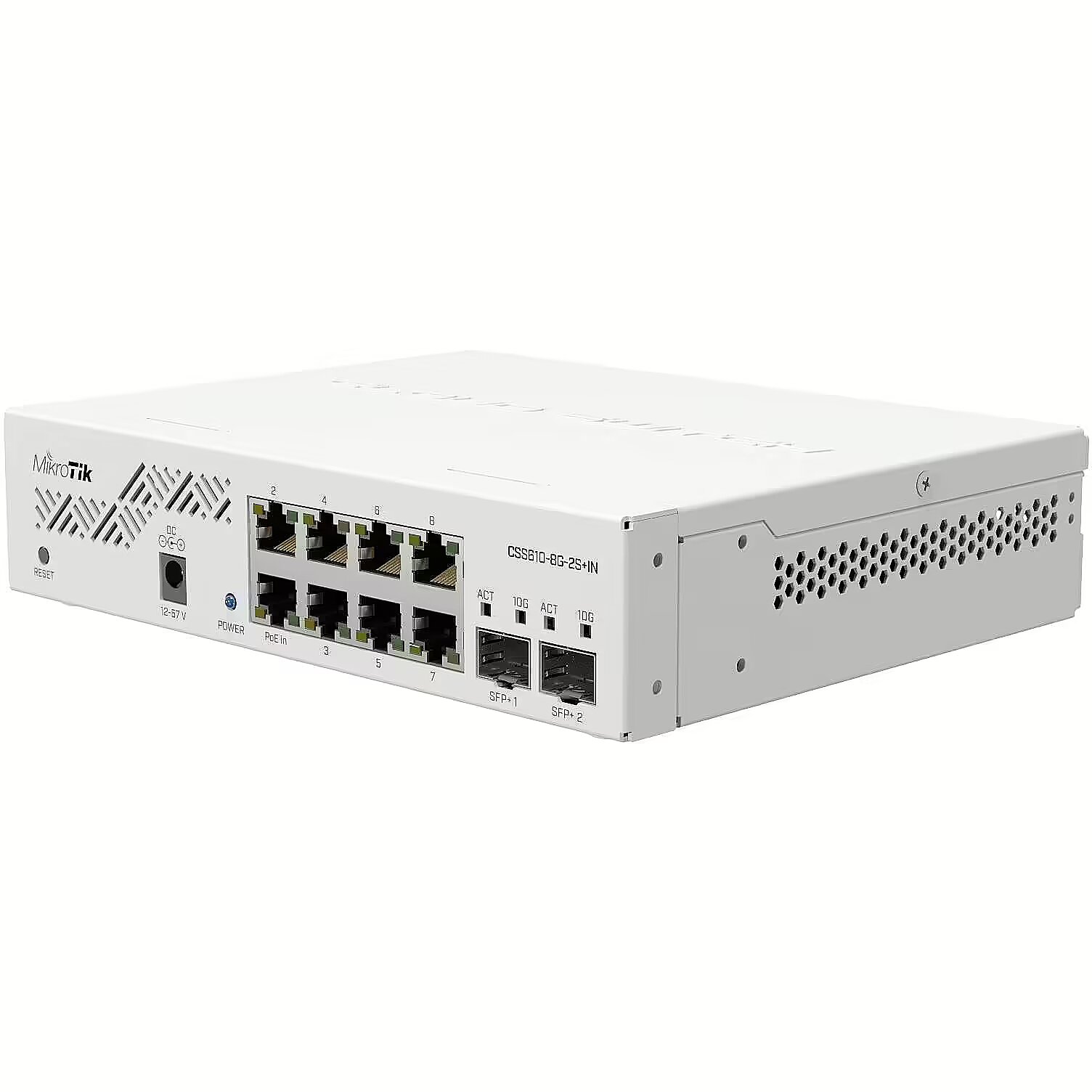

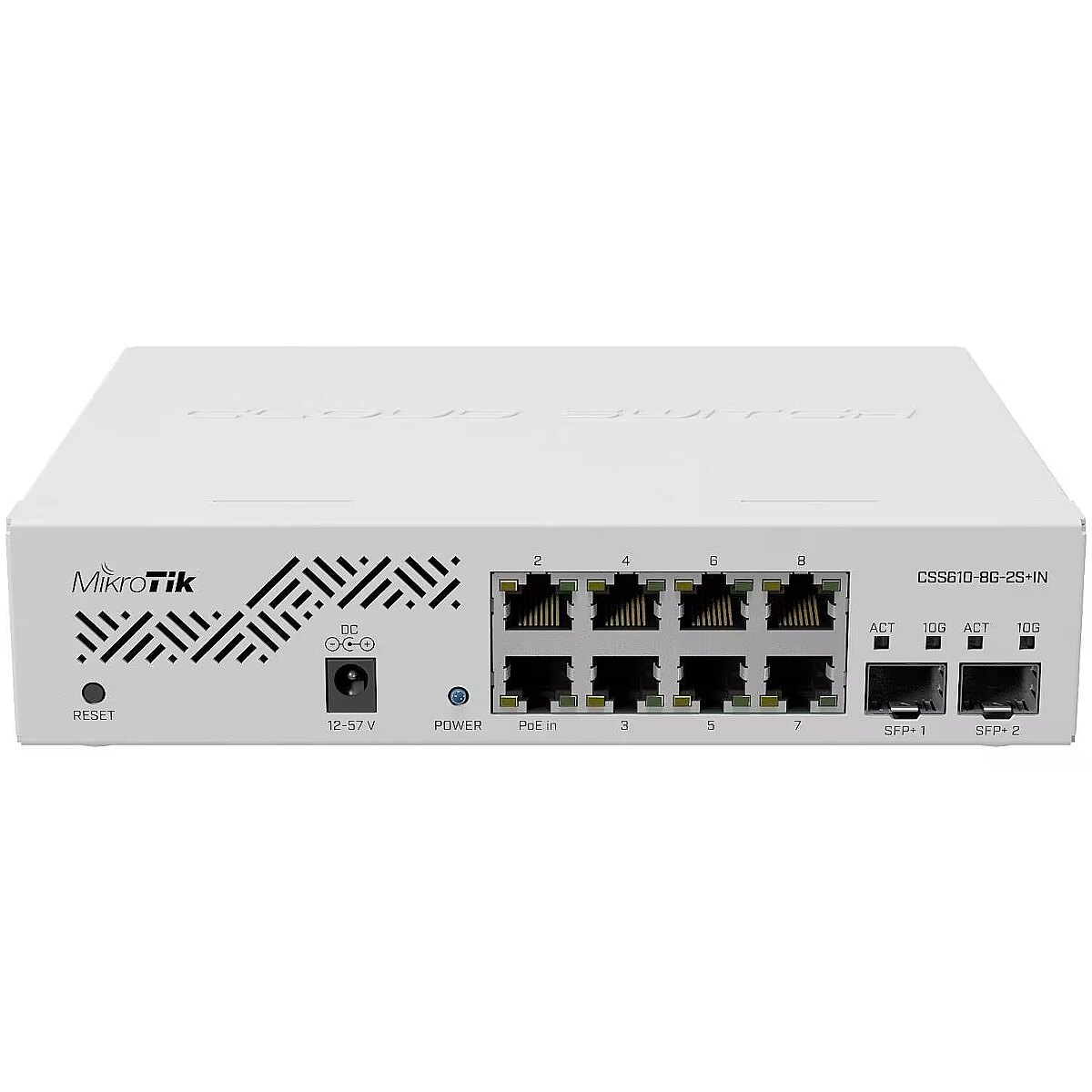

MikroTik CSS610-8G-2S+IN

Name: MikroTik CSS610-8G-2S+IN
Brand: MikroTik
SKU: 601278
Price: 103.24 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 601278 Product code: CSS610-8G-2S+IN

In stock 9 units

Warranty: 2 years (Warranty for business entities 1 year)

Compare

Delivery options

Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
Courier delivery 11.99 €: 19.11.2024

Main product parameters All parameters

Speed index: 1000
Type of device: Ethernet Bridge
Wi-Fi standard: N/A

Basic information

Speed index : 1000

Type of device Ethernet Bridge

Access Point - bezvadu piekļuves punkts, kas nodrošina kabeļu tīkla paplašināšanas pārraidi bezvadu tīklā izmantojot vienu LAN pieslēgvietu. Access point nav rūteris, un nespēj sadalīt vienu interneta pieslēguma adresi vairākiem datoriem, tamdēļ šo iekārtu slēdziet tikai aiz esoša kabeļu rūtera.

Router, jeb maršrutētājs - bezvadu piekļuves punkts, kas nodrošina viena interneta pieslēguma sadalīšanu vairākiem datoriem, gan caur tīkla vadiem, gan bezvadu tīklā. Parasti bezvadu maršrutētājam ir viena kabeļu interneta pieslēgvieta, četras datoru pieslēgvietas (kuras var papildināt, izmantojot switch komutatoru) un antenas, kas nodrošina apraidi datoriem un citām WiFi iekārtām.

Range Extender - bezvadu tīkla apraides attāluma pastiprinātājs. Paredzēts esoša signāla pastiprināšanai, lai palielinātu uzveršanas un pārraides attālumu.

Wifi adapter - Bezvadu tīkla karte, paredzēta datora pieslēgšanai pie bezvadu WiFi rūtera vai piekļuves punkta. PCI, PCI-E ir paredzēti galddatoriem, savukārt PCMCIA un USB - portatīvajiem datoriem. Jāpiebilst, ka lielākā daļa portatīvo datoru jau rūpnīcā tiek komplektēti ar bezvadu tīkla kartēm.

USB tīkla karte ir pēdējā izvēle, jo USB2.0 caurlaidības ātrums ir samērā zems ~22MB/s, kas nozīmē to, ka netiks izmantots bezvadu tīkla maksimālais iespējamais ātrums. Ja ir iespēja, labāk izvēlēties kādu citu pieslēguma veidu.

Wi-Fi standard : N/A

Functionality

3G/4G support Nav

A possibility to put the SIM card of mobile operators or the USB Dongle adapter in the router providing access to the 3G mobile Internet.

Prior to buying a router with the 3G support you should verify whether the device supports the 3G USB Dongle receiver of the particular mobile communications operator at the manufacturer's website.

Band mode N/A

SingleBand is a standard wireless technology characteristic of all the modern wireless devices.

DualBand is 2.4GHz with an additional 5.0GHz channel providing better receiving of the signal and more stable high-speed operation. For using this function both devices, i.e. the router and the wireless network card, have to support the DualBand mode.

Ethernet 100/1000

LAN or ethernet cables connection slots operational mode.

10/100 MB.s is the standard speed characteristic of almost all the routers.

10/100/1000 MB.s, or GigaBit is tens of times faster standard which, in combination of GigaBit LAN network cards, provides great data transmission speed advantages between computers connected within the internal network. This solution is usually required in offices where large data volumes are copied between computers or fast Internet connection is used (no ~30 MB/s) simultaneously in several computers.

Ports and equipment

LAN ports : Eight Core

More detailed specification

Additional information in manufacturers website MikroTik CSS610-8G-2S+IN

10/100/1000/2500 Mbps ports - None
10Base-T / 100Base-TX / 1000Base-T Ports - 8
Accessories included -
Application - Home and small office
brand - MikroTik
category - Mājas un biroju tīkli > Komutatori > 1G komutatori
Category - Root/Electronics/Networks and communication/Switchers
Category 1 - Netzwerk
Category 2 - Switching Hubs
Category Code - SWI
Chassis type - Rack
Code - CSS610-8G-2S+IN
Description - Cloud Smart Switch 610-8G-2S+IN to nasza odpowiedź na wieczne zapotrzebowanie na większą moc w małej i prostej obudowie. Jest dostarczany z lekkim systemem SwOS, który można łatwo skonfigurować z przeglądarki internetowej. Zapewnia wszystkie podstawowe funkcje przełącznika zarządzanego i nie tylko: możesz zarządzać przekierowaniem między portami, stosować filtry MAC, konfigurować sieci VLAN, dublować ruch, stosować ograniczenia przepustowości, a nawet dostosowywać niektóre nagłówki MAC i IP pola.
Description - CSS610-8G-2S+IN Eight 1G Ethernet ports and two SFP+ ports for 10G fiber connectivity. Portable, powerful and extremely cost-effective – this switch is an instant classic! Cloud Smart Switch 610-8G-2S+IN is our answer to the everlasting demand for more power in a small and simple package. It comes with the lightweight SwOS which is easy to configure from your web browser. It gives you all the basic functionality for a managed switch, and more: you can manage port-to-port forwarding, broadcast storm control, apply MAC filters, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields.
Design > Form factor - Rackmountable
Desktop/pedestal Mounting Type - Yes
dimensionalWeight - 832
dimension depth - 60 mm
dimension height - 315 mm
Dimensions - 200 x 167 x 46 mm
dimension weight - 950 g
dimension width - 200 mm
EAN - 4752224006929
ean - 4752224006929
Eans - 4752224006929
Full Description Line - Desktop/pedestal|8x10Base-T / 100Base-TX / 1000Base-T|2xSFP+|Power supply External|Dimensions 200 x 167 x 46 mm|Unit Net Weight 0.85 kg
guarantee - 12
guarantee_type - normal
height - 0.075 m
L2 features -
L3 features -
length - 0.32 m
Link - https://mikrotik.com/product/css610_8g_2s_in
Management, monitoring, configuration -
Management features > Switch type - Web managed
Manufacturer - MikroTik
Mean time between failures (MTBF) - 100000 h
Model name - CSS610-8G-2S+IN
mpn - CSS610-8G-2S+IN
MPN - CSS610-8G-2S+IN
Name - 8P+2 Mikrotik CSS610-8G-2S+IN SFP+ POE M RM
Name - MikroTik CSS610-8G-2S+IN
name - MikroTik Switch 8x1GbE 2xSFP+ CSS610-8G-2S+I
Name - MikroTik | Cloud Router Switch | CSS610-8G-2S+IN | Web managed | Rackmountable | Gigabit Ethernet (copper) ports quantity 8 | SFP+ ports quantity 2
Network architecture - GigabitEthernet
Number of 10/100 Mbps ports - None
Number of 10/100/1000 Mbps ports - 8
Number of 10Gb ports - None
Number of COMBO ports - None
Number of PoE+ ports - None
Number of PoE ports (PoE & PoE+) - None
Number of QSFP+ ports - None
Number of SFP+ ports - 2
Number of SFP ports - None
Other features - System operacyjny: SwitchOS Lite Rozmiar pamięci: 64 KB Typ pamięci: FLASH Testowana temperatura otoczenia: -20°C do 60°C
Other functions -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 300.00 mm
Package features > Gross height (mm) - 75.00 mm
Package features > Gross weight - 0.90 kg
Package features > Gross width (mm) - 170.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 226 pc(s)
Package features > Paper/Pasteboard - 200.00 g
Package features > Plastic (No PET) - 160.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Ports & interfaces > Gigabit Ethernet (copper) ports quantity - 8
Ports & interfaces > POE - PoE passive
Ports & interfaces > Predominant port type - 10/100/1000 Mbps (RJ-45)
Ports & interfaces > SFP+ ports quantity - 2
Power consumption - 11 W
Power supply - External
Power supply - Liczba wejść DC: 2 (gniazdo DC, PoE-IN) Napięcie wejściowe gniazda DC: 12-57 V Maksymalny pobór mocy: 11 W Maksymalny pobór mocy bez załączników: 5W FAN count Passive PoE in Passive PoE Napięcie wejściowe PoE: 12-57 V
Primary port count - 8
producer - Mikrotik
Producer - MikroTik
producerCode - CSS610-8G-2S+IN
ProducerCode - CSS610-8G-2S+IN
Producer product family - Cloud Router Switch
Producer product name - CSS610-8G-2S+IN
productName - Switch Mikrotik CSS610-8G-2S+IN 10p Managed Gigabit/10G
productSize - Normal
QoS -
Security -
SFP+ Ports - 2
Shipping Box Depth Shipping/Package Box Dimensions - 31.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 6 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.94 kg
Shipping Box Width Shipping/Package Box Dimensions - 20 cm
ShortDescription -
sizeX - 200
sizeY - 320
sizeZ - 65
Supported protocols and standards -
Switch class - Managed
Technical details > Net weight - 0.70 kg
Technical details > Producer - MikroTik
title - MikroTik CSS610-8G-2S+IN
Unit Box Height - 0.06
Unit Box Length - 0.315
Unit Box Width - 0.2
Unit Brutto Volume - 0.00378 cubm
Unit Gross Weight - 0.94 kg
Unit Net Weight - 0.85 kg
Vendor Homepage - mikrotik.com/product/css610_8g_2s_in
vendpn - CSS610-8G-2S+IN
VLAN -
Warranty - 12
Warranty - 12 month(s)
Warranty - 12 months
warrantyLength - 24
warrantyType - G
Weight - 0.92
weight - 1.05 kg
weight - 937
width - 0.2 m
