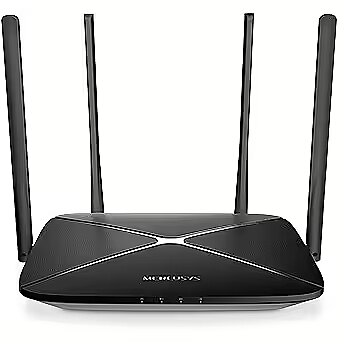

Mercusys AC12, AC1200 Dual Band Wireless Router

Name: Mercusys AC12, AC1200 Dual Band Wireless Router
Brand: Mercusys
SKU: 296541
Price: 28.15 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 296541 Product code: AC12G

In stock 41 units

Warranty: 2 years

Compare

Delivery options

Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
Courier delivery 11.99 €: 02.12.2024

Main product parameters All parameters

Speed index: 1200
Type of device: Router
Wi-Fi standard: Wi-Fi 5 (802.11ac)

Basic information

Speed index : 1200

Type of device Router

Access Point - bezvadu piekļuves punkts, kas nodrošina kabeļu tīkla paplašināšanas pārraidi bezvadu tīklā izmantojot vienu LAN pieslēgvietu. Access point nav rūteris, un nespēj sadalīt vienu interneta pieslēguma adresi vairākiem datoriem, tamdēļ šo iekārtu slēdziet tikai aiz esoša kabeļu rūtera.

Router, jeb maršrutētājs - bezvadu piekļuves punkts, kas nodrošina viena interneta pieslēguma sadalīšanu vairākiem datoriem, gan caur tīkla vadiem, gan bezvadu tīklā. Parasti bezvadu maršrutētājam ir viena kabeļu interneta pieslēgvieta, četras datoru pieslēgvietas (kuras var papildināt, izmantojot switch komutatoru) un antenas, kas nodrošina apraidi datoriem un citām WiFi iekārtām.

Range Extender - bezvadu tīkla apraides attāluma pastiprinātājs. Paredzēts esoša signāla pastiprināšanai, lai palielinātu uzveršanas un pārraides attālumu.

Wifi adapter - Bezvadu tīkla karte, paredzēta datora pieslēgšanai pie bezvadu WiFi rūtera vai piekļuves punkta. PCI, PCI-E ir paredzēti galddatoriem, savukārt PCMCIA un USB - portatīvajiem datoriem. Jāpiebilst, ka lielākā daļa portatīvo datoru jau rūpnīcā tiek komplektēti ar bezvadu tīkla kartēm.

USB tīkla karte ir pēdējā izvēle, jo USB2.0 caurlaidības ātrums ir samērā zems ~22MB/s, kas nozīmē to, ka netiks izmantots bezvadu tīkla maksimālais iespējamais ātrums. Ja ir iespēja, labāk izvēlēties kādu citu pieslēguma veidu.

Wi-Fi standard : Wi-Fi 5 (802.11ac)

Functionality

3G/4G support Nav

A possibility to put the SIM card of mobile operators or the USB Dongle adapter in the router providing access to the 3G mobile Internet.

Prior to buying a router with the 3G support you should verify whether the device supports the 3G USB Dongle receiver of the particular mobile communications operator at the manufacturer's website.

Band mode Dual-Band

SingleBand is a standard wireless technology characteristic of all the modern wireless devices.

DualBand is 2.4GHz with an additional 5.0GHz channel providing better receiving of the signal and more stable high-speed operation. For using this function both devices, i.e. the router and the wireless network card, have to support the DualBand mode.

Ethernet 100/1000

LAN or ethernet cables connection slots operational mode.

10/100 MB.s is the standard speed characteristic of almost all the routers.

10/100/1000 MB.s, or GigaBit is tens of times faster standard which, in combination of GigaBit LAN network cards, provides great data transmission speed advantages between computers connected within the internal network. This solution is usually required in offices where large data volumes are copied between computers or fast Internet connection is used (no ~30 MB/s) simultaneously in several computers.

Ports and equipment

LAN ports : 3

Wireless card

Without
WiFi Adapter USB (+8.67 €)
Gembird Adapter Mini USB WiFi 300 Mbps
Alternatives
WiFi Adapter PCI-E 1x (+13.16 €)
TP-LINK TL-WN781ND, PCI-E x1 WiFi Adapter
Alternatives

More detailed specification

Additional information in manufacturers website Mercusys AC12, AC1200 Dual Band Wireless Router

1 WAN Fixed ports - Yes
10/100/1000M LAN Ports - 3
Antenna > Antennas quantity - 4 Omni-Directional Antennas
Antenna > Antenna type - 4xFixed
Antenna Type - Omni-Directional
Available bandwidth - 1167 Mbps
Category - Root/Electronics/Networks and communication/Routers
Category - Tīkla produkti, Gudrā māja :: Maršrutētāji / Rūteri
Category Code - WRO
Code - AC12G
Desc - Portu ātrums: 10/100/1000 Mb/s, Tips: LAN/Wifi, WiFi protokoli: IEEE 802.11a/b/g/n/ac, WiFi ātrums: 1167 Mb/s, Bāzes portu skaits: 3, Ugunsmūris | Firewall: Nav, Garantija: 2 gadi
Description - MERCUSYS AC1200 Wireless Dual Band Gigabit Router + AC1200 dual band Wi-Fi — speeds of up to 300 Mbps on the 2.4 GHz band and 867 Mbps on the 5 GHz band + Full gigabit ports — lightning-fast connections for wired devices, including game consoles, STBs, smart TVs and more + Share with up to 60 devices — internet access for multiple streaming simultaneously + 4 high gain external antennas — powerful wireless coverage throughout your house + Easy installation — intuitive webpage guides you through the setup process in minutes
Design > Colour of product - Black
dimensionalWeight - 1563
Dimensions - 222 × 140 × 32 mm
EAN -
EAN - 6935364099787
Eans - 6935364099787
Features - Certification - FCC, UL, CE, Wi-Fi (802.11b, 802.11g), WPA2, WMM
Features > Mesh Support - No
Features > Mobile Broadband - No mobile broadband
Features > MU-MiMO - No
Full Description Line - Wireless Router|Available bandwidth 1167 Mbps|IEEE 802.11ac|1 WAN|3x10/100/1000M|WPA - Wi-Fi Protected Access|WPA2 - Wi-Fi Protected Access|Antenna Type Omni-Directional|Number of antennas 4|Wireless Frequency Range 2.4 - 2.5 ГГц, 5.15 - 5.85 ГГц|Included Accessories Power Adapter;Ethernet Cable;Quick Installation Guide|Power supply requirements 9 VDC/ 0.85 A|Dimensions 222 × 140 × 32 mm
IEEE 802.11ac Network standard - Yes
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_58328_1.jpg
Included Accessories - Power Adapter;
Ethernet Cable;
Quick Installation Guide
LargeDescHTML -
Link - https://www.mercusys.com/en/product/details/ac12g
Name - AC1200 Wireless Dual Band Gigabit Router | AC12G | 802.11ac | 300+867 Mbit/s | 10/100/1000 Mbit/s | Ethernet LAN (RJ-45) ports 3 | Mesh Support No | MU-MiMO No | No mobile broadband | Antenna type 4xFixed | No
Name - Mercusys AC12G
Name - Mercusys AC12G Black
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.11ac
Network - Networking standards - IEEE 802.11b
Network - Networking standards - IEEE 802.11g
Network - Networking standards - IEEE 802.11n
Network Device Type - Wireless Router
Number of antennas - 4
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - Dimensions (WxDxH) - 222 x 140 x 32 mm
Other features - Power supply type - 9V DC, 0.85A
Other features > Ethernet LAN (RJ-45) ports - 3
Other features > USB ports quantity - No
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 385 mm
Package features > Gross depth master carton - 595 mm
Package features > Gross height (mm) - 285 mm
Package features > Gross height master carton - 360 mm
Package features > Gross width (mm) - 65 mm
Package features > Gross width master carton - 400 mm
Package features > Net weight master carton - 7.3 kg
Package features > Packing quantity - 10 pc(s)
Package features > Palette Qty - 200 pc(s)
Package features > Paper/Pasteboard - 384.00 g
Package features > Plastic (No PET) - 96.00 g
Package features > Tare weight (kg) - 0.48 kg
Package features > Tare weight master carton - 1.457 kg
Package features > TI weight (kg) - 0.15 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.007132125 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Performance > Ethernet LAN data rates - 10/100/1000 Mbit/s
Performance > Wi-Fi data rate (max) - 300+867 Mbit/s
Ports & interfaces - Ethernet LAN (RJ-45) ports - 3
Ports & interfaces > WAN connection - 1×Gigabit WAN Port
Power supply requirements - 9 VDC/ 0.85 A
Producer - Mercusys
producerCode - AC12G
ProducerCode - AC12G
Producer product family - AC1200 Wireless Dual Band Gigabit Router
Producer product name - AC12G
productName - ROUTER MERCUSYS AC12G
productSize - Normal
Protocols - DHCP server - Yes
Protocols - Management protocols - HTTP
Protocols - Supported network protocols - DHCP
Security - Security algorithms - WPA-PSK
Security - Security algorithms - WPA2-PSK
Shipping Box Depth Shipping/Package Box Dimensions - 38 cm
Shipping Box Height Shipping/Package Box Dimensions - 6.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.758 kg
Shipping Box Width Shipping/Package Box Dimensions - 29 cm
ShortDescription - Obsługa standardu 802.11ac - nowej generacji połączeń bezprzewodowych
sizeX - 385
sizeY - 290
sizeZ - 70
Technical details > Gross weight - 0.73 kg
Technical details > Net weight - 0.25 kg
Technical details > Producer - Mercusys
Unit Brutto Volume - 0.007163 cubm
Unit Gross Weight - 0.758 kg
Unit Net Weight - 0.5 kg
Vendor Homepage - www.mercusys.com/en/product/details/AC12G
Warranty - 24
Warranty - 24 month(s)
Warranty - 36 months
warrantyLength - 36
warrantyType - G
weight - 775
Wireless Frequency Range - 2.4 - 2.5 ГГц, 5.15 - 5.85 ГГц
Wireless LAN features > Wi-Fi band - 802.11ac
WPA - Wi-Fi Protected Access Security - Yes
WPA2 - Wi-Fi Protected Access Security - Yes
