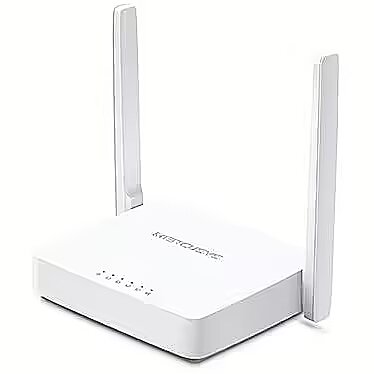

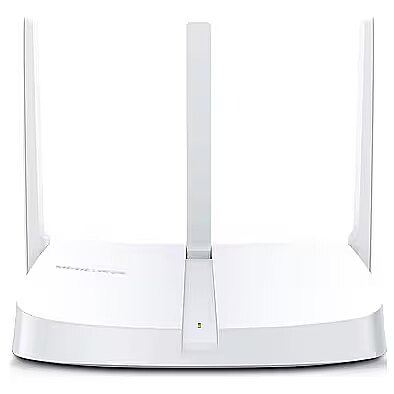

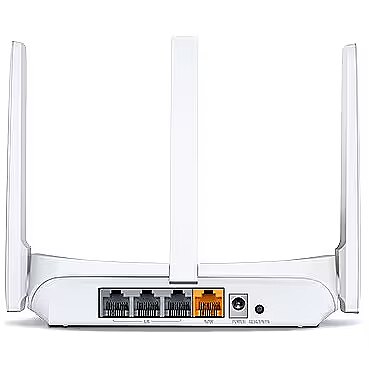

Mercusys WRL ROUTER 300MBPS 10/100M/4PORT MW305R

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 191411 Product code: MW305R
In stock 27 units
Warranty: 2 years
17.34 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: on Thursday, 14.11.2024
Main product parameters All parameters
  • Speed index: 300
  • Type of device: Router
  • Wi-Fi standard: Wi-Fi 4 (802.11n)
Basic information
Speed index : 300
Type of device Router

Access Point - bezvadu piekļuves punkts, kas nodrošina kabeļu tīkla paplašināšanas pārraidi bezvadu tīklā izmantojot vienu LAN pieslēgvietu. Access point nav rūteris, un nespēj sadalīt vienu interneta pieslēguma adresi vairākiem datoriem, tamdēļ šo iekārtu slēdziet tikai aiz esoša kabeļu rūtera.

Router, jeb maršrutētājs - bezvadu piekļuves punkts, kas nodrošina viena interneta pieslēguma sadalīšanu vairākiem datoriem, gan caur tīkla vadiem, gan bezvadu tīklā. Parasti bezvadu maršrutētājam ir viena kabeļu interneta pieslēgvieta, četras datoru pieslēgvietas (kuras var papildināt, izmantojot switch komutatoru) un antenas, kas nodrošina apraidi datoriem un citām WiFi iekārtām.

Range Extender - bezvadu tīkla apraides attāluma pastiprinātājs. Paredzēts esoša signāla pastiprināšanai, lai palielinātu uzveršanas un pārraides attālumu.

Wifi adapter - Bezvadu tīkla karte, paredzēta datora pieslēgšanai pie bezvadu WiFi rūtera vai piekļuves punkta. PCI, PCI-E ir paredzēti galddatoriem, savukārt PCMCIA un USB - portatīvajiem datoriem. Jāpiebilst, ka lielākā daļa portatīvo datoru jau rūpnīcā tiek komplektēti ar bezvadu tīkla kartēm.

USB tīkla karte ir pēdējā izvēle, jo USB2.0 caurlaidības ātrums ir samērā zems ~22MB/s, kas nozīmē to, ka netiks izmantots bezvadu tīkla maksimālais iespējamais ātrums. Ja ir iespēja, labāk izvēlēties kādu citu pieslēguma veidu.

Wi-Fi standard : Wi-Fi 4 (802.11n)
Functionality
3G/4G support Nav

A possibility to put the SIM card of mobile operators or the USB Dongle adapter in the router providing access to the 3G mobile Internet.

Prior to buying a router with the 3G support you should verify whether the device supports the 3G USB Dongle receiver of the particular mobile communications operator at the manufacturer's website.

Band mode Single Band

SingleBand is a standard wireless technology characteristic of all the modern wireless devices.

DualBand is 2.4GHz with an additional 5.0GHz channel providing better receiving of the signal and more stable high-speed operation. For using this function both devices, i.e. the router and the wireless network card, have to support the DualBand mode.

Ethernet 10/100

LAN or ethernet cables connection slots operational mode.

10/100 MB.s is the standard speed characteristic of almost all the routers.

10/100/1000 MB.s, or GigaBit is tens of times faster standard which, in combination of GigaBit LAN network cards, provides great data transmission speed advantages between computers connected within the internal network. This solution is usually required in offices where large data volumes are copied between computers or fast Internet connection is used (no ~30 MB/s) simultaneously in several computers.



Ports and equipment
LAN ports : 3
Wireless card
More detailed specification
64, 128, 152-bit WEP Security - Yes
Antenna > Antenna type - 3xFixed
Antenna Type - Omni-Directional
Available bandwidth - 300 Mbps
Category - Root/Electronics/Networks and communication/Routers
Category - Tīkla produkti, Gudrā māja :: Maršrutētāji / Rūteri
Category Code - WRO
Code - MW305R
Desc - Portu ātrums: 10/100 Mb/s, Tips: LAN/Wifi, WiFi protokoli: IEEE 802.11b/g/n, WiFi ātrums: 300 Mb/s, Bāzes portu skaits: 3, Ugunsmūris | Firewall: Ir, Garantija: 2 gadi
Description - MERCUSYS MW305R 300Mbps Wireless N Router + 300Mbps wireless speed is ideal for HD streaming, online gaming, and large file downloads + Two 5dBi antennas greatly increase wireless signal strength, size and stability + Intuitive webpage guides you through the setup process in minutes Excellent Wi-Fi Performance Broad Wi-Fi Coverage With its three 5dBi antennas that work to boost its reception and signal sensitivity, the MW305R provides broad wireless coverage. 300Mbps Wireless Speed The MW305R provides fast, stable Wi-Fi for your connected devices. Wireless speeds of up to 300Mbps make it ideal for HD streaming, online gaming, and rapid file downloads. Convenient, Compact Design Advances in R&D have allowed us to create a router that fits in the palm of your hand, without compromising its performance. High quality components, including the MediaTek Chipset, sit at the core of the router, allowing it to be as powerful as it is small.
Design > Colour of product - White
Dimensions - 114 x 94 x 26 mm
EAN -
EAN - 6957939000400
Eans - 6957939000400
Features > Mesh Support - No
Features > Mobile Broadband - No mobile broadband
Features > MU-MiMO - No
Full Description Line - Wireless Router|Available bandwidth 300 Mbps|IEEE 802.11b|IEEE 802.11g|IEEE 802.11n|64, 128, 152-bit WEP|WPA - Wi-Fi Protected Access|WPA2 - Wi-Fi Protected Access|Antenna Type Omni-Directional|Number of antennas 2|Wireless Frequency Range 2.4 - 2.4835GHz|Wireless Transmit Power 20 dBm|Power supply requirements 5VDC/0.6A|Dimensions 114 x 94 x 26 mm
IEEE 802.11b Network standard - Yes
IEEE 802.11g Network standard - Yes
IEEE 802.11n Network standard - Yes
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_61228_1.jpg
LargeDescHTML -
Link - https://www.mercusys.com/ar/product/details/mw305r
Name - Mercusys MW305R
Name - Wireless N Router | MW305R | 802.11n | 300 Mbit/s | 10/100 Mbit/s | Ethernet LAN (RJ-45) ports 3 | Mesh Support No | MU-MiMO No | No mobile broadband | Antenna type 3xFixed | No
Network Device Type - Wireless Router
Number of antennas - 2
Other features > Ethernet LAN (RJ-45) ports - 3
Other features > USB ports quantity - No
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 270 mm
Package features > Gross depth master carton - 555 mm
Package features > Gross height (mm) - 200 mm
Package features > Gross height master carton - 365 mm
Package features > Gross width (mm) - 70 mm
Package features > Gross width master carton - 415 mm
Package features > Net weight master carton - 8.96 kg
Package features > Packing quantity - 20 pc(s)
Package features > Palette Qty - 400 pc(s)
Package features > Paper/Pasteboard - 232.00 g
Package features > Plastic (No PET) - 58.00 g
Package features > Tare weight (kg) - 0.29 kg
Package features > Tare weight master carton - 1.429 kg
Package features > TI weight (kg) - 0.15 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.00378 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Performance > Ethernet LAN data rates - 10/100 Mbit/s
Performance > Wi-Fi data rate (max) - 300 Mbit/s
Ports & interfaces > WAN connection - 1*10/100Mbps WAN Port
Power supply requirements - 5VDC/0.6A
Producer - Mercusys
ProducerCode - MW305R
Producer product family - Wireless N Router
Producer product name - MW305R
Shipping Box Depth Shipping/Package Box Dimensions - 20.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 3.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.32 kg
Shipping Box Width Shipping/Package Box Dimensions - 16.5 cm
ShortDescription -
Technical details > Gross weight - 0.448 kg
Technical details > Net weight - 0.158 kg
Technical details > Producer - Mercusys
Unit Box Height - 0.035
Unit Box Length - 0.205
Unit Box Width - 0.165
Unit Brutto Volume - 0.001184 cubm
Unit Gross Weight - 0.32 kg
Unit Net Weight - 0.25 kg
Vendor Homepage - www.mercusys.com/en/products/details/cat-2_MW305R.html#specifications
Warranty - 24
Warranty - 24 month(s)
Warranty - 36 months
Wireless Frequency Range - 2.4 - 2.4835GHz
Wireless LAN features > Wi-Fi band - 802.11n
Wireless Transmit Power - 20 dBm
WPA - Wi-Fi Protected Access Security - Yes
WPA2 - Wi-Fi Protected Access Security - Yes
