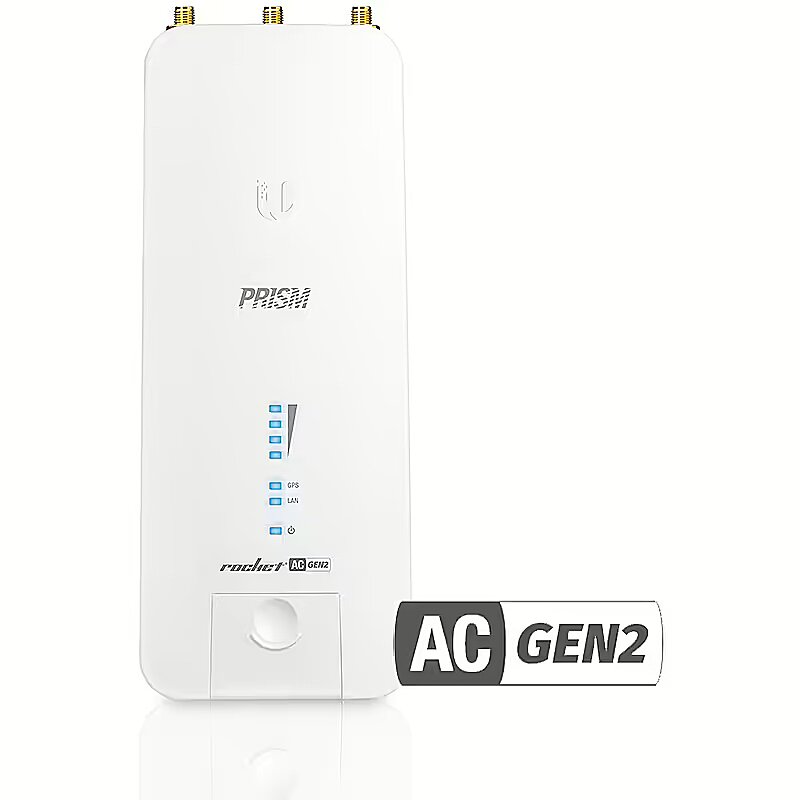

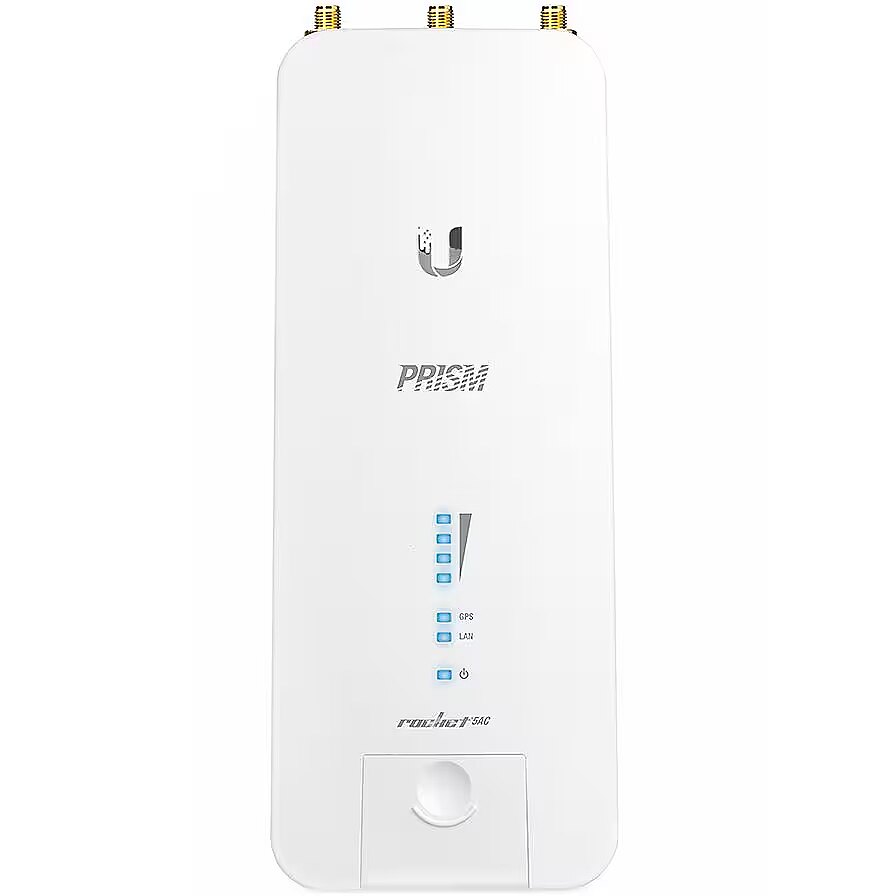

Ubiquiti Rocket Prism BaseStation

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 170194 Product code: RP-5AC-Gen2
In stock 2 units
Warranty: 2 years (Warranty for business entities 1 year)
256.02 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: 02.12.2024
Main product parameters All parameters
  • Speed index: N/A
  • Type of device: Access Point
  • Wi-Fi standard: N/A
Basic information
Speed index : N/A
Type of device Access Point

Access Point - bezvadu piekļuves punkts, kas nodrošina kabeļu tīkla paplašināšanas pārraidi bezvadu tīklā izmantojot vienu LAN pieslēgvietu. Access point nav rūteris, un nespēj sadalīt vienu interneta pieslēguma adresi vairākiem datoriem, tamdēļ šo iekārtu slēdziet tikai aiz esoša kabeļu rūtera.

Router, jeb maršrutētājs - bezvadu piekļuves punkts, kas nodrošina viena interneta pieslēguma sadalīšanu vairākiem datoriem, gan caur tīkla vadiem, gan bezvadu tīklā. Parasti bezvadu maršrutētājam ir viena kabeļu interneta pieslēgvieta, četras datoru pieslēgvietas (kuras var papildināt, izmantojot switch komutatoru) un antenas, kas nodrošina apraidi datoriem un citām WiFi iekārtām.

Range Extender - bezvadu tīkla apraides attāluma pastiprinātājs. Paredzēts esoša signāla pastiprināšanai, lai palielinātu uzveršanas un pārraides attālumu.

Wifi adapter - Bezvadu tīkla karte, paredzēta datora pieslēgšanai pie bezvadu WiFi rūtera vai piekļuves punkta. PCI, PCI-E ir paredzēti galddatoriem, savukārt PCMCIA un USB - portatīvajiem datoriem. Jāpiebilst, ka lielākā daļa portatīvo datoru jau rūpnīcā tiek komplektēti ar bezvadu tīkla kartēm.

USB tīkla karte ir pēdējā izvēle, jo USB2.0 caurlaidības ātrums ir samērā zems ~22MB/s, kas nozīmē to, ka netiks izmantots bezvadu tīkla maksimālais iespējamais ātrums. Ja ir iespēja, labāk izvēlēties kādu citu pieslēguma veidu.

Wi-Fi standard : N/A
Functionality
3G/4G support Nav

A possibility to put the SIM card of mobile operators or the USB Dongle adapter in the router providing access to the 3G mobile Internet.

Prior to buying a router with the 3G support you should verify whether the device supports the 3G USB Dongle receiver of the particular mobile communications operator at the manufacturer's website.

Band mode N/A

SingleBand is a standard wireless technology characteristic of all the modern wireless devices.

DualBand is 2.4GHz with an additional 5.0GHz channel providing better receiving of the signal and more stable high-speed operation. For using this function both devices, i.e. the router and the wireless network card, have to support the DualBand mode.

Ethernet 100/1000

LAN or ethernet cables connection slots operational mode.

10/100 MB.s is the standard speed characteristic of almost all the routers.

10/100/1000 MB.s, or GigaBit is tens of times faster standard which, in combination of GigaBit LAN network cards, provides great data transmission speed advantages between computers connected within the internal network. This solution is usually required in offices where large data volumes are copied between computers or fast Internet connection is used (no ~30 MB/s) simultaneously in several computers.



Ports and equipment
LAN ports : 1
Wireless
  • Alternatives
  • Alternatives
More detailed specification
Additional information in manufacturers website Ubiquiti Rocket Prism BaseStation
10/100/1000M LAN Ports - 1
Accessories included - 24V, 1A Gigabit PoE Adapter
Antenna connector - RP-SMA
Box Weight Brutto (kg) - 0.4 kg
brand - Ubiquiti
category - Ubiquiti > Āra Wi-Fi > airMAX 5 GHz
Category Code - WOD
Certifications - CE, FCC, IC
Color - White
CPU - MIPS 74Kc
Data Link Protocol Supports - Gigabit Ethernet/Fast Ethernet/Ethernet
Data transmission speed - 500 Mbps
Depth (mm) - 230 mm
Description - airMAX ac BaseStation with airPrism RP-5AC-Gen2 technology
Rocket Prism access points use high-performance airMAX ac and airPrism technologies for maximum wireless performance in high-density areas, both in 5 and 2.4 GHz.
Wi-Fi Radio management
Rocket Prism AC integrates a separate Wi-Fi radio for quick and easy configuration using a mobile device.
Improved surge protection
Rocket Prism AC offers better protection against electrostatic discharge events.
GPS synchronization
Rocket Prism AC supports GPS Sync for faster, more scalable carrier-class networks, 90% higher than competitive solutions.
Revolutionary filtering technology
Ubiquiti's patented airPrism technology provides groundbreaking radio selectivity in unlicensed wireless band operation. AirPrism technology isolates operating channel signals to increase throughput and throughput in colocation deployments.
Designed for high performance
Rocket Prism AC has an electromagnetic shielded metal housing, GPS, airPrism circuit assembly and airView real-time spectrum analyzer to ensure maximum spectral efficiency / bandwidth.
5 and 2.4 GHz full range
Rocket Prism 5AC provides full coverage of the 5 GHz spectrum with a single radio. The 2.4 GHz band is covered by Rocket Prism 2AC.
Now with airOS 8
airOS 8 offers advanced features, including support for the airMAX ac protocol, real-time RF analysis and a completely new usability design.
Description - Rocket® Prism access points incorporate high-performance airMAX ac and airPrism technologies for maximum performance of wireless networks in high-density areas, in both 5 and 2.4 GHz.
Design - Certification - FCC, IC, CE
Design - LED indicators - LAN
Design - LED indicators - Power
Design - LED indicators - Signal strength
Design - Product colour - White
Device Location - External
dimensionalWeight - 649
dimension depth - 90 mm
dimension height - 280 mm
Dimensions - 88 x 40 x 230 mm
Dimensions - 88 x 40 x 230mm
dimension weight - 1010 g
dimension width - 120 mm
ean - 817882020268
EAN - 0817882020268
EAN Code - 817882020268
External Color - White
Features - 5 GHz - Yes
Features - Ethernet LAN data rates - 10
Features - Ethernet LAN data rates - 100 Mbit/s
Features - Ethernet LAN data rates - 1000
Features - Quality of Service (QoS) support - Yes
Features - VLAN support - Yes
Full Description Line - Network Device Type Base Station|Data transmission speed 500 Mbps|Wireless Frequency Range 5 GHz|Dimensions 88 x 40 x 230mm
GPS-Antenna - 1 (RP-SMA (Waterproof))
guarantee - 12
guarantee_type - normal
height - 0.11 m
Height (mm) - 40 mm
I/O ports - 1 x 10/100/1000 Mbit/s
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/170619140008783515.jpg
Included Accessories - Mount kit PoE Adapter
Interface - Ethernet
LAN - 1 (RJ-45)
length - 0.28 m
Local Area Network Architecture - 10Base-T/100Base-TX/1000Base-TX
Management, monitoring, configuration -
Maximum Operating Ambient Temperature - 80 °C
Maximum Operating Humidity - 95 %
Minimum Operating Ambient Temperature - -40 °C
Minimum Operating Humidity - 5 %
mpn - RP-5AC-Gen2
name - BaseStation Rocket Prism RP-5AC-Gen2
Network architecture - GigabitEthernet
Network Device Type - Base Station
Networking Features - Power over Ethernet (PoE)
Networking Form Factor - External
Nominal Weight - 0.4 kg
Number of Ports - 1
Operating frequency - 5 GHz
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - -40 - 80 °C
Other features - Memory: 128 MB DDR2 SDRAM
Package Type - Other
Packaging data - Bundled software - Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test
Packs in Box - 1
Pack Weight Brutto (kg) - 0.4 kg
Performance - Built-in processor - Yes
Performance - Internal memory - 128 MB
Pieces in pack - 1
PoE Adapter - External
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - Input current - 1 A
Power - Input voltage - 24 V
Power - Power consumption (max) - 9.5 W
Power - Power over Ethernet (PoE) - Yes
Power Consumption Operational - 9.5 W
Power supply - 24V, 1A Gigabit PoE Adapter
producer - UBIQUITI
producerCode - RP-5AC-Gen2
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=170614105022391269&THEME=asbis&LANG=lv
ProductCategory - Tīkla produkti
ProductCode - RP-5AC-GEN2-EU
ProductDescription - UBIQUITI Rocket Prism 5AC Gen2, EU
productName - Ubiquiti Networks RP-5AC-Gen2 WLAN access point Power over Ethernet (PoE) White
productSize - Normal
ProductType - Networking - Wireless Outdoor Access Point
Protocols - DHCP client - Yes
RAM - 128 MB DDR2 SDRAM
Retail Packaging Net Weight Carton - 0.4 kg
Retail Packaging Net Weight Plastic - 0.4 kg
RF - 2 (RP-SMA (Waterproof))
Security -
Security - Security algorithms - WPA2-AES
Shipping Box Depth Shipping/Package Box Dimensions - 47 cm
Shipping Box Height Shipping/Package Box Dimensions - 26 cm
Shipping box quantity - 10
Shipping Box Weight Shipping/Package Box Dimensions - 5 kg
Shipping Box Width Shipping/Package Box Dimensions - 28 cm
sizeX - 280
sizeY - 122
sizeZ - 95
Software -
Special functions -
Status Indicator - Activity Status
System Requirements -
title - Ubiquiti airMAX Rocket Prism 5AC
Unit Box Height - 0.14
Unit Box Length - 0.3
Unit Box Width - 0.15
Unit Brutto Volume - 0.003422 cubm
Unit Gross Weight - 0.5 kg
Unit Net Weight - 0.4 kg
Uplink Port Type - 1 x 10Base-T/100Base-TX/1000Base-T
Usage - Outside
Vendor - UBIQUITI
Vendor Homepage - www.ubnt.com/airmax/rocket-prism-ac/
vendpn - RP-5AC-Gen2-EU
Warranty - 12 months
Warranty - 12 months warranty from the date of sale
warrantyLength - 24
Warranty Products Returnable - Yes
Warranty Term (month) - 24
Warranty Term Notes - 24 months - for EU
warrantyType - G
Warranty Validation Criteria - Serial Number
Weight - 0.4 kg
weight - 1.17 kg
weight - 1083
Weight & dimensions - Depth - 40 mm
Weight & dimensions - Height - 230 mm
Weight & dimensions - Weight - 400 g
Weight & dimensions - Width - 88 mm
width - 0.12 m
Width (mm) - 88 mm
Wireless Frequency Range - 5 GHz
