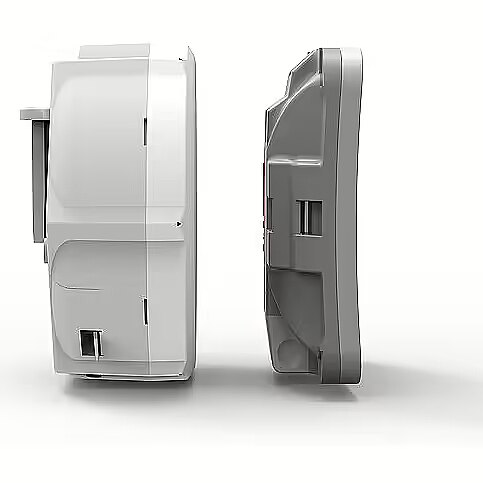

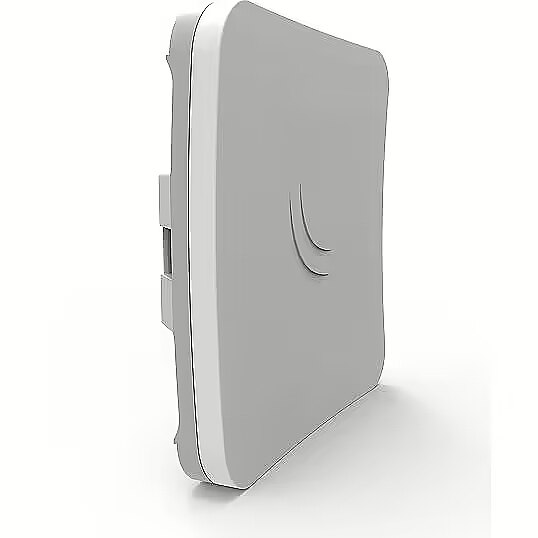

MikroTik RBSXTSQ5ND Access Point

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 166988 Product code: RBSXTSQ5ND
In stock 15 units
Warranty: 2 years (Warranty for business entities 1 year)
43.73 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: on Thursday, 28.11.2024
Main product parameters All parameters
  • Speed index: N/A
  • Type of device: Access Point
Basic information
Speed index : N/A
Type of device Access Point

Access Point - bezvadu piekļuves punkts, kas nodrošina kabeļu tīkla paplašināšanas pārraidi bezvadu tīklā izmantojot vienu LAN pieslēgvietu. Access point nav rūteris, un nespēj sadalīt vienu interneta pieslēguma adresi vairākiem datoriem, tamdēļ šo iekārtu slēdziet tikai aiz esoša kabeļu rūtera.

Router, jeb maršrutētājs - bezvadu piekļuves punkts, kas nodrošina viena interneta pieslēguma sadalīšanu vairākiem datoriem, gan caur tīkla vadiem, gan bezvadu tīklā. Parasti bezvadu maršrutētājam ir viena kabeļu interneta pieslēgvieta, četras datoru pieslēgvietas (kuras var papildināt, izmantojot switch komutatoru) un antenas, kas nodrošina apraidi datoriem un citām WiFi iekārtām.

Range Extender - bezvadu tīkla apraides attāluma pastiprinātājs. Paredzēts esoša signāla pastiprināšanai, lai palielinātu uzveršanas un pārraides attālumu.

Wifi adapter - Bezvadu tīkla karte, paredzēta datora pieslēgšanai pie bezvadu WiFi rūtera vai piekļuves punkta. PCI, PCI-E ir paredzēti galddatoriem, savukārt PCMCIA un USB - portatīvajiem datoriem. Jāpiebilst, ka lielākā daļa portatīvo datoru jau rūpnīcā tiek komplektēti ar bezvadu tīkla kartēm.

USB tīkla karte ir pēdējā izvēle, jo USB2.0 caurlaidības ātrums ir samērā zems ~22MB/s, kas nozīmē to, ka netiks izmantots bezvadu tīkla maksimālais iespējamais ātrums. Ja ir iespēja, labāk izvēlēties kādu citu pieslēguma veidu.

Functionality
3G/4G support Nav

A possibility to put the SIM card of mobile operators or the USB Dongle adapter in the router providing access to the 3G mobile Internet.

Prior to buying a router with the 3G support you should verify whether the device supports the 3G USB Dongle receiver of the particular mobile communications operator at the manufacturer's website.

Band mode N/A

SingleBand is a standard wireless technology characteristic of all the modern wireless devices.

DualBand is 2.4GHz with an additional 5.0GHz channel providing better receiving of the signal and more stable high-speed operation. For using this function both devices, i.e. the router and the wireless network card, have to support the DualBand mode.

Ethernet N/A

LAN or ethernet cables connection slots operational mode.

10/100 MB.s is the standard speed characteristic of almost all the routers.

10/100/1000 MB.s, or GigaBit is tens of times faster standard which, in combination of GigaBit LAN network cards, provides great data transmission speed advantages between computers connected within the internal network. This solution is usually required in offices where large data volumes are copied between computers or fast Internet connection is used (no ~30 MB/s) simultaneously in several computers.



Ports and equipment
LAN ports : 0
Wireless
  • Alternatives
  • Alternatives
More detailed specification
Additional information in manufacturers website MikroTik RBSXTSQ5ND Access Point
10/100M LAN Ports - 1
Antenna - Antenna gain level (max) - 16 dBi
brand - MikroTik
category - MikroTik > Bezvadu sistēmas > SXT & DiscLite
Category Code - WOD
CPU - AR9344 600Mhz
Description - The SXTsq Lite5 is a compact and lightweight outdoor wireless device with an integrated antenna. Perfect for point to point links of up to 12 kilometers or as a CPE unit. It is compact, weatherproof and easy to mount. The SXTsq Lite5 retains a 16dBi antenna like the SXT Lite5, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced - the SXTsq is two times thinner. The device can be mounted on horizontal and vertical poles and masts, but for precise alignment, separately available is the QuickMount Pro, which allows to adjust in every angle.
Design - Internal - No
Design - Product colour - White
dimensionalWeight - 734
EAN - 4752224004659
Features - 2.4 GHz - No
Features - 5 GHz - Yes
Features - Ethernet LAN data rates - 10
Features - Ethernet LAN data rates - 100
Features - Networking standards - IEEE 802.11a
Features - Networking standards - IEEE 802.11n
Features - Receiver sensitivity - 6MBit/s 25 dBm -96
54MBit/s 20 -80
MCS0 25 -96
MCS7 19 -75
Full Description Line - Network Device Type Wireless Access Point|SXTsq Lite5 // RBSXTsq5nD|IEEE 802.11a|IEEE 802.11n|Wireless Frequency Range 5Ghz
height - 0.054 m
IEEE 802.11a Network standard - Yes
IEEE 802.11n Network standard - Yes
length - 0.26 m
Logistics data - Harmonized System (HS) code - 85176990
Model name - SXTsq Lite5 // RBSXTsq5nD
mpn - RBSXTsq5nD
Network Device Type - Wireless Access Point
Operational conditions - Operating relative humidity (H-H) - -40 - 70%
Performance - Built-in processor - Yes
Performance - Flash memory - 16 MB
Performance - Internal memory - 64 MB
Performance - Operating system installed - RouterOS
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Power - AC input voltage - 10 - 30 V
Power - Power consumption (max) - 6 W
Power - Power over Ethernet (PoE) - Yes
producerCode - RBSXTSQ5ND
productName - Mikrotik SXTsq Lite5 RBSXT client device White PoE support
productSize - Normal
RAM - 64 MB
Security - Security algorithms - Not supported
Shipping Box Depth Shipping/Package Box Dimensions - 25.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 4.5 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.49 kg
Shipping Box Width Shipping/Package Box Dimensions - 18 cm
sizeX - 255
sizeY - 80
sizeZ - 180
title - MikroTik SXTsq Lite5
Unit Box Height - 0.045
Unit Box Length - 0.255
Unit Box Width - 0.18
Unit Brutto Volume - 0.002066 cubm
Unit Gross Weight - 0.49 kg
Unit Net Weight - 0.27 kg
Vendor Homepage - mikrotik.com/product/RBSXTsq5nD
Warranty - 12 months
warrantyLength - 12
warrantyType - G
weight - 0.55 kg
weight - 491
Weight & dimensions - Depth - 129 mm
Weight & dimensions - Height - 34 mm
Weight & dimensions - Width - 129 mm
width - 0.18 m
Wireless Frequency Range - 5Ghz
