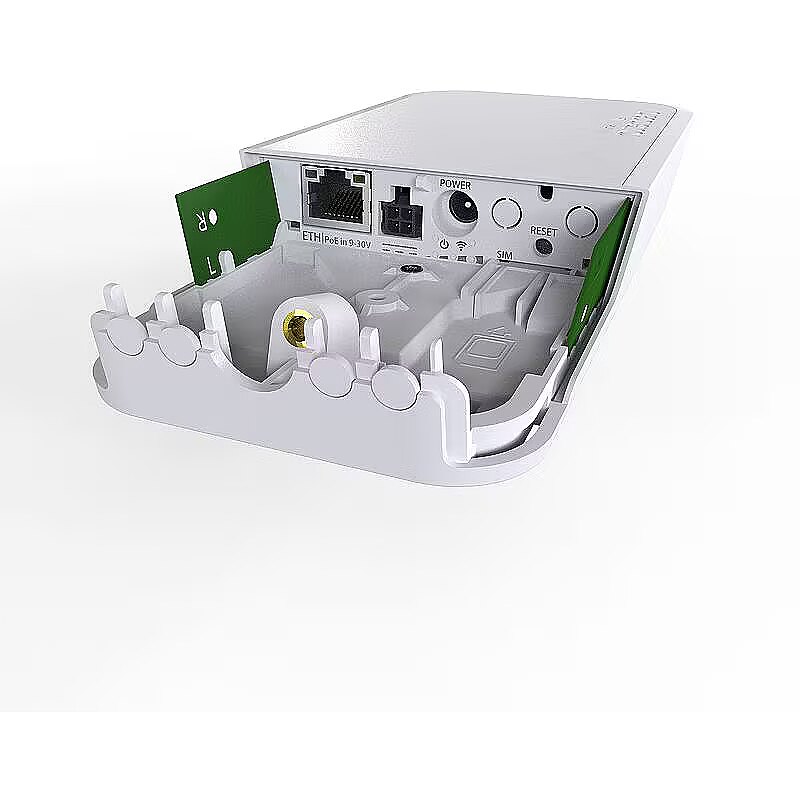

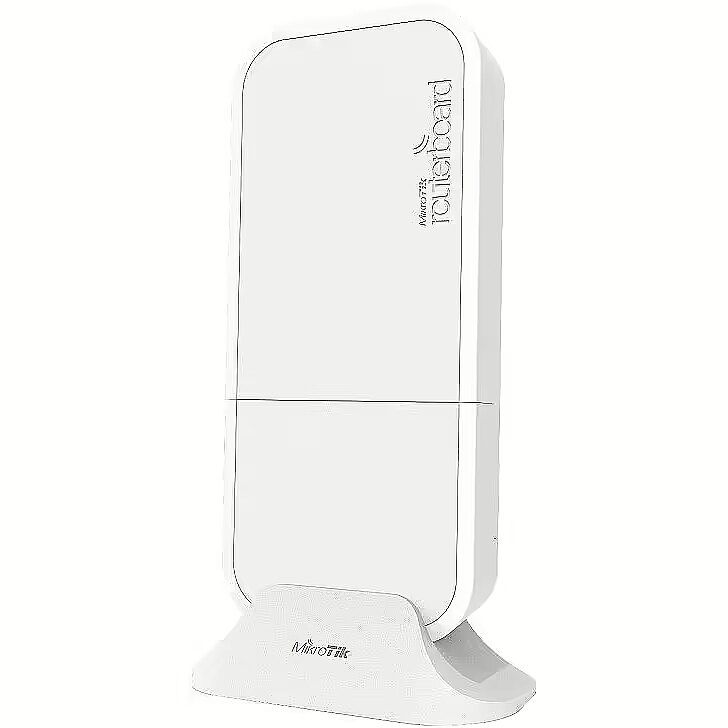

MikroTik wAP LTE kit

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 164614 Product code: RBWAPR-2ND&R11E-LTE
In stock 50 units
Warranty: 2 years (Warranty for business entities 1 year)
124.01 €
Main product parameters All parameters
  • Speed index: 300
  • Type of device: Access Point
  • Wi-Fi standard: Wi-Fi 4 (802.11n)
Description
Basic information
Speed index : 300
Type of device Access Point

Access Point - bezvadu piekļuves punkts, kas nodrošina kabeļu tīkla paplašināšanas pārraidi bezvadu tīklā izmantojot vienu LAN pieslēgvietu. Access point nav rūteris, un nespēj sadalīt vienu interneta pieslēguma adresi vairākiem datoriem, tamdēļ šo iekārtu slēdziet tikai aiz esoša kabeļu rūtera.

Router, jeb maršrutētājs - bezvadu piekļuves punkts, kas nodrošina viena interneta pieslēguma sadalīšanu vairākiem datoriem, gan caur tīkla vadiem, gan bezvadu tīklā. Parasti bezvadu maršrutētājam ir viena kabeļu interneta pieslēgvieta, četras datoru pieslēgvietas (kuras var papildināt, izmantojot switch komutatoru) un antenas, kas nodrošina apraidi datoriem un citām WiFi iekārtām.

Range Extender - bezvadu tīkla apraides attāluma pastiprinātājs. Paredzēts esoša signāla pastiprināšanai, lai palielinātu uzveršanas un pārraides attālumu.

Wifi adapter - Bezvadu tīkla karte, paredzēta datora pieslēgšanai pie bezvadu WiFi rūtera vai piekļuves punkta. PCI, PCI-E ir paredzēti galddatoriem, savukārt PCMCIA un USB - portatīvajiem datoriem. Jāpiebilst, ka lielākā daļa portatīvo datoru jau rūpnīcā tiek komplektēti ar bezvadu tīkla kartēm.

USB tīkla karte ir pēdējā izvēle, jo USB2.0 caurlaidības ātrums ir samērā zems ~22MB/s, kas nozīmē to, ka netiks izmantots bezvadu tīkla maksimālais iespējamais ātrums. Ja ir iespēja, labāk izvēlēties kādu citu pieslēguma veidu.

Wi-Fi standard : Wi-Fi 4 (802.11n)
Functionality
3G/4G support SIM slot

A possibility to put the SIM card of mobile operators or the USB Dongle adapter in the router providing access to the 3G mobile Internet.

Prior to buying a router with the 3G support you should verify whether the device supports the 3G USB Dongle receiver of the particular mobile communications operator at the manufacturer's website.

Band mode Single Band

SingleBand is a standard wireless technology characteristic of all the modern wireless devices.

DualBand is 2.4GHz with an additional 5.0GHz channel providing better receiving of the signal and more stable high-speed operation. For using this function both devices, i.e. the router and the wireless network card, have to support the DualBand mode.

Ethernet 10/100

LAN or ethernet cables connection slots operational mode.

10/100 MB.s is the standard speed characteristic of almost all the routers.

10/100/1000 MB.s, or GigaBit is tens of times faster standard which, in combination of GigaBit LAN network cards, provides great data transmission speed advantages between computers connected within the internal network. This solution is usually required in offices where large data volumes are copied between computers or fast Internet connection is used (no ~30 MB/s) simultaneously in several computers.



Ports and equipment
LAN ports : 1
Wireless
  • Alternatives
  • Alternatives
More detailed specification
Additional information in manufacturers website MikroTik wAP LTE kit
Accessories included -
Antenna gain - 2 dBi
Antenna Gain - 4.5 dB
brand - MikroTik
category - MikroTik > Mobilā tīkla produkti > wAP
Category - Root/Electronics/Networks and communication/Routers
Category Code - WOD
Color - White
CPU - 650 MHz
Description - The wAP LTE is a small weatherproof wireless access point with a built in cellular modem that supports 2G, 3G and 4G (LTE) connectivity. Connect to the wAP’s built-in 802.11b/g/n wireless and access the LTE network from your phone or any other wireless device. The wAP LTE also has one 10/100 Ethernet LAN port for your wired devices. LTE cards are connected to two internal antennas with u.FL connectors, so if you want, you can unplug the connectors and add your own external LTE antenna for larger coverage. Unit has the several powering options - 9-30v PoE-in by Ethernet port, DC jack and Automotive connector, very handy in mobile devices like car, bus or train. RBwAPR-2nD&R11e-LTE includes LTE modem that supports International LTE bands 1,2,3,7,8,20,38 and 40.
Description - wAP LTE to niewielki, odporny na warunki atmosferyczne bezprzewodowy punkt dostępowy z wbudowanym modemem komórkowym, który obsługuje połączenia 2G, 3G i 4G (LTE). Podłącz się do wbudowanej wAP sieci bezprzewodowej 802.11b/g/n i uzyskaj dostęp do sieci LTE ze swojego telefonu lub innego urządzenia bezprzewodowego. WAP LTE posiada również jeden port 10/100 Ethernet LAN dla urządzeń przewodowych. Karty LTE są podłączone do dwóch wewnętrznych anten ze złączami u.FL, więc jeśli chcesz, możesz odłączyć złącza i dodać własną zewnętrzną antenę LTE dla większego zasięgu. Urządzenie posiada kilka opcji zasilania - 9-30v PoE-in przez port Ethernet, gniazdo DC oraz złącze Automotive.
dimension depth - 80 mm
dimension height - 280 mm
Dimensions - 185 x 85 x 30 mm
dimension weight - 620 g
dimension width - 120 mm
ean - 4752224005014
EAN - 4752224005014
Eans - 4752224005014
Full Description Line - Network Device Type Wireless Access Point|wAP LTE kit // RBwAPR-2nD&R11e-LTE|Antenna Gain 4.5 dB|Wireless Frequency Range 2.4 GHz|Dimensions 185 x 85 x 30 mm
guarantee - 12
guarantee_type - normal
height - 0.095 m
I/O ports - 1 x 10/100 Mbit/s
I/O ports - 1 x SIM card slot
length - 0.28 m
Management, monitoring, configuration -
Model name - wAP LTE kit // RBwAPR-2nD&R11e-LTE
mpn - RBwAPR-2nD&R11e-LTE
name - Access point 2.4 GHz 1FE RBwAPR-2nD&R11e-LTE
Name - MicroTik RBwAPR-2nD&R11e-LTE
Network architecture - FastEthernet
Network Device Type - Wireless Access Point
Operating frequency - 2,4 GHz
Operating temperature range - -40°C .. +60°C
Other features - Procesor: QCA9531 Liczba rdzeni procesora: 1 Częstotliwość nominalna procesora: 650 MHz System operacyjny: RouterOS Rozmiar pamięci RAM: 64 MB Rozmiar przechowywania: 16 MB MTBF: Około 100 000 godzin w 25C
Power supply - Liczba wejść DC: 3 (gniazdo DC, PoE-IN, Automotive) Napięcie wejściowe gniazda DC: 9-30 V Maksymalne zużycie energii: 8 W
Power supply requirements - 9-30 V
producer - Mikrotik
Producer - MikroTik
ProducerCode - RBwAPR-2nD&R11e-LTE
RAM - 64 MB
Security -
Shipping Box Depth Shipping/Package Box Dimensions - 42 cm
Shipping Box Height Shipping/Package Box Dimensions - 58 cm
Shipping box quantity - 20
Shipping Box Weight Shipping/Package Box Dimensions - 14 kg
Shipping Box Width Shipping/Package Box Dimensions - 25 cm
ShortDescription -
Software -
Special functions -
Standards - 802.11b
Standards - 802.11g
Standards - 802.11n
System Requirements -
title - MikroTik wAP LTE kit
Unit Box Height - 0.58
Unit Box Length - 0.42
Unit Box Width - 0.013
Unit Brutto Volume - 0.003045 cubm
Unit Gross Weight - 0.7 kg
Unit Net Weight - 0.3 kg
Vendor Homepage - mikrotik.com/product/wap_lte_kit#fndtn-gallery
vendpn - RBwAPR-2nD&R11e-LTE
Warranty - 12 months
weight - 0.7 kg
width - 0.12 m
Wireless Frequency Range - 2.4 GHz
