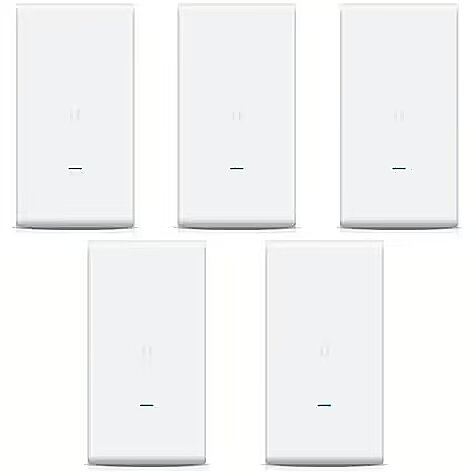

Ubiquiti UniFi UAP AC PRO Mesh Access Point, 5 PACK

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 156505 Product code: UAP-AC-M-PRO-5
Can be ordered 72 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
977.88 €
Main product parameters All parameters
  • Speed index: 1750
  • Type of device: Access Point
  • Wi-Fi standard: Wi-Fi 5 (802.11ac)
Description
Basic information
Speed index : 1750
Type of device Access Point

Access Point - bezvadu piekļuves punkts, kas nodrošina kabeļu tīkla paplašināšanas pārraidi bezvadu tīklā izmantojot vienu LAN pieslēgvietu. Access point nav rūteris, un nespēj sadalīt vienu interneta pieslēguma adresi vairākiem datoriem, tamdēļ šo iekārtu slēdziet tikai aiz esoša kabeļu rūtera.

Router, jeb maršrutētājs - bezvadu piekļuves punkts, kas nodrošina viena interneta pieslēguma sadalīšanu vairākiem datoriem, gan caur tīkla vadiem, gan bezvadu tīklā. Parasti bezvadu maršrutētājam ir viena kabeļu interneta pieslēgvieta, četras datoru pieslēgvietas (kuras var papildināt, izmantojot switch komutatoru) un antenas, kas nodrošina apraidi datoriem un citām WiFi iekārtām.

Range Extender - bezvadu tīkla apraides attāluma pastiprinātājs. Paredzēts esoša signāla pastiprināšanai, lai palielinātu uzveršanas un pārraides attālumu.

Wifi adapter - Bezvadu tīkla karte, paredzēta datora pieslēgšanai pie bezvadu WiFi rūtera vai piekļuves punkta. PCI, PCI-E ir paredzēti galddatoriem, savukārt PCMCIA un USB - portatīvajiem datoriem. Jāpiebilst, ka lielākā daļa portatīvo datoru jau rūpnīcā tiek komplektēti ar bezvadu tīkla kartēm.

USB tīkla karte ir pēdējā izvēle, jo USB2.0 caurlaidības ātrums ir samērā zems ~22MB/s, kas nozīmē to, ka netiks izmantots bezvadu tīkla maksimālais iespējamais ātrums. Ja ir iespēja, labāk izvēlēties kādu citu pieslēguma veidu.

Wi-Fi standard : Wi-Fi 5 (802.11ac)
Functionality
3G/4G support Nav

A possibility to put the SIM card of mobile operators or the USB Dongle adapter in the router providing access to the 3G mobile Internet.

Prior to buying a router with the 3G support you should verify whether the device supports the 3G USB Dongle receiver of the particular mobile communications operator at the manufacturer's website.

Band mode Dual-Band

SingleBand is a standard wireless technology characteristic of all the modern wireless devices.

DualBand is 2.4GHz with an additional 5.0GHz channel providing better receiving of the signal and more stable high-speed operation. For using this function both devices, i.e. the router and the wireless network card, have to support the DualBand mode.

Ethernet 100/1000

LAN or ethernet cables connection slots operational mode.

10/100 MB.s is the standard speed characteristic of almost all the routers.

10/100/1000 MB.s, or GigaBit is tens of times faster standard which, in combination of GigaBit LAN network cards, provides great data transmission speed advantages between computers connected within the internal network. This solution is usually required in offices where large data volumes are copied between computers or fast Internet connection is used (no ~30 MB/s) simultaneously in several computers.



Ports and equipment
LAN ports : 1
Wireless
  • Alternatives
  • Alternatives
More detailed specification
Additional information in manufacturers website Ubiquiti UniFi UAP AC PRO Mesh Access Point, 5 PACK
Accessories included -
Amplification - 22 dBm
Antenna - Built-in
Antenna - Internal
Antenna Gain - 8 dB
Antenna Type - Built-in
Available bandwidth - 1750 Mbps
Box Weight Brutto (kg) - 1 kg
Category - Root/Electronics/Networks and communication/Access points
Category 1 - Netzwerk
Category 2 - Accesspoints
Category Code - WOD
Category_1 - Network and Servers
Category_2 - Network - Switches and Hubs
Certifications - CE, FCC, IC
Channels Quantity - 2
Color - White
Colour - White
Data Bit Rate - 1300 Mbps
Data Link Protocol Supports - Gigabit Ethernet/Fast Ethernet/Ethernet IEEE 802.11a/b/g/n/ac
Data transmission speed - 1300 Mbps
Depth (mm) - 60.2 mm
Description - AC MESH PRO AP access point 5 UAP-AC-M-PRO-5  Expand your outdoor Wi-Fi network with the UniFi AC Mesh Pro Access Point, which is part of the Ubiquiti Networks UniFi Enterprise Wi-Fi System. UAP-AC-M-PRO is a high-performance, external, dual-band MIMO 3x3 MIMO access point, 802.11AC, speeds up to 1750 Mb / s. It has a proprietary MIMO-optimized omni-directional super antenna for an exceptional 360 coverage and symmetrical long-range communication up to 183 meters.
Description - UniFi is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. The UniFi AC Mesh APs have a refined industrial design and can be easily installed using the included mounting hardware. Easily accessible through any standard web browser, the UniFi Controller software is a powerful software engineideal for high-density client deployments requiring low latency and high uptime performance. Use the UniFi Controller software to quickly configure and administer an enterprise Wi-Fi network – no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated.
Device Location - External
dimension depth - 370 mm
dimension height - 240 mm
Dimensions - 343.2 x 181.2 x 60.2 mm
dimension weight - 7800 g
dimension width - 460 mm
ean - 817882020558
EAN - 0817882020558
EAN - 8178820205584
Eans - 817882020558
EAN_code - 0817882020558
Encryption Algorithm - TKIP WEP WPA-PSK WPA WPA2 AES
External Color - Balta
Full Description Line - Network Device Type Wireless Access Point|Data transmission speed 1300 Mbps|IEEE 802.1Q|IEEE 802.11a|IEEE 802.11b|IEEE 802.11g|IEEE 802.11n|IEEE 802.11ac|Antenna Type Built-in|Antenna Gain 8 dB|Number of antennas 3|Wireless Transmit Power 22 dBm|Colour White|Dimensions 343.2 x 181.2 x 60.2 mm
Gross Weight Kg - 4
guarantee - 12
guarantee_type - normal
Height (mm) - 343.2 mm
I/O ports - 2 x 10/100/1000 Mbit/s PoE
IEEE 802.1Q Network standard - Yes
IEEE 802.11ac Network standard - Yes
IEEE 802.11a Network standard - Yes
IEEE 802.11b Network standard - Yes
IEEE 802.11g Network standard - Yes
IEEE 802.11n Network standard - Yes
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/180718160008826520.jpg
Included Accessories - Mount kit
Interface - Ethernet/Wi-Fi
LAN - 2 (RJ-45)
Local Area Network Architecture - 10Base-T/100Base-TX/1000Base-T Wi-Fi
Management, monitoring, configuration -
Manufacturer - Ubiquiti
Manufacturer Code - UAP-AC-M-PRO-5
Manufacturer Name - Ubiquiti Networks
Manufacturer_code - UAP-AC-M-PRO-5
Maximum Operating Ambient Temperature - 70 °C
Maximum Operating Humidity - 95 %
Minimum Operating Ambient Temperature - -40 °C
Minimum Operating Humidity - 5 %
MPN - UAP-AC-M-PRO-5
name - AC MESH PRO AP 5-pack UAP-AC-M-PRO-5
Name - Ubiquiti UAP-AC-M-PRO-5
Name - Ubiquiti UAP-AC-M-PRO 5er 2GE / AC1750 / AP - AC Mesh Outdoor Access Point
Network architecture - GigabitEthernet
Network Device Type - Wireless Access Point
Networking Compliant Standards - IEEE 802.1Q(VLAN) IEEE 802.3af
Networking Features - Power over Ethernet (PoE) Dual Band Wi-Fi Multimedia (WMM) 3x3 MIMO
Networking Form Factor - External
Nominal Weight - 0.633 kg
Number of antennas - 3
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Operating temperature range - -40 to 70° C
Other features -
Package Type - Box
Packs in Box - 0.05
Pack Weight Brutto (kg) - 0.92 kg
Pack Weight Netto (kg) - 0.72 kg
Pieces in pack - 1
Power consumption - 9 Watts
Power supply -
Power supply requirements - ported Voltage Range: 44 to 57VDC) Power Supply 48V, 0.5A PoE Gigabit Adapter
producer - UBIQUITI
Producer - Ubiquiti
ProducerCode - UAP-AC-M-PRO-5
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=180615121714047228&THEME=asbis&LANG=lv
ProductCategory - Tīkla produkti
ProductCode - UAP-AC-M-PRO-5
ProductDescription - Networking Interface - (2) 10/100/1000 Ethernet Ports/Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
ProductType - Networking - Wireless Access Point
Radio Output Power - 8 dBi
Retail Packaging Net Weight Carton - 0.03 kg
Security - WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
Shipping Box Depth Shipping/Package Box Dimensions - 45.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 24 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 7.7 kg
Shipping Box Width Shipping/Package Box Dimensions - 37 cm
ShortDescription -
Short description - Ubiquiti Access-Point UniFi Mesh Pro UAP-AC-M-PRO 802.11ac (5er-Pack) Without PoE adapter / Without power supply
Software -
Special functions -
Standards - 802.11a
Standards - 802.11ac
Standards - 802.11b
Standards - 802.11g
Standards - 802.11n
System Requirements -
Total Number of Ports - 2
Unit Box Height - 0.24
Unit Box Length - 0.455
Unit Box Width - 0.37
Unit Brutto Volume - 0.0404 cubm
Unit Gross Weight - 7.7 kg
Unit Net Weight - 0.633 kg
Uplink Port Type - 1 x 10Base-T/100Base-TX/1000Base-T
Vendor - UBIQUITI
Vendor Homepage - unifi-mesh.ubnt.com
vendpn - UAP-AC-M-PRO-5
Warranty - 12 months
Warranty - 12-month warranty from the date of sale
Warranty Products Returnable - Yes
Warranty Term (month) - 24
Warranty Term Notes - 24 months - for EU
Warranty validation Criteria - Serial Number
Weight - 7,60
Weight - 7.62
Weight - 633 g
Wi-Fi Band Frequency - 2.4 GHz/5 GHz
Width (mm) - 181.2 mm
Wireless Transmit Power - 22 dBm
