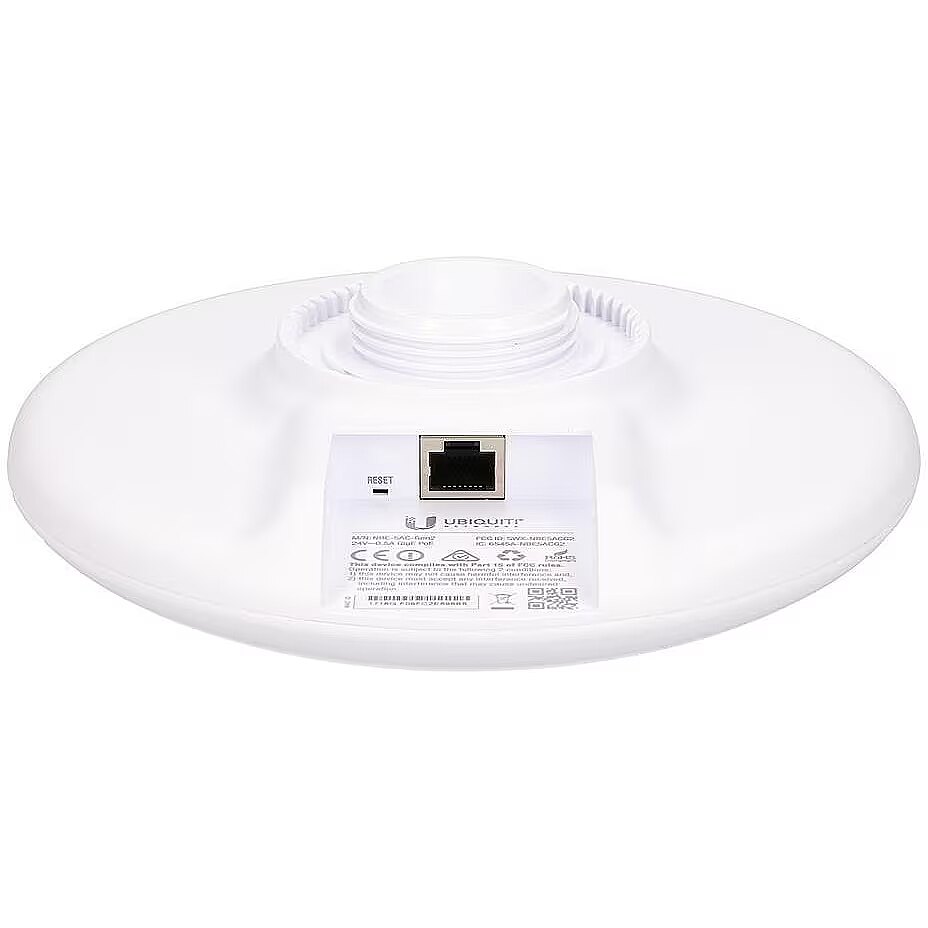

Ubiquiti WRL BRIDGE 450MBPS/AIRMAX NBE-5AC-GEN2

Name: Ubiquiti WRL BRIDGE 450MBPS/AIRMAX NBE-5AC-GEN2
Brand: Ubiquiti
SKU: 155207
Price: 97.37 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 155207 Product code: NBE-5AC-GEN2

In stock 8 units

Warranty: 2 years (Warranty for business entities 1 year)

Compare

Delivery options

Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
Courier delivery 11.99 €: 19.11.2024

Main product parameters All parameters

Speed index: 450
Type of device: Antenna
Wi-Fi standard: N/A

Basic information

Speed index : 450

Type of device Antenna

Access Point - bezvadu piekļuves punkts, kas nodrošina kabeļu tīkla paplašināšanas pārraidi bezvadu tīklā izmantojot vienu LAN pieslēgvietu. Access point nav rūteris, un nespēj sadalīt vienu interneta pieslēguma adresi vairākiem datoriem, tamdēļ šo iekārtu slēdziet tikai aiz esoša kabeļu rūtera.

Router, jeb maršrutētājs - bezvadu piekļuves punkts, kas nodrošina viena interneta pieslēguma sadalīšanu vairākiem datoriem, gan caur tīkla vadiem, gan bezvadu tīklā. Parasti bezvadu maršrutētājam ir viena kabeļu interneta pieslēgvieta, četras datoru pieslēgvietas (kuras var papildināt, izmantojot switch komutatoru) un antenas, kas nodrošina apraidi datoriem un citām WiFi iekārtām.

Range Extender - bezvadu tīkla apraides attāluma pastiprinātājs. Paredzēts esoša signāla pastiprināšanai, lai palielinātu uzveršanas un pārraides attālumu.

Wifi adapter - Bezvadu tīkla karte, paredzēta datora pieslēgšanai pie bezvadu WiFi rūtera vai piekļuves punkta. PCI, PCI-E ir paredzēti galddatoriem, savukārt PCMCIA un USB - portatīvajiem datoriem. Jāpiebilst, ka lielākā daļa portatīvo datoru jau rūpnīcā tiek komplektēti ar bezvadu tīkla kartēm.

USB tīkla karte ir pēdējā izvēle, jo USB2.0 caurlaidības ātrums ir samērā zems ~22MB/s, kas nozīmē to, ka netiks izmantots bezvadu tīkla maksimālais iespējamais ātrums. Ja ir iespēja, labāk izvēlēties kādu citu pieslēguma veidu.

Wi-Fi standard : N/A

Functionality

3G/4G support Nav

A possibility to put the SIM card of mobile operators or the USB Dongle adapter in the router providing access to the 3G mobile Internet.

Prior to buying a router with the 3G support you should verify whether the device supports the 3G USB Dongle receiver of the particular mobile communications operator at the manufacturer's website.

Band mode N/A

SingleBand is a standard wireless technology characteristic of all the modern wireless devices.

DualBand is 2.4GHz with an additional 5.0GHz channel providing better receiving of the signal and more stable high-speed operation. For using this function both devices, i.e. the router and the wireless network card, have to support the DualBand mode.

Ethernet 100/1000

LAN or ethernet cables connection slots operational mode.

10/100 MB.s is the standard speed characteristic of almost all the routers.

10/100/1000 MB.s, or GigaBit is tens of times faster standard which, in combination of GigaBit LAN network cards, provides great data transmission speed advantages between computers connected within the internal network. This solution is usually required in offices where large data volumes are copied between computers or fast Internet connection is used (no ~30 MB/s) simultaneously in several computers.

Ports and equipment

LAN ports : 2

More detailed specification

Additional information in manufacturers website Ubiquiti WRL BRIDGE 450MBPS/AIRMAX NBE-5AC-GEN2

Accessories included -
Amplification - 19 dB
Antenna - Antenna gain level (max) - 19 dBi
Antenna gain - 19 dBi
Box Weight Brutto (kg) - 0.53 kg
brand - Ubiquiti
Category - Root/Electronics/Networks and communication/WiFi 2.4 GHz antenna
category - Ubiquiti > Āra Wi-Fi > airMAX 5 GHz
Category 1 - Netzwerk
Category 2 - WLAN Repeater
Category Code - WAP
Category_1 - Network and Servers
Category_2 - Network - WiFi Access Points
Certificates - Certification - CE, FCC, IC, RoHS
Certificates - Compliance certificates - CE
Certificates - Compliance certificates - RoHS
Certifications - CE, FCC, IC
CnCode CnCode - 85176200
Code - NBE-5AC-Gen2
Color - White
Combined (other) - 57.0000 g
CPU - Atheros MIPS 74KC
Data Link Protocol Supports - Gigabit Ethernet/Fast Ethernet/Ethernet Wi-Fi
Data transmission - Maximum data transfer rate - 450 Mbit/s
Data transmission - Maximum transfer distance - 15000 m
Data transmission speed - 450 Mbps
Depth (mm) - 125 mm
Description - airMAX ac CPE with Dedicated Management Radio - Uniform Beamwidth Maximizes Noise Immunity - Dedicated Wi-Fi Radio for Management - airMAX ac Processor for Superior Performance
Description - High-Performance airMAX ac Bridge
Incorporating innovative industrial design with proprietary airMAX ac technology, the NanoBeam AC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint. Management Wi-Fi Radio
The NanoBeam AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device. Improved Surge Protection
The NanoBeam AC features enhanced protection against ESD events. Superior Processing
Ubiquiti's airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology. Incredible Antenna Beam Performance
The form factor of the NanoBeam AC features the highest gain for its size. The NanoBeam ACs excellent beam directivity provides the best performance in high-noise environments. Performance Breakthrough
airMAX ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance. Advanced Software Technology
Ubiquitis airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks. Plug and Play Installation

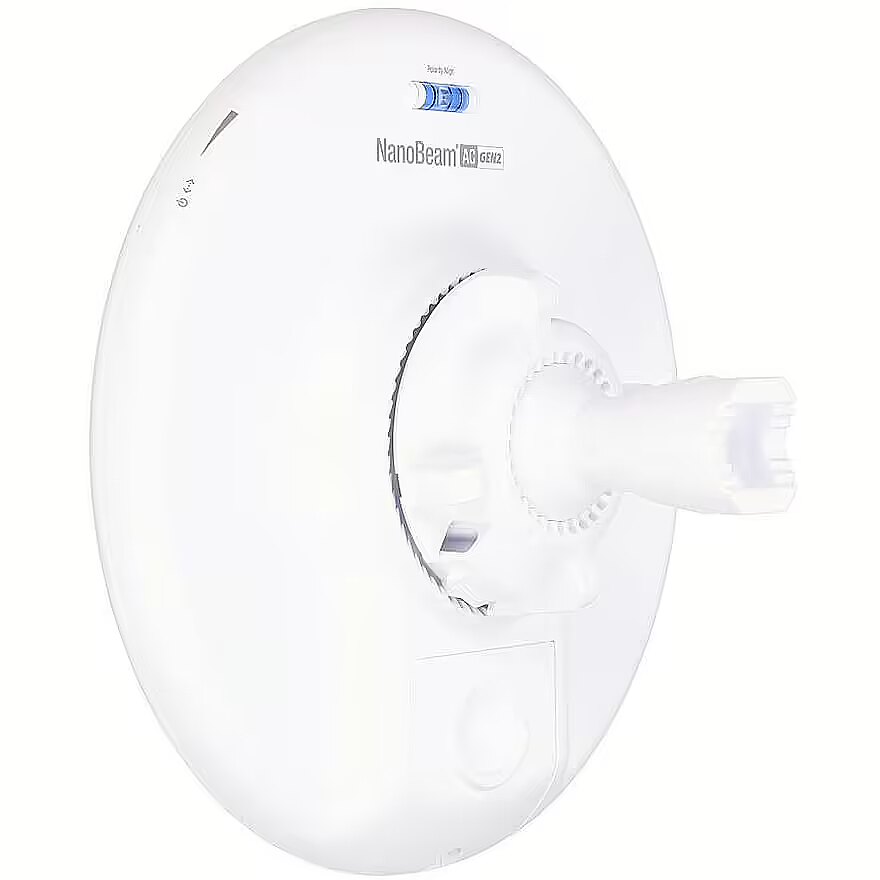

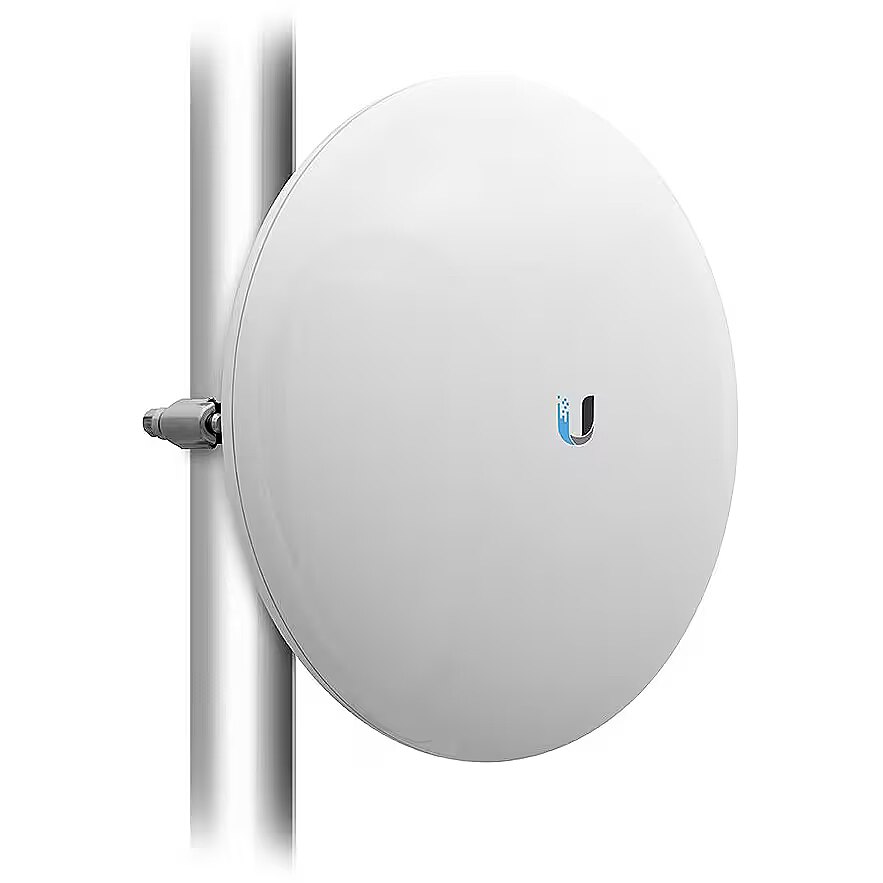

The NanoBeam AC mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment. No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting. Now with airOS8
airOS8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
Device Location - External
dimensionalWeight - 1030
dimension depth - 95 mm
dimension height - 245 mm
Dimensions - 189 x 189 x 125 mm
dimension weight - 1000 g
dimension width - 225 mm
EAN - 810354026348
ean - 810354026348
EAN - 0810354026348
EAN Code - 810354026348
Eans - 0810354026348
EAN_code - 0810354026348
External Color - Balta
Features - Internal memory - 128 MB

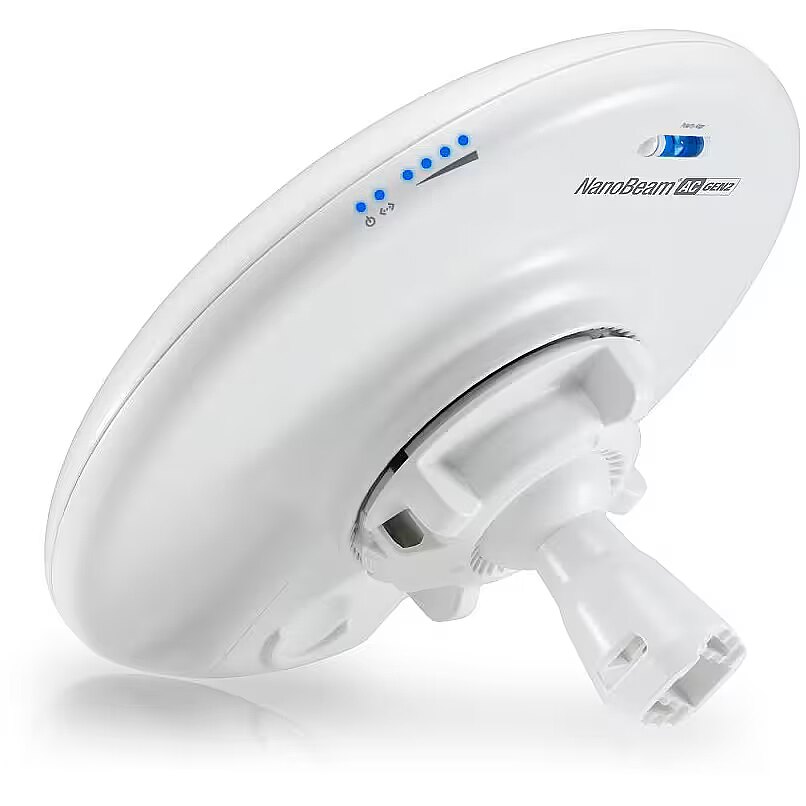

Features - LED indicators - LAN
Features - LED indicators - Power
Features - LED indicators - Signal strength
Features - Material - Plastic
Features - Mounting type - Pole/Wall
Features - Processor family - Atheros
Features - Product colour - White
Features - Product type - Network bridge
Features - RAM type - DDR2
Features - Reset button - Yes
Features - Surge protection - Yes
Flash Memory - 8 MB
Full Description Line - Type Bridge|Data transmission speed 450 Mbps|Wireless Frequency Range 5 Ghz|Power supply requirements 24V, 0.5A Gigabit PoE Adapter|Dimensions 189 x 189 x 125 mm
Gross weight - 1.765 kg
Gross Weight Kg - 0,7
guarantee - 12
guarantee_type - normal
height - 0.225 m
Height (mm) - 189 mm
I/O ports - 2 x 10/100/1000 Mbit/s
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/170606160011354900.jpg
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/170606160011366434.jpg
Included Accessories - Wall Kit PoE Adapter
Interface - Ethernet/Wi-Fi
Internal Clock Rate - 720 MHz
LAN - 1 (RJ-45)
length - 0.24 m
Line Modulation Type - 256QAM
Logistics data - Harmonized System (HS) code - 85176990
Management, monitoring, configuration -
Management features - Web-based management - Yes
Manufacturer - Ubiquiti
Manufacturer Code - NBE-5AC-GEN2
Manufacturer Name - Ubiquiti Networks
Manufacturer_code - NBE-5AC-GEN2
Maximum Operating Ambient Temperature - 80 °C
Maximum Operating Humidity - 95 %
Memory - Flash memory - 8 MB
Minimum Operating Ambient Temperature - -40 °C
Minimum Operating Humidity - 5 %
mpn - NBE-5AC-Gen2
MPN - NBE-5AC-GEN2
name - NanoBeam 5AC Bridge 5GHz NBE-5AC-Gen2
Name - Ubiquiti 5 GHz NanoBeam AC, Gen2
Name - Ubiquiti NanoBeam 5AC Gen2 5GHz 19dBi
Name - Ubiquiti NanoBeam NBE-5AC-Gen2
Name - Ubiquiti NBE-5AC-Gen2 NanoBeam AC Gen2 | Ubiquiti
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10
Network - Ethernet LAN data rates - 100
Network - Ethernet LAN data rates - 1000 Mbit/s
Network - Ethernet LAN interface type - Gigabit Ethernet
Network architecture - GigabitEthernet
Network Device Type - Bridge
Networking Features - Web Interface PoE
Networking Form Factor - External
Nominal Weight - 0.53 kg
Number of Ports - 1
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - -40 - 80 °C
Operational conditions - Operating temperature (T-T) - -40 - 176 °F
Other features - Memory: 128 MB DDR2, 8 MB Flash
Package features > Gross depth (mm) - 220 mm
Package features > Gross height (mm) - 100 mm
Package features > Gross width (mm) - 220 mm
Package features > Packing quantity - 1 pc(s)
Package features > Palette Qty - 357 pc(s)
Package features > Paper/Pasteboard - 46.71 g
Package features > Plastic (No PET) - 5.19 g
Package features > Tare weight (kg) - 0.519 kg
Package features > Volume (m3) - 0.00484 m³
Package Type - Other
Packaging content - Cables included - AC

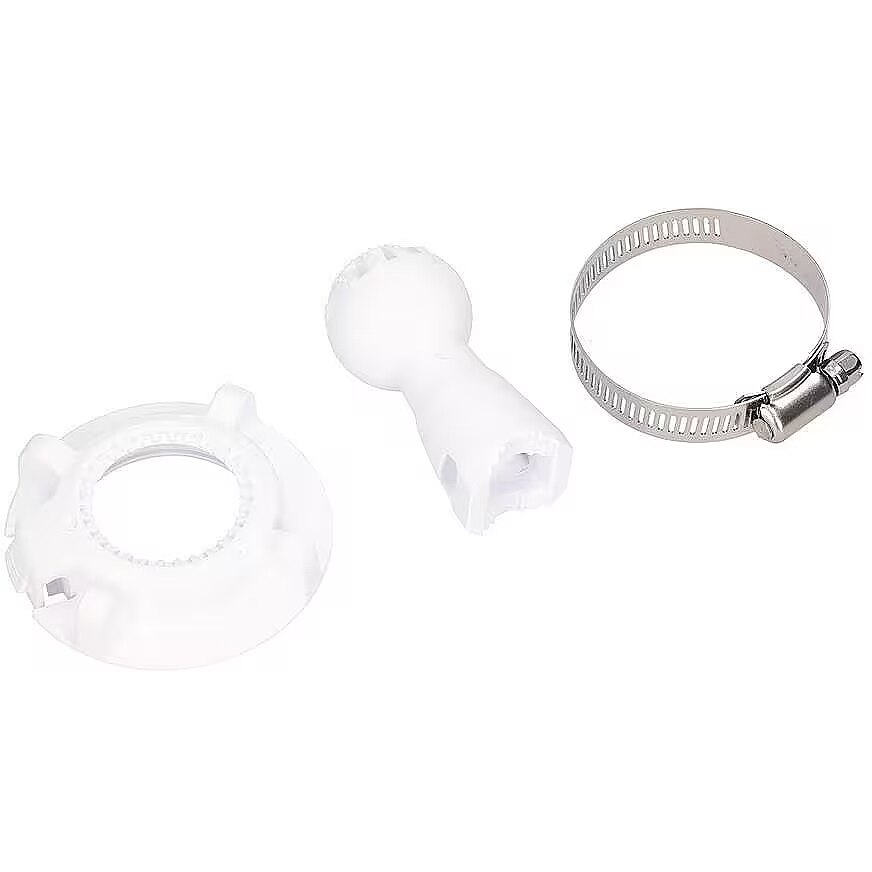

Packaging content - Mounting bracket(s) included - Yes
Packaging content - PoE+ Injector(s) - Yes
Packaging data - Quantity per pack - 1 pc(s)
Packs in Box - 1
Pack Weight Brutto (kg) - 0.6 kg
Pack Weight Netto (kg) - 0.5 kg
PDF - http://www.blobs.lt/products/5/6/1/0/4/2/12641d9cf9d605e9a602dd043b1038ef/original.pdf
PDF - http://www.blobs.lt/products/5/6/1/0/4/2/51428d43734614aaa97923d46a2dd42a/original.pdf
Pieces in pack - 1
PoE Adapter - ExternalDC 24 V, max 0.5 A
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Power - DC output current - 0.5 A
Power - DC output voltage - 24 V
Power - Power consumption (max) - 8.5 W
Power - Power over Ethernet (PoE) - Yes
Power - Power source type - PoE
Power Consumption Operational - 8.5 W

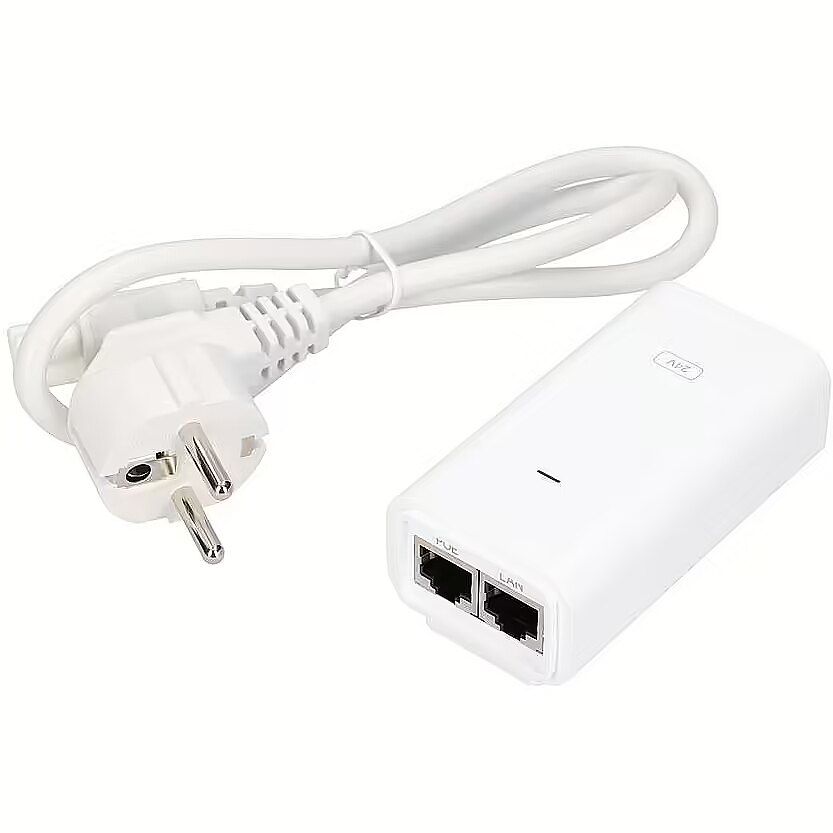

Power supply - 24V, 0.5A Gigabit PoE Adapter
Power supply requirements - 24V, 0.5A Gigabit PoE Adapter
Processor - Processor frequency - 720 MHz
Processor - Processor model - MIPS 74Kc
producer - UBIQUITI
Producer - Ubiquiti
producerCode - NBE-5AC-GEN2
ProducerCode - NBE-5AC-Gen2
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=170605063724718211&THEME=asbis&LANG=lv
ProductCategory - Tīkla produkti
ProductCode - NBE-5AC-GEN2-EU
ProductDescription - UBIQUITI NanoBeam 5AC Gen2, EU
productName - Ubiquiti NanoBeam 5AC Gen 2 Network bridge 450 Mbit/s White
productSize - Normal
ProductType - Networking - Wireless Outdoor Access Point
RAM - 128 MB DDR2 SDRAM
Retail Packaging Net Weight Carton - 0.53 kg
Retail Packaging Net Weight Plastic - 0.53 kg
RJ45 Ports - 1
Security -
Security - Security algorithms - WPA2
Shipping Box Depth Shipping/Package Box Dimensions - 49.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 26 cm
Shipping box quantity - 10
Shipping Box Weight Shipping/Package Box Dimensions - 12.6 kg
Shipping Box Width Shipping/Package Box Dimensions - 49 cm
ShortDescription - AC Gen2 19dBi 5GHz 802.11ac TDMA, 128MB RAM, Gigabit PoE
Short description - Ubiquiti NanoBeam AC Gen2 5GHz Bridge NBE-5AC-GEN2 airMAX ac CPE with Dedicated Management Radio
sizeX - 223
sizeY - 105
sizeZ - 220
Software -
Special functions -
Status Indicator - Activity Status
System Requirements -
Technical details > Net weight - 1.246 kg
Technical details > Producer - Ubiquiti
Technical_details - LAN: 1x 1000Base-T (PoE PD) Wireless: 5GHz Transfer rate: 450Mbps (5GHz) Antennas: 1x external Connectors: WLAN management Access Power consumption: 8.5W (operation) Dimensions: 189x189x125mm Special features: Outdoor Warranty: one year
title - Ubiquiti airMAX NanoBeam 5AC
Unit Box Height - 0.25
Unit Box Length - 0.25
Unit Box Width - 0.09
Unit Brutto Volume - 0.006306 cubm
Unit Gross Weight - 1.26 kg
Unit Net Weight - 0.53 kg
Uplink Port Type - 1 x 10Base-T/100Base-TX/1000Base-T
Vendor - UBIQUITI
Vendor Homepage - www.ubnt.com/airmax/nanobeam-ac-gen2/
vendpn - NBE-5AC-Gen2-EU
Warranty - 12
Warranty - 12 month(s)
Warranty - 12 months
Warranty - 12 months warranty from the date of sale
warrantyLength - 24
Warranty Products Returnable - Yes
Warranty Term (month) - 24
Warranty Term Notes - 24 months - for EU
warrantyType - G
Warranty validation Criteria - Serial Number
Weight - 0.53 kg
Weight - 1,01
Weight - 1.04
weight - 1.29 kg
weight - 1038
Weight & dimensions - Depth - 189 mm
Weight & dimensions - Height - 125 mm
Weight & dimensions - Weight - 530 g
Weight & dimensions - Width - 189 mm
width - 0.122 m
Width (mm) - 189 mm
Wireless Frequency Range - 5 Ghz
Wireless LAN features - Frequency band - 5.15 - 5.875; 5.15 - 5.25; 5.25 - 5.35; 5.47 - 5.725; 5.725 - 5.85 GHz
Wireless LAN features - Modulation - 16-QAM
Wireless LAN features - Modulation - 64-QAM
Wireless LAN features - Modulation - 256-QAM
Wireless LAN features - Modulation - BPSK
Wireless LAN features - Modulation - QPSK
Wireless LAN features - Wi-Fi - Yes
