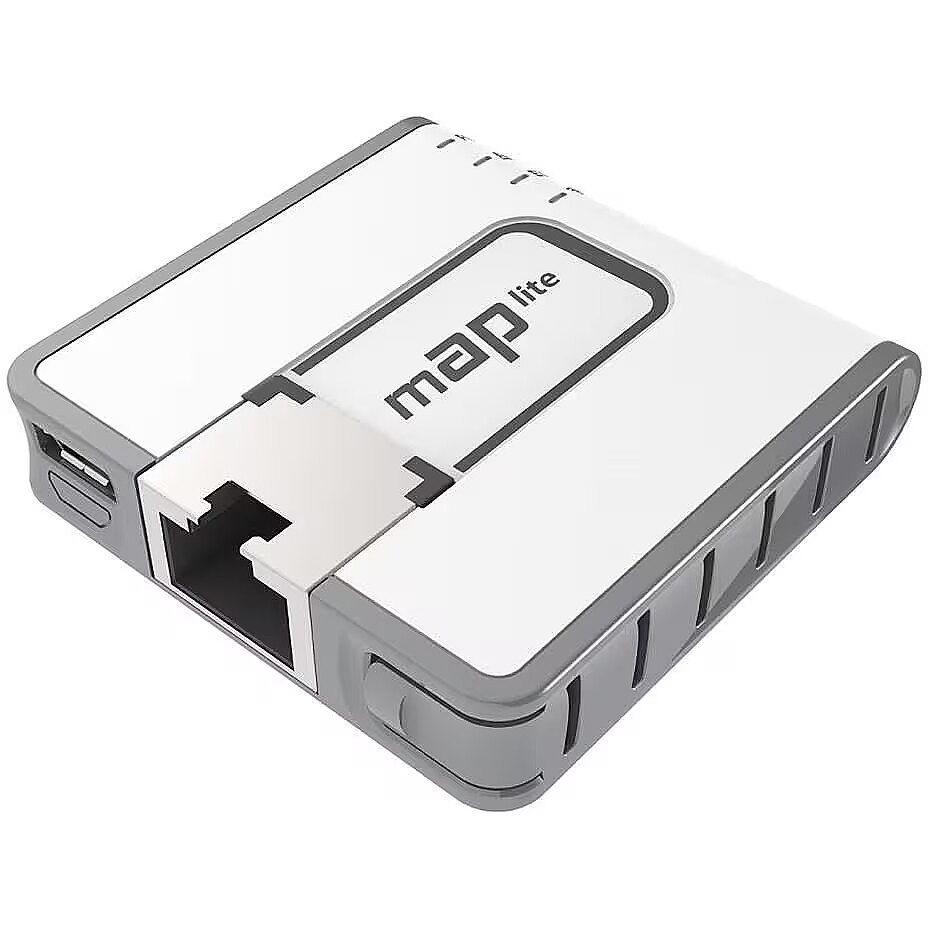

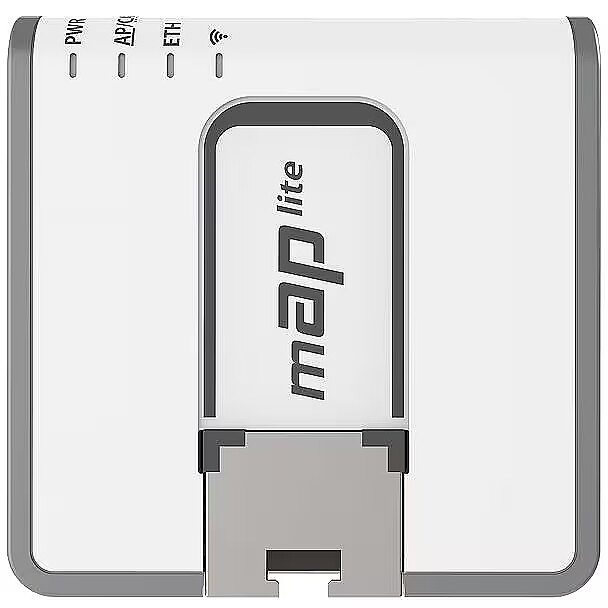

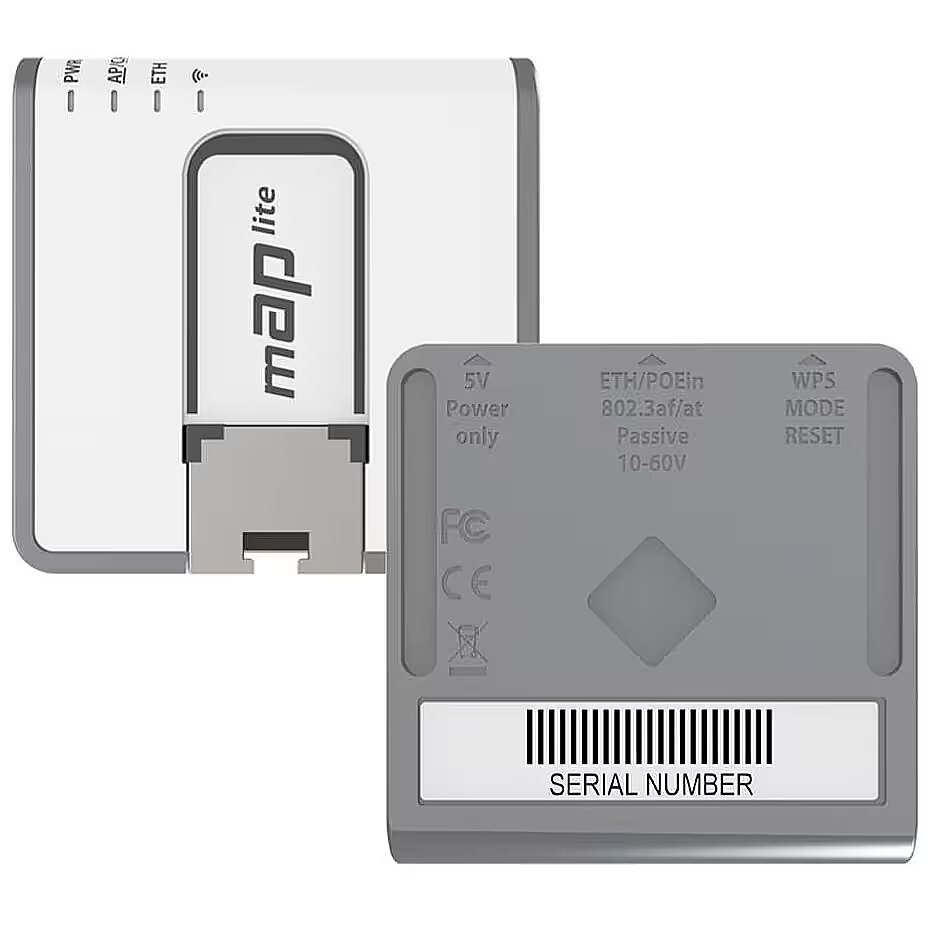

MikroTik mAP lite (RBmAPL-2nD) Access Point

Name: MikroTik mAP lite (RBmAPL-2nD) Access Point
Brand: MikroTik
SKU: 130043
Price: 30.26 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 130043 Product code: RBmAPL-2nD

In stock 7 units / In office 2 units

Warranty: 2 years (Warranty for business entities 1 year)

Compare

Delivery options

Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
Courier delivery 11.99 €: on Wednesday, 13.11.2024

Main product parameters All parameters

Speed index: 150
Type of device: Access Point
Wi-Fi standard: Wi-Fi 4 (802.11n)

Basic information

Speed index : 150

Type of device Access Point

Access Point - bezvadu piekļuves punkts, kas nodrošina kabeļu tīkla paplašināšanas pārraidi bezvadu tīklā izmantojot vienu LAN pieslēgvietu. Access point nav rūteris, un nespēj sadalīt vienu interneta pieslēguma adresi vairākiem datoriem, tamdēļ šo iekārtu slēdziet tikai aiz esoša kabeļu rūtera.

Router, jeb maršrutētājs - bezvadu piekļuves punkts, kas nodrošina viena interneta pieslēguma sadalīšanu vairākiem datoriem, gan caur tīkla vadiem, gan bezvadu tīklā. Parasti bezvadu maršrutētājam ir viena kabeļu interneta pieslēgvieta, četras datoru pieslēgvietas (kuras var papildināt, izmantojot switch komutatoru) un antenas, kas nodrošina apraidi datoriem un citām WiFi iekārtām.

Range Extender - bezvadu tīkla apraides attāluma pastiprinātājs. Paredzēts esoša signāla pastiprināšanai, lai palielinātu uzveršanas un pārraides attālumu.

Wifi adapter - Bezvadu tīkla karte, paredzēta datora pieslēgšanai pie bezvadu WiFi rūtera vai piekļuves punkta. PCI, PCI-E ir paredzēti galddatoriem, savukārt PCMCIA un USB - portatīvajiem datoriem. Jāpiebilst, ka lielākā daļa portatīvo datoru jau rūpnīcā tiek komplektēti ar bezvadu tīkla kartēm.

USB tīkla karte ir pēdējā izvēle, jo USB2.0 caurlaidības ātrums ir samērā zems ~22MB/s, kas nozīmē to, ka netiks izmantots bezvadu tīkla maksimālais iespējamais ātrums. Ja ir iespēja, labāk izvēlēties kādu citu pieslēguma veidu.

Wi-Fi standard : Wi-Fi 4 (802.11n)

Functionality

3G/4G support Nav

A possibility to put the SIM card of mobile operators or the USB Dongle adapter in the router providing access to the 3G mobile Internet.

Prior to buying a router with the 3G support you should verify whether the device supports the 3G USB Dongle receiver of the particular mobile communications operator at the manufacturer's website.

Band mode Single Band

SingleBand is a standard wireless technology characteristic of all the modern wireless devices.

DualBand is 2.4GHz with an additional 5.0GHz channel providing better receiving of the signal and more stable high-speed operation. For using this function both devices, i.e. the router and the wireless network card, have to support the DualBand mode.

Ethernet 10/100

LAN or ethernet cables connection slots operational mode.

10/100 MB.s is the standard speed characteristic of almost all the routers.

10/100/1000 MB.s, or GigaBit is tens of times faster standard which, in combination of GigaBit LAN network cards, provides great data transmission speed advantages between computers connected within the internal network. This solution is usually required in offices where large data volumes are copied between computers or fast Internet connection is used (no ~30 MB/s) simultaneously in several computers.

Ports and equipment

LAN ports : 1

Wireless

Without
WiFi Adapter USB (+9.26 €)
Gembird Adapter Mini USB WiFi 300 Mbps
Alternatives
WiFi Adapter PCI-E 1x (+13.16 €)
TP-LINK TL-WN781ND, PCI-E x1 WiFi Adapter
Alternatives

More detailed specification

Additional information in manufacturers website MikroTik mAP lite (RBmAPL-2nD) Access Point

10/100M LAN Ports - 1
Accessories included -
Antenna > Antenna gain level (max) - 1.5 dBi
brand - MikroTik
category - MikroTik > Wi-Fi mājai un ofisam > mAP
Category Code - WAP
CnCode CnCode - 85176200
Code - RBMAPL-2ND
Color - Gray
Color - White
Description - mAP lite to nasz najmniejszy bezprzewodowy punkt dostępowy. Jest niewiele większy od pudełka zapałek. Możesz go zabrać ze sobą wszędzie: użyj jako routera podróżnego, aby rozszerzyć hotelowy Internet na wszystkie swoje urządzenia, lub jako urządzenia klienckiego, aby poprawić zasięg sygnału laptopa. Malutki mAP lite będzie zawsze z Tobą. Może również służyć jako proste narzędzie konfiguracyjne dla serwerów, jeśli nie ma ethernetu w urządzeniu mobilnym.

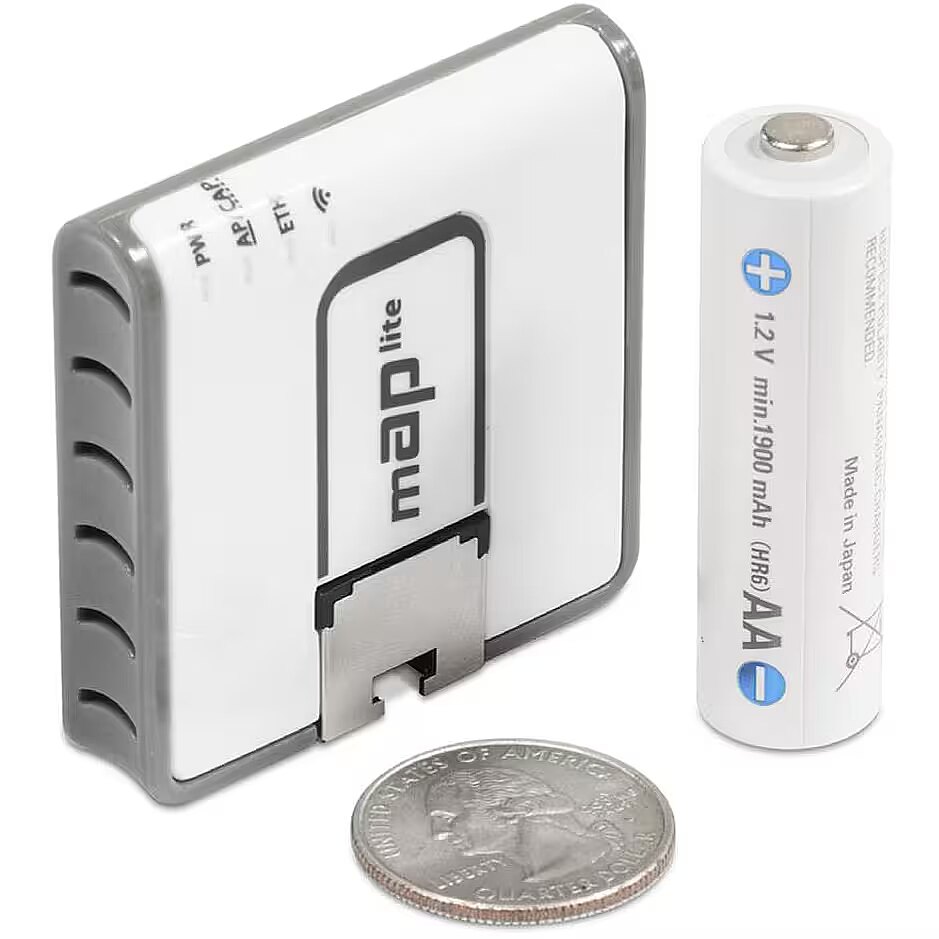

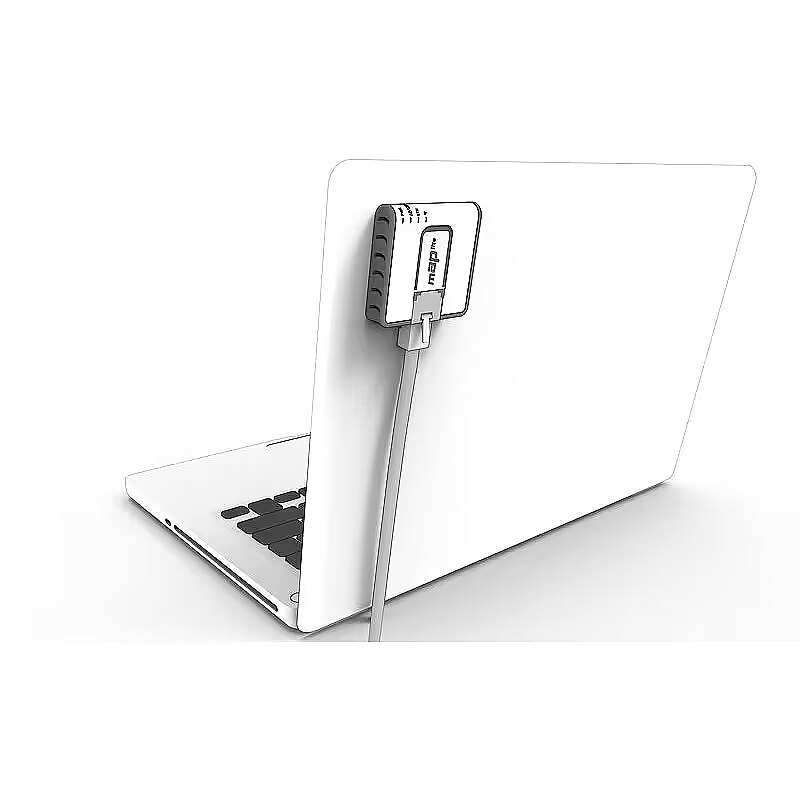

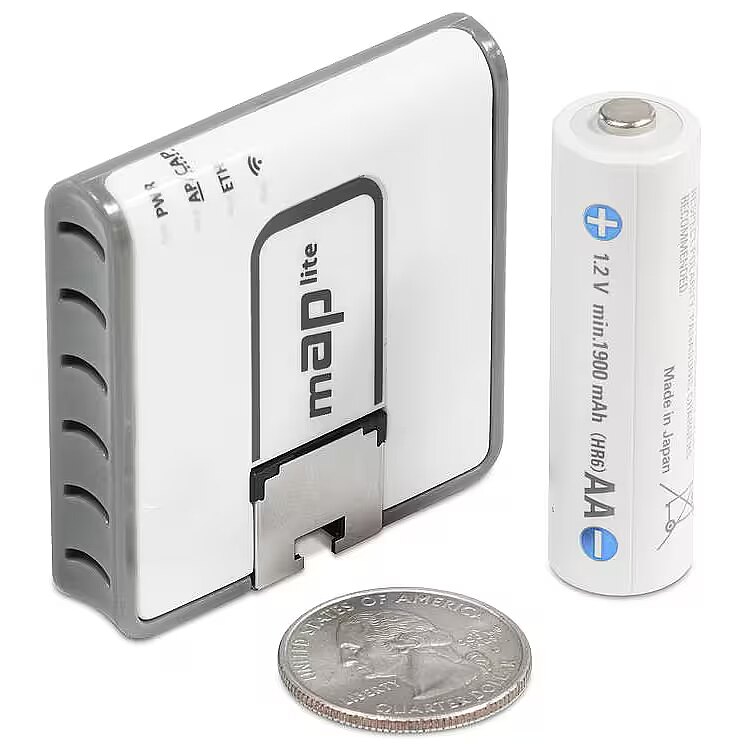

Description - The mAP lite is our smallest wireless access point. It is barely larger than a matchbox, we even had to use a special Ethernet port to match it’s slim profile. You can carry it anywhere: use as a travel router to extend that hotel internet to all your devices, or as a client device to improve your laptop signal range, the tiny mAP lite will be always with you. It can also serve as a simple configuration tool for your servers, if there is no ethernet on your mobile device. The mAP lite is a dual chain 802.11 b/g/n device and operates in 2GHz.
Design > Colour of product - White
Design > Internal - No
Design > Placement - Wall
dimension depth - 35 mm
dimension height - 90 mm
Dimensions - 48 x 49 x 11 mm
Dimensions - 48 x 49 x 11mm
dimension weight - 120 g
dimension width - 75 mm
EAN - 4752224004321
ean - 4752224004321
Features > MU-MiMO - No
Full Description Line - mAP lite // RBmAPL-2nD|Type Wireless Access Point|IEEE 802.11 b/g|IEEE 802.11n|1x10/100M|Dimensions 48 x 49 x 11mm
Gross weight - 0.189 kg
guarantee - 12
guarantee_type - normal
height - 0.04 m
I/O ports - 1 x 10/100 Mbit/s
IEEE 802.11 b/g Network standard - Yes
IEEE 802.11n Network standard - Yes
length - 0.12 m
Link - https://routerboard.com/RBmAPL-2nD
Management, monitoring, configuration -
Model name - mAP lite // RBmAPL-2nD
mpn - RBmAPL-2nD
name - Access point 2.4GHz 1FE RBmAPL-2nD
Name - MikroTik | RBmAPL-2nD | mAP lite | 802.11n | 2.4 | 150 Mbit/s | 10/100 Mbit/s | Ethernet LAN (RJ-45) ports 1 | MU-MiMO No | PoE in
Network architecture - FastEthernet
Network Device Type - Wireless Access Point
Networking > Wi-Fi - Yes
Networking > Wi-Fi standards - 802.11b/g/n
Operating frequency - 2,4 GHz
Operational conditions > Operating temperature (T-T) - -30 - 70 °C
Other features - Procesor: QCA9533 Liczba rdzeni procesora: 1 Częstotliwość nominalna procesora: 650 MHz System operacyjny: RouterOS Rozmiar pamięci RAM: 64 MB Rozmiar przechowywania: 16 MB MTBF: Około 100 000 godzin w 25C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 80.00 mm
Package features > Gross height (mm) - 120.00 mm
Package features > Gross width (mm) - 40.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 4500 pc(s)
Package features > Paper/Pasteboard - 80 g
Package features > Plastic (No PET) - 9 g
Package features > Tare weight (kg) - 0.089 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content > AC adapter included - Yes
PDF - http://www.blobs.lt/products/4/7/1/4/7/1/ac726dec46eaae272aab689af68fa146/original.pdf
Performance > 2.4 GHz - Yes
Performance > 5 GHz - No
Performance > Bandwidth - 2.4 GHz
Performance > Data transfer rate (max) - 0.15 Gbit/s
Performance > Data transfer rate (max) - 100 Mbit/s
Performance > Ethernet LAN data rates - 10/100 Mbit/s
Performance > Flash memory - 16 MB
Performance > Frequency band - 2.4
Performance > Networking standards - IEEE 802.11b, IEEE 8
Performance > Web-based management - Yes
Performance > Wi-Fi data rate (max) - 150 Mbit/s
Ports & interfaces > Ethernet LAN (RJ-45) ports - 1
Ports & interfaces > POE - PoE in
Ports & interfaces > USB port - 0
Power > Input voltage - 5 - 60 V
Power > Power consumption (max) - 3.5 W
Power over Ethernet (PoE) > Power over Ethernet (PoE) - Yes
Power supply - Liczba wejść DC: 2 (Wejście PoE, MicroUSB) Maksymalne zużycie energii: 3,5 W Napięcie wejściowe PoE: 10-60 V
producer - Mikrotik
Producer product family - RBmAPL-2nD
Producer product name - mAP lite
Security -
Shipping Box Depth Shipping/Package Box Dimensions - 12.7 cm
Shipping Box Height Shipping/Package Box Dimensions - 8 cm
Shipping box quantity - 1
Shipping Box Weight Shipping/Package Box Dimensions - 0.12 kg
Shipping Box Width Shipping/Package Box Dimensions - 4 cm
Software -
Special functions -
Standards - 802.11b
Standards - 802.11g
Standards - 802.11n
System Requirements -
Technical details > Net weight - 0.10 kg
Technical details > Producer - MikroTik
Technical details > Warranty - 12 month(s)
title - MikroTik mAP lite
Unit Box Height - 0.08
Unit Box Length - 0.127
Unit Box Width - 0.04
Unit Brutto Volume - 0.0004064 cubm
Unit Gross Weight - 0.12 kg
Unit Net Weight - 0.11 kg
Vendor Homepage - mikrotik.com/product/RBmAPL-2nD
vendpn - RBmAPL-2nD
Warranty - 12
Warranty - 12 months
weight - 0.135 kg
Weight & dimensions > Depth - 1.1 cm
Weight & dimensions > Height - 4.8 cm
Weight & dimensions > Width - 4.9 cm
width - 0.08 m
Wireless LAN features > Wi-Fi band - 802.11n
