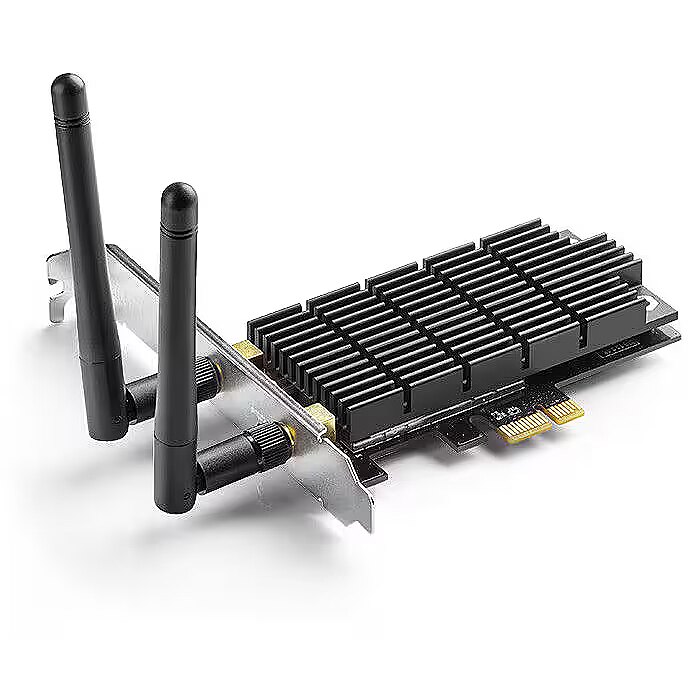

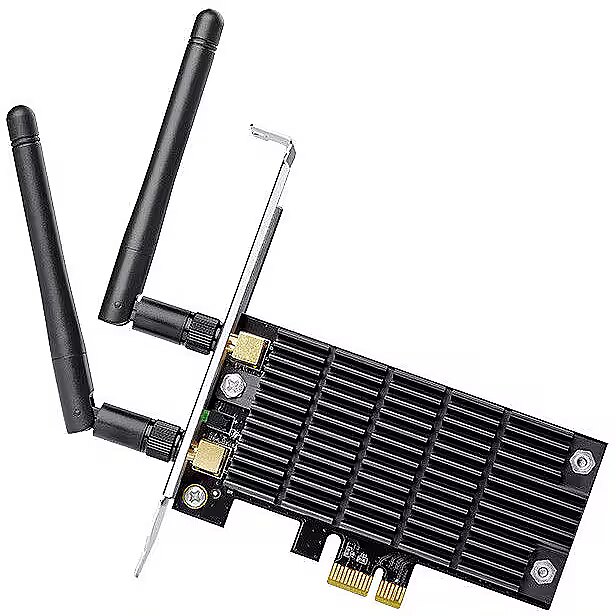

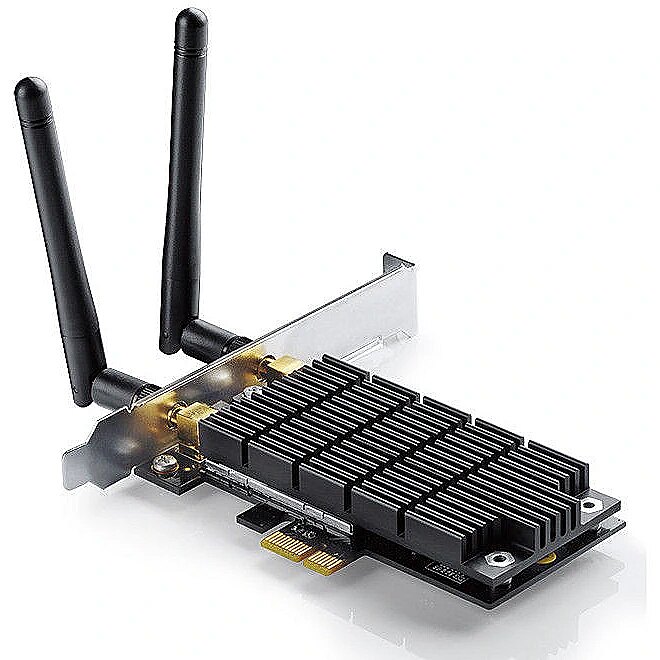

TP-LINK Archer T6E

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Recommended
ID: 121922 Product code: ARCHER T6E
In office 1 units
Warranty: 3 years
39.99 €
Delivery options
  • Delivery to Smartpost parcel locker 6.99 €: {delivery_2_txt_full}
  • Courier delivery 11.99 €: on Monday, 25.11.2024
Main product parameters All parameters
  • Speed index: 1300
  • Type of device: WiFi Adapter PCI-E 1x
  • Wi-Fi standard: Wi-Fi 5 (802.11ac)
Basic information
Speed index : 1300
Type of device WiFi Adapter PCI-E 1x

Access Point - bezvadu piekļuves punkts, kas nodrošina kabeļu tīkla paplašināšanas pārraidi bezvadu tīklā izmantojot vienu LAN pieslēgvietu. Access point nav rūteris, un nespēj sadalīt vienu interneta pieslēguma adresi vairākiem datoriem, tamdēļ šo iekārtu slēdziet tikai aiz esoša kabeļu rūtera.

Router, jeb maršrutētājs - bezvadu piekļuves punkts, kas nodrošina viena interneta pieslēguma sadalīšanu vairākiem datoriem, gan caur tīkla vadiem, gan bezvadu tīklā. Parasti bezvadu maršrutētājam ir viena kabeļu interneta pieslēgvieta, četras datoru pieslēgvietas (kuras var papildināt, izmantojot switch komutatoru) un antenas, kas nodrošina apraidi datoriem un citām WiFi iekārtām.

Range Extender - bezvadu tīkla apraides attāluma pastiprinātājs. Paredzēts esoša signāla pastiprināšanai, lai palielinātu uzveršanas un pārraides attālumu.

Wifi adapter - Bezvadu tīkla karte, paredzēta datora pieslēgšanai pie bezvadu WiFi rūtera vai piekļuves punkta. PCI, PCI-E ir paredzēti galddatoriem, savukārt PCMCIA un USB - portatīvajiem datoriem. Jāpiebilst, ka lielākā daļa portatīvo datoru jau rūpnīcā tiek komplektēti ar bezvadu tīkla kartēm.

USB tīkla karte ir pēdējā izvēle, jo USB2.0 caurlaidības ātrums ir samērā zems ~22MB/s, kas nozīmē to, ka netiks izmantots bezvadu tīkla maksimālais iespējamais ātrums. Ja ir iespēja, labāk izvēlēties kādu citu pieslēguma veidu.

Wi-Fi standard : Wi-Fi 5 (802.11ac)
Functionality
3G/4G support Nav

A possibility to put the SIM card of mobile operators or the USB Dongle adapter in the router providing access to the 3G mobile Internet.

Prior to buying a router with the 3G support you should verify whether the device supports the 3G USB Dongle receiver of the particular mobile communications operator at the manufacturer's website.

Band mode Dual-Band

SingleBand is a standard wireless technology characteristic of all the modern wireless devices.

DualBand is 2.4GHz with an additional 5.0GHz channel providing better receiving of the signal and more stable high-speed operation. For using this function both devices, i.e. the router and the wireless network card, have to support the DualBand mode.

Ethernet N/A

LAN or ethernet cables connection slots operational mode.

10/100 MB.s is the standard speed characteristic of almost all the routers.

10/100/1000 MB.s, or GigaBit is tens of times faster standard which, in combination of GigaBit LAN network cards, provides great data transmission speed advantages between computers connected within the internal network. This solution is usually required in offices where large data volumes are copied between computers or fast Internet connection is used (no ~30 MB/s) simultaneously in several computers.



Ports and equipment
LAN ports : 0
Wireless
  • Alternatives
  • Alternatives
More detailed specification
Additional information in manufacturers website TP-LINK Archer T6E
Brand - TP-Link
BrandPartCode - ARCHER T6E
Category - Network Cards
Category - Root/Electronics/Networks and communication/Network interface cards
Category_1 - Network and Servers
Category_2 - Network Cards - PCIe
Design - Antenna - Yes
Design - Antenna design - External
Design - Component for - PC
Design - Internal - Yes
Design - Operating modes - Infrastructure mode
Design - Product colour - Black
Design - Transmitting power (CE) - 23 dBm
Design - Transmitting power (FCC) - 23 dBm
Eans - 6935364092559
EAN_code - 6935364092559
GTIN - 0845973092559
GTIN - 845973092559
GTIN - 5054629910085
GTIN - 6935364092559
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - 802.11ac - The Next Generation of Wi-FiTP-LINK's Archer T6E supports the next generation Wi-Fi standard - IEEE 802.11ac, offering transfer rates that are 3 times faster than wireless N speeds. Easily upgrade your desktop system by simply slotting the Wi-Fi adapter into an available PCI-E slot.AC1300 – Selectable Dual Band Speeds 867/400MbpsThe Archer T6E provides high-speed Wi-Fi of up to 867Mbps over 5GHz, perfect for HD video streaming and lag-free online gaming. Additionally, the 2.4GHz 400Mbps Wi-Fi band is ideal for standard network/internet usage such as web surfing.Heat Sink for Better StabilityThe Heat Sink helps to dissipate heat generated by the adapter, which in turn increases performance and improves stability. What’s more, lower temperatures ensure an increased adapter lifespan.External AntennasExternal antennas for easy alignment to achieve the best signal.Operating SystemSupports Windows 8.1/8/7/XP 32/64bit.Easy to InstallA friendly user interface Utility on a CD forsimple installation.Advanced SecurityWPA/WPA2 encryptionstandards ensure your wirelessconnection is safe from intruders.
LongProductName - PCI Express, IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz, 2.4GHz or 5GHz, 64/128 bit WEP, WPA-PSK/WPA2-PSK,802.1x
LongSummaryDescription - TP-Link Archer T6E. Internal. Connectivity technology: Wireless, Host interface: PCI Express, Interface: WLAN. Maximum data transfer rate: 867 Mbit/s, Top Wi-Fi standard: Wi-Fi 5 (802.11ac), Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). Product colour: Black
Manufacturer - TP-Link
Manufacturer_code - ARCHER T6E
Name - TP-Link Archer T6E
Name - TP-Link Archer T6E, PCIe x1
Network - Frequency range - 2.4 - 5 GHz
Network - Maximum data transfer rate - 867 Mbit/s
Network - Modulation - 16-QAM, 64-QAM, 256-QAM, CCK, DBPSK, DQPSK, OFDM
Network - Networking standards - IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network - Security algorithms - 64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA-PSK, WPA2-PSK
Network - Top Wi-Fi standard - Wi-Fi 5 (802.11ac)
Network - Wi-Fi - Yes
Network - Wi-Fi band - Dual-band (2.4 GHz / 5 GHz)
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Network - WLAN data transfer rates supported - 11,54,400,867 Mbit/s
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - Antennas quantity - 2
Packaging content - Mounting brackets included - Yes
Packaging content - Quick installation guide - Yes
Packaging content - Resource CD - Yes
Packaging data - Package depth - 148 mm
Packaging data - Package height - 38 mm
Packaging data - Package weight - 280 g
Packaging data - Package width - 207 mm
Ports & interfaces - Connectivity technology - Wireless
Ports & interfaces - Host interface - PCI Express
Ports & interfaces - Interface - WLAN
Producer - TP-Link
ProducerCode - Archer T6E
ProductName - Archer T6E
ShortDescription - Duża prędkość transmisji danych – do 1300Mb/s (867Mb/s w paśmie 5GHz lub 400Mb/s w paśmie 2,4GHz)
ShortSummaryDescription - TP-Link Archer T6E, Internal, Wireless, PCI Express, WLAN, 867 Mbit/s, Black
Sustainability - Sustainability compliance - Yes
System requirements - Windows operating systems supported - Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Technical details - Compliance certificates - RoHS, Federal Communications Commission (FCC), CE
Title - TP-Link Archer T6E Internal WLAN 867 Mbit/s
URL - https://www.tp-link.com/us/home-networking/pci-adapter/archer-t6e/
WarrantyInfo - 3 year
Weight - 0,30
Weight & dimensions - Depth - 115.2 mm
Weight & dimensions - Height - 21.5 mm
Weight & dimensions - Width - 120.8 mm
