Accessories included - ZenWiFi BD4 RJ45 cable Power adapter Warranty card Quick start guide
Antenna - Built-in
Antenna > Antennas quantity - 4
Antenna > Antenna type - Internal
Brand - ASUS
BrandPartCode - 90IG0960-MO3C20
Category - Mesh Wi-Fi Systems
Category - Root/Electronics/Networks and communication/Routers
Certificates -
Code - 90IG0960-MO3C20
Color - White
Description - ASUS ZenWiFi BD4 Najnowszej generacji rozwiązanie Wi-Fi 7 - Dzięki technologii 4096-QAM ZenWiFi BD4 umożliwia ultraszybką, wydajną i stabilną transmisję sieciową z przepustowością większą o 20% w porównaniu do Wi-Fi 6. Dwuzakresowa sieć Wi-Fi 7 typu mesh - Dwuzakresowy system typu mesh Wi-Fi 7 (802.11be) z unikalnym rozmieszczeniem anten udostępnia większą szybkość transmisji na poziomie do 3600 Mb/s, zapewniając silne połączenie Wi-Fi w każdym kącie Twojego domu. Multi-link Operation (MLO) - Dzięki technologii MLO urządzenia mogą jednocześnie nadawać i/lub odbierać na różnych pasmach i kanałach. Łącza równoległe zwiększają przepustowość urządzenia, zmniejszają opóźnienia i ulepszają niezawodność. Smart Home Master - Technologia Smart Home Master umożliwia Ci szybkie skonfigurowanie wydzielonej, zaawansowanej sieci w różnych scenariuszach zastosowań. Technologia Smart Home Master obsługuje teraz trzy główne funkcje, które obejmują sieć IoT, sieć dla dzieci oraz sieć VPN. Pakiet zabezpieczeń klasy komercyjnej - ZenWiFi BD4 jest dostarczany wraz z funkcjami ASUS AiProtection Pro, kontrolą rodzicielską, a także Safe Browsing, aby zabezpieczyć Twoje domowe środowisko Wi-Fi.
Design - Antennas quantity - 4
Design - Antenna type - Internal
Design - LED indicators - Power
Design - Product colour - White
Design - Product type - Mesh system
Design - Reset button - Yes
Designation - CE+WEEE
dimension depth - 80 mm
dimension height - 405 mm
Dimensions - 140 x 70 x 140 mm
dimension weight - 1660 g
dimension width - 175 mm
EAN - 4711387534748
ean - 4711387534748
Eans - 4711387534748
Environment requirements -
Features - Parental Controls & VPNs, Advanced Network Security
Features - Built-in processor - Yes
Features - DHCP server - Yes
Features - Firewall security - Firewall
Features - Flash memory - 128 MB
Features - Internal memory - 512 MB
Features - MU-MIMO technology - Yes
Features - Parental control - Yes
Features - Port forwarding - Yes
Features - Processor cores - 4
Features - Processor frequency - 1.5 GHz
Features - Quality of Service (QoS) support - Yes
Features > Mesh Support - Yes
Features > MU-MiMO - Yes
GTIN - 0197105534742
GTIN - 197105534742
GTIN - 4711387534748
guarantee - 36
guarantee_type - normal
I/O ports - 2 x 10/100/1000/2500 RJ-45 port (WAN)
LongDesc - ASUS ZenWiFi BT8 Worry-Free Smart Home MeshThe ASUS ZenWiFi series advances your ever-evolving smart home with worry-free WiFi. The ASUS ZenWiFi BT8 raises the bar for whole-home mesh with WiFi 7 and next-gen Smart AiMesh technology. It delivers blazing-fast tri-band speeds up to 14 Gbps and unleashes superior 6 GHz WiFi. Along with ultra-high-speed dual 2.5-gigabit Ethernet ports and a suite of advanced network and security technologies, this mesh WiFi system is ready for the future of your smart home network today.DESIGNThe Pinnacle of WiFiASUS ZenWiFi BT8 embodies our unwavering commitment to developing incredible in-house WiFi and network technologies. Seamlessly connect to your family and friends within a worry-free connected experience.Incredible Comes From WiFi 7IEEE 802.11beWiFi 7 Powering Premium MeshThe ZenWiFi BT8 boasts cutting-edge WiFi 7 technology. This superior tri-band mesh system unleashes the full potential of WiFi 7 with wired backhaul options. Enjoy a next-generation connected experience for home entertainment and cloud computing, including 8K streaming, HDR gaming, content creation and AI.Tri-band up to 14000 MbpsUp to 2.4x Faster* With 320 MHz & 4K-QAM *Compared to WiFi 6ETri-band Multi-Link With 2.4 GHz + 5 GHz + 6 GHzSuperior 6 GHz WiFiBoasting a superior 6 GHz band, ZenWiFi BT8 unleashes blazing-fast tri-band WiFi 7 speeds up to 14 Gbps. It ensures comprehensive WiFi compatibility for a wide range of devices, from cutting-edge WiFi 6E mobile devices to legacy IoT devices.Comprehensive MLO SupportMulti-Link Operation (MLO) enables buffering-free connection by intelligently combining and switching between the 2.4 GHz, 5 GHz, and 6 GHz bands. ZenWiFi BT8 is built to be future-proof with all WiFi 7 devices, regardless of the MLO mode they use.**Supported MLO modes and bands may vary by device. Please refer to device specifications for details.Ultrawide 320 MHz ChannelsWiFi 7 introduces ultrawide 320 MHz channel bandwidth in the 6 GHz band, doubling data transmission capacity. This allows for significantly more simultaneous transmissions at the fastest possible speeds.Efficient 4K-QAM TransmissionCompared to 1024-QAM with WiFi 6/6E, 4096-QAM allows each signal to more densely incorporate larger amounts of data, delivering up to 20%* more efficient data transmission.MESH TECHNOLOGYAI-Boosted Smart AiMeshZenWiFi BT8 harnesses the power of WiFi 7 and next-gen Smart AiMesh technology to deliver wider coverage, a more stable and secure network and a feature-rich network experience – all under one network name for your entire smart home.A 2pk coverage up to 5,900 sq. ft. 5+ RoomsA 1pk coverage up to 3,000 sq. ft. 4+ RoomsIntelligent Mesh BackhaulSmart AiMesh backhaul intelligently leverages WiFi 7 Multi-Link Operation, automatically aggregating or switching across multiple bands for optimized performance and low latency.A GIF showing ASUS Smart AiMesh auto-aggregating or switching across multiple bands for optimal backhaul.Scalable 2.5G ConnectivityExperience lightning-fast speeds even in homes with thick walls. With dual 2.5G ports, you can extend the 2.5G wired mesh backhaul between mesh nodes for strong, seamless connectivity, ensuring your entire home network stays connected and ready for the future.Smart MLO ConnectSmart AiMesh uses Multi-link Operation to achieve a faster connection. Intelligent algorithms direct low-priority packets to the less congested band, ensuring that high-priority packets remain lightning-fast for optimal data transmission.A GIF showing email packets directed to a less congested band, while high-priority packets enjoy fast MLO transmission.Values Beyond ExtensionAiMesh goes beyond just extending coverage or seamless roaming. It works with all compatible ASUS routers, offering easy management, advanced security and smart home features across your entire network.PerformanceEngineered for Always-Connected HomeASUS engineering shines in ZenWiFi BT8's robust design, delivering superior coverage and unrivaled reliability.Unrivaled Coverage and ReliabilityWith seven internal antennas and eight high-power front-end modules, the ZenWiFi BT8 eliminates WiFi dead zones, delivering consistent coverage in all directions. Efficient heat dissipation also maintains cool and quiet operation for enhanced performance and long-lasting reliability.Next-gen PowerhouseFueled by a powerful CPU and 1 GB of RAM, the ZenWiFi BT8 delivers exceptional processing power. This unleashes advanced features, optimizing your network for smoother 8K streaming, HDR gaming and an enhanced AI network experience.Next-Gen ConnectivityEmbrace the future of 2.5G home networking with the ZenWiFi BT8.Dual 2.5G PortsThe ZenWiFi BT8 includes one 2.5G WAN port and one 2.5G LAN port, ready for next-gen entertainment, home studios and ultra-fast 2.5G Ethernet backhaul.Versatile WAN OptionsThe ZenWiFi BT8 provides versatile WANs, including a 2.5G WAN port and an USB WAN for flexible network configurations.4G LTE & 5G Mobile TetheringStay connected anytime with the convenient USB 4G LTE and 5G mobile tethering, even during Internet outages or while on the go.How to set it up?Worry-Free WiFiNetwork SecuritySafeguard Everyone and Every Connected DeviceIn a connected world, your home network is the gateway to your digital life. Gain complete visibility and control over your home network, defend against emerging threats, and ensure seamless protection for all your connected devices and personal data. ASUS Network Security provides peace of mind with robust router protection, device protection, and secure connections.Comprehensive Triple-level ProtectionRobust router safeguards with commercial-grade cloud protection powered by Trend Micro™ shield your smart home network, while feature-packed controls and management empower every member of your household to manage their connected devices securely for ever-evolving cybersecurity landscape. Additionally, advanced encrypted connection protects your online activity and data, keeping them private and secure.Top-Notch Security Within ReachThe intuitive ASUSWRT interface and mobile router app let you easily monitor, control and manage your network security, including advanced features such as VPNs.Extendable Custom NetworkAiMesh technology ensures your whole-home WiFi remains protected under the same SSID. The new Smart Home Master unlocks even more advanced settings for further customization.One-Stop SolutionsASUS partners with trusted security and VPN solution providers to offer one-stop security solutions with optimal network performance.User FriendlyRouter Protection Made EasyASUS Network Security includes convenient network tools such as a one-tap Security Scans for diagnosing network health, fine-tuned settings options, and on-the-go notifications.Instant NotificationsReceive instant notifications for new device connections to block unknown devices from accessing your network or group new devices into a user profile.Auto Security UpdatesSecure your router with integrated defense measures that continuously update and scan to protect against malware and emerging threats.Network SegmentationFeature-Packed Smart Home Master SSIDsASUS Smart Home Master subnetwork management streamlines the process of creating or connecting to dedicated SSIDs with advanced features like parental controls and VPNs.IoT NetworkSet up and manage all your IoT devices under one secure SSID to provide enhanced security with commercial-grade protection.Kid’s NetworkCreate a dedicated SSID just for the kids to easily manage their screen time without needing to configure each device individually.VPN NetworkConnect to your preferred VPN service with a single click through a dedicated subnetwork.Parental ControlsSafer, Smarter Family ProtectionAdvanced family protection and parental controls empower you to nurture a balanced digital life for you and your kids, all without subscriptions.Internet Activity DashboardMonitor your kids' Internet usage through a comprehensive graphical dashboard. See their online time, data consumption, and device-specific activity at a glance.Preset Age-Level ProfilesPreset profiles automatically filter inappropriate content and set screen time schedules, making it easy to apply settings based on your children's ages.Flexible Time SchedulingDefine online and offline hours for each child, ensuring balanced screen time and fostering healthy digital habits. Reward good behavior with extra online time as positive reinforcement.Safe BrowsingCustomize protection for individual users or a group of devices with safety filters to secure your online activities.VPNStay Protected Anywhere, AnytimeEnjoy secure browsing, data privacy, remote access – extensive ASUS VPN capabilities handle it all. The ZenWiFi BT8 supports versatile VPN protocols, including the cutting-edge WireGuard® for lightning-fast speeds and optimal performance.Instant GuardWhen away from home, ASUS Instant Guard gives you a one-tap secure VPN*, and you can even easily share it with your family and friends through a URL link.How to set it up?*The router must have a public IPv4 WAN IP address to use ASUS Instant Guard.Multiple VPN ConnectionConnect to multiple encrypted VPN tunnels simultaneously while maintaining the Internet access without interruption.ASUS Router AppThree-Step Easy Setup, Powerful ControlsThe intuitive interface of the ASUS Router mobile app makes managing your network simple on your smartphone. Simply follow the on-screen directions, and you will be up and running in no time!
LongProductName - Dual-band WiFi 7 (802.11be) AiMesh Extendable Router, 3.6 Gbps, Coverage up to 6500 sq. ft. (3pk), Dual 2.5G Ports, Up to 3 SSIDs for IoT Devices, Parental Controls & VPNs, Advanced Network Security
LongSummaryDescription - ASUS ZenWiFi BD4 (2-pack EU+UK). Product colour: White, Antenna type: Internal, Product type: Mesh system. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz), Top Wi-Fi standard: Wi-Fi 7 (802.11be), WLAN data transfer rate (max): 2882 Mbit/s. Processor frequency: 1.5 GHz, Internal memory: 512 MB, Flash memory: 128 MB. AC input voltage: 110 - 240 V, AC input frequency: 50 - 60 Hz, AC adapter output voltage: 12 V. Width: 140 mm, Depth: 70 mm, Height: 140 mm
Management, monitoring, configuration - Diagnosis Tools Feedback System System Log New Device Connect Notification Login Captcha Connection Diagnosis Auto Firmware Update Adaptive QoS: Bandwidth Monitor, Bandwidth Limiter Traditional QoS Traffic Monitor Traffic Analyzer Website History WAN: Port Forwarding Port Triggering DMZ DDNS LAN: DHCP Server IGMP Snooping IPTV Manually Assign IP Address Wake on LAN (WOL) Wireless: MU-MIMO UTF-8 SSID WiFi MAC Address Filter Wireless Scheduler Airtime Fairness RADIUS Client Universal Beamforming Explicit Beamforming
Model - ZenWiFi BD4
Name - ASUS BD4 (2 pack)
Name - Asus | Dual-band WiFi 7 AiMesh Extendable Router | ZenWiFi BD4 (2pk) | 802.11be | 3600 Mbit/s | 3600 Mbit/s | Ethernet LAN (RJ-45) ports 2 | Mesh Support Yes | MU-MiMO Yes | Antenna type Internal
name - Router ZenWiFi BD4 Dual-band WiFi 7 Mesh, 3600 Mbps (2-pack)
Network architecture - GigabitEthernet
Number of antennas - 4
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Other features -
Other features > Ethernet LAN (RJ-45) ports - 2
Other features > Frequency range - 2.4 GHz + 5 GHz GHz
Other features > Power supply type - AC Input : 110V~240V(50~60Hz) DC Output : 12V with max 1.5A current
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 235.00 mm
Package features > Gross height (mm) - 198.00 mm
Package features > Gross width (mm) - 304.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 61 pc(s)
Package features > Paper/Pasteboard - 200.00 g
Package features > Plastic (No PET) - 39.00 g
Package features > Tare weight (kg) - 0.24 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - AC adapter included - Yes
Packaging content - Ethernet cable - Yes

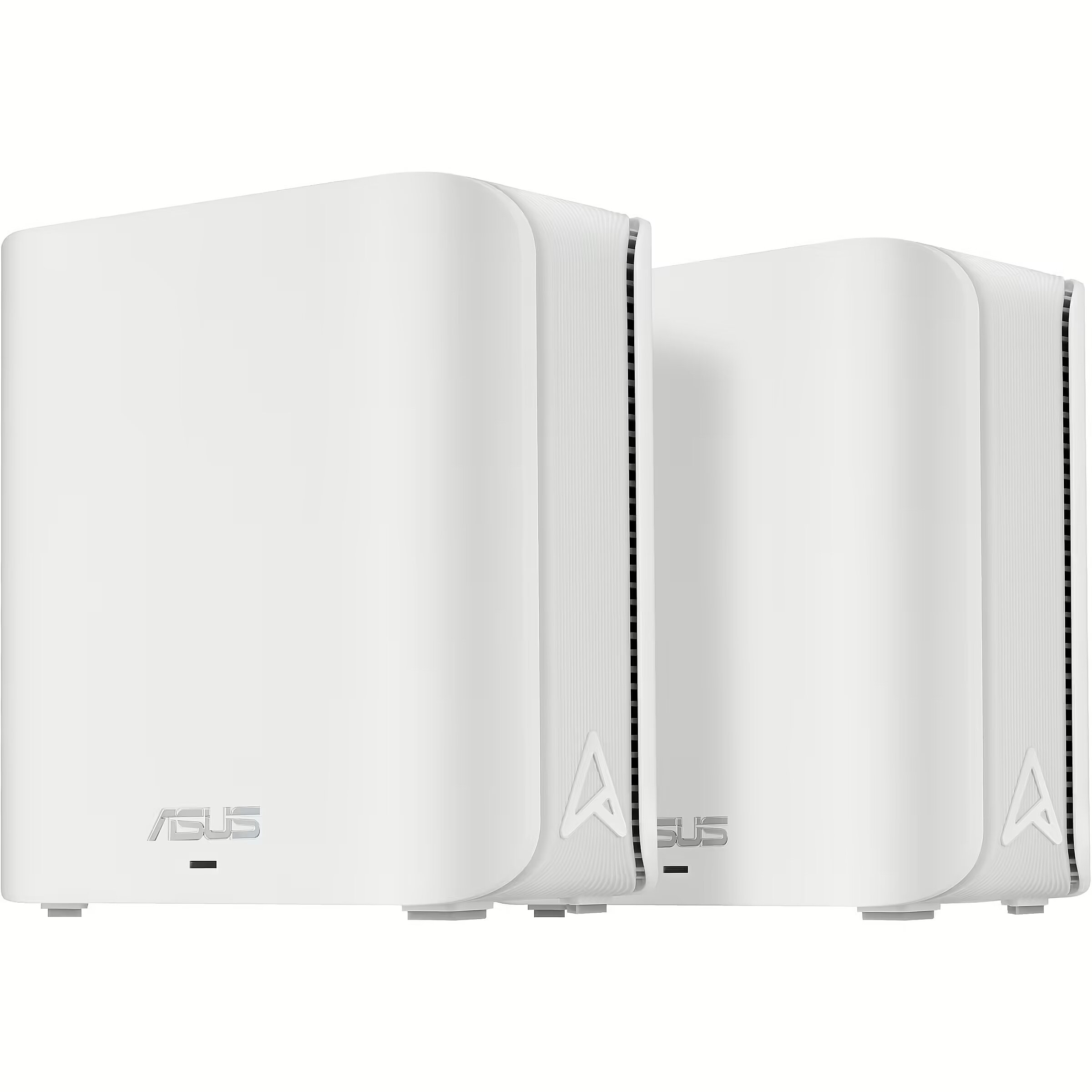

Packaging content - Number of products included - 2 pc(s)
Packaging data - Package depth - 174 mm
Packaging data - Package height - 78 mm
Packaging data - Package weight - 1.6 kg
Packaging data - Package width - 407 mm
Performance > Ethernet LAN data rates - 3600 Mbit/s
Performance > Wi-Fi data rate (max) - 3600 Mbit/s

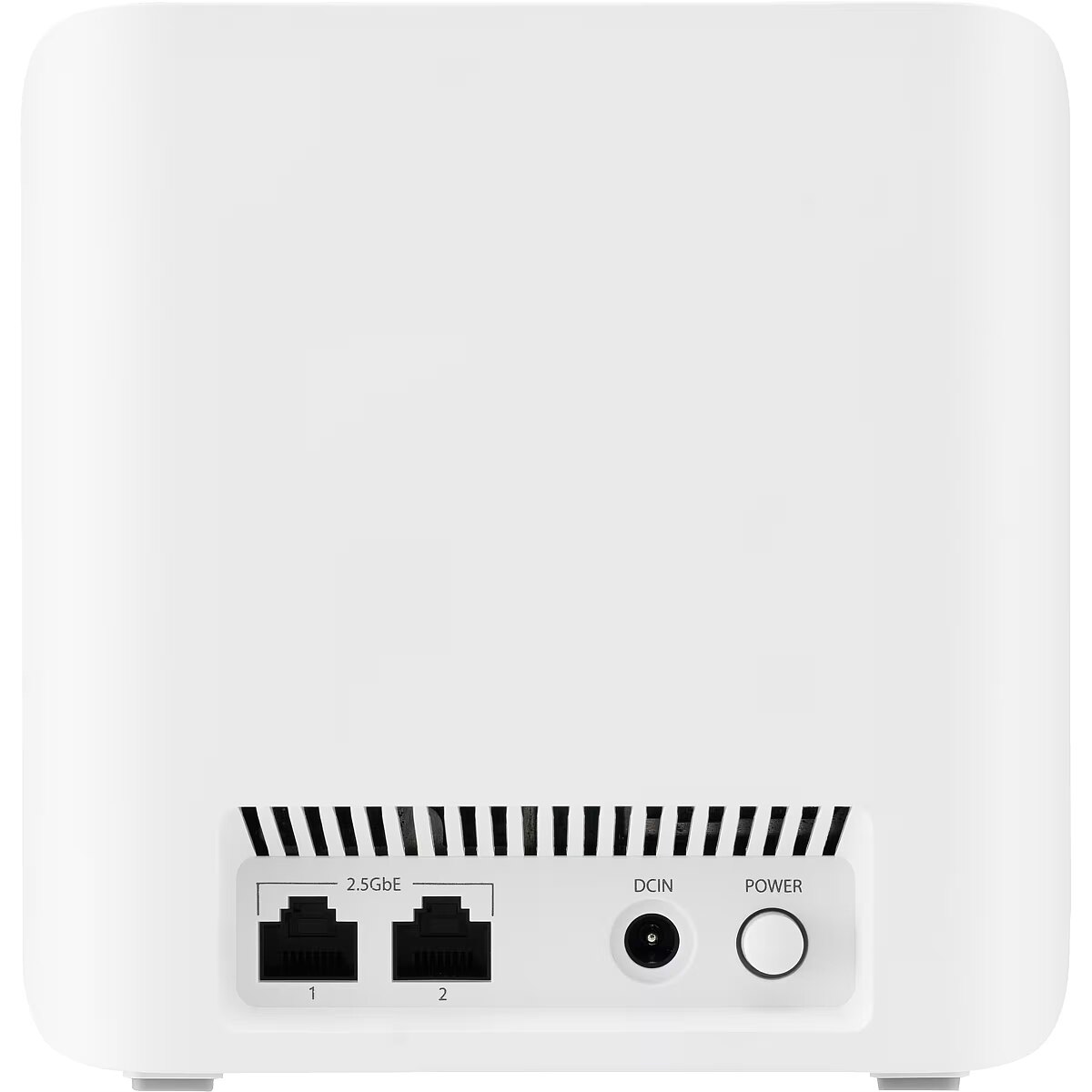

Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - Ethernet WAN - Yes
Ports & interfaces > I/O ports - 2.5G x 2 (WAN/LAN auto detecting)
Power - AC adapter output current - 1.5 A
Power - AC adapter output voltage - 12 V
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 110 - 240 V
Power supply - Wejście AC: 110 V ~ 240 V (50 ~ 60 Hz) Wyjście DC: 12 V z maksymalnym prądem 1,5 A
Processor > Processor model - 1.5GHz quad-core processor
producer - Asus
Producer - Asus
ProducerCode - BD4 2-pak
ProductName - ZenWiFi BD4 (2-pack EU+UK)
Security - AiProtection VPN WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise WPS Let's Encrypt DNS-over-TLS Security Scan Firewall Parental Control VPN
ShortDescription - WI-FI 7
ShortSummaryDescription - ASUS ZenWiFi BD4 (2-pack EU+UK), White, Internal, Mesh system, Power, Dual-band (2.4 GHz / 5 GHz), Wi-Fi 7 (802.11be)
Software - ASUS Router APP
Special functions - Obsługa Google Assistant AiMesh: Primary AiMesh Router; AiMesh Node
Standards - 802.11a
Standards - 802.11ac
Standards - 802.11ax
Standards - 802.11b
Standards - 802.11be
Standards - 802.11g
Standards - 802.11n
Standards - IPv4
Standards - IPv6
System Requirements -
System requirements > Minimum RAM - 512 MB
Technical details > Gross weight - 0.80 kg
Technical details > Net weight - 0.56 kg
Technical details > Producer - Asus
Technical details > Producer product family - Dual-band WiFi 7 AiMesh Extendable Router
Technical details > Producer product name - ZenWiFi BD4 (2pk)
Title - ASUS ZenWiFi BD4 (2-pack EU+UK) Dual-band (2.4 GHz / 5 GHz) Wi-Fi 7 (802.11be) White Internal
Type - xDSL
URL - https://www.asus.com/networking-iot-servers/whole-home-mesh-wifi-system/zenwifi-wifi-systems/asus-zenwifi-bd4/
vendpn - ZenWiFi BD4 (2pk)
Warranty - 36
Warranty - 36 month(s)
WarrantyInfo -
Weight & dimensions - Depth - 70 mm
Weight & dimensions - Height - 140 mm
Weight & dimensions - Weight - 511 g
Weight & dimensions - Width - 140 mm
Wireless LAN features - Apps supported - ASUS Router
Wireless LAN features - Dynamic DNS (DDNS) - Yes
Wireless LAN features - Guest access - Yes
Wireless LAN features - IGMP snooping - Yes
Wireless LAN features - Networking standards - IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n
Wireless LAN features - Security algorithms - WPA, WPA2, WPA2-Enterprise, WPA3-Personal
Wireless LAN features - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Wireless LAN features - VPN support - Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
Wireless LAN features - Wi-Fi band - Dual-band (2.4 GHz / 5 GHz)
Wireless LAN features - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Wireless LAN features - WLAN data transfer rate (first band) - 688 Mbit/s
Wireless LAN features - WLAN data transfer rate (max) - 2882 Mbit/s
Wireless LAN features - WLAN data transfer rate (second band) - 2882 Mbit/s
Wireless LAN features > Dual-band - Yes
Wireless LAN features > Wi-Fi band - 802.11be
Wireless LAN features > Wi-Fi standards - WiFi 4 (802.11n); WiFi 5 (802.11ac); WiFi 6 (802.11ax); WiFi 7 (802.11be)
