ID: 987538
Product code: 60005575
Can be ordered 1 units Availability: 14 days after order approval
Warranty: 3 years

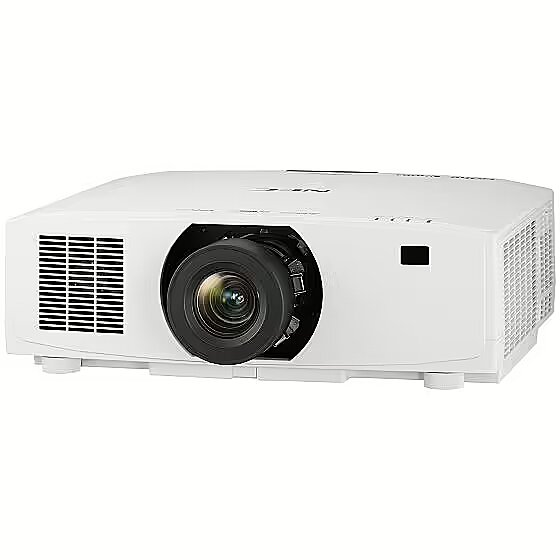

NEC PV710UL-W
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost 6.99 €: 12.03.2025
- Courier delivery 11.99 €: 12.03.2025
Main product parameters All parameters
- Brightness (lumens): 7100 ANSI
- Contrast ratio: 3000000:1
- Native resolution: WUXGA 1920 x 1200
All parameters
Brightness (lumens)
7100 ANSI
The brightness of the projector bulb in ANSI lumens units. This is an important indicator if you want to use the projector in daylight conditions or lit rooms. A higher number of lumens means better brightness. TopPC.fi recommends to buy a projector with 2000 and more lumens.
Contrast ratio
3000000:1
The projector contrast determines the sharpness of the image. The higher the contract the clearer the visibility of the text on the screen; the contrast also determines how well the lines will be pronounced in the image created by the projector. A high contrast is an important factor when a projector for the presentation needs is selected.
The measuring unit of the contrast is the ratio between the lightest and darkest condition of the pixel. The higher the ration the better the contrast.
The measuring unit of the contrast is the ratio between the lightest and darkest condition of the pixel. The higher the ration the better the contrast.
Native resolution
WUXGA 1920 x 1200
The matrix (natural) resolution determines the number of colour dots (pixels) the projector can display without compression (at the maximum sharpness of the image). The higher the matrix resolution the better the sharpness of the image and the bigger the software desktop for efficient work.
More detailed specification
ARTIKEL1 - PV710UL-W PROJECTOR WUXGA
ARTIKEL2 - 7100LM LCD WHITE CABINET
Brand - NEC
BrandPartCode - 60005575
Category - Data Projectors
Design - Market positioning - Presentation
Design - Product colour - White
Design - Product type - Standard throw projector
Display - Built-in display - No
EANCode - 5028695614758
Features - Certification - CE; EAC; ErP; RoHS; TUEV Type Approved
Features - HDCP - Yes
Features - Interactive - No
Features - Noise level - 40 dB
GRUPPE1 - Projector/Plasma
GRUPPE2 - Projector Wxga
GTIN - 5028695614758
HERSTELLER - SHARP NEC
HSTNUMMER - 60005575
Lens system - Focus - Manual
Lens system - Horizontal lens shift range - -20 - 20%
Lens system - Vertical lens shift range - -50 - 10%
Lens system - Zoom capability - Yes
Lens system - Zoom type - Manual
Light source - Light source brightness - 7400 lm
Light source - Light source type - Lamp
Light source - Service life of light source - 20000 h
Logistics data - Quantity per pack - 1 pc(s)
LongDesc - Cost-effective LCD-based laser projector with interchangeable lensesA highly economical projection solution, the PV710UL offers essential installation flexibility, low maintenance and long-life laser performance, yet remains impressively cost-efficient and conveniently compact.3LCD technology generates brilliantly vivid colour, which, at 7100 Lm brightness, promotes an outstanding visual perception. A broad range of interchangeable lens options are available, alongside essential professional features.The PV710UL offers the ideal upgrade path to transition to long-life, maintenance-free laser light source technology. Using the same mount and lenses as the lamp-based NEC PA Series projectors, operators can gain additional cost savings by utilising existing assets. For visualisation in large spaces, the PV710UL offers outstanding value for higher education, corporate, leisure and hospitality sectors.
LongProductName - 3LCD Technology, 1920 x 1200, WUXGA, 16:10, 7400 Lm, 1 x USB, 1 x RJ45, 2 x 3.5 mm. 1 x RS-232, 4 x HDMI, 2 x HDBaseT, 499 x 164 x 407mm, 11.2kg, White
LongSummaryDescription - NEC PV710UL. Projector brightness: 7100 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WUXGA (1920x1200). Light source type: Lamp, Service life of light source: 20000 h, Light source brightness: 7400 lm. Focus: Manual, Zoom type: Manual, Horizontal lens shift range: -20 - 20%. Supported graphics resolutions: 1280 x 768 (WXGA), 1920 x 1200 (WUXGA), 3840 x 2160. Serial interface type: RS-232, HDMI connector type: Full-size
Multimedia - Built-in speaker(s) - No
Network - Ethernet LAN - Yes
Network - Ethernet LAN (RJ-45) ports - 1
Network - Smart TV - No
Network - Wi-Fi - No
Operational conditions - Operating relative humidity (H-H) - 20 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 20 - 80%
Operational conditions - Storage temperature (T-T) - -10 - 50 °C
Packaging content - Cables included - Power
Packaging content - Manual - Yes
Packaging content - Remote control included - Yes
Packaging content - Remote control type - IR
Ports & interfaces - DVI port - No
Ports & interfaces - HDBaseT port - Yes
Ports & interfaces - HDMI connector type - Full-size
Ports & interfaces - HDMI ports quantity - 4
Ports & interfaces - PC Audio in - Yes
Ports & interfaces - PC Audio out - Yes
Ports & interfaces - PC in (D-Sub) - Yes
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB 2.0 Type-A ports quantity - 1
Ports & interfaces - VGA (D-Sub) ports quantity - 1
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100-240 V
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 434 W
Power - Power source - AC
ProductName - NEC PV710UL
Projector - Contrast ratio (typical) - 3000000:1
Projector - Keystone correction, horizontal - -30 - 30°
Projector - Keystone correction, vertical - -30 - 30°
Projector - Native aspect ratio - 16:10
Projector - Projection distance - 0.7 - 50.9 m
Projector - Projection technology - 3LCD
Projector - Projector brightness - 7100 ANSI lumens
Projector - Projector native resolution - WUXGA (1920x1200)
Projector - Screen size compatibility - 1016 - 12700 mm (40 - 500")
Projector - Smart projector - No
Projector - Supported aspect ratios - 16:10
Projector - Vertical synchronization (max) - 120000 kHz
Projector - Vertical synchronization (min) - 50000 kHz
ShortSummaryDescription - NEC PV710UL, 7100 ANSI lumens, 3LCD, WUXGA (1920x1200), 3000000:1, 16:10, 1016 - 12700 mm (40 - 500")
Stck_Kart - 1
Stck_Pal - 0
Storage - Card reader integrated - No
Storno - Y
Title - NEC PV710UL Standard throw projector 7100 ANSI lumens 3LCD WUXGA (1920x1200) White
URL - https://www.sharpnecdisplays.eu/p/eeme/en/products/details/t/projectors/laser-projectors/rp/pv710ul.xhtml
Video - 3D - No
Video - Analog signal format system - Not supported
Video - Full HD - No
Video - Supported graphics resolutions - 1280 x 768 (WXGA), 1920 x 1200 (WUXGA), 3840 x 2160
WarrantyInfo - 3 years
Weight & dimensions - Depth - 407 mm
Weight & dimensions - Height - 164 mm
Weight & dimensions - Weight - 11.2 kg
Weight & dimensions - Width - 499 mm
